ALIBI ALI-CD1080PV Quick Installation Manual

ALI-CD1080PV HD-TVI Outdoor
Vandalproof Infrared Bullet
Camera Quick Installation Guide
The ALIBI ALI-CD1080PV camera feature a 1/2.7" CMOS image sensor that delivers high-definition video
resolution over RG59 coax or any standard analog CCTV cabling up to 1600 ft. This camera must connect
to an HD-TVI compatible DVR, such as an ALIBI HVR. This HD video camera is ideal for security applications
that require a high level of detail, such as facial recognition.
Features
CMOS image sensor
•
HD-TVI technology produces 1920 × 1080 (1080p)
•
3.6 mm wide angle (90°) lens captures images over large areas
HD-TVI technology transmits zero latency HD video resolution over coax cabling
•
Up the Cable (UTC) On Screen Display (OSD) configuration setup and control through HD-TVI DVR
•
Built-in IR with range up to 65' in the dark
•
True day/night (ICR) captures sharp, clear images in low light and at night
•
-40 °F ~ 140 °F extreme temperature operating range
•
IP66 weather-rated housing, IK10 impact rating
•

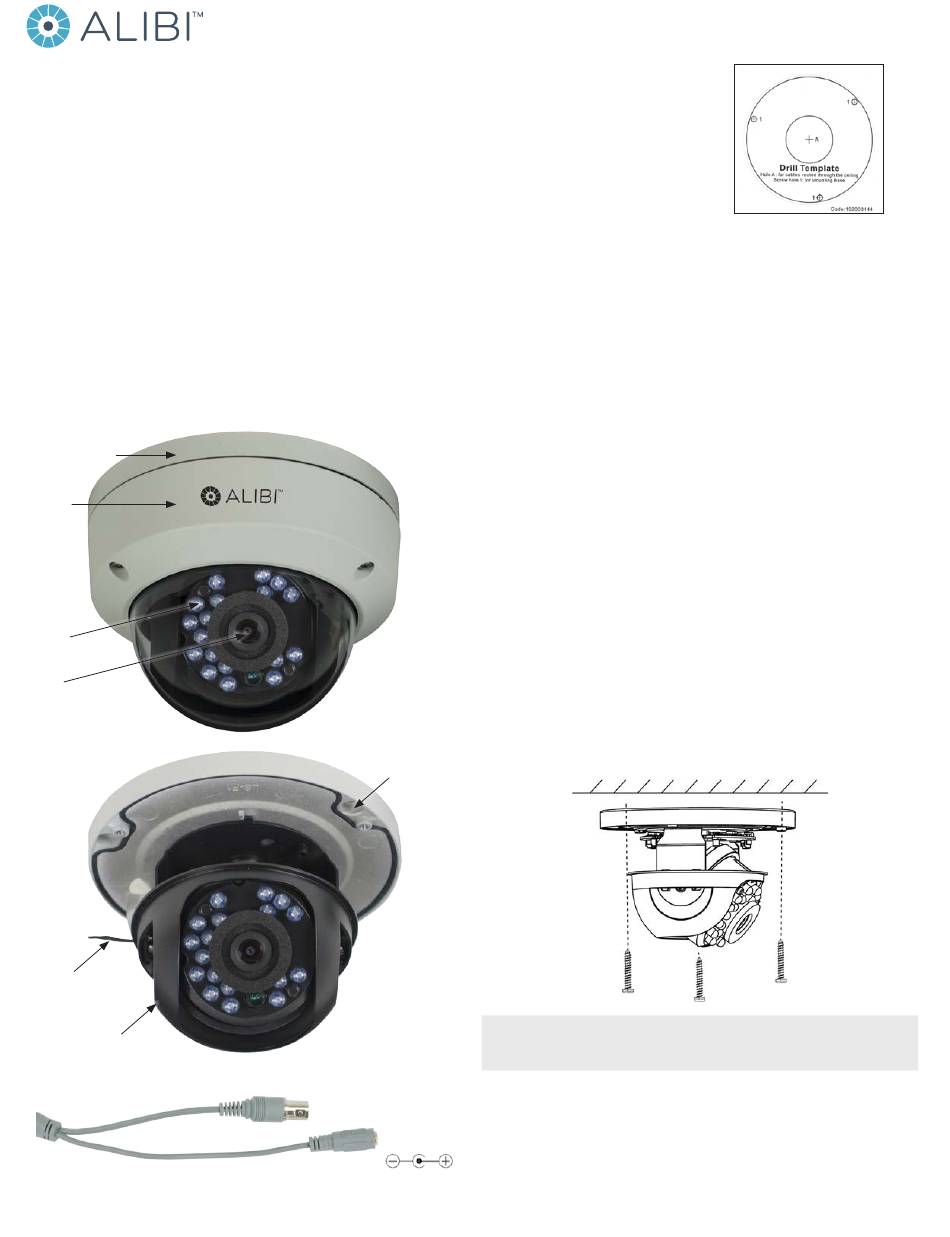

Mounting base
Dome
cover
IR LED
Lens
Tether
for dome
cover
Black liner
Camera assembly without dome cover
Camera drop cable connectors
www.observint.com
1
What's in the box
•
•
•
•
•

Tools you need

To install the camera, you will need:
•
•
•
•

Installation

Before installation:
•
•
•
•
During installation:
•
•
•
Step 1.
These cameras can be mounted on a wall or ceiling that has sufficient strength to support it. The video/
power drop cable from the camera can be routed either through mounting surface or through a cable guide
Hole for on the edge of the mounting base.
mounting
screw (3)
NOTE
1.
HD-TVI video
BNC connector
Power
Connector
2.
Camera assembly
Mounting hardware
This instruction guide
Security L-wrench
Drill template
12 Vdc power source. See Specifications for wattage requirement.
Tools and additional fasteners (may be required) for mounting the camera
#2 Phillips screwdriver, #1 blade screwdriver
Video and power extension cable
Make sure that the device is in good condition and all the assembly parts are included.
Check the specification of the products for the installation environment.
Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the camera.
To avoid fire or shock hazard, use only UL listed power supplies. Verify that the power supply will
provide the rated voltage and wattage for the camera. See the Specifications section.
Camera Lens: Handle the camera carefully to prevent scratching or soiling the lens. If the lens or IR
array shield becomes soiled, clean it only with approved products. See the
Monitor impedance: Set the monitor impedance switch to 75 Ω.
Power supply: Camera drop cable: The camera drop cable includes two connectors:
Video BNC connector: For transmission of the video signal across a coax (75 Ω) extension cable.
—
Power connector: When applying Vdc power, observe the power polarity. See the picture below
—
for the connector polarity configuration.
Mounting the camera
If mounting the camera on a wall, ensure that the cable guide in the mounting base, is down.
If mounting the camera on a ceiling, orient the mounting base so that the cable guide is pointing
away from any source of water, dust, and other contaminates.
Using the drill template provided, mark the location of the screws that anchor the mounting base
to the mounting surface. See the note above. If you are routing the drop cable through mounting
surface, also mark the position of the hole for the drop cable.
Drill holes for the screws that anchor the base to the mounting surface. The mounting hardware
provided is appropriate for most surfaces. However, depending on the surface materials, more
appropriate fasteners may be required.
section.
Cleaning
ALI-CD1080PV_CQ
3/24/15
