Summary of Contents for Fieldmann FDV 1004-A

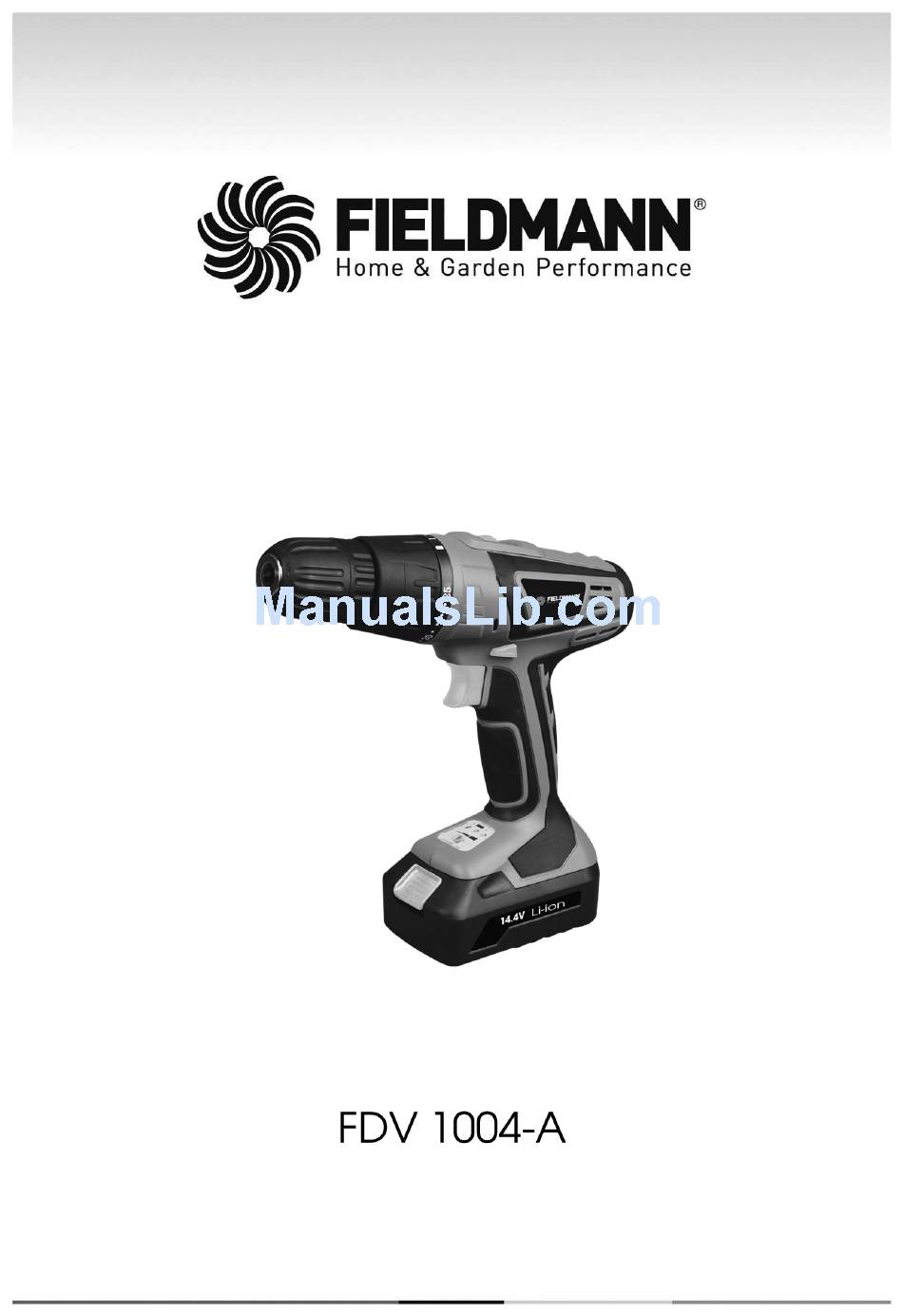

- Page 4 FDV 1004-A...
-
Page 5: Table Of Contents
Contents Cordless Drill USER'S MANUAL Thank you for purchasing this cordless drill. Before you start using it, please, carefully read this user's manual and save it for possible future use. CONTENTS ILLUSTRATED ATTACHMENT ..........................3 1. GENERAL SAFETY REGULATIONS ......................... 6 Important safety notices Packaging Operating instructions... -
Page 6: General Safety Regulations
Adherence to the attached instructions for use is a precondition for the proper use of the machine. The operation manual includes also instructions for operation, maintenance and repairs. The manufacturer does not take any responsibility for accidents or damages resulting from the failure to adhere to this manual. FDV 1004-A FDK 2001-E... -
Page 7: Operating Instructions
General safety instructions General safety instructions GENERAL SAFETY INSTRUCTIONS Carefully read, remember and keep these safety instructions WARNING! In the use of electric machines and power tools, it is necessary to respect and follow the following safety instructions for the reasons of protection against electric shock, personal injury and danger of fire. -
Page 8: Personal Safety
Children must be supervised to make sure they are not playing with the equipment. FDV 1004-A FDK 2001-E... -
Page 9: Operating Instructions
General safety instructions General safety instructions Power Tool Use and Maintenance Always disconnect the power tool from the mains in case of any problem during the work, before cleaning the power tool or its maintenance, during each transportation and after the completion of the work! Never operate a power tool if it is damaged in any way. - Page 10 (it could cause injury or damage to the user). Always have your power tool repaired in a certified service centre. Use only original or recommended replacement parts. This will ensure that your safety and the safety of your power tool is maintained. FDV 1004-A FDK 2001-E...
-
Page 11: Symbols
Use eyes protective equipment Double-insulated. Use ears protectiove equipment Thread of jig. Use eyes protective equipment Thread of jig. Use ears protectiove equipment ELECTRICAL ANGLE GRINDER OPERATING INSTRUCTIONS Thread of jig. ELECTRICAL ANGLE GRINDER OPERATING INSTRUCTIONS FDV 1004-A ELECTRICAL ANGLE GRINDER OPERATING INSTRUCTIONS... -
Page 12: Machine Description And Included Contents

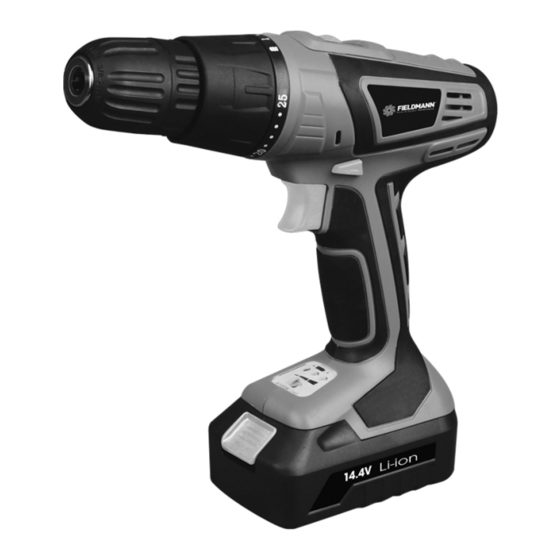

Machine description and included contents | Putting into operation 3. MACHINE DESCRIPTION AND INCLUDED CONTENTS Machine description (see pic. 1) A) Keyless chuck B) Torque setting ring C) Rotation direction switch for movement forward/back and neutral position safety switch D) Trigger switch E) Handle F) Battery charge level LED display and lighting of the working area G) Battery... -
Page 13: Drill Chuck
The bit/extension piece must be placed directly on the workpiece before the drill is turned on. Otherwise the workpiece or the bit/extension piece will be damaged. Always check the rotation direction of the bit before using. The braking system is activated automatically after the trigger switch is released. The drill chuck will automatically stop rotating. FDV 1004-A... -
Page 14: Instructions For Proper Use
Instructions for proper use 5. INSTRUCTIONS FOR PROPER USE Fully charge the battery before fi rst use. Ensure that the used drill bits and extension pieces are designed for the given task and that they are securely fastened. Check that the direction switch is set in the position for the desired rotation direction. -
Page 15: Overload
Dress appropriately. Do not wear loose clothing or jewellery and make sure that your hair, clothing or gloves do not come dangerously close to moving parts. Loose clothing, jewellery or long hair may become caught in the moving parts. FDV 1004-A... -
Page 16: Purpose Of Use
Operating instructions Pay constant attention, watch what your are doing and think when working with power tools. Do not use power tools if you are tired or under the infl uence of drugs, alcohol or medication. A moment of carelessness when working with power tools may lead to serious injury. -
Page 17: Electrical Safety
When working with electric power tools in a moist environment, the power circuit must have current protection installed (RSD - Residual Current Device). The use of a residual current device reduces the risk of injury by electrical shock. FDV 1004-A... -
Page 18: Safety Instructions For The Battery And Charger
Operating instructions Safety instructions for the battery and charger Use only the battery and charger supplied with this tool. Connect the charger only to a mains power socket with a voltage of 230V. Protect the battery and charger from moisture. Do not use the device in an outdoor environment. Disconnect the charger from the mains power socket when the charger is not being used, before cleaning the charger or before performing repairs on it. -
Page 19: Maintenance And Storage
Do not leave electric power tools turned on without supervision. Always turn the tool off and wait for it to come to a complete stop before putting it down. FDV 1004-A... -
Page 20: Storage
Mainetance and storage Use hearing protection. Excessive noise levels may cause hearing damage. When performing tasks, where the working tools may come into contact with hidden electrical conductors, hold the electric power tool by the insulated part that is intended to be held. A work tool that comes into contact with a "live"... -
Page 21: Technical Specifications
Amendments to text and technical parameters are reserved. Changes in the text, design and technical specifi cations may change without prior notice and we reserve the right to make these changes.keep it from turning as the drill bit rotates. FDV 1004-A... -
Page 22: Disposal
Disposal 9. DISPOSAL INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. -
Page 23: Es Declaration Of Conformity
Declaration of conformity 10. ES DECLARATION OF CONFORMITY Product / Name: CORDLESS DRILL / FIELDMANN Type / Model: FDV 1004 - A ..................14.4V DC / 1300mAh The product complies with the following directives: The Directive of the European Parliament and the Council No. 2006/95/EC dated 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits. - Page 24 CORDLESS DRILLS OPERATING INSTRUCTIONS...
- Page 25 FDV 1004-A...
- Page 26 Revize 08/2014...
