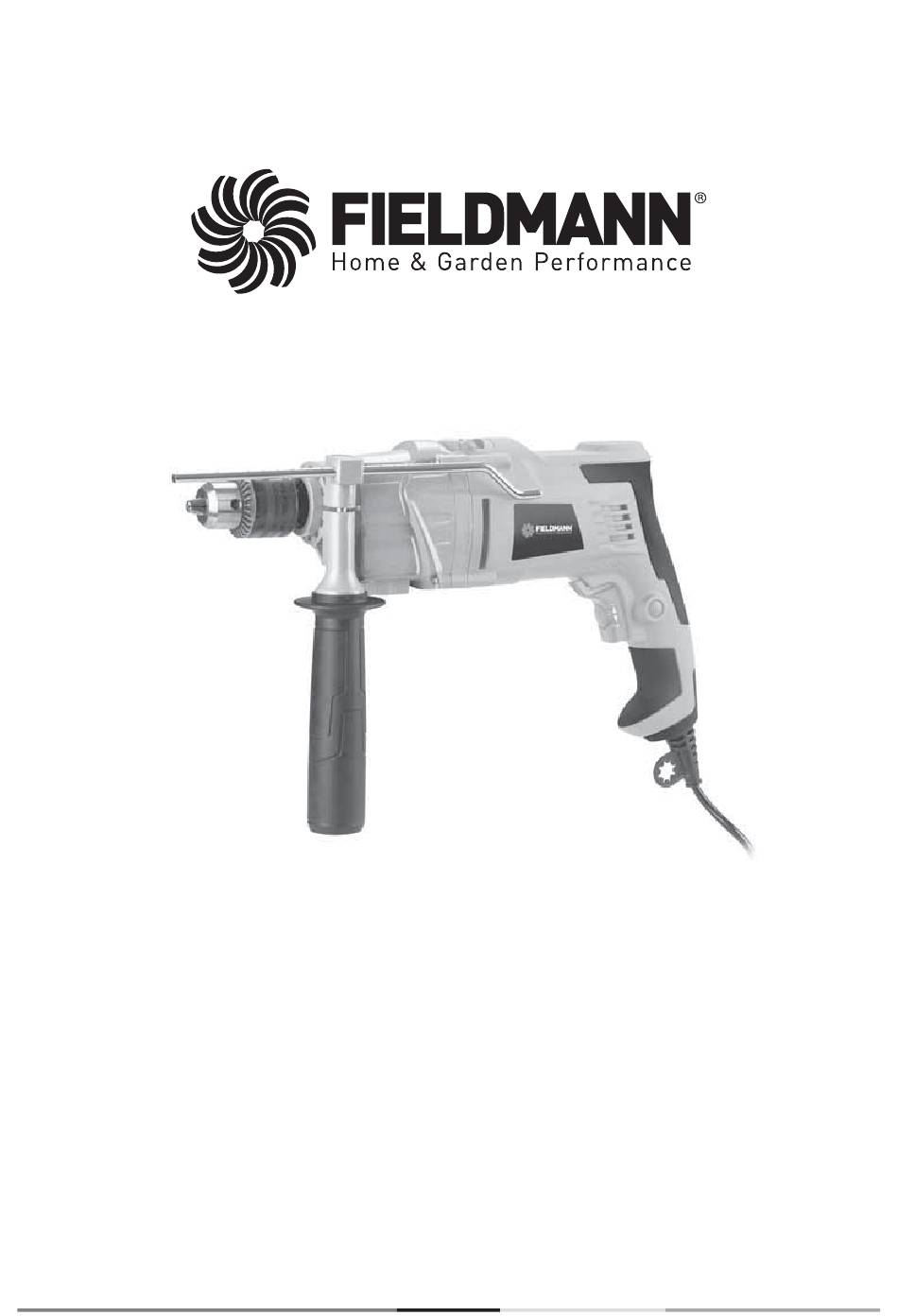

- Page 1 FDV 201205-E...
- Page 2 English ....................................6–16 Čeština .................................... 17–28 Slovenčina ..................................29–40 Magyarul ..................................41–52 Polski ....................................53–64 FDV 201205-E...
- Page 4 FDV 201205-E...
-
Page 5: Table Of Contents

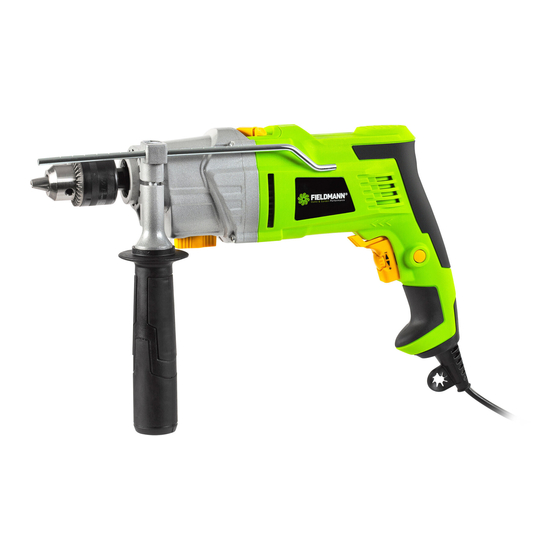

Contents Impact Drill 1 200 W INSTRUCTION MANUAL Thank you for your purchase of the impact drill. For your personal safety, read and understand the Instruction Manual before using. Keep the Instruction Manual in a safe place for future reference. CONTENTS 1. -
Page 6: General Safety Instructions
fi re. The term “power tool” in the instructions below refers both to mains-operated (corded) power tool or battery-operated (cordless) power tool. Save all warnings and instructions for future reference. FDV 201205-E... - Page 7 General safety instructions Workplace Keep the work area clean and well lit. Cluttered or dark areas in the workplace invite accidents. Store power tools that you don’t currently use. Do not operate power tools in environments with danger of occurrence of a fi re or explosion, such as in the presence of fl...
- Page 8 Use of such power tool is dangerous. Defective switches must be repaired by a certifi ed service provider. Disconnect the tool from the power source before making any adjustments, changing accessories or maintenance. Such preventive safety measure prevents the risk of starting the power tool accidentally. FDV 201205-E...
- Page 9 General safety instructions Store idle power tools out of the reach of children and unauthorised persons. Power tools can be dangerous in the hands of untrained users. Store the power tools in a dry and safe place. Keep the power tool in good condition. Check the adjustment of moving parts and their mobility. Check for any damage to the protective guards or other parts which could affect safe operation of the power tool.
-
Page 10: Symbols
Symbols 2. SYMBOLS The product complies with the applicable standards and regulations. Read the Instruction Manual attentively prior to use. Double-insulated. Use adequate eye protective equipment. Use ears protective equipment. FDV 201205-E... -
Page 11: Safety Instructions
Safety instructions 3. SAFETY INSTRUCTIONS Before drilling into walls make sure that you are not breaking into an electricity, gas or water supply line. Use a suitable detector. Always unplug the drill before changing a drill or bit. The chuck key should always be stored in the key holder. To avoid injuries, securely attach the work piece with a vice or clamp. - Page 12 Turn the gear selection knob so that the “2” points to the arrow icon. The impact drill operates in the second gear with a max. revolution speed of 3000 min-1 and with a max. impact rate of 48000 min-1 when impact drilling. FDV 201205-E...
-
Page 13: Technical Specifications
Technical specifi cations Maintenance, Cleaning and Storing Always unplug the impact drill before maintaining it. Before each use ensure that the ventilation slots are open and clean. Never clean the impact drill with water. Use a soft cloth to clean the housing. Do not use aggressive chemicals or solvents to clean the machine as these may damage the surfaces. -
Page 14: Troubleshooting
3. 1 Replace with new one 3.2 Drill bit is not suitable for work 3.2 Use proper Drill piece material 4. Excessive vibration or noise 4. 1 Drill bit is dull/damaged 4. 1 Replace with a new one FDV 201205-E... -
Page 15: Disposal
Disposal 7. DISPOSAL INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED PACKAGING. Put any used package material to the place determined by the municipality for waste disposal. DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMENT This symbol on products or accompanying documents means that used electric or electronic products must not be put to ordinary municipal waste. - Page 16 FDV 201205-E...
