Summary of Contents for Fieldmann FDV 2001-E
-

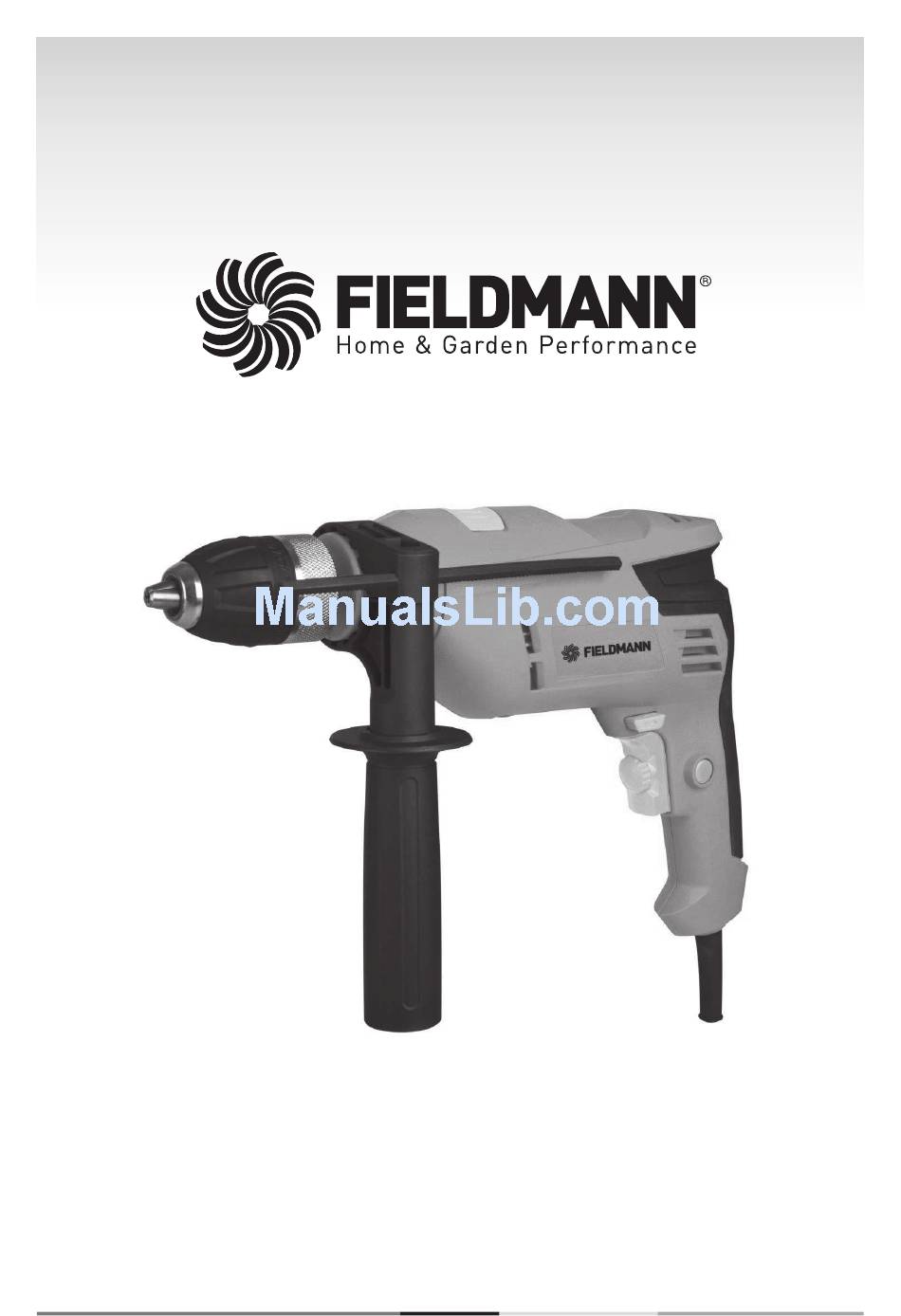

Page 1: Pictorial Appendix
FDV 2001-E FDV 2002-E... -
Page 3: Table Of Contents
Contents Impact Drill INSTRUCTION MANUAL Thank you for your purchase of the impact drill. For your personal safety, read and understand the Instruction Manual before using. Keep the Instruction Manual in a safe place for future reference. CONTENTS PICTORIAL APPENDIX ........................3 GENERAL SAFETY INSTRUCTIONS ..................... -
Page 4: General Safety Instructions
Do not operate power tools in explosive atmospheres. When the tool is handed over to the third person, the Instruction Manual shall always be included. The power tool can be repaired only by a qualified specialist and with the original spare parts. FDV 2001-E, FDV 2002-E... -
Page 5: Package
General safety instructions WARNING! Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. Do not use the power tool in any of the following situations. Keep the power tool out of reach of children. -
Page 6: Symbols
Symbols 2. SYMBOLS FDV 2001-E, FDV 2002-E... -
Page 7: Machine Description And Items Delivered

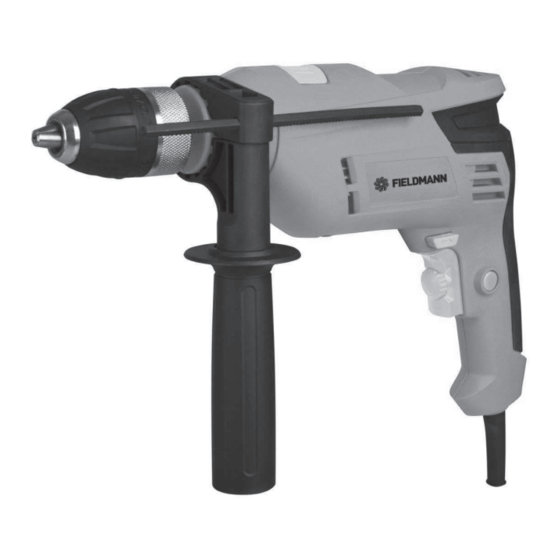

Machine description and items delivered | Safety instructions 3. MACHINE DESCRIPTION AND ITEMS DELIVERED Machine Description (See fig. 1) ON/OFF switch ON/OFF switch lock button Rotary speed selector Rotation direction selector Drill Standard/Impact drilling selector Auxiliary handle Drilling depth indicator Quick-release chuck 10 - Ventilation apertures... -
Page 8: Appropriate Application
Do not overload the power tool; it would stop. Chuck The chuck of reversible drills is always fixed by a screw with a left hand thread. Loosen the screw prior to chuck removal. FDV 2001-E, FDV 2002-E... -
Page 9: Technical Specifications
Adjustment and operation | Technical specifications To loosen the screw, turn it in a clockwise direction. The chuck can be equipped with all standard drills and extensions manufactured in compliance with the business standards up to dia. XX mm. The power tool is fitted with the quick-release chuck to facilitate exchange of the extensions during manual drilling without a key. -
Page 10: Declaration Of Conformity
Declaration of conformity 8. DECLARATION OF CONFORMITY Product/Name: IMPACT DRILL / FIELDMANN Type/Model: FDV 2001E ............230V50Hz/810W/0-3000rpm/13mm The product complies with the following directives: The Directive of the European Parliament and the Council No. 2006/95/EC dated 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits. -
Page 11: Disposal
Disposal 9. DISPOSAL INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED PACKAGING. Put any used package material to the place determined by the municipality for waste disposal. DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMENT This symbol on products or accompanying documents means that used electric or electronic products must not be put to ordinary municipal waste. - Page 12 FDV 2001-E, FDV 2002-E...
