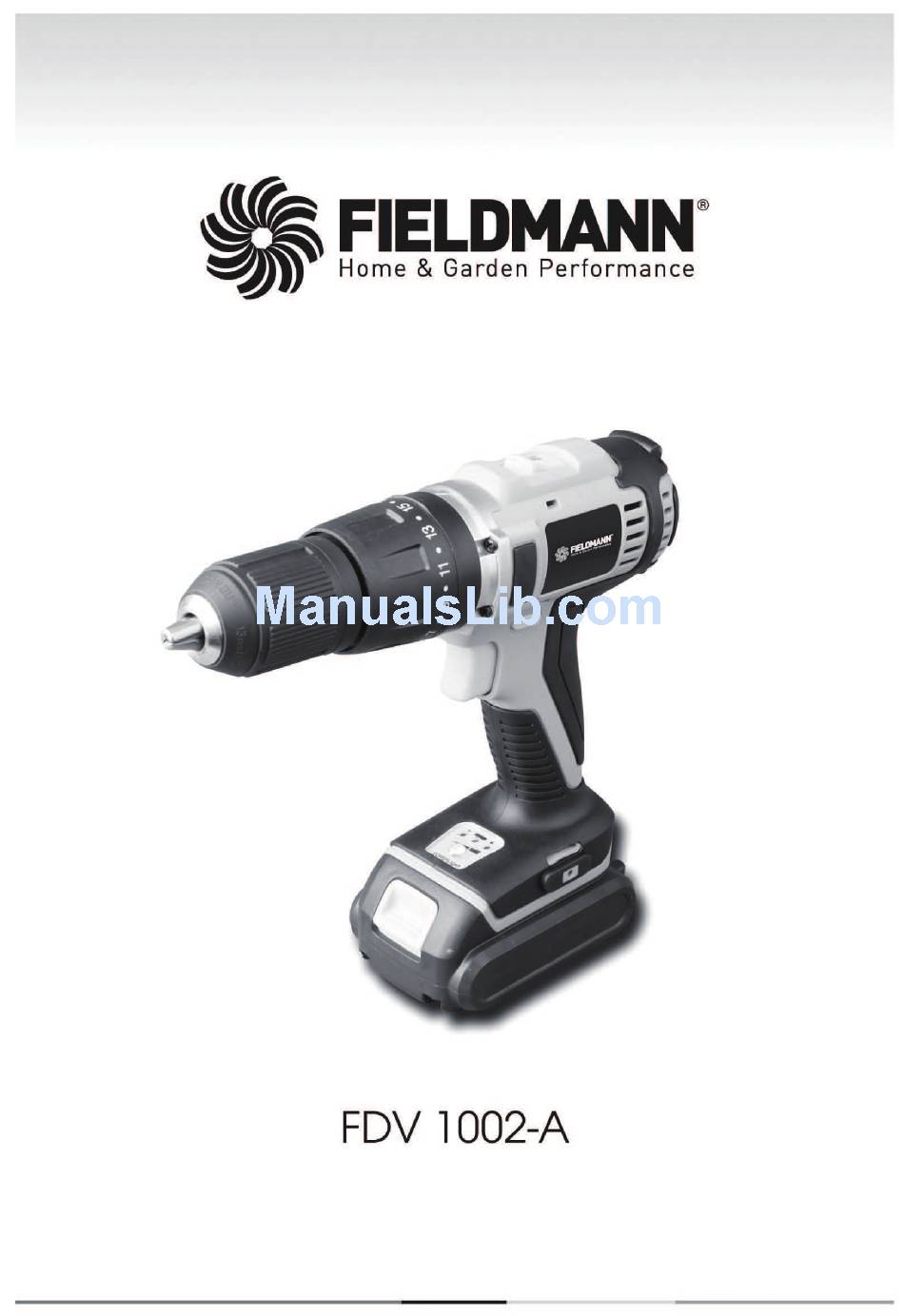

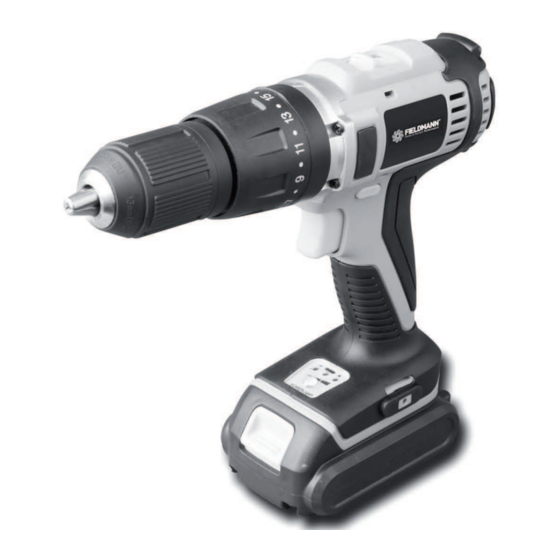

Contents Cordless Drill USER'S MANUAL Thank you for purchasing this cordless drill. Before you start using it, please, carefully read this user's manual and save it for possible future use. CONTENTS ILLUSTRATED ATTACHMENT ..........................3 1. GENERAL SAFETY REGULATIONS ......................... 6 Important safety notices Packaging Operating instructions... -
Page 5: General Safety Regulations
WARNING! Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. Do not use the power tool in any of the following situations. FDV 1002-A... -
Page 6: Packaging
General safety instructions Keep the power tool out of reach of children. Store idle power tools in the original package in a safe place and out of reach of children. Disconnect the power cord from the power outlet before making any adjustments, changing accessories, or storing power tools. -
Page 7: Symbols
Symbols 2. SYMBOLS The product complies with the applicable standards and regulations. Read the Instruction Manual attentively prior to use. Use ears protectiove equipment Use eyes protective equipment Use ears protectiove equipment Thread of jig. FDV 1002-A... -
Page 8: Machine Description And Included Contents
Machine description and included contents | Putting into operation 3. MACHINE DESCRIPTION AND INCLUDED CONTENTS Machine description (see pic. 1) A) Keyless chuck B) Torque setting ring C) Rotation direction switch for movement forward/back and neutral position safety switch D) Trigger switch E) Handle F) Battery charge level LED display and lighting of the working area G) Battery... -
Page 9: Drill Chuck
The bit/extension piece must be placed directly on the workpiece before the drill is turned on. Otherwise the workpiece or the bit/extension piece will be damaged. Always check the rotation direction of the bit before using. The braking system is activated automatically after the trigger switch is released. The drill chuck will automatically stop rotating. FDV 1002-A... -
Page 10: Instructions For Proper Use
Instructions for proper use 5. INSTRUCTIONS FOR PROPER USE Fully charge the battery before fi rst use. Ensure that the used drill bits and extension pieces are designed for the given task and that they are securely fastened. Check that the direction switch is set in the position for the desired rotation direction. -
Page 11: Overload
Dress appropriately. Do not wear loose clothing or jewellery and make sure that your hair, clothing or gloves do not come dangerously close to moving parts. Loose clothing, jewellery or long hair may become caught in the moving parts. FDV 1002-A... -
Page 12: Purpose Of Use
Operating instructions Pay constant attention, watch what your are doing and think when working with power tools. Do not use power tools if you are tired or under the infl uence of drugs, alcohol or medication. A moment of carelessness when working with power tools may lead to serious injury. -
Page 13: Electrical Safety
When working with electric power tools in a moist environment, the power circuit must have current protection installed (RSD - Residual Current Device). The use of a residual current device reduces the risk of injury by electrical shock. FDV 1002-A... -
Page 14: Safety Instructions For The Battery And Charger
Operating instructions Safety instructions for the battery and charger Use only the battery and charger supplied with this tool. Connect the charger only to a mains power socket with a voltage of 230V. Protect the battery and charger from moisture. Do not use the device in an outdoor environment. Disconnect the charger from the mains power socket when the charger is not being used, before cleaning the charger or before performing repairs on it. -
Page 15: Maintenance And Storage
Do not leave electric power tools turned on without supervision. Always turn the tool off and wait for it to come to a complete stop before putting it down. FDV 1002-A... -
Page 16: Storage
Mainetance and storage Use hearing protection. Excessive noise levels may cause hearing damage. When performing tasks, where the working tools may come into contact with hidden electrical conductors, hold the electric power tool by the insulated part that is intended to be held. A work tool that comes into contact with a "live"... -
Page 17: Technical Specifications
Amendments to text and technical parameters are reserved. Changes in the text, design and technical specifi cations may change without prior notice and we reserve the right to make these changes.keep it from turning as the drill bit rotates. FDV 1002-A... -
Page 18: Disposal
Technical specifications 9. DISPOSAL INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. -
Page 19: Declaration Of Conformity
Declaration of conformity 10. DECLARATION OF CONFORMITY Product / Name: CORDLESS DRILL / FIELDMANN Type / Model: FDV 1001-A / FDV 1002 - A ..................14.4V DC / 1300mAh The product complies with the following directives: The Directive of the European Parliament and the Council No. 2006/95/EC dated 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits. - Page 20 CORDLESS DRILLS OPERATING INSTRUCTIONS...
- Page 21 FDV 1002-A...
