[3] DISASSEMBLY/ASSEMBLY
[3] -4. Base (cont.)
DISASSEMBLING
(2) Remove Safety cover section as illustrated in Fig. 3.
(3) Unscrew M6x10 Pan head screw and remove Spark guard.
(4) Separate Base section from Motor section as drawn in Fig. 10.

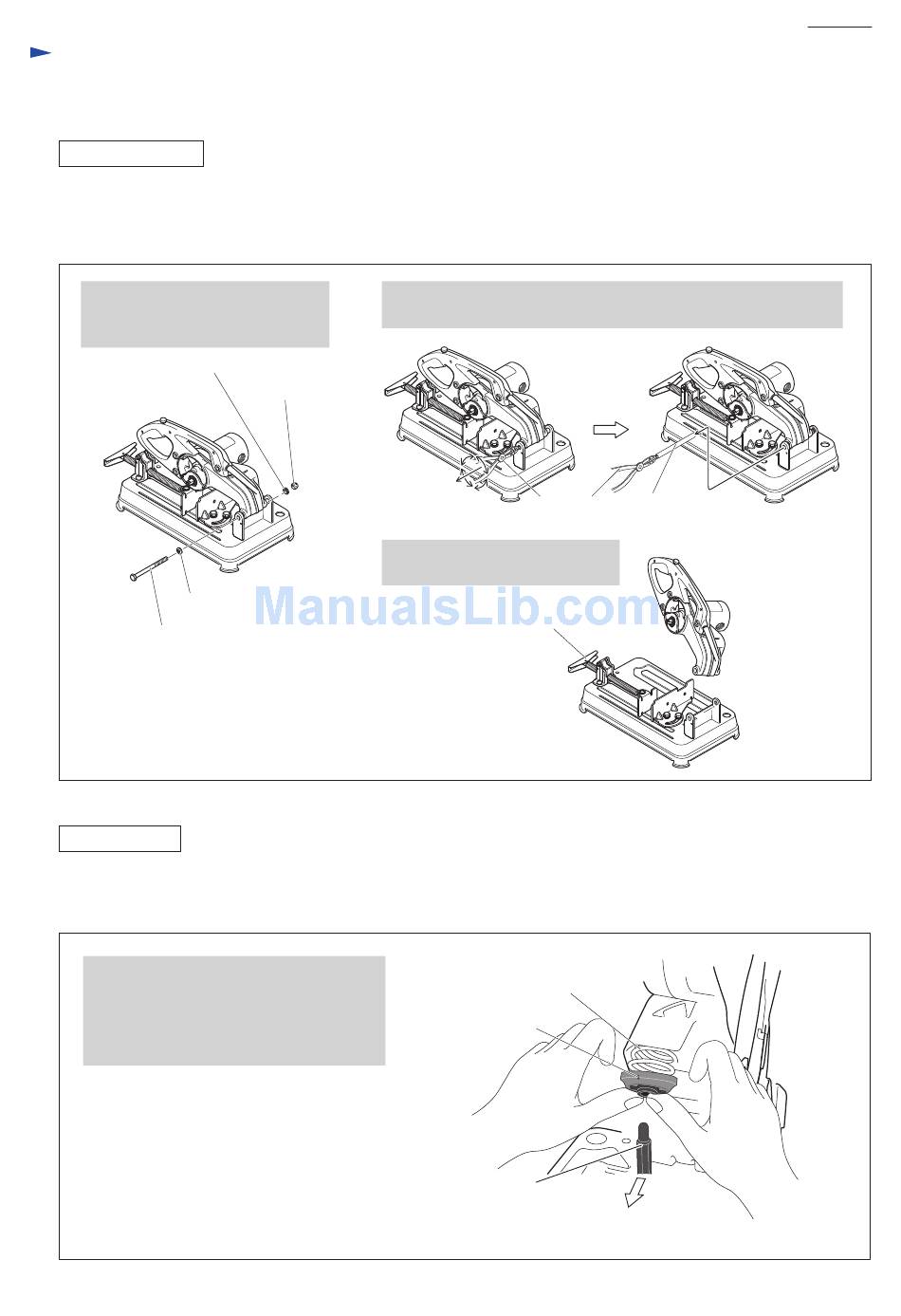

Fig. 10
1. Unscrew M10-17 Hex lock nut,
then remove M10x130 Hex bolt
and 2 pcs. of Cup washer 10.
Cup washer 10
Cup washer 10
M10x130 Hex bolt
ASSEMBLING
(1) Mount Motor section to Base section. (Refer to Fig. 10)
(2) Assemble Compression spring 45 and Spring holder as drawn in Fig. 11.
Fig. 11
While facing the notch of Spring holder to
Handle 120 (Vise handle) side, assemble
the holder to Compression spring 45.
And keeping the above condition, put
Spring holder onto M10 Hex bolt of Base.
2. Insert 1R003 into Pin 16-113 and open it fully in the pin to grip
its internal surface. And pull out the pin while twisting them.
M10-17
Hex lock nut
3. Base section is now separated
from Motor section.
1R003
Handle 120
(Vise handle)
Compression
spring 45
Notch of
Spring holder
M10 Hex bolt
Handle 120
(Vise handle) side
Pin 16-113
