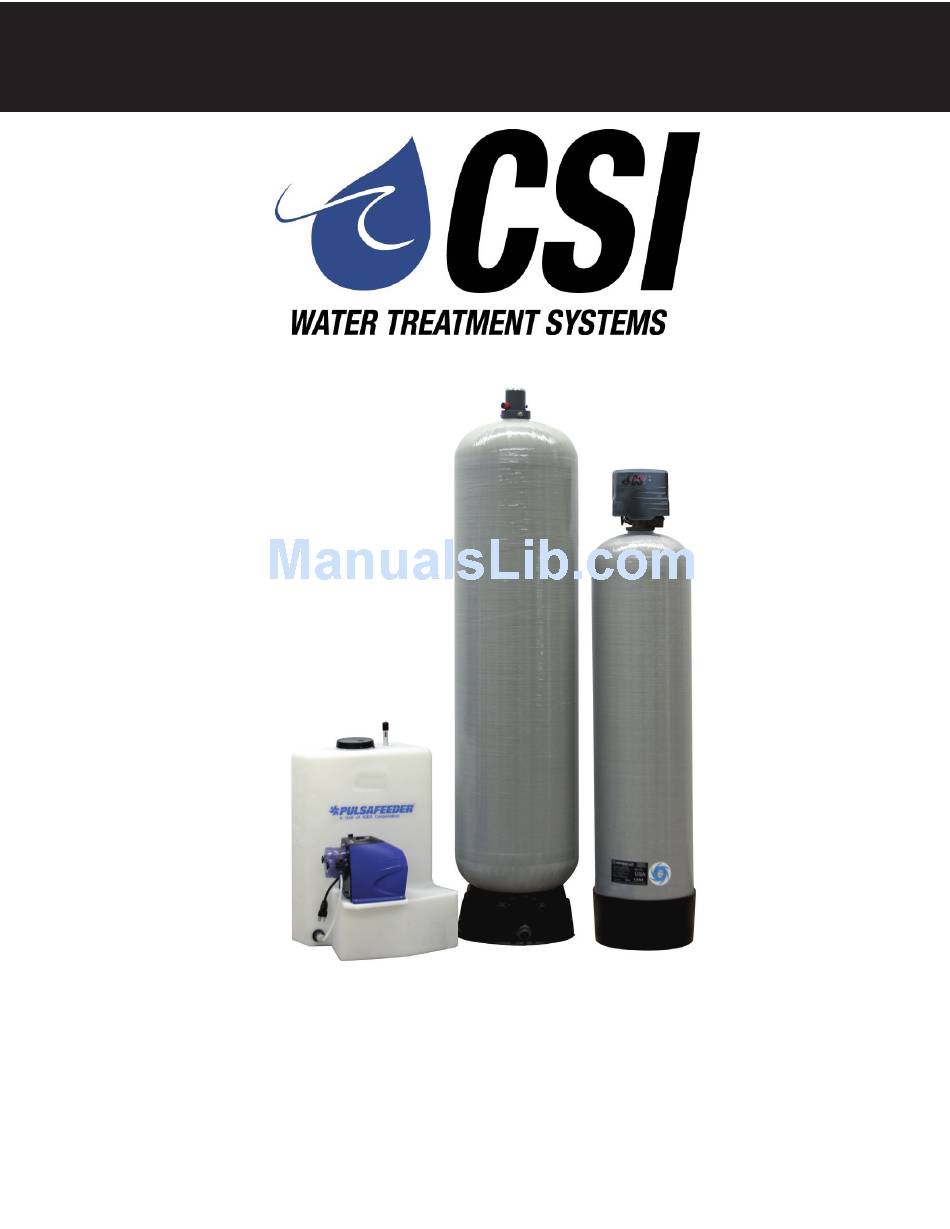

- Page 1 SIGNATURE 2 SERIES Signature 2 Series Hydroxr Installation / Operation Manual...
-
Page 2: Table Of Contents
SIGNATURE 2 SERIES Hydroxr™ Specifications......................Page 3 Installation...........................Page 4 Control Start-Up Procedures.......................Page 9 Utilizing Bluetooth........................Page 11 Master Programming........................Page 12 Powerhead Assembly.........................Page 13 Valve Body Assembly........................Page 14 Manifold Breakdown........................Page 15 Bypass Assembly.........................Page 16 Additional Information........................Page 17 Troubleshooting...........................Page 18 Error Codes..........................Page 18... -
Page 3: Hydroxr™ Specifications
It is important that the correct amount of water is available for the backwash cycle. Check pump capacity to be certain water is available in sufficient volume to adequately backwash the equipment at the specified rate. (See specifications.) General UTP15-S2 UTP20-S2 UTP25-S2 UTP30-S2... -
Page 4: Installation
SIGNATURE 2 SERIES Installation -Installation Requirements- HYDROXR™ Tank • A level floor position ahead of piping into water heater. • Unit must be installed at least 10’ ahead of the inlet to a water heater to prevent damage due to back-up of hot water. - Page 5 SIGNATURE 2 SERIES Installation -HYDROXR™ Location / Other Requirements- • Locate the filter near an unswitched, 120 volt / 60 Hz grounded electrical outlet. • Check for distance and proper drain installation (e.g. floor drain, washing machine standpipe). • Determine type and size of piping required for HYDROXR™ connection (e.g. galvanized, PVC plastic). Note : If household plumbing is galvanized and you intend to make the installation with copper (or vice versa), obtain di-electric unions to prevent dissimilar metal corrosion.
- Page 6 SIGNATURE 2 SERIES Installation 5. Install Peroxide Feed System to HYDROXR™ Tank Manifold. The white colored 1/4” MNPT injection fitting is located in Peroxide Feed System carton. Peroxide Feed Pump and Solution Tank are pre-assembled at the factory. Note : Do not remove clear plastic covering injection fitting nozzle!! A.
-
Page 7: Electrical Connections
SIGNATURE 2 SERIES Installation -Electrical Connections 1. Connect the power supply to the control valve and plug into a 115 volt / 60 Hz receptacle. Note : DO NOT plug into an outlet controlled by a wall switch or pull chain that could inadvertently be turned off. 2. - Page 8 SIGNATURE 2 SERIES Installation -Filling Peroxide Solution Tank- Refer to the chart below for suggested starting solution strengths and feed pump frequency/stroke settings. Combined Iron, Solution Strength Feed Pump Manganese (7% H2O2 / Water) Frequency / Stroke & Sulfur (H2S) ppm Setting (in %) 5 –...
-
Page 9: Control Start-Up Procedures
SIGNATURE 2 SERIES Control Start-Up Procedures - Final Checkout - 1. Be certain that the bypass valve is in Service position and main valve is completely on. 2. Check electrical supply to be certain the cord is connected to an uninterrupted 115 volt outlet. 3. - Page 10 SIGNATURE 2 SERIES Control Start-Up Procedures Normal Operation Home Display a. Alternates between the display of Time of Day and Number of Days until the Next Backwash. (Metered Softeners will alternate between time of days and gallons remaining until next regeneration) - Days Remaining until the Next Backwash will count down from the entered value until it reaches 1 day remaining.
-
Page 11: Utilizing Bluetooth
SIGNATURE 2 SERIES Utilizing Bluetooth Control To take advantage of the Bluetooth interface this feature must be set up on a compatible Bluetooth enabled smart phones or tablets. Note: Valves with a revision number greater or equal to “C2.00” are only compatible with Bluetooth 4.0+ (a.k.a. Bluetooth LE) Smartphones and tablets. -
Page 12: Master Programming Mode
SIGNATURE 2 SERIES Master Programming Mode Master Programming Mode To enter Master Programming Mode, press and hold both buttons for 5 seconds. All Master Programming functions have been preset at the factory. Unless a change is desired, it is NOT Note: necessary to enter Master Programming Mode. -
Page 13: Powerhead Assembly
SIGNATURE 2 SERIES Control Valve Powerhead Assembly LETTERS IN DIAGRAM REPRESENT WIRING CONNECTIONS * "F" Port is for softener flow meter connection (flow meter not shown) Description Part Number Hydroxr™ Power Head Assy. 21007X100 Hydroxr™ Circuit Boad Assy. 21007X102 Encoder 20001X124 Front Plate 20001X004... -
Page 14: Valve Body Assembly
SIGNATURE 2 SERIES Valve Body Assembly Description Part # Qty. R e f Piston Assembly 20001X231 10-24 X 13/16” Screw 20001X226 Seal and Spacer Kit Incl (5) #3 20561X253 & (4) #4 End Spacer Flow Control Button 5.0 GPM 20251X272 Flow Control Button 6.0 GPM 20251X274 Flow Control Button 7.0 GPM... -
Page 15: Manifold Breakdown
SIGNATURE 2 SERIES Manifold Breakdown REF. PART # DESCRIPTION QTY. SCREW; 1/4"-20 x 3-1/2" SS pHILLIPS 65555X221 65555X205 BODY W/ NOZZLE & THROAT 69000B110 HOSE BARB: 1/4" x 1/4" NPT 65555X250 AIR INLET CHECK VALVE ASSY. 65555X213 1/8" PLASTIC PIPE PLUG 65555X219 DIAPHRAGM 65555X208... -
Page 16: Bypass Assembly
SIGNATURE 2 SERIES Bypass Assembly Ref # Description Part # Plastic Bypass Valve Assembly 20561X292 Bypass Valve 3/4” Stainless Steel 20561X270 Bypass Valve 1” Stainless Steel 20561X283... -
Page 17: Additional Information
SIGNATURE 2 SERIES Service Instructions / Instructional Videos Available at www.csiwater.com General Preliminary Instructions PERFORM BEFORE ALL SERVICING OPERATIONS 1. Turn off water supply to Reactr. -If the filter installation has a “three valve” bypass system, first open the valve in the bypass line, then close the valves at the filter inlet and outlet. -
Page 18: Troubleshooting
SIGNATURE 2 SERIES Troubleshooting Guide SYMPTOM PROBABLE CAUSE CORRECTION Power supply plugged into Connect to constant power source intermittentent or dead power source 1. Hydroxr Fails to Improper control valve Reset program settings Regenerate programming Automatically Defective power supply Replace power supply Defective Drive motor Replace motor 2. - Page 19 Brine Tank Compoents 1 Year the price paid for the product. In no case shall CSI or seller be liable for REVERE Wireless Low Salt Alarm 90 Days any special, incidental, contingent or consequential damages. Special, incidental, contingent and consequential damages for which CSI is not * This warranty does not include media and/or cartridge filter elements.
- Page 20 SIGNATURE 2 SERIES CSI WATER TREATMENT SYSTEMS 710 Orange St, Ashland, OH 44805 l PH 419-281-6829 l FAX 419-281-2375 www.csiwater.com...
