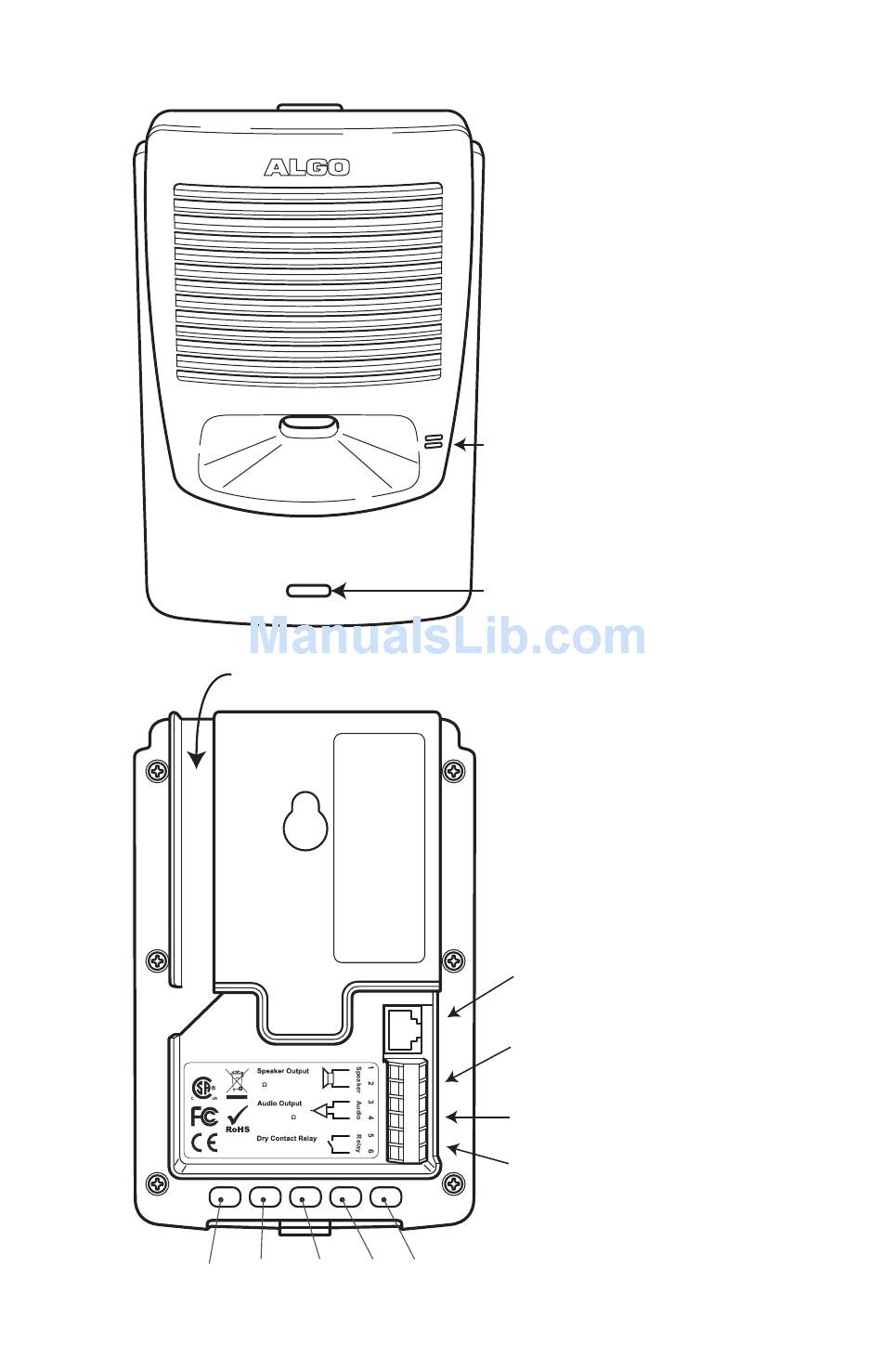

Front and Back Views
Surface Mount Wiring Channel
LR95233
To External Speaker(s)
8
8 Wrms
To Slave Amplifier
0 dbm
600
67-00047D
Max 30V 50mA
Play Menu Select Dn Up
Program Buttons
Microphone
Blue Indicator
Light
RJ45 Network
(for LAN & PoE)
Speaker Output
or optional Relay
Input
Audio Output
Relay Output
- 6 -
