Installation & Configuration
Document 90-00067 A
2014-09-12
Page 1

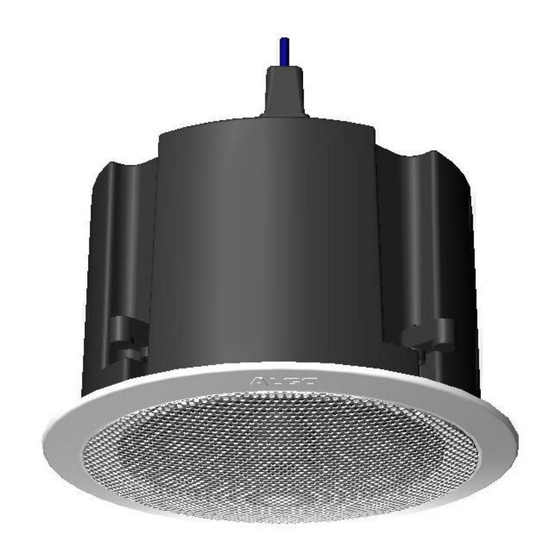

8188 SIP Ceiling Speaker
FW Version 1.0
Order Codes
8188
Ceiling Speaker White
8188-B
Ceiling Speaker Black
8188-TBR T-Bar Support Bracket
Algo Communication Products Ltd
4500 Beedie St Burnaby BC Canada V5J 5L2
www.algosolutions.com
(604) 454-3792
support@algosolutions.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Algo 8188
Summary of Contents for Algo 8188
- Page 1 8188 SIP Ceiling Speaker FW Version 1.0 Installation & Configuration Order Codes 8188 Ceiling Speaker White 8188-B Ceiling Speaker Black 8188-TBR T-Bar Support Bracket Document 90-00067 A Algo Communication Products Ltd (604) 454-3792 2014-09-12 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com...
-
Page 2: Table Of Contents
Table of Contents IMPORTANT SAFETY INFORMATION ...................... 5 ABOUT THE ALGO SIP 8188 CEILING SPEAKER ..................6 GETTING STARTED - QUICK INSTALL & TEST ................... 7 CEILING INSTALLATION .......................... 8 AIR HANDLING SPACES UL2043 ......................9 SUSPENDED INSTALLATION ........................9 WEB INTERFACE ........................... - Page 3 ADVANCED SETTINGS TAB – TIME......................30 ............................30 NTP T ..........................30 ERVERS ADVANCED SETTINGS TAB – PROVISIONING ..................31 Document 90-00067 A Algo Communication Products Ltd (604) 454-3792 2014-09-12 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 3 www.algosolutions.com...
- Page 4 MD5 C ..........................39 HECKSUM SYSTEM - NETWORK LOGGING ......................39 SPECIFICATIONS ........................... 40 FCC COMPLIANCE STATEMENT ......................41 Document 90-00067 A Algo Communication Products Ltd (604) 454-3792 2014-09-12 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 4 www.algosolutions.com...
-
Page 5: Important Safety Information
“sound to air” acoustic testing. DRY INDOOR LOCATION ONLY The 8188 Ceiling Speaker is intended for indoor dry locations only. For outdoor locations Algo offers weatherproof speakers and strobe lights. CAT5 or CAT6 connection wiring to an IEEE 802.3af compliant network PoE switch must not leave the building perimeter without adequate lightning protection. -
Page 6: What Is Included
About the Algo SIP 8188 Ceiling Speaker The 8188 Ceiling Speaker is a SIP compliant and multicast capable IP speaker suitable for voice paging, notification, and background music. The 6.5” (165mm) coaxial speaker is G.722 wideband capable and music capable using a fullband codec. An integrated microphone provides talkback capability and ambient noise detection for automatic level control. -
Page 7: Getting Started - Quick Install & Test
3. Mount the speaker per the instructions in this guide. 4. Access the 8188 Ceiling Speaker web page by entering the IP address into a browser (Chrome, IE, Firefox etc) and login using the default password algo. 5. Enter the IP address for the SIP server into the SIP Domain field under the BASIC SETTINGS >... -
Page 8: Ceiling Installation
Ceiling Installation The 8188 Ceiling Speaker is intended to be mounted in a T-bar acoustic tile or gypsum ceiling. The speaker may also be suspended using a chain or cable (see section – Suspended Installation). An optional T-Bar support bracket (8188-TBR) is available that can transfer the speaker weight onto the T-bar rails. -
Page 9: Air Handling Spaces Ul2043
A tool supplied with the 8188 Ceiling Speaker can be used to remove the grill. If lost, a small Allen key or heavy duty paperclip bent into an L shape can be used to remove the grill by pulling close to the edge. -
Page 10: Web Interface
After boot up the blue LED will turn off and the speaker will have obtained an IP address. If there is no DHCP server the 8188 Ceiling Speaker will default to the static IP address 192.168.1.111. Press the reset switch (RST next to the LED) momentarily to hear the IP address over the speaker. -
Page 11: Sip Paging Multiple Speakers (Using Multicast)
G.722 which is sometimes referred to as “HD” voice or audio. SIP Paging Multiple Speakers (Using Multicast) Multicast features in the 8188 SIP Ceiling Speaker require that only ONE of the speakers be registered as a SIP extension. Additional speakers may be added as multicast slaves receiving a stream from the SIP registered speaker. -
Page 12: Sip Paging Multiple Speakers (Using Individual Sip Extensions)
Multicast Page Zones The 8188 SIP Ceiling Speaker currently supports nine separate multicast “zones” defined by the multicast IP addresses. Somewhat arbitrarily, these zones are defined as below but may be used in other ways. -
Page 13: Polycom Tm Group Paging
Group Paging The 8188 Ceiling Speaker has been designed to support Polycom Group Paging. The 8188 Ceiling Speaker can be added to a Polycom page group so that voice paging is heard over Polycom telephone speakers and overhead paging simultaneously. -
Page 14: Sip Activated Notification
Set Monitoring Mode to "Monitor Ring". When a call is made to the SIP extension the 8188 Ceiling Speaker will play the selected WAV file from memory. Often, the 8188 Ceiling Speaker will be part of a hunt group or ring group to ring in conjunction with a telephone. -
Page 15: Wiring Connections
The blue LED can also provide a heartbeat with a flash every 60 seconds to indicate that the speaker is powered and connected to the network. If the 8188 Ceiling Speaker is in talkback mode the blue LED will be flashing. Reset Button A recessed reset button (RST) next to the blue LED can only be used to reset the 8188 Ceiling Speaker at time of power up. -
Page 16: Web Interface Login
Once booting has completed, pressing the reset button will cause the speaker to annunciate its IP address over the speaker. Web Interface Login The web interface requires a password which is "algo" by default. This password can be changed using the Admin tab after logging in the first time. -
Page 17: Basic Settings Tab - Sip
WAV file. If activated, screen expands to enter second SIP extension parameters. Page Function Enable or Disable SIP page extension Page Extension This is the SIP extension for the 8188 Ceiling Speaker. Document 90-00067 A Algo Communication Products Ltd (604) 454-3792 2014-09-12 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 18: Authentication Id
The WAV file may be played immediately to the speaker from the web interface for test purposes using the Play. Loop, and Stop buttons. Document 90-00067 A Algo Communication Products Ltd (604) 454-3792 2014-09-12 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 19: Ring Limit
A time limit may be set for an active page. Page Tone Select pre-announce tone for paging. G.722 Support Enable or disable the G.722 codec. Document 90-00067 A Algo Communication Products Ltd (604) 454-3792 2014-09-12 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 19... -
Page 20: Basic Settings Tab - Audio
Ambient noise level is averaged over 10 seconds. Ambient noise compensation will not be functional when playing background music. Document 90-00067 A Algo Communication Products Ltd (604) 454-3792 2014-09-12 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 21: Automatic Gain Control (Agc)
Audio Delay When paging to the 8188 Ceiling Speaker as well as other third party devices, the low latency of the 8188 Ceiling Speaker may lead other devices. By adding audio delay up to one second, the 8188 Ceiling Speaker may be synchronized with other speakers or telephones that have greater latency. -
Page 22: Basic Settings Tab - Multicast (Master Settings)
Settings) Multicast Mode (Master Selected) If master is enabled the 8188 Ceiling Speaker will broadcast an IP stream when activated in addition to playing the audio over its own speaker. (Note that the 8188 Ceiling Speaker cannot be both a multicast master and slave simultaneously). -
Page 23: Zone Definition Ip Address & Port
The 8188 Ceiling Speaker may receive or broadcast multicast paging compatible with Polycom “on premise group paging” protocol. The 8188 may be configured as a slave to play Polycom page announcements, or as a master to multicast page announcements to Polycom phones. -
Page 24: Basic Settings Tab - Multicast (Slave Settings)
If slave is enabled the 8188 Ceiling Speaker will activate when receiving a multicast message. Slave Zones Select one or more multicast zones for the 8188 Ceiling Speaker to monitor. Note that multicast zone priority is based on the zone definition list order (top to bottom). -
Page 25: Zone Definition Ip Address & Port
If enabled the web page expands to request the Zone (IP Address and Port) and Channels. The Polycom phone used as page audio source for the 8188 Ceiling Speaker(s) must be configured to use either the G.711 or G.722 audio codec. The Polycom phone must also be configured with the “Compatibility”... -
Page 26: Advanced Settings Tab - Network
DHCP is an IP standard designed to make administration of IP addresses simpler. When selected, DHCP will automatically configure IP addresses for each 8188 Ceiling Speaker on the network. Alternatively the 8188 Ceiling Speaker can be set to a static IP address. VLAN Mode Enables or Disables VLAN Tagging. -
Page 27: Vlan Id
Provides quality of service if the DSCP protocol is supported on your network. Can be specified independently for SIP control packets versus RTP audio packets. Document 90-00067 A Algo Communication Products Ltd (604) 454-3792 2014-09-12 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 28: Advanced Settings Tab - Admin
Advanced Settings Tab – Admin Password Password to log into the 8188 Ceiling Speaker web interface. You should change the default password algo in order to secure the device on the network. If you have forgotten your password, you will need to perform a soft reset in order to restore the password (as well as all other settings) back to the original factory default conditions. -
Page 29: Log Level
Log Level Use on the advice of Algo technical support only. Log Method Allows the 8188 Ceiling Speaker to write to external Syslog server if the option for external (or both) is selected. Log Server If external (or both) is selected this is the address of the Syslog server on the network. -
Page 30: Advanced Settings Tab - Time
The speaker will attempt to use Timer Server 1 and work down the list if one or more of the time servers become unresponsive. Document 90-00067 A Algo Communication Products Ltd (604) 454-3792 2014-09-12 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 31: Advanced Settings Tab - Provisioning
“Provisioning Server”: TFTP (Trivial File Transfer Protocol), FTP, or HTTP. For example, 8188 Ceiling Speaker configuration files can be automatically downloaded from a TFTP server using DHCP Option 66. This option code (when set) supplies a TFTP boot server address to the DHCP client to boot from. -
Page 32: Md5 Checksum
8. File algop8188.conf can now be uploaded onto the Provisioning server If using a generic configuration file, extensions and credentials have to be entered manually once the 8188 Ceiling Speaker has automatically downloaded the configuration file. Document 90-00067 A Algo Communication Products Ltd... -
Page 33: Generating A Specific Configuration File
3. File algom[MAC address].conf can now be uploaded on the Provisioning server. The specific configuration file will only be downloaded by the 8188 Ceiling Speaker with the MAC address specified in the configuration file name. Since all the necessary settings can be included in this file, the 8128 will be ready to work immediately after the configuration file is downloaded. -
Page 34: Advanced Settings Tab - Tones
Advanced Settings Tab – Tones Ring Tone Files Included in Memory The 8188 Ceiling Speaker includes several pre-loaded WAV files that can be selected to play for ring events. The web interface allows selection of the WAV file and also the ability to play the WAV file immediately over the speaker for testing. -
Page 35: Advanced Settings Tab - Sip
STUN Server IP address for STUN server if present. Register Period (seconds) Maximum requested period of time where the 8188 Ceiling Speaker will re-register with the SIP server. Default setting is 3600 seconds (1 hour). Only change if instructed otherwise. -
Page 36: Keep-Alive Method
Keep-alive Method If Double CRLF is selected the 8188 Ceiling Speaker will send a packet every 30 seconds (unless changed) to maintain connection with the SIP Server if behind NAT. Server Redundancy Feature Two secondary SIP servers may be configured. The 8188 Ceiling Speaker will attempt to register with the primary server but switch to a secondary server when necessary. -
Page 37: Backup Server #2
Backup Server #2 If backup server #1 is unreachable the 8188 Ceiling Speaker will attempt to register with the 2nd backup server. If enabled the 8188 Ceiling Speaker will always attempt to register with the highest priority server. -
Page 38: System Tab - Maintenance
Save the device settings to a text file for backup or to setup a provisioning configuration file. Restore Configuration File Restore settings from a backup file. Restore Configuration to Defaults Resets all 8188 Ceiling Speaker device settings to factory default values. Reboot the Device Reboots the device. Document 90-00067 A... -
Page 39: Firmware Image
3. Login to the device again, and click on System. 4. In the Upgrade section, click on Choose File and select the 8188 Ceiling Speaker firmware file to upload. Note that both the FW firmware and MD5 checksum files must be loaded. -
Page 40: Specifications
1 GByte available Relay Output: Normally open or normally closed. Max 30 V 50 mA Relay Input: Normally open or normally closed dry contact. Algo 1202 Button, Algo 1203 Switch, EOL termination. Configuration: Web interface or provisioning Provisioning: TFTP, FTP, or HTTP... -
Page 41: Fcc Compliance Statement
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Document 90-00067 A Algo Communication Products Ltd (604) 454-3792 2014-09-12 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 41 www.algosolutions.com...
