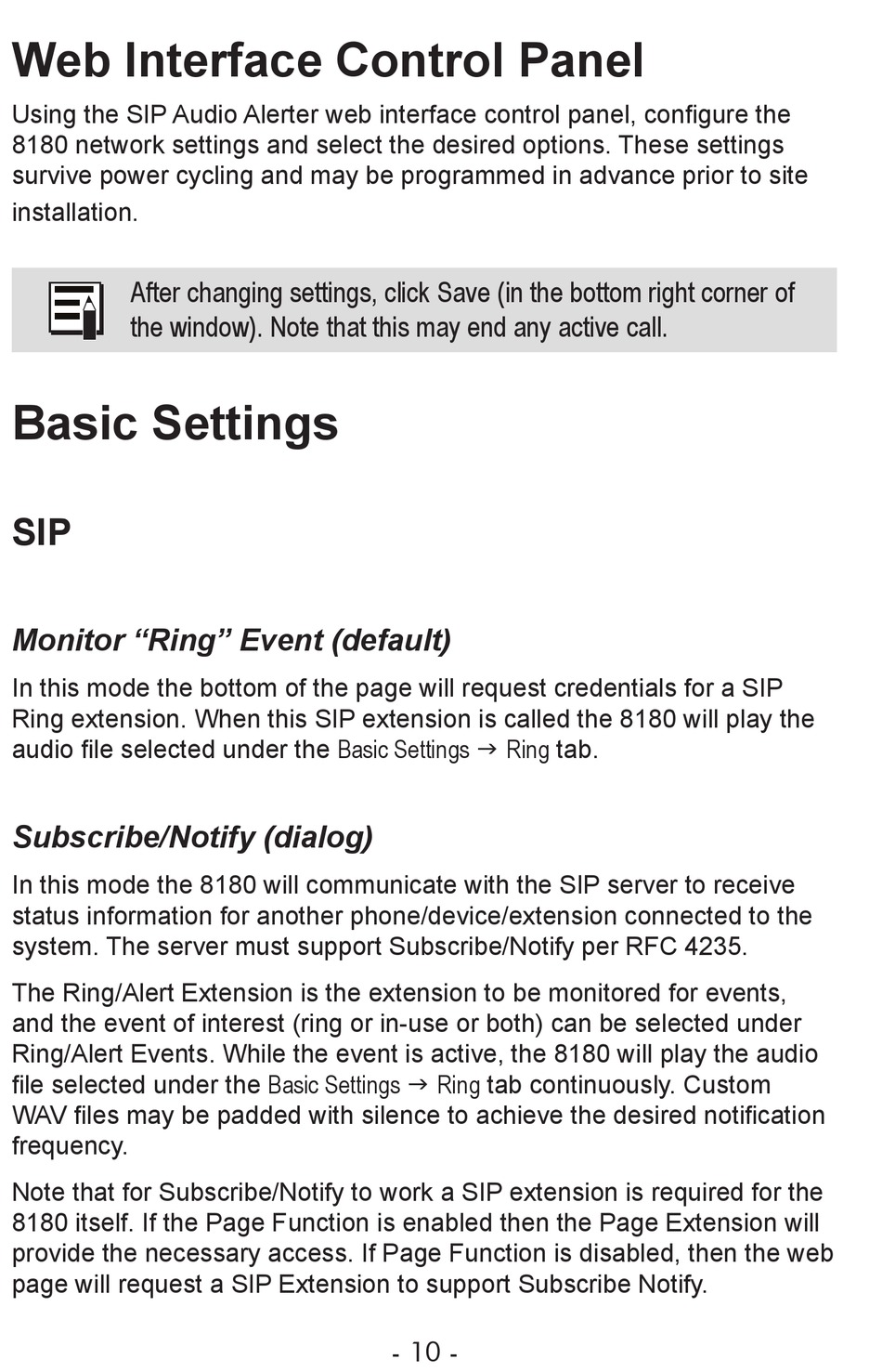

Web Interface Control Panel
Using the SIP Audio Alerter web interface control panel, configure the
8180 network settings and select the desired options. These settings
survive power cycling and may be programmed in advance prior to site
installation.
After changing settings, click Save (in the bottom right corner of
the window). Note that this may end any active call.
Basic Settings

SIP

Monitor "Ring" Event (default)
In this mode the bottom of the page will request credentials for a SIP
Ring extension. When this SIP extension is called the 8180 will play the
audio file selected under the Basic Settings g Ring tab.
Subscribe/Notify (dialog)
In this mode the 8180 will communicate with the SIP server to receive
status information for another phone/device/extension connected to the
system. The server must support Subscribe/Notify per RFC 4235.
The Ring/Alert Extension is the extension to be monitored for events,
and the event of interest (ring or in-use or both) can be selected under
Ring/Alert Events. While the event is active, the 8180 will play the audio
file selected under the Basic Settings g Ring tab continuously. Custom
WAV files may be padded with silence to achieve the desired notification
frequency.
Note that for Subscribe/Notify to work a SIP extension is required for the
8180 itself. If the Page Function is enabled then the Page Extension will
provide the necessary access. If Page Function is disabled, then the web
page will request a SIP Extension to support Subscribe Notify.
- 10 -
