HME# 400G573
Rev E
3/19/08

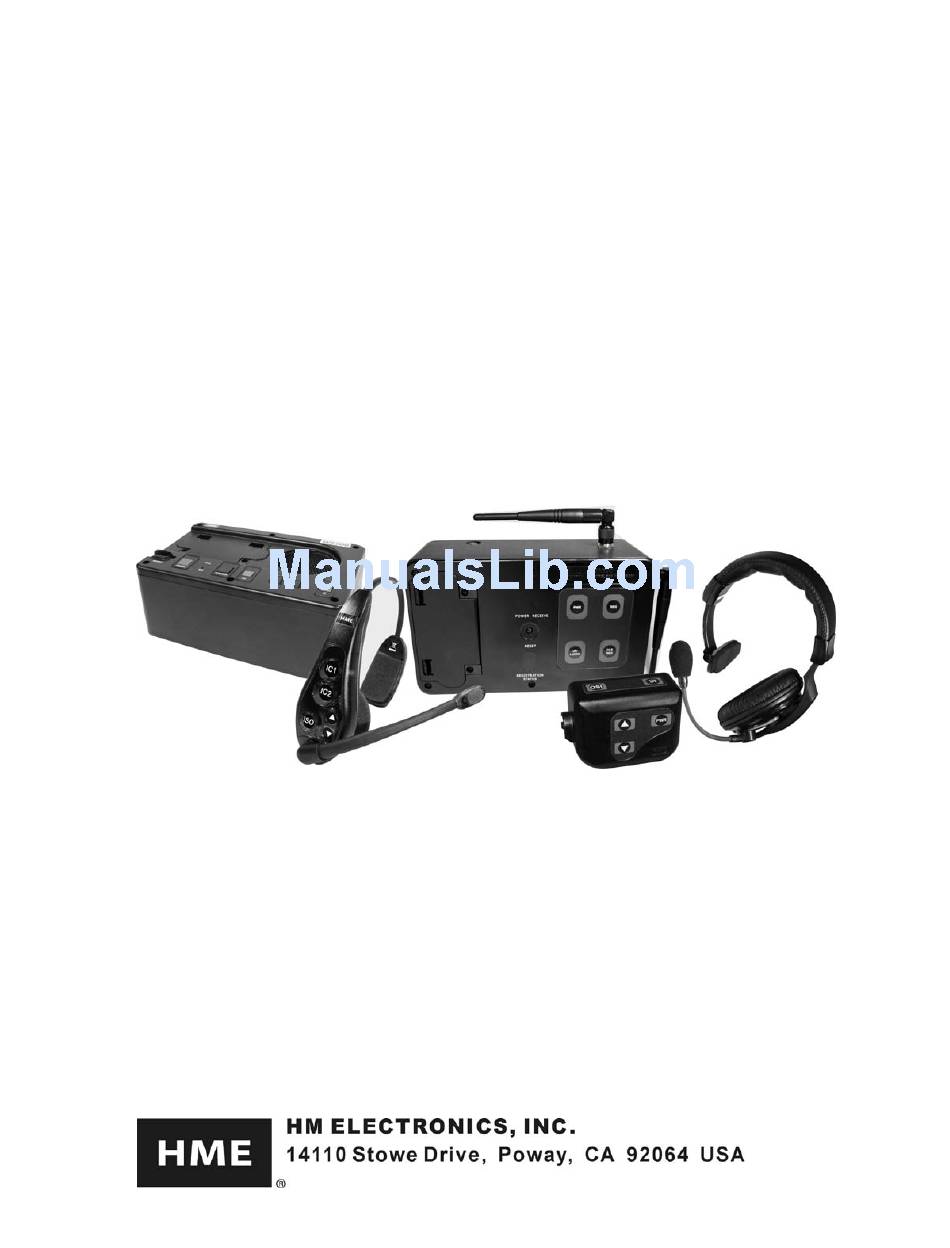

DX100

Wireless Intercom

Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DX100 and is the answer not in the manual?

Questions and answers

Related Manuals for HME DX100

Summary of Contents for HME DX100

  • Page 1: Wireless Intercom

    HME# 400G573 Rev E 3/19/08 DX100 Wireless Intercom Operating Instructions...

  • Page 2: Table Of Contents

    HM Electronics, Inc. is not responsible for equipment malfunctions due to erroneous translation of its publications from their original English version. © 2008 HM Electronics, Inc. The HME logo and product names are registered trademarks of HM Electronics, Inc. All rights reserved.
  • Page 3 Environment, for work-related use. Transmit only when person(s) are at least the minimum distance from the properly installed, externally mounted antenna. Hereby, HM Electronics, Inc. declares that the DX100 is in compliance with the essential requirements and other relevant provisions of R&TTE Directive 1999/5/EC.

  • Page 4: Limited Warranty

    LIMITED WARRANTY HM Electronics, Inc. (“HME”) warrants the DX100 for a period of two (2) years* from the date of purchase against defects in materials or workmanship provided it was purchased from an authorized dealer. During the warranty period, defective HME Products will be repaired without charge for parts and labor. Simply return the defective HME Product with your sales slip as proof of the date of purchase.

  • Page 5: Section 1. Introduction

    DC power source or six AA batteries. A power supply, cable and a battery sled are included with the base station. This is an example of a typical theatrical application. A variety of other uses for the DX100 are possible.

  • Page 6: Equipment Identification

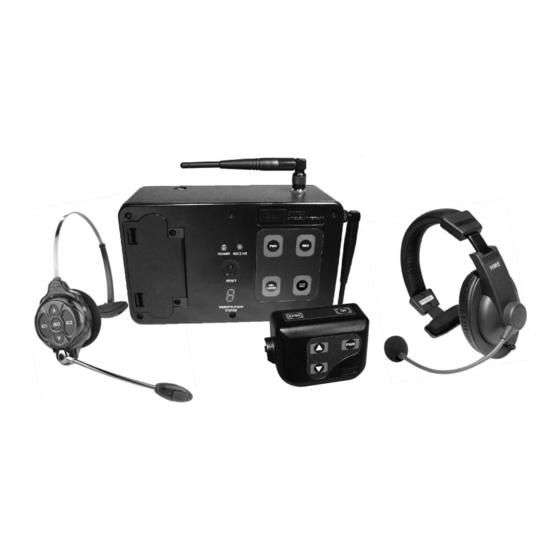

    EQUIPMENT IDENTIFICATION The following equipment is standard with the DX100 Wireless Intercom System. As you unpack the equipment, check the enclosed shipping documents to be sure you received all items listed. Base Station Battery Sled Base Station Antennas (2 per Base Station)

  • Page 7: Main Equipment Features

    MAIN EQUIPMENT FEATURES Base Station Features 1. POWER indicator light 7. UN-LATCH button 2. RECEIVE indicator light 8. Clear Registration “CLR REG” button 3. RESET button 9. Antennas 4. REGISTRATION STATUS display 10. Power connector 5. Power “PWR” button 11. Battery compartment cover 6.

  • Page 8: Wh200 Headset Features

    WH200 Headset Features Power light Volume-up button Transmit light Volume-down button IC1 & IC2 (Intercom) buttons Power button ISO (Isolate) button Battery release latch Battery Speaker Station Features Left side panel Front panel Right side panel SIDE TONE adjustment (recessed) SPEAKER button and light ISO (Isolate) button and light Battery compartment cover...

  • Page 9: Section 2. Equipment Setup

    SECTION 2. EQUIPMENT SETUP BATTERY CHARGER SETUP IMPORTANT! – Before installing the system, connect the AC power supply to the AC40A Battery Charger and plug it into an electrical outlet. Charge all the batteries while the other equipment is being installed. Charging time is about 2.5 hours.

  • Page 10: Base Station Setup

    Step 2. Note which of the following applies to you. • If using the DX100 with AC power ⎯ Plug the connector at the end of the AC power supply cable into the power connector on top of the base station. Turn the sleeve on the cable connector clockwise to secure it to the base station.
  • Page 11 • If using the DX100 with battery power ⎯ Press in and up on the two battery cover release latches to lift the cover and open the battery compartment. Battery cover release latches (Push latches in direction of arrows and flip lid up.) Insert six AA batteries into the battery sled, in the positions shown inside the sled, and install the sled in the battery compartment as shown below.

  • Page 12: Beltpac / Wh200 Headset / Speaker Station Setup And Registration

    BELTPAC / WH200 HEADSET / SPEAKER STATION SETUP AND REGISTRATION The first time you operate the DX100 system, you must register each Beltpac, WH200 Headset and/or Speaker Station for use with a specific base station. The base station will then recognize all registered Beltpacs/ Headsets/Speaker Stations when their power is on, and will know the difference between them and other electronic equipment operating on the same frequencies.
  • Page 13 If registration is successfully completed: • A voice message in the headset will say “Power on, Beltpac #, Version #, Begin registration, Registration complete, …” • After a delay of up to 15 seconds, the REGISTRATION STATUS display will show the ID number assigned to this Beltpac for about 10 seconds.

  • Page 14: Set Up Wh200 Headsets

    Set Up WH200 Headsets Before registering them, insert a fully charged battery in each WH200 Headset, with the metal contacts on the end of the battery inserted first. Press it in until it snaps. Power On/Off • To turn power on Press and release the power button on the inside of the Headset housing.
  • Page 15 If the registration is successfully completed: • A voice message in the Headset will say “Power on, Headset #, Version #, Begin registration, Registration complete, …” • After a delay of up to 15 seconds, the REGISTRATION STATUS display will show the ID number assigned to this Headset for about 10 seconds.

  • Page 16: Set Up Speaker Station

    Set Up Speaker Station The WS200 Speaker Station can be used together with Beltpacs and WH200 All-in-one Headsets. It provides wireless communication through its built-in microphone and speaker, or a plug-in headset. A remote speaker can also be connected to the unit. The Speaker Station can be used on a table top or mounted on the wall.
  • Page 17 Battery Battery sled compartment with batteries NOTE: An HME BAT850 Rechargeable NiMH Battery can be used instead. • Close the battery compartment by pressing down on its cover next to both of the latches at the same time until they snap in place.

  • Page 18: Register Speaker Station

    Register Speaker Station The first time you operate the WS200, you must register it for use with a specific base station. The base station will then recognize the WS200 when its power is on, and will be able to tell the difference between it and other electronic equipment operating on similar frequencies, or DX family Beltpacs or All-in-one Headsets.
  • Page 19 If registration failed: • A voice message will say “Power on, Speaker, Version #, Begin registration, …” The ISO and IC lights on the WS200 will be blinking red, and there may be a delay of up to 90 seconds before you hear “Registration failed.” •...

  • Page 20: Section 3. Equipment Operation

    Beltpac/Headset/Speaker Station. See pages 8 - 15. • Power “PWR” button Press and release to turn the DX100 power on. Press and hold for 2 seconds to turn power off. • Registration “REG” button Use this button to register each Beltpac/Headset/Speaker Station used with the DX100. See pages 8 - 15.

  • Page 21: Beltpac Operation

    BELTPAC OPERATION Power The Beltpac control buttons have a snap action. They will activate when lights pressed firmly. Use your fingertips, not your fingernails, to press the buttons. Power On/Off • Power On — Press and release the PWR (power) button. A voice message in the earpiece will say “Power on, Beltpac #, Version #,”...

  • Page 22: Sidetone Adjustment

    Volume Up/Down • Volume Up Adjustment — Each time you press and release the volume-up button, you will hear a higher pitch beep in the earpiece as the volume increases one step. If you press and hold the volume-up button, you will hear beeps of ascending pitch as the volume steps up to maximum. When maximum volume is reached, you will hear “maximum”...

  • Page 23: Wh200 Headset Operation

    WH200 HEADSET OPERATION The Headset control buttons will activate when pressed lightly. Use your fingertips, not your fingernails, to press the buttons. Power Power On/Off button • Power On — Press and release the power button on the inside of the Headset housing. A voice message in the earpiece will say “Power on, Headset #, Version #”...
  • Page 24 Volume Up/Down • Volume Up Adjustment — Each time you press and release the volume-up button, you will hear a higher pitch beep in the earpiece as the volume increases one step. If you press and hold the volume-up button, you will hear beeps of ascending pitch as the volume steps up to maximum. When maximum volume is reached, you will hear “maximum”...

  • Page 25: Speaker Station Operation

    SPEAKER STATION OPERATION Headset connector Headset Connection If you are using a headset with the WS200, plug it into the headset connector. When using a headset, if the red light over the SPEAKER button is on, incoming communication can be heard through the headset and the speaker.
  • Page 26 Routine Operation Power On/Off • To turn WS200 power on, press and release the POWER button. — Red lights will go on over the POWER, ISO and IC buttons. — If listening with a headset, or the speaker is turned on, you will hear “Power on, Speaker #, Version #.” —...
  • Page 27 Be sure battery polarity is correct when replacing the batteries. Rechargeable BAT850 Batteries If you are using the optional HME BAT850 Rechargeable Battery, remove the battery from the WS200 and replace it with a fully charged battery. Recharge the battery in the optional AC850 Battery Charger according to the instructions received with the charger.

  • Page 28: Section 4. Troubleshooting

    In the event of an electrical power outage — such as from a lightning storm or power generator failure, if you experience problems with your HME equipment after the electricity comes on again, unplug the AC power supplies from their electrical outlets,...

  • Page 29: Section 5. Technical Data

    SECTION 5. TECHNICAL DATA EQUIPMENT SPECIFICATIONS Base Station GENERAL ⎯ Frequency Range: 2400 – 2483.5 MHz Frequency Response: 200 Hz to 3.5 kHz Power Requirements: 100-240VAC, 50-60Hz or 12-14VDC Temperature Range: 32-122°F (0-50°C) Size: 10.2” x 6.45” x 3.33” (1-RU) (25.91 x 16.38 x 8.46 cm) Weight: 2.35 lbs.

  • Page 30: Beltpac

    Beltpac Frequency Range: 2400 MHz – 2483.5 MHz Antenna: Internal, horizontal/vertical diversity Frequency Response: 200 Hz to 3.5 kHz Transmit Power: 100mW burst RF Sensitivity: <−90dBm w 10 Battery Requirements: 3.6V lithium ion, rechargeable Battery Life: Hands-free – up to 14 hours, PTT – up to 20 hours Temperature Range: 32-122°F (0-50°C) Weight:...
  • Page 31 The WEEE Directive covers most HME products being sold into the EU as of August 13, 2005. Manufacturers, distributors and retailers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements.
