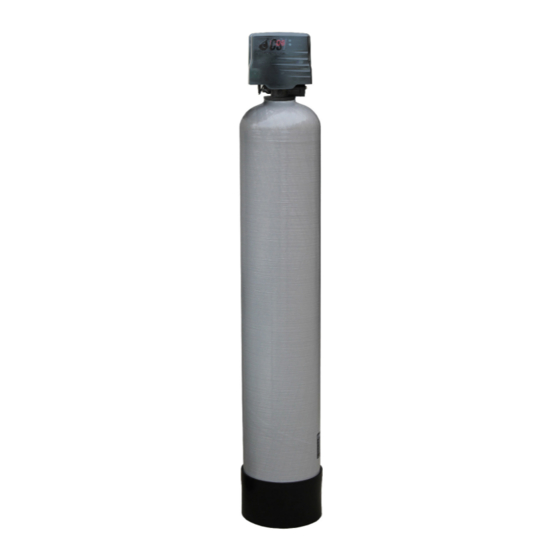

CSI Signature 2 Series Installation & Operation Manual
Hide thumbs
Also See for Signature 2 Series:
- Installation and operation manual (24 pages) ,
- Installation & operation manual (24 pages) ,
- Installation and operation manual (20 pages)
Subscribe to Our Youtube Channel
Related Manuals for CSI Signature 2 Series
Summary of Contents for CSI Signature 2 Series

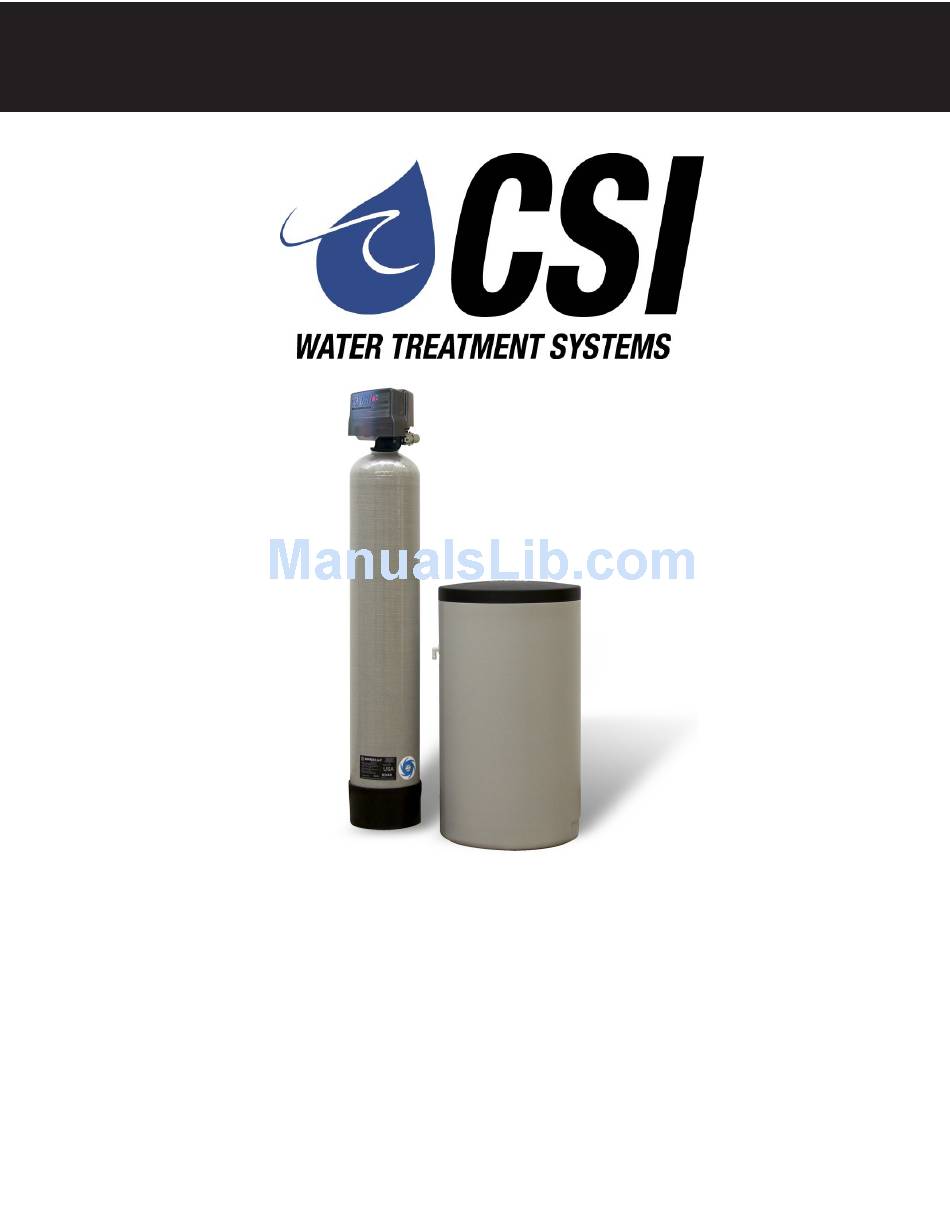

- Page 1 SIGNATURE 2 SERIES Signature 2 Series Softener Manual Installation / Operation Manual Fully Automatic & Demand Water Softeners...
-
Page 2: Table Of Contents
SIGNATURE 2 SERIES Softener Specifications....................Page 3 Softener Installation......................Page 5 Softener Capacity......................Page 10 Installing the Control Valve..................Page 13 Control Start-Up Procedures..................Page 15 Master Programming.....................Page 18 Utilizing Bluetooth......................Page 20 Control Valve Assembly....................Page 21 Valve Body Assembly....................Page 22 Valve Body Parts......................Page 23 Meter Assembly......................Page 24 Additional Information....................Page 25... -
Page 3: Softener Specifications
SIGNATURE 2 SERIES Softener Specifications TS24-S2 TS32-S2 TS48-S2 TS64-S2 MS24-S2 MS32-S2 MS48-S2 MS64-S2 General Specifications TS96V-S2 TS128V-S2 TS24V-S2 TS32V-S2 TS48V-S2 TS64V-S2 MS96V-S2 MS128V-S2 MS24V-S2 MS32V-S2 MS48V-S2 MS64V-S2 24,000 / 12 32,000 / 15 48,000 / 24 64,000 / 30 96,000 / 45... -
Page 4: How A Water Softener Works
SIGNATURE 2 SERIES Softener Specifications PLEASE NOTE THESE SPECIFICATIONS BEFORE PROCEEDING OPERATING PRESSURE RANGE : 20 - 125 PSI OPERATING TEMPERATURE RANGE : 33º F - 120º F INLET / OUTLET PIPE SIZE : 3/4: FNPT PLEASE COMPLY WITH ALL APPLICABLE PLUMBING CODES PROTECT THE SOFTENER AND PIPING FROM FREEZING TEMPERATURES Please read the entire Owner’s Manual and Instruction before installation. -
Page 5: Softener Installation
SIGNATURE 2 SERIES Installation -Pre-Installation Check List- A water test should always be performed in order to determine total water hardness (in gpg) and total dis- solved iron (in parts per million - ppm). This is critical for proper equipment selection, sizing and for determining the program for regeneration frequency. - Page 6 SIGNATURE 2 SERIES Installation -Softener Location / Other Requirements- • Locate the unit near an unswitched, 120 volt / 60 Hz grounded electrical outlet. • Check for distance and proper drain installation (e.g. floor drain, washing machine standpipe). • Determine type and size of piping required for softener connection (e.g. copper, galvanized, PVC plastic).
-
Page 7: Installation Procedure
SIGNATURE 2 SERIES Installation -Installation Procedure- - Water Supply Connections and Bypass Valve - To allow for softener servicing, swimming pool filling or lawn sprinkling, a manual bypass valve has been installed at the factory. The bypass allows hard water to be manually routed around the softener. -
Page 8: Electrical Connection
SIGNATURE 2 SERIES Installation -Brine Line and Overflow Connection- 1. Position brine tank on a smooth, level surface near the softener resin tank. If necessary, the brine tank can be placed at a higher level than the resin tank, but never at a lower level. - Page 9 SIGNATURE 2 SERIES Installation - Pressurizing The System - 1. Make certain Signature Series Control Valve is in SERVICE position. 2. Slowly rotate bypass valve to the SERVICE position. (Position of bypass lever is parallel to inlet / outlet piping.) 3.
-
Page 10: Softener Capacity
SIGNATURE 2 SERIES Capacity Figure 1 9# cu. ft. salt setting Capacity = 27,000 grains Model Nominal 32,000 Grain Units (-32) # of People Hardness Range Regeneration Frequency (# Days) 3 - 10 11 - 20 21 - 30 31 - 40... - Page 11 SIGNATURE 2 SERIES Capacity Model TS32-S2 & TS32V Models - Capacity = 27,000 Grains # of People Hardness Range Regeneration Frequency (# Days) 3 - 10 11 - 20 21 - 30 31 - 40 41 - 50 51 - 60...
- Page 12 SIGNATURE 2 SERIES Capacity Model TS96V Models - Capacity = 81,000 Grains # of People Hardness Range Regeneration Frequency (# Days) 3 - 20 21 - 30 31 - 40 41 - 50 51 - 60 61 - 70 71 - 80...
-
Page 13: Installing The Control Valve
SIGNATURE 2 SERIES Installation Note : Salt settings are pre-set at the factory for the maximum shown on the capacity charts. Warning : Do not reduce salt settings below 9 lbs. as the water level in the brine tank will not reach the grid plate. - Page 14 SIGNATURE 2 SERIES Installation - Final Check - 1. Be certain the bypass valve is in the SERVICE position. 2. Make sure the power supply is connected to an uninterrupted 115-volt outlet. 3. Check that the time of day is set 4.
-
Page 15: Control Start-Up Procedures
SIGNATURE 2 SERIES Control Start-Up Procedures - Programming The Control Valve For “TS” Units - 1. Set time of day. 2. Set a.m. or p.m. 3. Set number of days between regeneration. (Refer to Regeneration Charts below.) 4. Follow along the line indicating the number of persons in the family to the column that corresponds with the hardness range. -
Page 16: Normal Operation
SIGNATURE 2 SERIES Control Start-Up Procedures Normal Operation 1. Home Display a. Time Clock Softeners -Alternates between the display of Time of Day and Number of Days until the Next Regeneration. - Days Remaining until the Next Regeneration will count down from the entered value until it reaches 1 day remaining. - Page 17 SIGNATURE 2 SERIES Control Start-Up Procedures Starting Extra Regeneration Cycle To Start Delayed Extra Cycle Example [ 1 ] If Days Remaining Until Next Regeneration does not read ‘1’, press and hold the Set/Change button for 3 seconds until the display reads ‘1’, or ‘0000’ on metered models.
-
Page 18: Master Programming
SIGNATURE 2 SERIES Master Programming Mode Master Programming Mode To enter Master Programming Mode, press and hold both buttons for 5 seconds. Note: All Master Programming functions have been preset at the factory. Unless a change is desired, it is NOT necessary to enter Master Programming Mode. - Page 19 SIGNATURE 2 SERIES Master Programming Mode 5. Reserve Capacity Setting % Example (p - 25) 6. Bluetooth Enabled BE - 1 (ON) BE - 0 (OFF) 7. Bluetooth Password BBPP is displayed for one second, then password is displayed. 8. To Exit the Master Programming Mode, press the Menu/Enter button until time of day returns.
-
Page 20: Utilizing Bluetooth
SIGNATURE 2 SERIES Utilizing Bluetooth Control To take advantage of the Bluetooth interface this feature must be set up on a Bluetooth enabled device. Note: At the time of this release Bluetooth control only works on Android devices with a compatible version of Bluetooth. -
Page 21: Control Valve Assembly
SIGNATURE 2 SERIES Control Valve Assembly LETTERS IN DIAGRAM REPRESENT WIRING CONNECTIONS * "F" Port is for softener flow meter connection (flow meter not shown) Description Part Number Timered Power Head Assy. 21001X100 Metered Power Head Assy. 21003X100 Softener Circuit Boad Assy. -
Page 22: Valve Body Assembly
SIGNATURE 2 SERIES Valve Body Assy. (Softener Version) -
Page 23: Valve Body Parts
SIGNATURE 2 SERIES Valve Body Assy. Parts List(Softener Version) Description Part # Qty. R e f Description Part # Qty. R e f Brine Line Ferrule 20251X305 Piston Assembly 20001X231 10-24 x 13/16 Screw 20001X226 Brine Line Compression Nut 10-24 X 1 Hex Screw 20001X226 Seal &... -
Page 24: Meter Assembly
SIGNATURE 2 SERIES Bypass Assembly (1A) Ref # Description Part # Meter Assembly, Turbine Complete 20003X200 20561X292 Plastic Bypass Valve Assembly Bypass Valve 3/4” Stainless Steel 20561X270 Bypass Valve 1” Stainless Steel 20561X283... -
Page 25: Additional Information
SIGNATURE 2 SERIES Service Instructions / Instructional Videos Available at www.csiwater.com General Preliminary Instructions PERFORM BEFORE ALL SERVICING OPERATIONS 1. Turn off water supply to conditioner. -If the conditioner installation has a “three valve” bypass system, first open the valve in the bypass line, then close the valves at the conditioner inlet and outlet. - Page 26 SIGNATURE 2 SERIES Service Instructions / Instructional Videos Available at www.csiwater.com To Replace Brine Valve 1. Follow steps A1 - A3 2. Remove the control valve cover. Disconnect the meter cable from the meter assembly. 3. Remove screw and washer at piston drive yoke. Remove powerhead mounting screws.
- Page 27 SIGNATURE 2 SERIES Service Instructions / Instructional Videos Available at www.csiwater.com To Replace Seals and Spacers 1. Follow steps A1 - A3. 2. Remove the control valve cover. Disconnect the meter signal wire from the meter. 3. Remove screw and washer at piston drive yoke. Remove powerhead mounting screws.
-
Page 28: Troubleshooting
SIGNATURE 2 SERIES Troubleshooting Guide SYMPTOM PROBABLE CAUSE CORRECTION Power supply plugged into Connect to constant power source intermittentent or dead power source 1.Softener Fails to Disconnected meter cable Reconnect cable Regenerate Improper control valve Reset program settings programming Automatically... -
Page 29: Error Codes
SIGNATURE 2 SERIES Troubleshooting Guide SYMPTOM PROBABLE CAUSE CORRECTION Plugged drain line or drain line control Check flow to drain. Clean drainline flow control button 7. Excessive Water in Dirty or damaged brine valve Clean or replace brine valve. Brine Tank and / or Plugged injector or screen Clean or replace injector screen. - Page 30 SIGNATURE 2 SERIES NOTES:______________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________...
- Page 31 Brine Tank Compoents 1 Year the price paid for the product. In no case shall CSI or seller be liable for REVERE Wireless Low Salt Alarm 90 Days any special, incidental, contingent or consequential damages. Special, incidental, contingent and consequential damages for which CSI is not * This warranty does not include media and/or cartridge filter elements.
- Page 32 SIGNATURE 2 SERIES CSI WATER TREATMENT SYSTEMS 710 Orange St, Ashland, OH 44805 l PH 419-281-6829 l FAX 419-281-2375 www.csiwater.com...
