Intelix DIGI-USB2-4P Installation Manual page 3

• Power supply
• USB Type A to USB Type B cable
1. Verify all components included with the extender set are present
before installation.
2. Connect the included USB cable between the computer and the Host
device.
3. Connect the remote device(s) to the client extender.
4. Connect Category 5e or greater twisted pair cable with RJ45
connectors between the Host and the Client extenders. TIA/EIA-568B
straight-through wiring connections must be used.
5. Connect the included power supply to the Client extender.
6. Verify proper operation of the extended USB device.

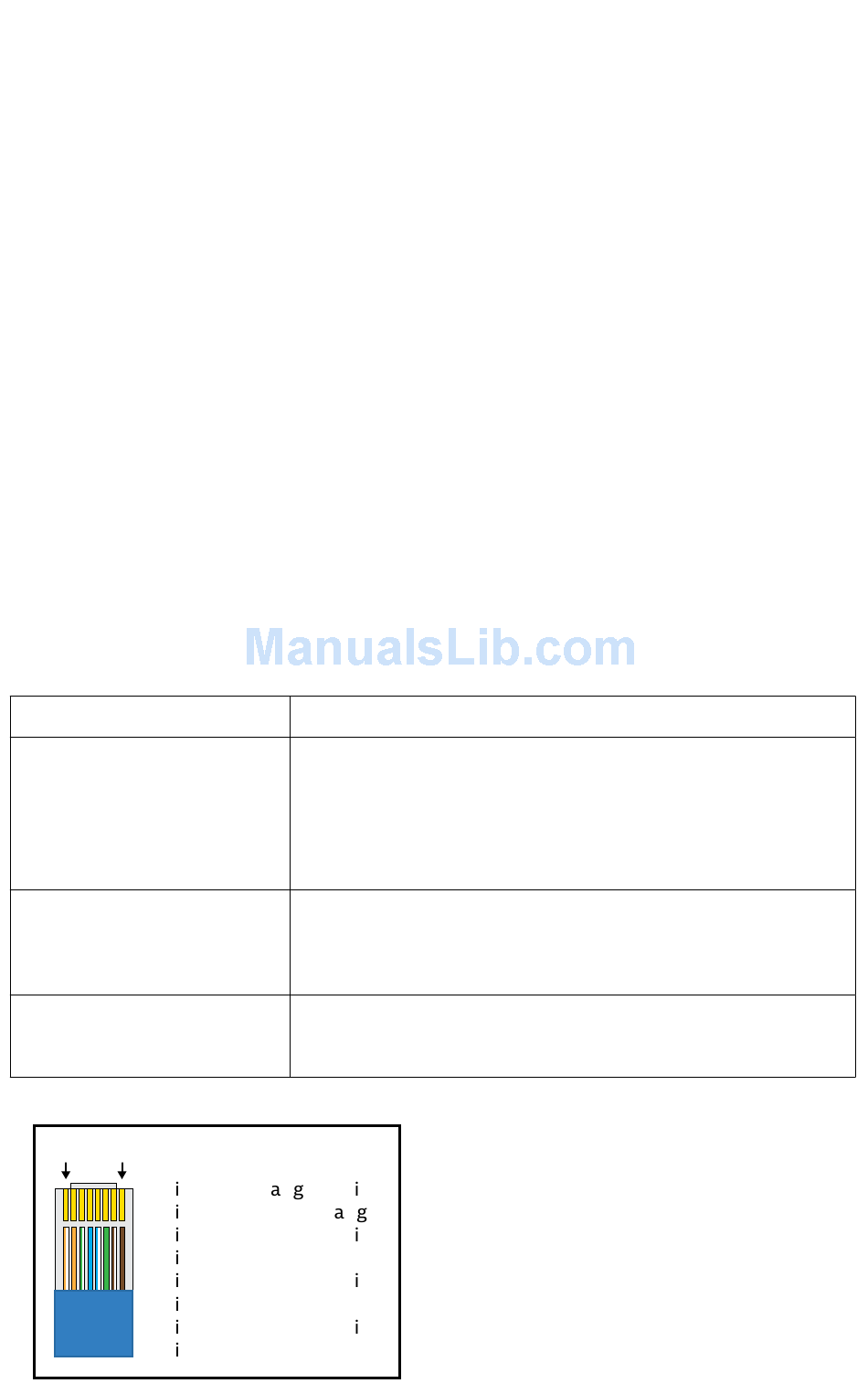

Symptom
• USB is not functioning
• USB Port LED is off
• USB is not functioning
• USB Port LED is on
• USB is not functioning
• Overcurrent notification
(orange LED on USB port)
1 8
P n 1
P n 2
P n 3
P n 4
P n 5
P n 6
P n 7
P n 8
Included Accessories
Instructions
Troubleshooting Tips
Possible Solutions
• Verify that both ends of the twisted pair cables use
T568B crimp pattern.
• Verify the power LEDs on both the send and receive units
are brightly illuminated.
• Verify the power supply is connected to either the client
extender.
• Verify USB cables at local and remote USB ports are
operational.
• Verify USB device works directly attached to PC.
• Verify the USB device driver is installed and working.
• Verify that the maximum distance has not been exceeded.
• Power cycle the client extender. Allow time for the
system to discharge; 30 seconds will be adequate.
TIA/EIA-568B
Or n e/Wh te
Or n e
Green/Wh te
Blue
Blue/Wh te
Green
Brown/Wh te
Brown
Twisted Pair Wiring
Use TIA/EIA-568B wiring for Category
6 connections between transmit and
receive units.
