88 5516 13
Barnside Media Tower
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

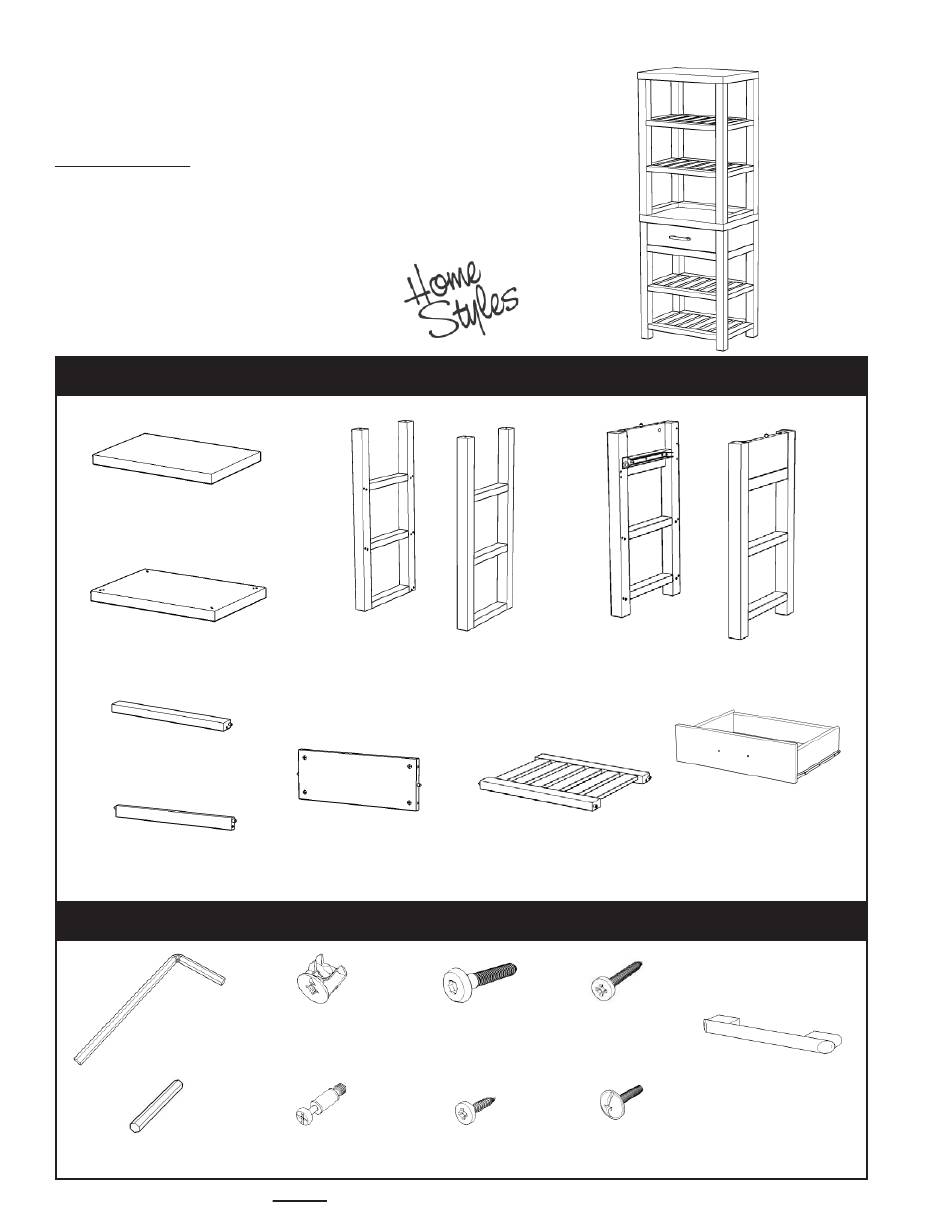

Part List
A.
Top
1 Pc.
B.
Top
1 Pc.
E.
Back Stretcher
1 Pc.
H.
Front Rail
1 Pc.
Hardware List
Hex Wrench
1 Pc.
Small Hex Wrench
1 Pc.
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance: www.homestyles-furniture.com,
C.
D.
Frame
Frame
1 Pc.
1 Pc.
I.
Back Panel
1 Pc.
Cam Lock
Head Cap bolt
16 Pcs. (+4 extra)
20 Pcs. (+1 extra)
Cam Lock Screw
Wood Screw (short)
16 Pcs. (+1 extra)
6 Pcs. (+1 extra)
F.
G.
Frame
Frame
1 Pc.
1 Pc.
J.
Shelf
4 Pcs.
(Please refer to the last page of these
instructions for drawer assembly steps)
Wood Screw (long)
8 Pcs. (+1 extra)
Machine Screw
2 Pcs.
Tools recommended for assembly : Level
K.
Drawer
1 Pc.
Pull Handle
1 Pc.
Advertisement
Table of Contents
Related Manuals for Home Styles Barnside 88 5516 13
Summary of Contents for Home Styles Barnside 88 5516 13
- Page 1 Small Hex Wrench Cam Lock Screw Wood Screw (short) Machine Screw 1 Pc. 16 Pcs. (+1 extra) 6 Pcs. (+1 extra) 2 Pcs. Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level Home Styles Consumer Assistance: www.homestyles-furniture.com,...
- Page 2 Assembly Instructions 2 IMPORTANT * Please keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Do not tighten up all the bolts until each part is properly assembled. * Use a soft cloth between these parts and the fl...
- Page 3 Assembly Instructions 3 /5 STEP 3 Turn the unit to its’ upright position. Attach Top (A) to the unit with Cam Locks. Cam Lock STEP 4 Attach Top (B) to the unit with Head Cap Bolts. Head Cap Bolt STEP 5 Cam Lock Attach Shelves (J) to Frame (F) with Head Cap Bolts.
- Page 4 Assembly Instructions 4 STEP 6 Attach unit from Step 4 to unit from Step 5 with Cam Locks. Cam Lock STEP 7 Slide Drawer (K) into position. STEP 8 To level the unit, adjust the adjustable levelers on the bottom of unit. (See fi...
- Page 5 Assembly Instructions 5 Drawer (K) Wood Screw (long) STEP 1 Figure 1 Attach K1, K2 and K3 using a Phillips screwdriver and long wood screws (8X), tighten halfway. MAKE SURE ROLLER IS ON THE BACK Attach K3 to K1, K4 using long wood screws (8X), tighten halfway.
