88 5516 01

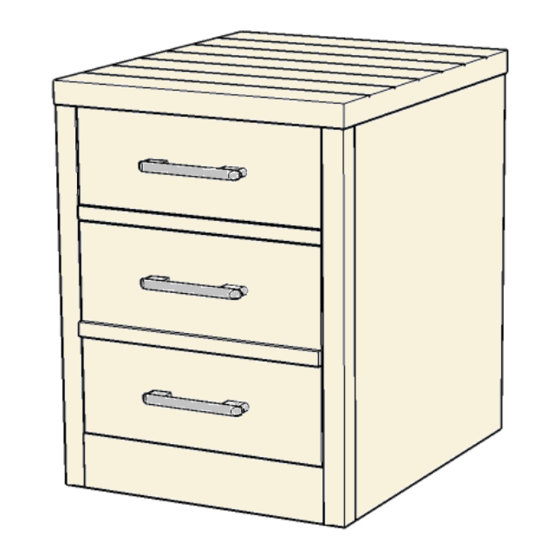

Barnside
Mobile File
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Hardware List
IMPORTANT
* Do not tighten up all the screws until each part is properly assembled.
* Use a soft cloth between these parts and the fl oor.
STEP 1
Place unit on its' back, with the
drawers facing up, on a soft cloth.
Attach the Caster (4X)
underneath the unit with
Wood Screws.
(see Figures 1)
Wood Screw
Figure 1
Tools required for assembly : Phillips screwdriver
Caster
4 Pcs.
Caster
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
Wood Screw
for Caster
16 Pcs. (+2 extra)
Assembly Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Styles Barnside 88 5516 01
Summary of Contents for Home Styles Barnside 88 5516 01
- Page 1 Attach the Caster (4X) underneath the unit with Wood Screws. (see Figures 1) Wood Screw Caster Figure 1 Tools required for assembly : Phillips screwdriver Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2 STEP 2 Remove the Pull Handles that are installed on the inside of the drawers and re-install them on the outside of the drawers. (see Figure 2) Slide drawers into position. Figure 2 STEP 3 Remove the tape holding the Metal Strips in place.
