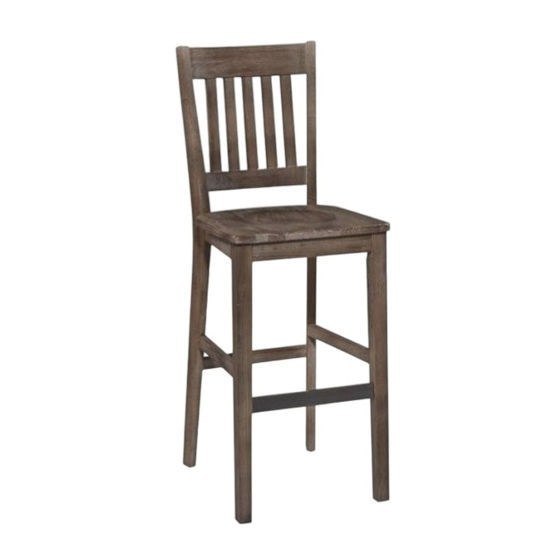

Barnside Counter
Stool
Important NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
A.
Seat
1 pc.
B.
Side Stretcher
1 pc.
D.
Front Stretcher
ront Stretcher
1 pc.
Hardware List
Small
Key Wrench
1 pc.
Key Wrench
1 pc.
Tools required for assembly : Phillips screwdriver
C.
Side Stretcher
1 pc.
Wood Screw
Head Cap Bolt
6 pcs. (+1 extra)
(short)
2 pcs. (+1 extra)
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
E.
.
F.
F.
Leg
Leg
1 pc.
1 pc.
Head Cap Bolt
4 pcs. (+1 extra)
G.
Back Frame
1 pc.
Spring Washer
10 pcs. (+1 extra)
Head Cap Bolt
Flat Washer
(long)
10 pcs. (+1 extra)
4 pcs. (+1 extra)
