User Manual
EPIC SBC with Intel® Atom Processor D525/D425/N455 ,DDR3,VGA/
Dual LVDS, GbE LAN,USB2.0 and SATA II,Audio,RoHS
NANO-PV-D5252/D4252/N4552
Quick Installation Guide
Quick Installation Guide
Package List
NANO-PV-D4252/ N4552/ D5252 package includes the following items:

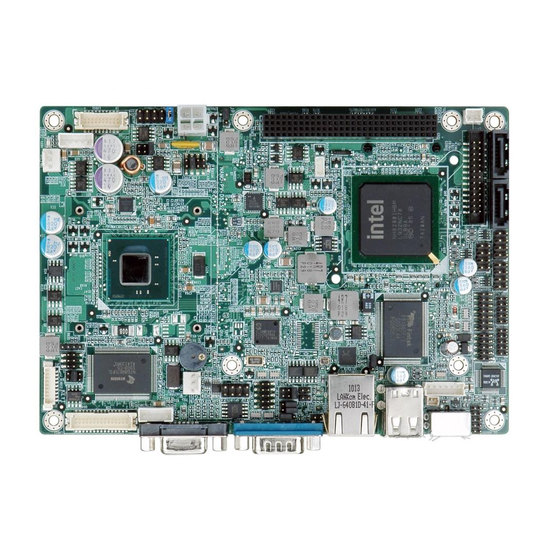

1 x NANO-PV-D4252/N4552/D5252 Single Board Computer
1 x SATA with 5V power cable
1 x KB/MS Y Cable
1 x USB Cable
1 x Audio Cable
2 x RS-232 cable
1 x Power Cable
1 x Mini Jumper Pack
1 x Driver CD
1 x One key Recovery Utility CD
1 x QIG (Quick Installation Guide)
,USB2.0 and SATA II,Audio,RoHS
D5252/D4252/N4552
Version 1.1
JUN 18, 2015.
D4252/N4552/D5252 Single Board Computer
©2006 Copyright by IEI Integration corp.
All rights reserved.
D525/D425/N455 ,DDR3,VGA/
package includes the following items:
corp.
1
Advertisement
Related Manuals for IEI Technology NANO-PV-D5252
Summary of Contents for IEI Technology NANO-PV-D5252
- Page 1 EPIC SBC with Intel® Atom Processor D525/D425/N455 ,DDR3,VGA/ D525/D425/N455 ,DDR3,VGA/ Dual LVDS, GbE LAN,USB2.0 and SATA II,Audio,RoHS ,USB2.0 and SATA II,Audio,RoHS NANO-PV-D5252/D4252/N4552 D5252/D4252/N4552 Quick Installation Guide Quick Installation Guide Version 1.1 JUN 18, 2015. Package List NANO-PV-D4252/ N4552/ D5252 package includes the following items:...
-
Page 2: Specifications
Specifications CPU: Intel® Atom™ D525 dual-core processor 1.8GHz/1MB L2 cache Intel® Atom™ D425 single-core processor 1.8GHz/512KB L2 cache Intel® Atom™ N455 single-core processor 1.66GHz/512KB L2 cache System Chipset: Intel ICH8M BIOS: UEFI BIOS System memory: One 204-pin 800MHz DDR3 SDRAM SO-DIMM supported (System max. - Page 3 Display Interface: Analog CRT up to 2048x1536, support for CRT hot plug 18-bit single-channel LVDS, resolution support up to 1366x768 24-bit dual-channel LVDS by Novatek NT68660BUFG, resolution support up to 1920x1080. Watchdog timer: Software programmable supports 1~255 sec. system reset by Super I/O Power Supply: single +12V input TPM(optional)
-
Page 4: Ordering Information
Ordering Information NANO-PV-D5252-R11: EPIC SBC with Intel Atom D525 1.8GHz,DDR3,VGA/18+ 48bit LVDS,GbE,USB2.0 and SATA II,Audio,RoHS NANO-PV-D4252-R11: EPIC SBC with Intel Atom D425 1.8GHz,DDR3,VGA/18+ 48bit LVDS,GbE,USB2.0 and SATA II,Audio,RoHS NANO-PV-N4552-R11: EPIC SBC with Intel Atom N455 1.66GHz,DDR3,VGA/18+ 48bit LVDS,GbE,USB2.0 and SATA II,Audio,RoHS... -
Page 5: Jumpers Setting And Connectors
Jumpers setting and connectors LABEL FUNCTION AT/ATX mode selection J_AUTOPWR1 AT/ATX mode selection J_ATXCTL1 Clear CMOS J_CMOS1 LVDS1 LCD Voltage Select J_VLVDS1 J_VLVDS2 LVDS2 LCD Voltage Select CF master/slave selection JCF1 RS232/RS422 or RS485 Type Selection RS232/RS422 or RS485 Type Selection RS422 terminal selection RS485 terminal selection CF Voltage selection... - Page 6 OSD Control connector KEY1 Keyboard/Mouse Connector KB/MS1 6 pin Din Jack KB/MS Connector Parallel Port Connector VGA 15-pin Female Connector VGA1 RJ45 LAN Connectors LAN1 Serial ATA Connectors SATA1~2 Battery Connector BAT1 SATA power output PWR1,2 J_AUTOPWR1 ¢ AT/ATX1 mode setting PIN NO.
- Page 7 J_VLVDS1 £ J_VLVDS2: LVDS1 LCD Voltage Select PIN NO. DESCRIPTION 3.3V(Default) JCF1: CF Master/Slave selection PIN NO. DESCRIPTION Short Master Open Slave J4: RS232/RS422 or RS485 Type Selection PIN NO. DESCRIPTION RS232 RS422 RS485 J6: RS422 or RS485 Type Selection PIN NO.
- Page 8 JP1: PCI-104 voltage selection PIN NO. DESCRIPTION Short 1-2 Short 2-3 3V ¤ default ¥ JP2:LVDS2 load firmware type select PIN 5 £ 6 PIN 1 £ 2 PIN 3 £ 4 PANEL TYPE OPEN OPEN OPEN 640x480 SHORT OPEN OPEN 800X600 OPEN...
- Page 9 COM2,4,5 : Internal Serial Pin Header (RS-232) PIN NO. DESCRIPTION PIN NO. DESCRIPTION DCD2 DSR2 RXD2 RTS2 TXD2 CTS2 DTR2 COM3 : Internal Serial port connector(RS232/422/485) PIN NO. DESCRIPTION PIN NO. DESCRIPTION DCD3 DSR3 RXD3 RTS3 TXD3 CTS3 DTR2 RS42 TX2+/ RS422 TX2-/ RS485+ RS485-...
- Page 10 CPU_FAN1:CPU FanConnector PIN NO. DESCRIPTION PIN NO. DESCRIPTION FANIO1 FANPWM1 SYS_FAN1: System Fan Connector. PIN NO. DESCRIPTION PIN NO. DESCRIPTION FANIO2 VCC12 CN1 : SMBUS CONNECTOR PIN NO. DESCRIPTION PIN NO. DESCRIPTION SMB_DATA SMB_CLK VCC5S DIO1: Digital I/O Connector. PIN NO. DESCRIPTION PIN NO.
- Page 11 LVDS1 : LVDS LCD Connector. PIN NO. DESCRIPTION PIN NO. DESCRIPTION LVDSA_DATA0 LVDSA_DATA0- LVDSA_DATA1 LVDSA_DATA1- LVDSA_DATA2 LVDSA_DATA2- LVDSA_CLK LVDSA_CLK- L_DDC_DATA L_DDC_CLK LCD_VCC LCD_VCC LCD_VCC LCD_VCC INV1:LVDS1 Backlight Control PIN NO. DESCRIPTION PIN NO. DESCRIPTION L_BKLTCTL ENABKL LVDS2 : LVDS LCD Connector. PIN NO.
- Page 12 INV2:LVDS2 Backlight Control PIN NO. DESCRIPTION PIN NO. DESCRIPTION BL_Adjust BL_Enable KEY1: OSD Control Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION LCD-BKL ON/OFF LCD-Ambient menu/enter DOWN auto/exit POWER KB_MS1: Keyboard/Mouse Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION VCC (+5V) Mouse Data Mouse Clock Keyboard Data Keyboard Clock...
- Page 13 PTD 4 PTD 5 PTD 6 PTD7 BUSY SLCT VGA1: 15-pin Female Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION GREEN BLUE Display_ GND DDCDAT HSYNC VSYNC DDCCLK LAN1: RJ45 LAN Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION MDI0+ MDI2+ MDI0- MDI3- MDI1+ MDI3+...
- Page 14 BAT1: Battery connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION VBAT PWR1,2: SATA power output PIN NO. DESCRIPTION PIN NO. DESCRIPTION NOTE: Due to limited space on the mainboard, the VGA and COM port on the I/O panel cannot be used simultaneously. To utilize both the VGA and COM port at the same time, please connect the RS-232 COM port cable to the mainboard pin-header.
- Page 15 Board Layout: Jumper and Connector Locations (Unit: mm)
