  • Page 2 ORWARD Thank you for your purchase of a NAUTICAM housing. At NAUTICAM, we pride ourselves in the ability to recognize the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products. We strive to achieve a high level of user-friendliness by allowing stress-free installation and easy operation of all important functions of the camera.
  • Page 3: Table Of Contents

    ARRANTY Warranty ……………………………………………………………………………………………………………. Precautions ………………………………………………………………………………………………………… Package Contents ………………………………………………………………………………………………. Specifications …………………………………………………………………………………………………….. Identification of Parts ………………………………………………………………………………………… Opening and Locking the Housing ……………………………………………………………………… Preparation of the Housing ………………………………………………………………………………… Installing Camera …………………………………………………………………………………………….…. Changing the Port ……………………………………………………………………………………………… Installing Handle Brackets and Shutter Release Extension ………………………………… Care and Maintenance ……………………………………………………………………………………….
  • Page 4: Warranty

    NAUTICAM does not hold responsibility for damage, of any nature, to any equipment used with and/or placed within our products. NAUTICAM accepts no liability for any loss of captured images or the inability to capture images even if it is due to the malfunctioning of our products.
  • Page 5: Precautions

    O-ring(s).  Do not use lubricants from other brands with the silicone rubber O-ring on this housing, only use the lubricant provided by NAUTICAM.  Discontinue use immediately should you notice any leakage.
  • Page 6  Do not open the product in a wet or sandy environment. Protect the interior from moisture and debris in order to prevent malfunction or leakage.  Do not store the product in an environment of high humidity.  Do not leave the housing and the monitor in direct sunlight for prolonged periods. ...
  • Page 7: Package Contents

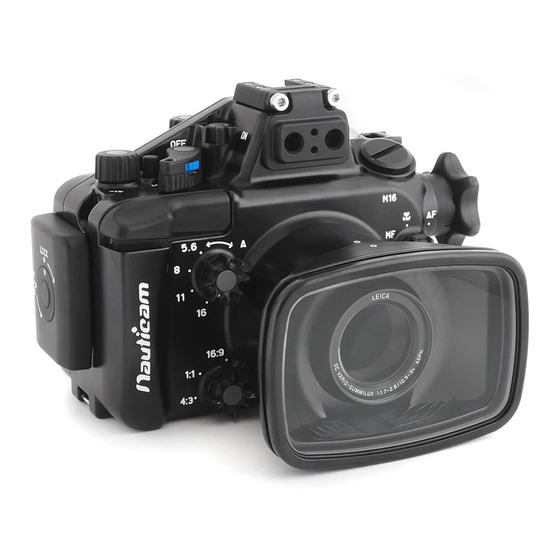

    ACKAGE ONTENTS  NA-LX100II housing with N50 Standard Port  Handle Brackets and Shutter Release Extension  90131 Spare silicone rubber O-ring for housing  O-ring remover  CR2032 battery  Lubricant  Set of Allen keys  Instruction manual...
  • Page 8: Specifications

    PECIFICATIONS Housing body: Aluminum alloy Construction Surface treatment: Hard anodized Display window: Abrasion resistant polycarbonate Width: 180mm Height: 128mm Dimensions Depth: 144mm Weight Approx. 1.20kg Buoyancy Slightly negative Depth rating 100 m Port mount Compatible Panasonic Camera cameras...
  • Page 9: Identification Of Parts

    DENTIFICATION OF ARTS On/off switch Zoom lever Filter button Exposure compensation dial Zoom lever lock Shutter release lever Aperture selector Aspect ratio selector...
  • Page 10 Shutter speed dial IA button Mounting holes for hand strap/handle brackets Housing lock safety button Housing lock...
  • Page 11 Accessory coldshoe Optical fiber mount Moisture alarm window M16 accessory port Port alignment index Mounting holes for handle brackets Focus selector Front control ring knob dial Standard flat port Port lock/release button...
  • Page 12 Fn4 button Motion picture button Fn5 button Flash on/off lever AF/AE lock button Fn2/Q menu button Playback button Rear control wheel ISO/Up button Mounting holes for LCD magnifier attachment rails AF mode/Left button WB/Right button Menu/Set button Drive mode/ Down button Delete/Cancel button Display button...
  • Page 13 1/4”-20UNC tripod socket x2* *The maximum length of screws that can be used with the tripod sockets is 4mm.
  • Page 14: Opening And Locking The Housing

    PENING AND OCKING THE OUSING To open the housing Turn the housing lock counter clockwise for 270º Press the housing lock safety button until the lock reaches the ‘open’ position as shown To lock the housing Turn the housing lock clockwise for 270º until the lock Close the housing while the housing reaches the ‘lock’...
  • Page 15: Preparation Of The Housing

    Prepar REPARATION OF THE OUSING 4. Setting up the moisture alarm: 1. After verifying that the main O-ring is in good condition, lightly coat it with the lubricant provided. 2. Make sure the O-ring groove located in the front part of the housing is free from any foreign material;...
  • Page 16 Battery Installation: Press Press Insert the battery as shown above and To remove the battery, press the metal then press down the battery. plate as indicated and the battery will pop out.
  • Page 17 3. Test the alarm by connecting the two 2. Switch the alarm on. The LED wires near the bottom of the housing light will flash blue once and turn with a damp cotton bud; the alarm blue for five seconds indicating should start giving out a repeating the battery is normal.
  • Page 18 Optional Vacuum valve: Vacuum valve can be attached to the housing via one of the accessory port for conducting a vacuum seal test. Please refer to the manual of the vacuum valve for details of the operation. LED status identification: On start up LED indicator Status...
  • Page 19 After start up LED indicator Status Standby mode. The moisture alarm is active, Flashing "Blue" light and the system is ready for vacuum indication whenever a vacuum is detected. Flashing "Red" light Moisture is detected. with beeping sound Some vacuum is detected, target vacuum level Flashing "Yellow"...
  • Page 20: Installing Camera

    NSTALLING AMERA 1. Adjust the aperture selector to ‘16’ and Set the AF mode selector to ‘AF’. aspect ratio selector to ‘4:3’ Pull out the front control ring knob and Pull the ON/OFF lever up sit on the shallower groove as shown...
  • Page 21 Connect Make sure the aperture, aspect ratio and focus Return the knob back to the deeper mode are with the same setting as follow: f/16, groove to engage with the camera’s 4:3 and AF respectively. Attach the mini flash control ring and then place the camera inside the housing Confirm that all the controls of the housing are correctly engaged...
  • Page 22: Changing The Port

    Connect HANGING THE Three optional ports are available for different styles of photography. -38702 N50 3.5’’ Acrylic Dome Port An acrylic dome port that restore the lens field of view underwater -38703 N50 Short Port with Bayonet Mount (To use with WWL-1) A shorter port with bayonet mount to use with WWL-1 To remove Port Press and hold the red port lock...
  • Page 23 Connect To mount Port Turn the port clockwise until the Align the ‘I’ mark on the port ‘o’ mark on the port aligns with with the ‘o’ mark on the housing. the ‘o’ mark on the housing. Gently push the port towards the housing until it cannot go any further.
  • Page 24: Installing Handle Brackets And Shutter Release Extension

    NSTALLING ANDLE RACKETS AND HUTTER ELEASE XTENSION A pair of handle brackets is supplied with the housing for use with optional Easitray (#71206) or Flexitray (#71207) with right handle (#71208), providing additional stability. Strobe mounting balls (#71311) are required. To install the handle brackets: Locate the mounting holes on the side Attach the tray to the housing and of the housing and install the handle...
  • Page 25 The Shutter release extension provides easy shutter release access from the handle grip for users with big hand, or thick dry suit gloves who prefer shooting from a handle. To install the shutter release extension: Flip Wheel 1. Confirm that the wheel is located at 2.
  • Page 26 Loosen to Adjust Mount shutter release Loosen the two screws as shown extension onto the right handle until the wheel assembly can freely bracket as shown. move vertically. Adjust the position of the wheel so that it touches on the housing shutter release lever and tighten.
  • Page 27: Care And Maintenance

    O-ring with the provided lubricant before reinstalling it in the groove. A damaged O-ring should be discarded immediately and replaced only with one that is provided by NAUTICAM.  Replace the main O-ring annually. It is recommended that you ship the housing to our...
  • Page 28: Optional Accessories

    PTIONAL ACCESSORIES P.N. 25106 P.N. 25625 P.N. 25132 LCD Magnifier with Dioptric M16 Vacuum Value II LCD Magnifier Attachment Rails Adjustment (Pushbutton Release) for NA-LX100/LX100II P.N. 38703 P.N. 38702 P.N. 83201 N50 Short Port with Bayonet N50 3.5’’ Acrylic Wide-Angle Wet Wide Lens 1 (WWL-1) 130 deg.
  • Page 29 P.N. 81301 P.N. 81302 Compact Macro Convertor 1 Compact Macro Convertor 2 (CMC-1, 4.5X Magnification) (CMC-2, 2.8X Magnification) P.N. 25107 P.N. 83214 Bayonet Mount Adaptor for M67 Flip Diopter Holder to mount CMC-1/CMC-2 SMC/CMC...
  • Page 30 P.N. 71206 P.N. 71207 P.N. 71208 Adjustable right handle II Easitray II with left handle Flexitray II with left handle (with 2pcs ¼’’ screws) (for Easitray II & Flexitray II) (with 2pcs ¼’’ screws)
