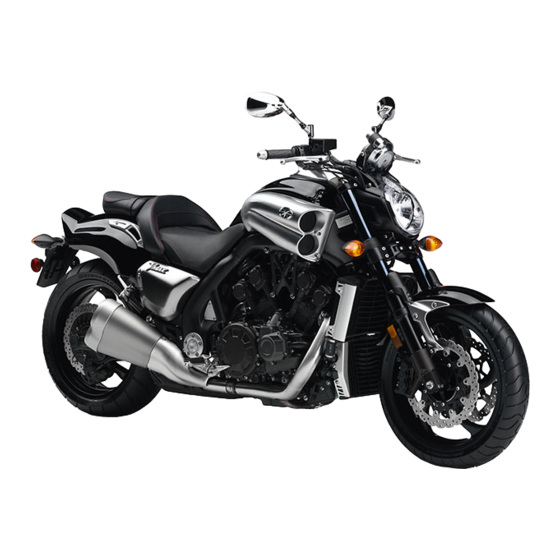

Yamaha VMAX VMX17 Owner's Manual

Hide thumbs Also See for VMAX VMX17:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Read this manual carefully before operating this vehicle.
OWNER'S MANUAL
VMX17
2S3-28199-E0

Advertisement

Table of Contents
loading

Related Manuals for Yamaha VMAX VMX17

Summary of Contents for Yamaha VMAX VMX17

  • Page 1 Read this manual carefully before operating this vehicle. OWNER’S MANUAL VMX17 2S3-28199-E0...
  • Page 2 Read this manual carefully before operating this vehicle. This manual should stay with this vehicle if it is sold. YAMAHA MOTOR ELECTRONICS CO., LTD. 1450-6, Mori, Mori-machi, Shuchi-gun, Shizuoka-ken, 437-0292 Japan DECLARATION of CONFORMITY Company: YAMAHA MOTOR ELECTRONICS CO., LTD. Address: 1450-6, Mori, Mori-Machi, Shuchi-gun, Shizuoka-Ken, 437-0292 Japan Hereby declare that the product: Kind of equipment: IMMOBILIZER...
  • Page 3 EAU10102 Welcome to the Yamaha world of motorcycling! As the owner of the VMX17, you are benefiting from Yamaha’s vast experience and newest technology regarding the design and manufacture of high-quality products, which have earned Yamaha a reputation for dependability.

  • Page 4: Important Manual Information

    IMPORTANT MANUAL INFORMATION EAU10132 Particularly important information is distinguished in this manual by the following notations: This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
  • Page 5 IMPORTANT MANUAL INFORMATION EAU10200 VMX17 OWNER’S MANUAL ©2008 by Yamaha Motor Co., Ltd. 1st edition, July 2008 All rights reserved. Any reprinting or unauthorized use without the written permission of Yamaha Motor Co., Ltd. is expressly prohibited. Printed in Japan.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS SAFETY INFORMATION ....1-1 Ignition circuit cut-off system ..3-29 Clutch lever ........6-21 Checking the front brake lever DESCRIPTION ........2-1 FOR YOUR SAFETY – free play ........6-21 Left view ...........2-1 PRE-OPERATION CHECKS ....4-1 Adjusting the rear brake light Right view .........2-2 switch .........
  • Page 7 TABLE OF CONTENTS Replacing a license plate light bulb ..........6-35 Replacing the auxiliary light bulb ..........6-36 Supporting the motorcycle .....6-36 Troubleshooting ......6-37 Troubleshooting charts ....6-38 MOTORCYCLE CARE AND STORAGE ...........7-1 Matte color caution ......7-1 Care ..........7-1 Storage ..........7-4 SPECIFICATIONS ......8-1 CONSUMER INFORMATION....9-1 Identification numbers .....9-1...

  • Page 8: Safety Information

    SAFETY INFORMATION EAU10283 time you use the vehicle to make sure it motorist’s blind spot. is in safe operating condition. Failure to Many accidents involve inexperi- Be a Responsible Owner inspect or maintain the vehicle properly enced operators. In fact, many op- As the vehicle’s owner, you are respon- increases the possibility of an accident erators who have been involved in...
  • Page 9 SAFETY INFORMATION ed by road and traffic conditions. cle accidents are the result of head in- monoxide, a deadly gas. Breathing car- Always signal before turning or juries. The use of a safety helmet is the bon monoxide can cause headaches, changing lanes.
  • Page 10 Yamaha accessories, which are avail- the possibility of an accident, use ex- able only from a Yamaha dealer, have treme caution when adding cargo or Shifting weights can create a sud- been designed, tested, and approved accessories to your motorcycle.
  • Page 11 SAFETY INFORMATION ucts similar in design and quality to create instability due to improper motorcycle’s electrical system, an genuine Yamaha accessories, recog- weight distribution or aerody- electric failure could result, which nize that some aftermarket accessories namic changes. If accessories...

  • Page 12: Description

    DESCRIPTION EAU10410 Left view 1. Headlight (page 6-32) 8. Shock absorber assembly rebound damping force adjusting knob (page 3-26) 2. Front fork spring preload adjusting bolt (page 3-24) 9. Sidestand (page 3-29) 3. Front fork rebound damping force adjusting knob (page 3-24) 10.

  • Page 13: Right View

    DESCRIPTION EAU10420 Right view 1. Passenger seat (page 3-22) 9. Fuse box 2 (page 6-31) 2. Rear brake fluid reservoir (page 6-23) 10. Shock absorber assembly compression damping force adjusting knob (page 3-26) 3. Rider seat (page 3-22) 4. Fuse box 1 (page 6-31) 5.

  • Page 14: Controls And Instruments

    DESCRIPTION EAU10430 Controls and instruments 1. Clutch lever (page 3-16) 9. Throttle grip (page 6-17) 2. Left handlebar switches (page 3-15) 10. Multi-function display (page 3-6) 3. Clutch fluid reservoir (page 6-23) 11. Main switch/steering lock (page 3-2) 4. Speedometer unit (page 3-5) 5.

  • Page 15: Instrument And Control Functions

    Do not expose any key to exces- the vehicle along with all three keys to sively high temperatures. a Yamaha dealer to have them re-reg- Do not place any key close to istered. Do not use the key with the red magnets (this includes, but not bow for driving.

  • Page 16: Main Switch/Steering Lock

    INSTRUMENT AND CONTROL FUNCTIONS as they may cause signal inter- EAU10460 the engine stalls. Main switch/steering lock ference. EAU10661 All electrical systems are off. The key can be removed. EWA10061 WARNING Never turn the key to “OFF” or LOCK “LOCK” while the vehicle is moving. Otherwise the electrical systems will be switched off, which may result in The main switch/steering lock controls...

  • Page 17: Indicator And Warning Lights

    9. Anti-lock Brake System (ABS) warning If the warning light does not come on light “ ” and then go off, have a Yamaha dealer 10. Oil level warning light “ ” check the electrical circuit. If the warning light stays on, proceed as EAU11030 follows.
  • Page 18 If the engine overheats, see page does not go off, check the engine Yamaha dealer check the electrical cir- 6-38 for further instructions. oil level. (See page 6-9.) If the cuit.

  • Page 19: Speedometer Unit

    ABS may not work cor- Yamaha dealer check the electrical cir- rectly. If this occurs, have a Yamaha cuit. dealer check the system as soon as When the key is turned to “OFF” and 30 possible.

  • Page 20: Multi-Function Display

    INSTRUMENT AND CONTROL FUNCTIONS within the ideal power range. When the EAU46583 Multi-function display key is turned to “ON”, the tachometer needle will sweep once across the r/ min range and then return to zero r/min in order to test the electrical circuit. ECA10031 NOTICE Do not operate the engine in the ta-...
  • Page 21 INSTRUMENT AND CONTROL FUNCTIONS started flashing) least two seconds. Select mode a fuel meter The various functions of this multi-func- a transmission gear indicator tion display are adjusted in the Select Tripmeters a coolant temperature display mode. Turn the key to “ON”. Push “SELECT” a self-diagnosis device to switch the display between the trip- The transmission must be in neu-...
  • Page 22 INSTRUMENT AND CONTROL FUNCTIONS clock This function allows you to choose stopwatch whether or not the shift timing indicator countdown clock light is activated and whether it flashes system status or stays on when activated. maintenance counters 1. Push “SELECT” to highlight “Shift 3.
  • Page 23 INSTRUMENT AND CONTROL FUNCTIONS “Flash” to activate the indicator engine speed at which the indicator light; the indicator light flashes light is activated and deactivated. All when activated. gears can be set to the same activation/ deactivation r/min or the gears can be set individually.
  • Page 24 INSTRUMENT AND CONTROL FUNCTIONS 2. Push “RESET”; following screen is displayed. 2. Push “RESET” and the r/min digits 2. Push “RESET” and the brightness for the highlighted gear start flash- level segments start flashing. ing, then perform steps 4–8 under 3.
  • Page 25 INSTRUMENT AND CONTROL FUNCTIONS seconds. 5. Push “SELECT” to start the stop- watch. 6. Push “SELECT” or the start switch Using the stopwatch “ ” to stop the stopwatch. The stopwatch can be activated as fol- 7. Push “RESET” to reset the stop- 2.
  • Page 26 INSTRUMENT AND CONTROL FUNCTIONS down clock, and then repeat steps while the system status menu is 5–6, OR push “RESET” again for displayed, the fuel level warning at least two seconds to enter the light or coolant temperature warn- Normal mode. ing light comes on, the Normal mode is automatically displayed.
  • Page 27 INSTRUMENT AND CONTROL FUNCTIONS in the following order: engine oil, and an item of your choice. vious menu. (TRIP-F) → TRIP-1 → TRIP-2 → ODO 1. Push “SELECT” to highlight “Main- → (TRIP-F) tenance”, then push “RESET”. Self-diagnosis device Push “RESET” to reset a tripmeter. For the U.K.

  • Page 28: Anti-Theft Alarm (Optional)

    If the display indicates any error codes, This model can be equipped with an the display indicates a two-digit error note the code number, and then have a optional anti-theft alarm by a Yamaha code. Yamaha dealer check the vehicle. dealer. Contact a Yamaha dealer for more information.

  • Page 29: Handlebar Switches

    INSTRUMENT AND CONTROL FUNCTIONS EAU12347 Right position. To cancel the turn signal Handlebar switches lights, push the switch in after it has re- turned to the center position. Left EAU12500 Horn switch “ ” Press this switch to sound the horn. EAU12660 Engine stop switch “...

  • Page 30: Clutch Lever

    INSTRUMENT AND CONTROL FUNCTIONS EAU12765 EAU12830 pushed away from the handlebar grip. Clutch lever Hazard switch “ ” Make sure that the appropriate setting With the key in the “ON” position, use on the adjusting dial is aligned with the this switch to turn on the hazard lights arrow mark on the clutch lever.

  • Page 31: Shift Pedal

    INSTRUMENT AND CONTROL FUNCTIONS EAU12870 EAU33851 be sure to set it by aligning a groove on Shift pedal Brake lever the adjusting knob with the “ ” mark on the brake lever. 1. Shift pedal 1. Brake lever 2. Brake lever position adjusting knob The shift pedal is located on the left 3.

  • Page 32: Brake Pedal

    EAU46390 allows the owner to experience the Brake pedal pulsating at the brake lever or The Yamaha ABS (Anti-lock Brake brake pedal when the ABS is oper- System) features a dual electronic con- ating. However, special tools are trol system, which acts on the front and required, so please consult your rear brakes independently.

  • Page 33: Fuel Tank Cap

    INSTRUMENT AND CONTROL FUNCTIONS EAU46850 Fuel tank cap To remove the fuel tank cap 1. Pull the rider seat backrest release lever on the left side of the vehicle as shown. The backrest will slide forward. 1. Rear wheel hub 1.

  • Page 34: Fuel

    INSTRUMENT AND CONTROL FUNCTIONS To install the fuel tank cap EAU13212 EWA10131 Fuel 1. Insert the fuel tank cap into the WARNING Make sure there is sufficient gasoline in tank opening with the key inserted Make sure that the fuel tank cap is the tank.
  • Page 35 Gasoline is poisonous and can as well as to the exhaust system. cause injury or death. Handle gaso- Your Yamaha engine has been de- line with care. Never siphon gaso- signed to use premium unleaded gaso- line by mouth. If you should swallow...

  • Page 36: Catalytic Converters

    INSTRUMENT AND CONTROL FUNCTIONS EAU13445 pairable damage to the catalytic EAU46840 Catalytic converters Seats converter. This vehicle is equipped with catalytic converters in the exhaust system. Rider seat EWA10862 WARNING To remove the rider seat The exhaust system is hot after op- 1.

  • Page 37: Rider Seat Backrest

    INSTRUMENT AND CONTROL FUNCTIONS as shown. forward. 1. Rider seat backrest 1. Projection 1. Rider seat backrest release lever 2. Remove the bolts, and then pull 2. Seat holder the rider seat off. 2. Remove the bolts, and then pull 2.

  • Page 38: Adjusting The Front Fork

    INSTRUMENT AND CONTROL FUNCTIONS To install the passenger seat EAU14732 Spring preload Adjusting the front fork 1. Insert the projection on the pas- EWA10180 senger seat into the holder as WARNING shown. Always adjust both fork legs equal- ly, otherwise poor handling and loss of stability may result.
  • Page 39 INSTRUMENT AND CONTROL FUNCTIONS Rebound damping force Compression damping force 1. Current setting 2. Front fork cap bolt 1. Rebound damping force adjusting knob 1. Compression damping force adjusting screw To increase the rebound damping force Spring preload setting: To increase the compression damping Minimum (soft): and thereby harden the rebound damp- force and thereby harden the compres-...

  • Page 40: Adjusting The Shock Absorber Assembly

    INSTRUMENT AND CONTROL FUNCTIONS EAU46491 Compression damping setting: Adjusting the shock absorber Minimum (soft): assembly 20 click(s) in direction (b)* This shock absorber assembly is Standard: 12 click(s) in direction (b)* equipped with a spring preload adjust- Maximum (hard): ing knob and rebound and compres- 1 click(s) in direction (b)* sion damping force adjusting knobs.
  • Page 41 INSTRUMENT AND CONTROL FUNCTIONS Rebound damping force Compression damping force Compression damping setting: Minimum (soft): 12 clicks in direction (b)* Standard: 10 clicks in direction (b)* Maximum (hard): 1 clicks in direction (b)* * With the adjusting knob fully turned in direction (a) To obtain a precise adjustment, it is ad- 1.

  • Page 42: Luggage Strap Holders

    EAU15210 EAU41940 Luggage strap holders EXUP system This may cause the unit to ex- This model is equipped with Yamaha’s plode due to excessive gas EXUP (EXhaust Ultimate Power valve) pressure. system. This system boosts engine Do not deform or damage the power by means of a valve that regu- cylinder in any way.

  • Page 43: Sidestand

    Yamaha’s ignition circuit cut-off system has been designed to assist the operator in fulfilling the respon- sibility of raising the sidestand be- fore starting off. Therefore, check this system regularly as described below and have a Yamaha dealer re- 3-29...
  • Page 44 INSTRUMENT AND CONTROL FUNCTIONS WARNING With the engine turned off: 1. Move the sidestand down. If a malfunction is noted, have a Yamaha 2. Make sure that the engine stop switch is set to “ ”. dealer check the system before riding.

  • Page 45: For Your Safety - Pre-Operation Checks

    Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage. Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer. Before using this vehicle, check the following points:...
  • Page 46 Check hydraulic system for leakage. Make sure that operation is smooth. Check cable free play. Throttle grip 6-17, 6-24 If necessary, have Yamaha dealer adjust cable free play and lubricate cable and grip housing. Make sure that operation is smooth. Control cables 6-24 Lubricate if necessary.
  • Page 47 FOR YOUR SAFETY – PRE-OPERATION CHECKS ITEM CHECKS PAGE Check operation of ignition circuit cut-off system. Sidestand switch 3-29 If system is not working correctly, have Yamaha dealer check vehicle.

  • Page 48: Operation And Important Riding Points

    Yamaha dealer. The transmission is in the neutral gine in case of a turnover. In this EWA10271 position.

  • Page 49: Shifting

    If not, ask a tances. The transmission is Yamaha dealer to check the elec- properly lubricated only when trical circuit. the engine is running. Inade- 3. Start the engine by pushing the quate lubrication may damage start switch.

  • Page 50: Engine Break-In

    Do not park on a slope or on soft During this period, prolonged full-throt- Yamaha dealer check the vehi- ground, otherwise the vehicle tle operation or any condition that might cle.

  • Page 51: Periodic Maintenance And Adjustment

    If If you do not have the tools or experi- you are not familiar with vehicle ser- ence required for a particular job, have vice, have a Yamaha dealer perform a Yamaha dealer perform it for you. service.

  • Page 52: Periodic Maintenance And Lubrication Chart

    From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi). Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical skills.
  • Page 53 PERIODIC MAINTENANCE AND ADJUSTMENT ODOMETER READING ANNUAL ITEM CHECK OR MAINTENANCE JOB 1000 km 10000 km 20000 km 30000 km 40000 km CHECK (600 mi) (6000 mi) (12000 mi) (18000 mi) (24000 mi) √ √ √ √ 9 * Wheels Check runout and for damage.
  • Page 54 PERIODIC MAINTENANCE AND ADJUSTMENT ODOMETER READING ANNUAL ITEM CHECK OR MAINTENANCE JOB 1000 km 10000 km 20000 km 30000 km 40000 km CHECK (600 mi) (6000 mi) (12000 mi) (18000 mi) (24000 mi) Shock absorber Check operation and shock √ √...
  • Page 55 PERIODIC MAINTENANCE AND ADJUSTMENT ODOMETER READING ANNUAL ITEM CHECK OR MAINTENANCE JOB 1000 km 10000 km 20000 km 30000 km 40000 km CHECK (600 mi) (6000 mi) (12000 mi) (18000 mi) (24000 mi) Check the air cut-off valve, reed valve, and hose for damage. √...

  • Page 56: Removing And Installing The Cowling And Panels

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU18722 Removing and installing the cowling and panels The cowling and panels shown need to be removed to perform some of the maintenance jobs described in this chapter. Refer to this section each time the cowling or a panel needs to be re- moved and installed.

  • Page 57: Insert The Key Into The Lock, And

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU46471 Panel A To remove the panel 1. Insert the key into the lock, and then turn it 1/4 turn clockwise. 2. Turn the key counterclockwise to 1. Bolt the original position, and then re- 2. Panel B move it.

  • Page 58: Checking The Spark Plugs

    0.8–0.9 mm (0.031–0.035 in) such problems yourself. Instead, have a Yamaha dealer check the vehicle. Clean the surface of the spark plug If a spark plug shows signs of electrode gasket and its mating surface, and then...

  • Page 59: Engine Oil And Oil Filter Cartridge

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU19907 Tightening torque: Engine oil and oil filter Spark plug: cartridge 12.5 Nm (1.3 m·kgf, 9 ft·lbf) The engine oil level should be checked before each ride. In addition, the oil must be changed and the oil filter car- If a torque wrench is not available when tridge replaced at the intervals speci- installing a spark plug, a good estimate...
  • Page 60 An oil filter wrench is available at a tighten it to the specified torque Yamaha dealer. with a torque wrench. 6. Apply a thin coat of clean engine oil to the O-ring of the new oil filter cartridge.
  • Page 61 If the oil level warning light flickers then install and tighten the oil filler Make sure that no foreign mate- or remains on, immediately turn the cap. rial enters the crankcase. engine off and have a Yamaha dealer check the vehicle. 6-11...

  • Page 62: Final Gear Oil

    The final gear case must be checked necessary. for oil leakage before each ride. If any leakage is found, have a Yamaha deal- er check and repair the vehicle. In addi- tion, the final gear oil must be checked and changed as follows at the intervals specified in the periodic maintenance and lubrication chart.
  • Page 63 PERIODIC MAINTENANCE AND ADJUSTMENT 4. Remove the oil drain bolt and the bolt, and then tighten the bolt to the Tightening torques: filler bolt to drain the oil from the fi- specified torque. Final gear oil filler bolt: nal gear case. 23 Nm (2.3 m·kgf, 16 ft·lbf) Tightening torque: 5.

  • Page 64: Coolant

    1. Place the vehicle on a level sur- 1. Coolant reservoir cap Yamaha dealer check the anti- face and hold it in an upright posi- 2. Coolant reservoir cap guard freeze content of the coolant as tion.
  • Page 65 PERIODIC MAINTENANCE AND ADJUSTMENT 3. Remove the air intake duct by re- moving the bolts. 1. Radiator cap 1. Bolt 2. Coolant reservoir cap 6. Remove the coolant reservoir cov- 3. Coolant reservoir cap guard 1. Bolt er and coolant reservoir by remov- 4.
  • Page 66 Recommended antifreeze: the vehicle for coolant leakage. If High-quality ethylene glycol anti- freeze containing corrosion inhibitors coolant is leaking, have a Yamaha for aluminum engines dealer check the cooling system. Coolant quantity: 20. Install the air intake duct by install- Radiator capacity (including all ing the bolts.

  • Page 67: Air Filter Element

    Check the engine idling speed and, if maintenance and lubrication chart. necessary, have it corrected by a Have a Yamaha dealer replace the air Yamaha dealer. filter element. Engine idling speed: 950–1050 r/min 1.

  • Page 68: Valve Clearance

    Rear: from occurring, the valve clearance the specified tires. 290 kPa (2.90 kgf/cm , 42 psi) must be adjusted by a Yamaha dealer 90–190 kg (198–419 lb): at the intervals specified in the periodic Tire air pressure Front: maintenance and lubrication chart.
  • Page 69 EWA10481 glass fragments in it, or if the sidewall is WARNING cracked, have a Yamaha dealer re- The front and rear tires should place the tire immediately. be of the same make and de-...

  • Page 70: Cast Wheels

    “broken in”. Therefore, it is ad- model by Yamaha Motor Co., Ltd. The wheel rims should be checked visable before doing...

  • Page 71: Clutch Lever

    If there is air in the hy- draulic system, have a Yamaha dealer bleed the system before operating the 1. Brake lever free play motorcycle.

  • Page 72: Adjusting The Rear Brake Light Switch

    EAU22390 point that the wear indicator almost Adjusting the rear brake light Checking the front and rear touches the brake disc, have a Yamaha switch brake pads dealer replace the brake pads as a set. The front and rear brake pads must be...

  • Page 73: Checking The Brake Fluid Level

    However, if the make sure that the top of the brake brake fluid level goes down sud- fluid reservoir is level. denly, have a Yamaha dealer Use only the recommended quality check the cause. brake fluid, otherwise the rubber...

  • Page 74: Changing The Brake And Clutch Fluids

    Checking and lubricating the clutch fluids cables throttle grip and cable Have a Yamaha dealer change the The operation of all control cables and The operation of the throttle grip should brake and clutch fluids at the intervals the condition of the cables should be be checked before each ride.

  • Page 75: Checking And Lubricating The Brake And Clutch Levers

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU43600 bricated if necessary. EAU23182 Checking and lubricating the Checking and lubricating the Recommended lubricant: brake and clutch levers brake pedal Silicone grease Brake lever The operation of the brake pedal should be checked before each ride, Clutch lever and the pedal pivot should be lubricat- ed if necessary.

  • Page 76: Checking And Lubricating The Shift Pedal

    WARNING push down hard on the handlebars If the sidestand does not move up several times to check if the front and down smoothly, have a Yamaha fork compresses and rebounds dealer check or repair it. Otherwise, smoothly. the sidestand could contact the ground and distract the operator, re- sulting in a possible loss of control.

  • Page 77: Checking The Steering

    If any damage is found or the front avoid injury, securely support fork does not operate smoothly, the vehicle so there is no danger have a Yamaha dealer check or re- of it falling over. [EWA10751] pair it. 2. Hold the lower ends of the front fork legs and try to move them for- ward and backward.

  • Page 78: Checking The Wheel Bearings

    KEEP THIS AND ALL BATTER- hub or if the wheel does not turn the battery lead connections need to be IES OUT OF THE REACH OF smoothly, have a Yamaha dealer check checked and, if necessary, tightened. CHILDREN. the wheel bearings.
  • Page 79 4. Remove the main fuse (together with the holding band) from its To charge the battery holder. Have a Yamaha dealer charge the bat- 5. Disconnect coupler A. tery as soon as possible if it seems to have discharged. Keep in mind that the...
  • Page 80 ECA16530 NOTICE stant-voltage battery charger, have a its original position and it is Always keep the battery charged. Yamaha dealer charge your battery. properly folded. [ECA16550] Storing a discharged battery can cause permanent battery damage. To store the battery 1.

  • Page 81: Replacing The Fuses

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU46451 Fuse box 1 Fuse box 2 Replacing the fuses The main fuse, fuse box 1 and ABS motor fuse are located behind panel A. (See page 6-6.) 1. ABS solenoid fuse 1. Ignition fuse 2. Fuel injection system fuse 2.

  • Page 82: Replacing The Headlight Bulb

    If the headlight bulb age to the electrical system and 4. If the fuse immediately blows burns out, replace it as follows. possibly a fire. again, have a Yamaha dealer [EWA15131] ECA10650 check the electrical system. NOTICE Specified fuses:...
  • Page 83 5. Install the headlight bulb cover, and then connect the coupler. 6. Install the headlight unit by install- ing the bolts. 7. Have a Yamaha dealer adjust the headlight beam if necessary. 1. Do not touch the glass part of the bulb. 1. Headlight coupler 2.

  • Page 84: Tail/Brake Light

    1. Remove the turn signal light lens If the tail/brake light does not come on, by removing the screw. have a Yamaha dealer check it. 1. Turn signal light bulb 3. Insert a new bulb into the socket, push it in, and then turn it clock- wise until it stops.

  • Page 85: Replacing A License Plate Light Bulb

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU46780 4. Remove the burnt-out bulb by pull- Replacing a license plate light ing it out. bulb 5. Insert a new bulb into the socket. 1. Remove the holding plate by re- 6. Install the socket (together with the moving the bolts.

  • Page 86: Replacing The Auxiliary Light Bulb

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU46403 EAU24350 Replacing the auxiliary light Supporting the motorcycle bulb Since this model is not equipped with a centerstand, follow these precautions If the auxiliary light bulb burns out, re- when removing the front and rear place it as follows.

  • Page 87: Troubleshooting

    The following troubleshooting charts represent quick and easy procedures for checking these vital systems your- self. However, should your motorcycle require any repair, take it to a Yamaha dealer, whose skilled technicians have the necessary tools, experience, and know-how to service the motorcycle properly.

  • Page 88: Troubleshooting Charts

    Operate the electric starter. spark plugs. Remove the spark plugs and check the electrodes. The engine does not start. Have a Yamaha dealer check the vehicle. Check the battery. 4. Battery The engine turns over The battery is good. quickly.
  • Page 89 Start the engine. If the engine overheats again, have a The coolant level Yamaha dealer check and repair the cooling system. is OK. If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolant as soon as possible.

  • Page 90: Motorcycle Care And Storage

    Be ble. Rust and corrosion can develop ECA10772 NOTICE sure to consult a Yamaha dealer for even if high-quality components are advice on what products to use be- used. A rusty exhaust pipe may go un- Avoid using strong acidic wheel fore cleaning the vehicle.
  • Page 91 MOTORCYCLE CARE AND STORAGE plenty of water, as it is harmful Test the product on a small hid- remain well into spring. to plastic parts. den part of the windshield to 1. Clean the motorcycle with cold wa- Do not use any harsh chemical make sure that it does not leave ter and a mild detergent, after the products on plastic parts.
  • Page 92 EWA11131 WARNING Consult a Yamaha dealer for ad- Note that the thermally induced vice on what products to use. Contaminants on the brakes or tires discoloring of the portion of the ex- Washing, rainy weather or humid can cause loss of control.

  • Page 93: Storage

    MOTORCYCLE CARE AND STORAGE EAU26242 fuel from deteriorating. pivoting points of all levers and Storage 3. Perform the following steps to pro- pedals as well as of the sidestand/ tect the cylinders, piston rings, etc. centerstand. Short-term from corrosion. 5. Check and, if necessary, correct Always store your motorcycle in a cool, a.

  • Page 94: Specifications

    SPECIFICATIONS EAU2633P Lubrication system: Wet sump Cooling system: Engine oil: Dimensions: Coolant reservoir capacity (up to the maxi- Type: Overall length: mum level mark): SAE 10W-40, SAE 10W-50, SAE 15W-40, 2395 mm (94.3 in) 0.27 L (0.29 US qt, 0.24 Imp.qt) SAE 20W-40 or SAE 20W-50 Overall width: Radiator capacity (including all routes):...
  • Page 95 SPECIFICATIONS Rear: 290 kPa (2.90 kgf/cm , 42 psi) Transmission: Front tire: High-speed riding: Primary reduction system: Type: Front: Spur gear Tubeless 290 kPa (2.90 kgf/cm , 42 psi) Primary reduction ratio: Size: Rear: 86/57 (1.509) 120/70R18M/C 59V 290 kPa (2.90 kgf/cm , 42 psi) Secondary reduction system: Manufacturer/model:...
  • Page 96 SPECIFICATIONS Front suspension: Front turn signal light: Ignition fuse: 12 V, 10.0 W × 2 20.0 A Type: Rear turn signal light: Parking lighting fuse: Telescopic fork 12 V, 10.0 W × 2 7.5 A Spring/shock absorber type: Auxiliary light: Radiator fan fuse: Coil spring/oil damper 12 V, 5.0 W ×...

  • Page 97: Consumer Information

    Record the key identification number, vehicle identification number and mod- el label information in the spaces pro- vided below for assistance when ordering spare parts from a Yamaha dealer or for reference in case the vehi- cle is stolen. KEY IDENTIFICATION NUMBER: 1.
  • Page 98 1. Model label The model label is affixed to the frame under the rider seat. (See page 3-22.) Record the information on this label in the space provided. This information will be needed when ordering spare parts from a Yamaha dealer.
  • Page 99 INDEX ABS ............3-18 Final gear oil..........6-12 Oil level warning light ........ 3-3 ABS warning light ........3-5 Front and rear brake pads, checking..6-22 Air filter element........6-17 Front brake lever free play, checking ..6-21 Parking............5-3 Anti-theft alarm (optional) ......3-14 Front fork, adjusting.........
  • Page 100 INDEX Troubleshooting ........6-37 Troubleshooting charts ......6-38 Turn signal indicator lights ......3-3 Turn signal light bulb, replacing ....6-34 Turn signal switch ........3-15 Valve clearance ........6-18 Vehicle identification number ....9-1 Wheel bearings, checking....... 6-28 Wheels ............ 6-20...
  • Page 102 YAMAHA MOTOR CO., LTD. YAMAHA MOTOR CO., LTD. PRINTED ON RECYCLED PAPER PRINTED ON RECYCLED PAPER PRINTED IN JAPAN PRINTED IN JAPAN 2008.8–0.3×3 ! 2008.8–0.3×3 !
