Icom IC-F9011B Operating Manual page 67

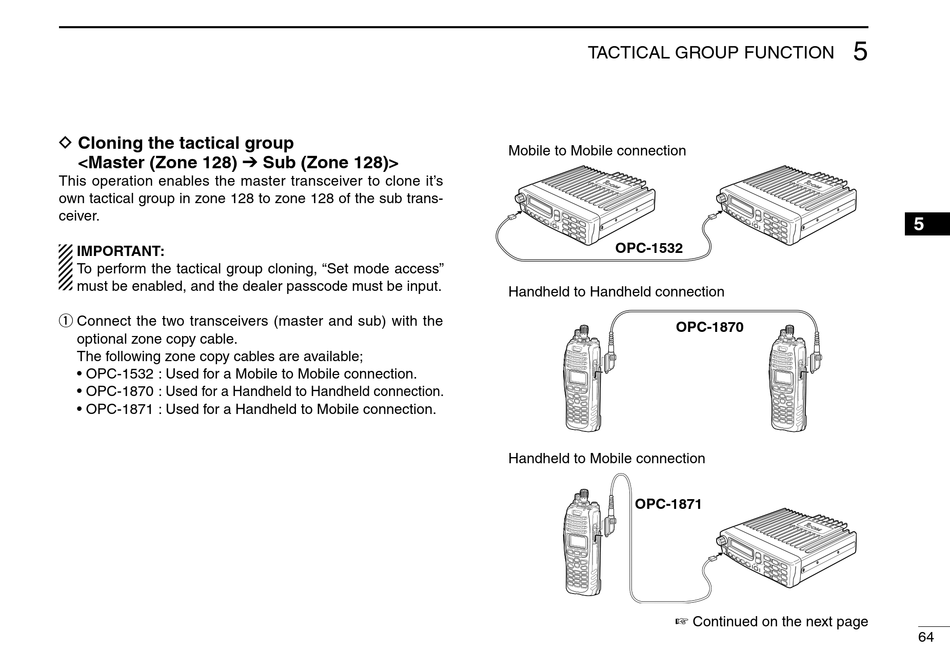

D Cloning the tactical group
<Master (Zone 128) ➔ Sub (Zone 128)>
This operation enables the master transceiver to clone it's
own tactical group in zone 128 to zone 128 of the sub trans-
ceiver.
IMPORTANT:
To perform the tactical group cloning, "Set mode access"
must be enabled, and the dealer passcode must be input.
q Connect the two transceivers (master and sub) with the
optional zone copy cable.
The following zone copy cables are available;
• OPC-1532 : Used for a Mobile to Mobile connection.
• OPC-1870 : Used for a Handheld to Handheld connection.
• OPC-1871 : Used for a Handheld to Mobile connection.
TACTICAL GROUP FUNCTION
Mobile to Mobile connection
OPC-1532
Handheld to Handheld connection
OPC-1870
Handheld to Mobile connection
OPC-1871
☞ Continued on the next page
5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
64
