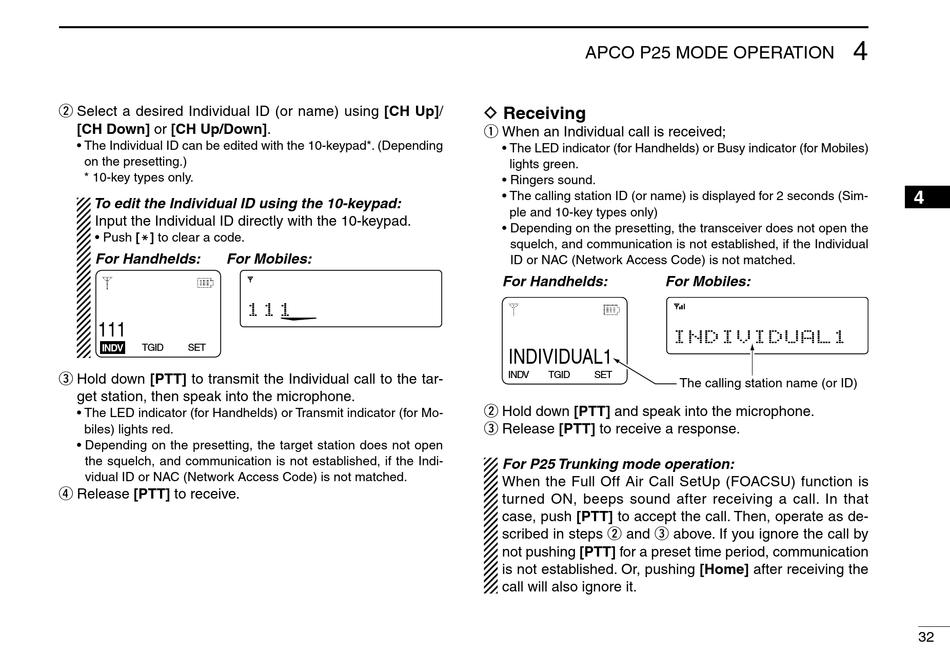

Icom IC-F9011B Operating Manual page 35

w Select a desired Individual ID (or name) using [CH Up]/
[CH Down] or [CH Up/Down].
• The Individual ID can be edited with the 10-keypad*. (Depending
on the presetting.)
* 10-key types only.
To edit the Individual ID using the 10-keypad:
Input the Individual ID directly with the 10-keypad.
• Push [M] to clear a code.
For Handhelds: For Mobiles:
111
INDV INDV TGID SET
e Hold down [PTT] to transmit the Individual call to the tar-
get station, then speak into the microphone.
• The LED indicator (for Handhelds) or Transmit indicator (for Mo-
biles) lights red.
• Depending on the presetting, the target station does not open
the squelch, and communication is not established, if the Indi-
vidual ID or NAC (Network Access Code) is not matched.
r Release [PTT] to receive.
1 1 1
APCO P25 MODE OPERATION
D Receiving
q When an Individual call is received;
• The LED indicator (for Handhelds) or Busy indicator (for Mobiles)
lights green.
• Ringers sound.
• The calling station ID (or name) is displayed for 2 seconds (Sim-
ple and 10-key types only)
• Depending on the presetting, the transceiver does not open the
squelch, and communication is not established, if the Individual
ID or NAC (Network Access Code) is not matched.
For Handhelds:
INDIVIDUAL1
INDV TGID SET
w Hold down [PTT] and speak into the microphone.
e Release [PTT] to receive a response.
For P25 Trunking mode operation:
When the Full Off Air Call SetUp (FOACSU) function is
turned ON, beeps sound after receiving a call. In that
case, push [PTT] to accept the call. Then, operate as de-
scribed in steps w and e above. If you ignore the call by
not pushing [PTT] for a preset time period, communication
is not established. Or, pushing [Home] after receiving the
call will also ignore it.
For Mobiles:
I N D I V I D U A L 1
The calling station name (or ID)
