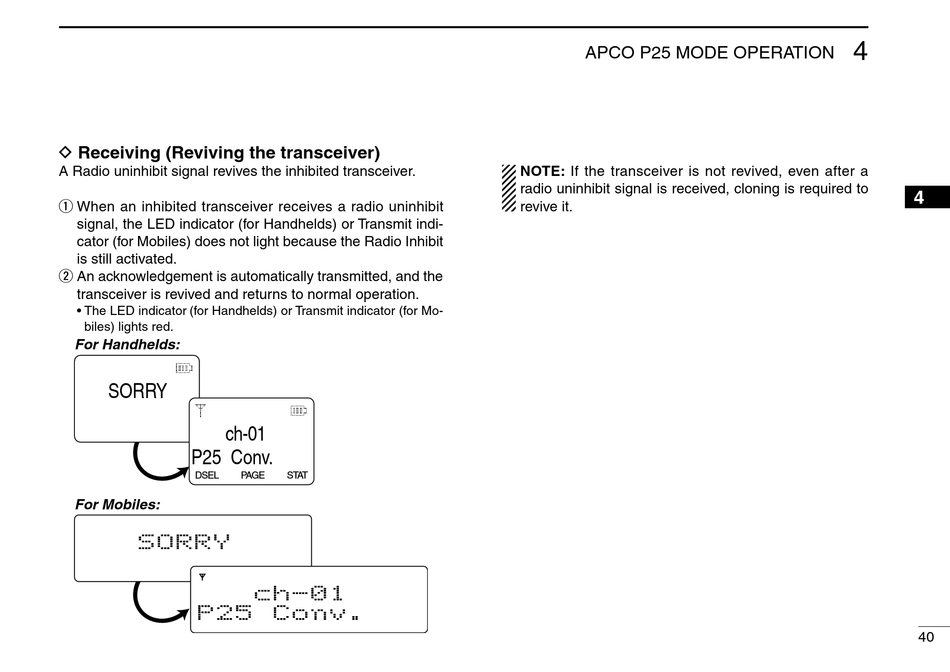

Icom IC-F9011B Operating Manual page 43

D Receiving (Reviving the transceiver)
A Radio uninhibit signal revives the inhibited transceiver.
q When an inhibited transceiver receives a radio uninhibit
signal, the LED indicator (for Handhelds) or Transmit indi-
cator (for Mobiles) does not light because the Radio Inhibit
is still activated.
w An acknowledgement is automatically transmitted, and the
transceiver is revived and returns to normal operation.
• The LED indicator (for Handhelds) or Transmit indicator (for Mo-
biles) lights red.
For Handhelds:
SORRY
ch-01
P25 Conv.
DSEL
For Mobiles:
S O R R Y
P 2 5
PAGE STAT
c h - 0 1
C o n v .
APCO P25 MODE OPERATION
NOTE: If the transceiver is not revived, even after a
radio uninhibit signal is received, cloning is required to
revive it.
