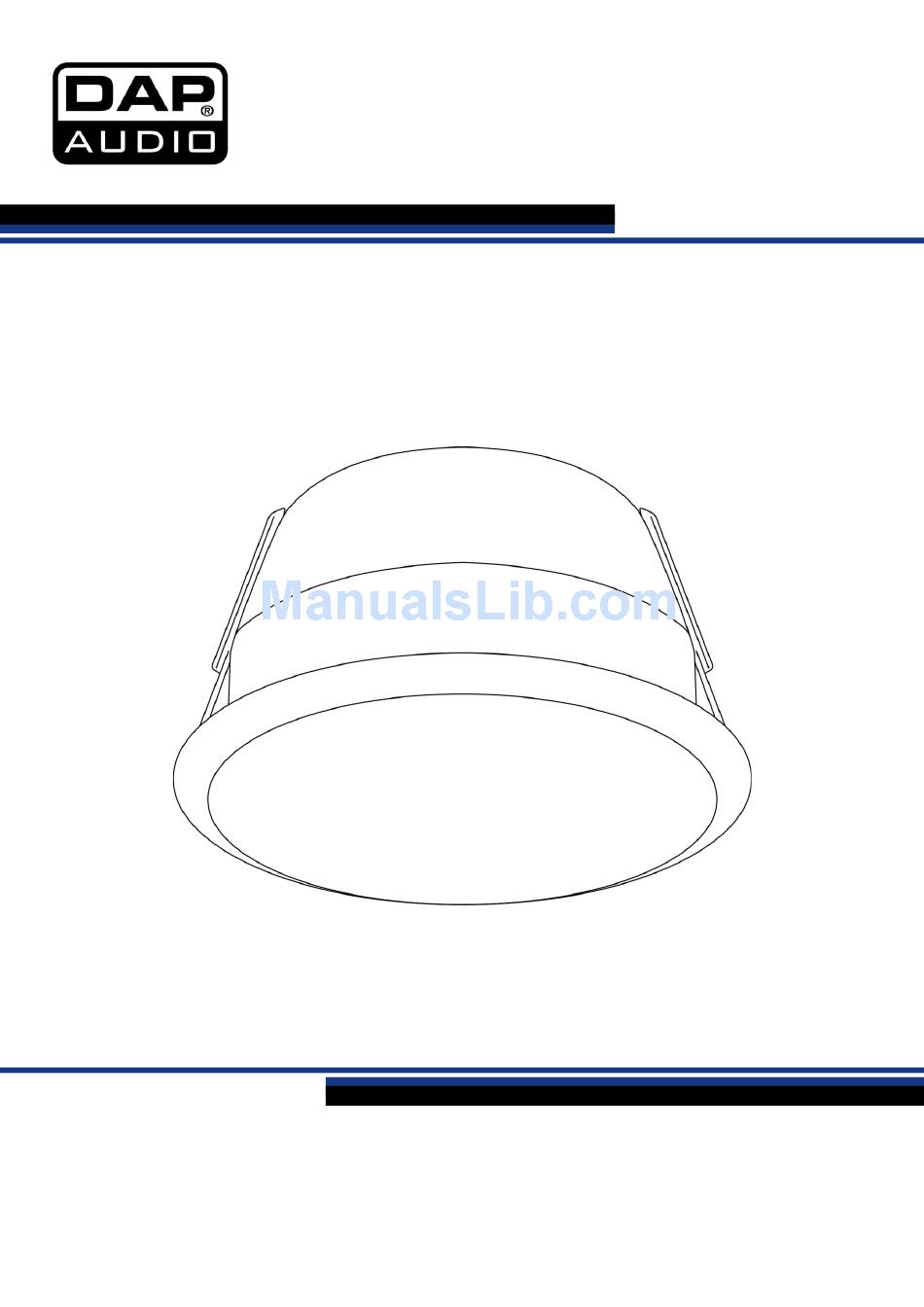

- Page 1 MANUAL ENGLISH FCS-56 Ordercode: D6576 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
FCS-56 Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Return Procedure ................................4 Claims ....................................4 Installation ................................... 5 Troubleshooting ................................. 6 Product Specification ............................... 7 Dimensions ..................................7 Notes ....................................8 Ordercode: D6576... -
Page 3: Warning

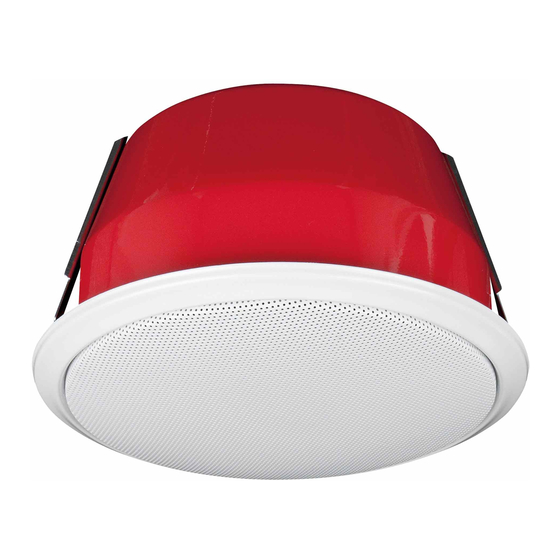

Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: DAP Audio FCS-56 6W 5" fireproof ceiling speaker • Template for ceiling mounting •... -
Page 4: Operating Determinations
• Clean only with dry cloth. • When making the hole in your ceiling to mount the FCS-56, make sure there is sufficient clearance • behind the ceiling (no obstructions like A/C channels, power lines etc). Take care of your speaker wires, they should be free of damage. Damaged speaker wires might •... -
Page 5: Return Procedure
FCS-56 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 6: Installation
FCS-56 Installation 01) Drill a hole in the ceiling, big enough to fit the speaker (Ø 204 mm). 02) Force the speaker grill out of the housing and remove the screws in order to access the cables and connectors. Fig. 01 03) Remove the speaker from the housing by removing the clamps. -
Page 7: Troubleshooting
FCS-56 Troubleshooting No Sound Always check if all the cables and cords are connected. Always turn off power to the area before checking the wires, to prevent electric shock. If everything works properly and there is still no sound, revisit the manufacturer’s instructions to make sure they were followed during installation. -
Page 8: Product Specification
FCS-56 Product Specification Line voltage: 100V Power taps: 0,75/1,5/3/6W Speaker size: 5 inch Frequency response: 130-15 kHz Sensitivity: 92 dB Material: Iron Color: White IP rating: IP40 Mounting hole: Ø 160 mm Dimensions: 180 x 180 x 135 mm (LxWxH) -
