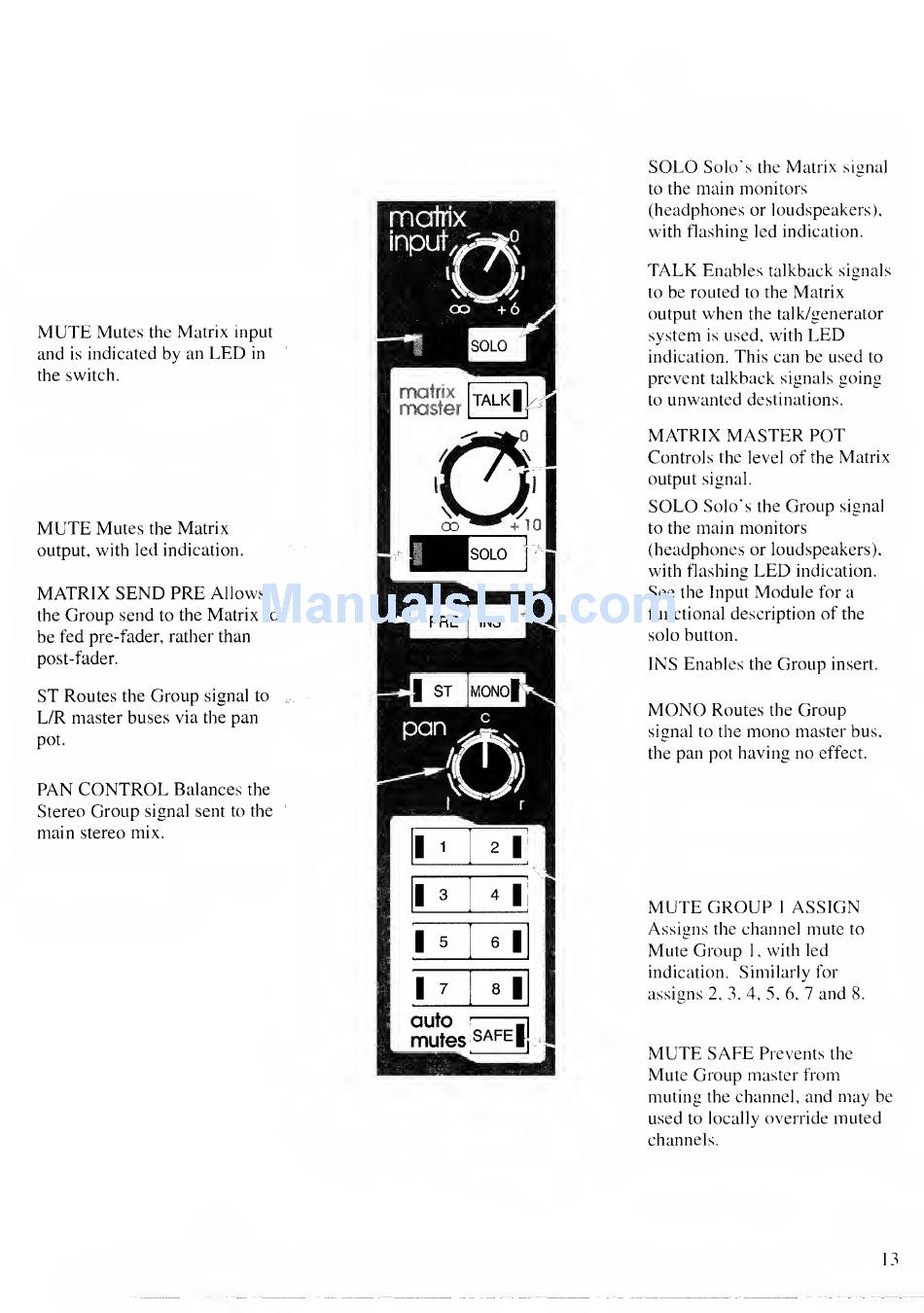

MUTE
Mutes
the
Matrix
input
and
is
indicated
by an
LED
in
the switch.
MUTE
Mutes
the
Matrix
output,
with
led indication.
MATRIX SEND PRE
Allows
the
Group
send
to the
Matrix
to
be fed
pre-fader, rather
than
post-fader.
ST
Routes
the
Group
signal
to
L/R
master buses
via the
pan
pot.
PAN
CONTROL
Balances
the
Stereo
Group
signal sent to the
main
stereo
mix.
SOLO
Solo's
the
Matrix
signal
to
the
main monitors
(headphones or loudspeakers),
with
flashing led indication.
TALK
Enables
talkback
signals
to
be routed
to
the
Matrix
output
when
the talk/generator
system
is
used,
with
LED
indication.
This can be used
to
prevent talkback
signals
going
to
unwanted
destinations.
MATRIX
MASTER
POT
Controls the level of
the
Matrix
output
signal.
SOLO
Solo's
the
Group
signal
to the
main
monitors
(headphones
or loudspeakers),
with flashing
LED
indication.
See
the Input
Module
for a
functional description
of
the
solo button.
INS
Enables
the
Group
insert.
MONO
Routes
the
Group
signal to the
mono
master
bus.
the
pan
pot
having no
effect.
MUTE GROUP
1
ASSIGN
Assigns
the
channel
mute
to
Mute Group
1
,
with
led
indication.
Similarly for
assigns
2. 3. 4. 5. 6,
7
and
8.
