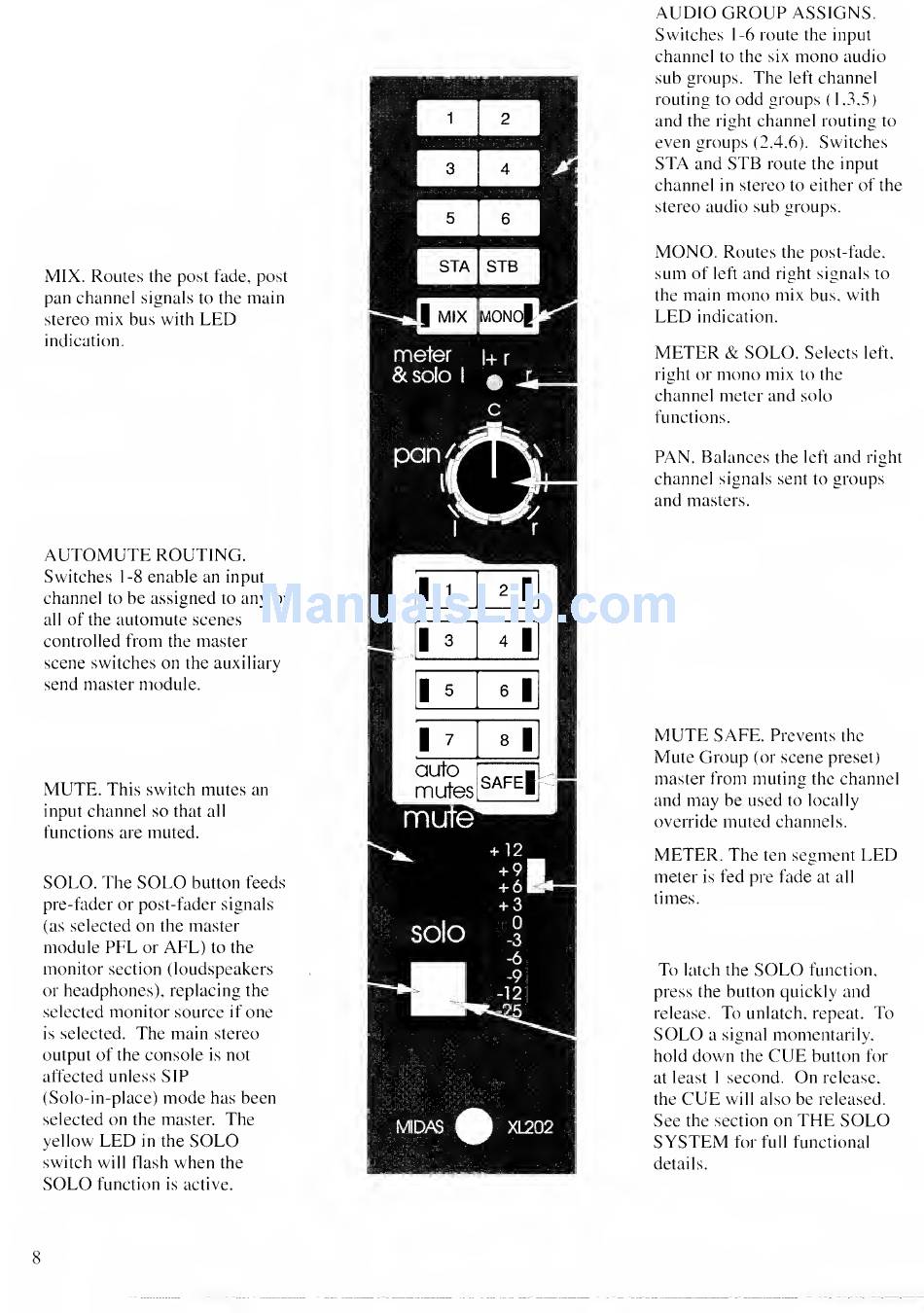

Midas XL200 Manual page 19

MIX.
Routes
the post fade, post
pan channel
signals
to
the
main
stereo
mix
bus with
LED
indication.
AUTOMUTE
ROUTING.
Switches
1-8 enable an input
channel
to
be assigned
to
any
or
all
of the
automute
scenes
controlled
from
the
master
scene switches
on
the auxiliary
send master module.
MUTE.
This switch
mutes
an
input
channel so
that
all
functions
are
muted.
SOLO.
The
SOLO
button feeds
pre-fader or post-fader signals
(as
selected
on
the
master
module
PEL
or
AFL)
to
the
monitor
section
(loudspeakers
or
headphones),
replacing the
.selected
monitor source
if
one
is
selected.
The main
stereo
output of the
console
is
not
affected unless
SIP
(Solo-in-place)
mode
has
been
selected
on
the master.
The
yellow
LED
in
the
SOLO
switch
will flash
when
the
SOLO
function
is
active.
AUDIO
GROUP
ASSIGNS.
Switches 1-6 route the input
channel
to
the
six
mono
audio
sub
groups.
The
left
channel
routing
to
odd
groups
( 1
.3.5)
and
the right
channel routing
to
even groups
(2.4.6).
Switches
STA
and
STB
route the input
channel
in
stereo to either
of
the
stereo
audio sub groups.
MONO.
Routes
the post-fade,
sum
of
left
and
right
signals
to
the
main
mono
mix
bus.
with
LED
indication.
METER &
SOLO.
Selects
left,
right
or
mono
mix
to
the
channel meter and
solo
functions.
PAN.
Balances
the
left
and
right
channel signals sent
to
groups
and
masters.
MUTE
SAFE.
Prevents
the
Mute Group
(or
scene
preset)
master from muting
the
channel
and
may
be used
to locally
override
muted
channels.
METER.
The
ten
segment
LED
meter
is
fed pre fade
at all
times.
To
latch the
SOLO
function,
press the button quickly
and
release.
To
unlatch,
repeat.
To
SOLO
a signal
momentarily,
hold
down
the
CUE
button
for
at
least
I
second.
On
release,
the
CUE
will also
be
released.
See
the section
on
THE SOLO
SYSTEM
for
full
functional
details.
