Position the regulator collar (
) leaving about 15º between the grind point lock
screw (

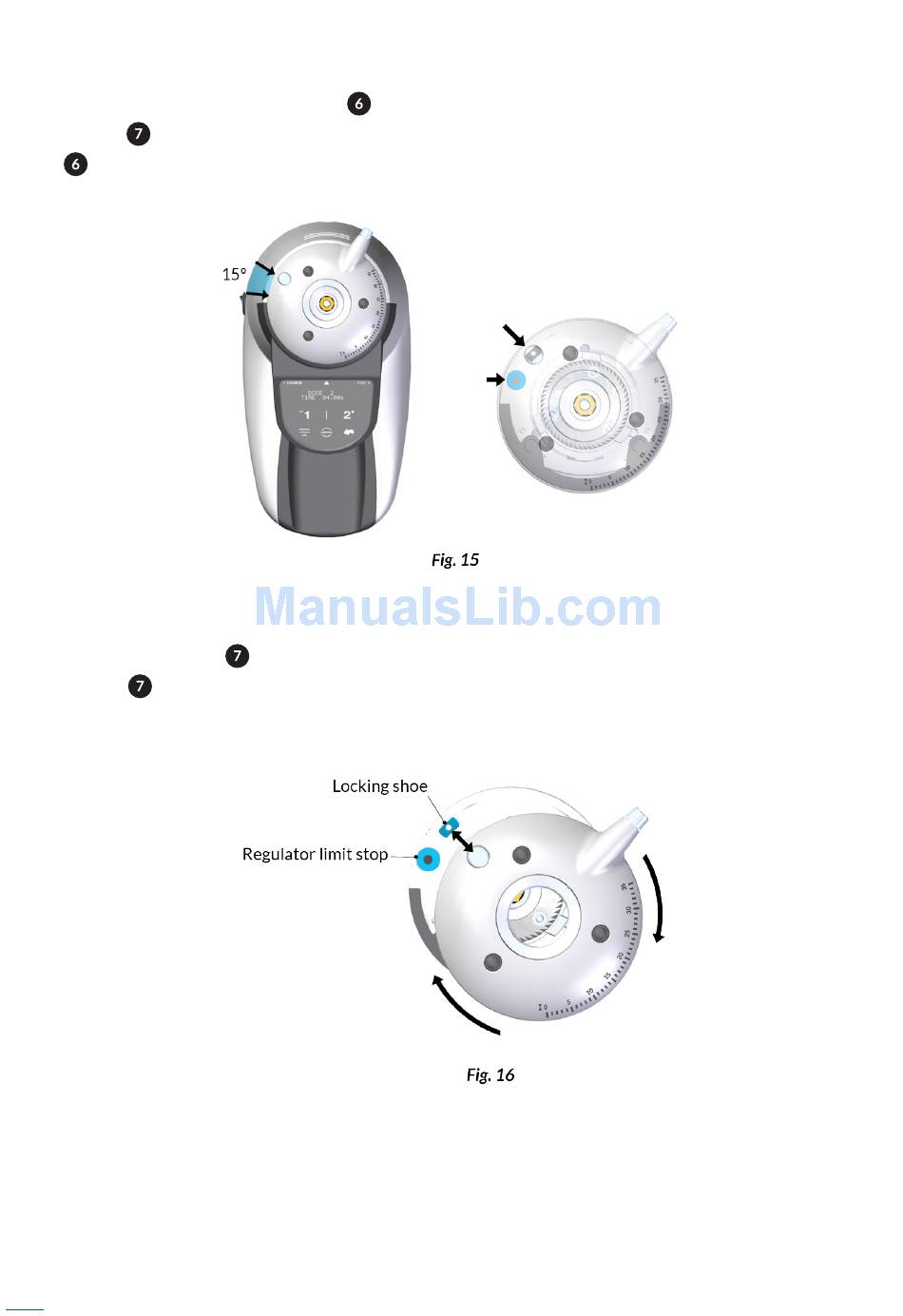

) and regulator limit stop (Fig. 15). In that position, tighten the regulator
(
) on the upper burr carrier and with a T20 Torx screwdriver, as Fig. 10.
For the models with the micrometric Parallel system, first make sure that the grind
point lock screw (
) is lined up with the locking foot. This will ensure that the lock
screw (
) and locking shoe move in conjunction with one another, and that the
locking mechanism works properly (Fig. 11).
