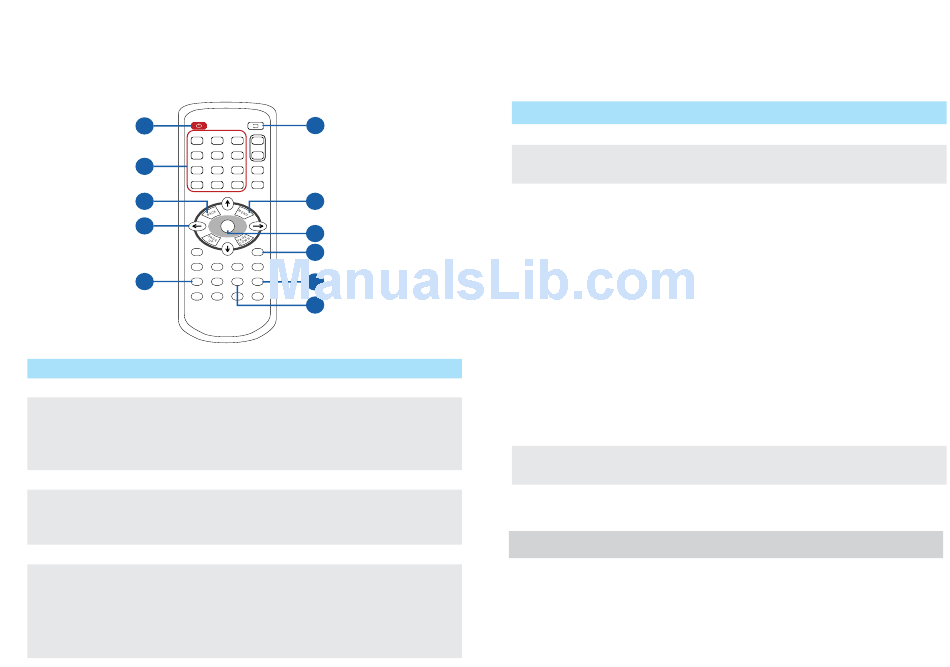

The IR Remote Control

POWER
1
ghi
2
pqrs
-/--:
3
4
CTRL
CH1
5
REC
No. Name Function
1 Power Turn on or off the GV-IP Decoder Box / GV-Pad.
2 Numeric / Enter numbers, alphabets or punctuation marks.
Alphabetical /
Punctuation
Marks keys
3 Back Back to the previous page in the Setup Menu.
4 Arrow ● Move up, down, right and left in the Setup Menu.
● Right arrow key: select a channel on the Device List.
● Left arrow key: unselect a channel on the Device List.
5 REC Capture a snapshot.
6 Loop Start / ● Start or stop sequential display.
Stop ● Display and fix at a channel: press the Loop Start /
Stop key, a numeric key and OK to display and fix at
the selected channel. Press 0 and OK to return to the
last displayed channel.
6
abc def
1 2 3 +
jkl mno VOL
-
4 5 6
tuv wxyz
7 8 9
MUTE
0
* REASE CANCEL
7
OK
8
9
SHIFT
CH2 CH3 CH4
10
ZOOM SEARCH INFO
A B C D
11
No. Name Function
7 Menu
Switch to the setup menu.
8 OK
● Save settings in the Setup Menu.
● Display selected channels.
9 Shift Switch among the 8 resolutions.
1. Press the Shift key. The Green LED on the
front panel flashes.
2. Press No. 0 ~ 7 for the desired resolution
within 30 seconds.
0 : VGA_640 x 480
1 : VGA_1024 x 768
2 : VGA_1280 x 768
3 : VGA_1366 x 768
4 : HDMI_480p
5 : HDMI_720p
6 : HDMI_1080i
7 : HDMI_1080p
Note after the resolution is configured, the green
LED will fade and GV-IP Decoder Box / GV-Pad
will reboot automatically.
10 INFO Shows the camera name and total number of
cameras under display.
11 SEARCH Scan for available Access Points or wireless
stations when wireless network is selected.
Note: The Shift key is only functional for GV-IP Decoder Box.
