GeoVision GV-IP Decoder Box Quick Start Manual page 4

GV-Pad

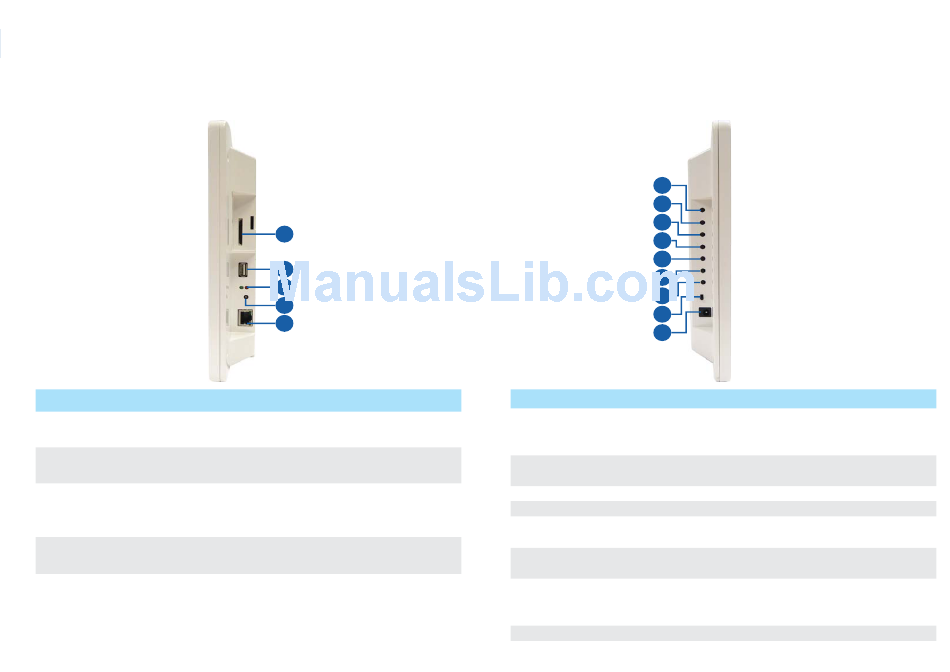

Right Panel View
No. Name Function
1 SD Card Slot Connect to an SD card for local storage of
snapshot and firmware upgrade.
2 USB Connect to a GV-Joystick, or to a USB storage
device or a GV-WiFi USB Adapter.
3 LED Indicators The green LED indicates the system is ready
for use.
The red LED indicates the power is supplied.
4 IR Built-in IR receiver to receive the IR signals from
the IR remote control.
5 Network Connect to the network.
1
2
3
4
5
Left Panel View
1
2
3
4
5
6
7
8
9
No. Name Function
1 MENU ● Switch to the setup menu.
● Load default: Press for 10 seconds to load default
settings.
2 ENTER ● Save settings in the Setup Menu.
● Display selected channels.
3 UP Move the cursor up.
4 DOWN Move the cursor down.
5 LEFT ● Move the cursor left.
● Unselect a channel on the Device List.
6 RIGHT ● Move the cursor right.
● Select a channel on the Device List.
7 STAND BY Press to enter the Standby mode. In the standby mode,
the screen turns off to minimize power consumption.
Press the key again to enter the ON mode.
8 Power OFF/ON Switch the power on or off.
9 DC 12V Connect to power using the supplied power adapter.
