Chapter 9: Options and accessories

9 Options and accessories

Your LANCOM Wireless DSL base station has numerous extensibilities and the
possibility to use a broad choice of LANCOM accessories. You find in this
chapter information about the available accessories and how to use them
with your base station.
9.1

Optional AirLancer Extender antennas

To increase the range of the LANCOM Wireless DSL base station or to adapt
the base station to special conditions of environs, you can connect AirLancer
Extender antennas at the base station. An overview of suitable antennas can
be found on the LANCOM web site under www.lancom.de.
For installation of an optional AirLancer Extender antenna turn off the
LANCOM Wireless DSL by pulling out the power supply cable of the device.
Remove now carefully the two diversity antennas on the back by screwing
them out. Connect the AirLancer Extender antennas to the antenna connector
with the inscription 'Antenna Main'.
Antenna Aux
80
The range of the base station can be increased by optional antennas of
the AirLancer Extender series and can be adapted to special conditions of
environs.
With the LANCOM Public Spot Option option it is possible to extend the
LANCOM Wireless DSL for additional billing and accounting functions in
order to upgrade it to a Wireless Public Spot.
AC 12 V
For help with calculating the correct antenna setup for external
LANCOM AirLancer Extender antennas or for antennas of other ven-
dors, please refer to

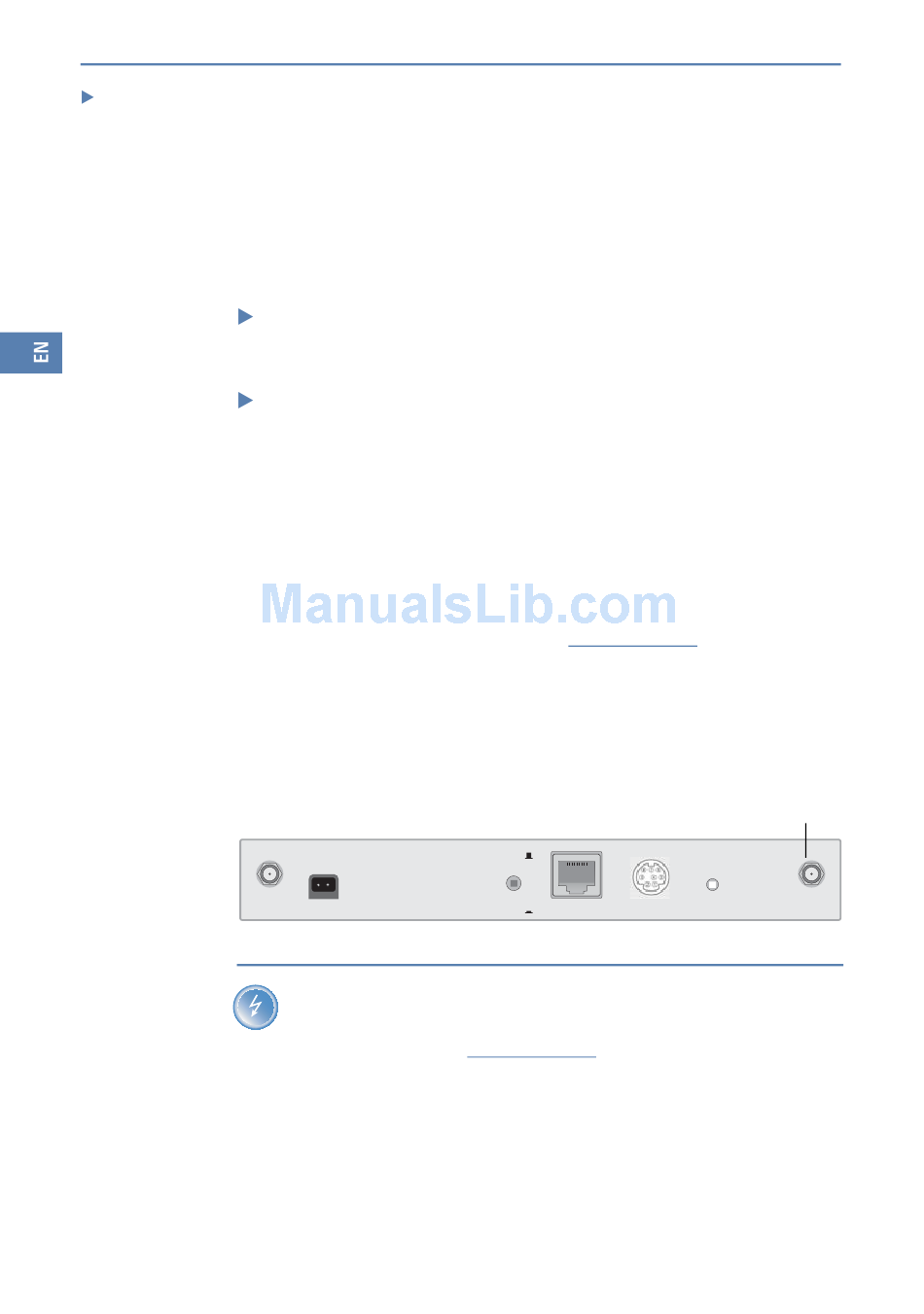

'Antenna Main' connector for AirLancer Extender antenna
Node
Hub LAN 10/100 Mb
www.lancom.de
Reset
Antenna Main
