Lancom DSL Series Manual page 31

Configuration port – you may optionally connect the router directly to
the serial port (RS-232, V.24) of a PC. Use the cable supplied for this pur-
pose. Connect the configuration port of the LANCOM
port of the PC.
Connect to power – Connect socket
using the included power adapter.
Use the supplied power supply unit only! Using an unsuitable power
supply unit may cause damage or injury.
Operational? – After a short device self-test the Power LED will be per-
manently lit. Green LAN LEDs indicate the LAN sockets that have function-
ing connections.
Notebook
WLAN
LAN
The models LANCOM 1521 Wireless ADSL
and LANCOM 1821 Wireless ADSL can be
connected to the splitter directly using the
integrated ADSL modem
Devices with integrated ADSL modem could become quite warm dur-
ing their operation. Concerning these models, please pay attention to
the ambient air temperature range of max. 35°C. Make sure that the
ventilation is sufficient. Do not stack the devices and do not expose
them to direct insolation!
LANCOM Wireless DSL – LANCOM Wireless ADSL
³
of the unit to a power supply

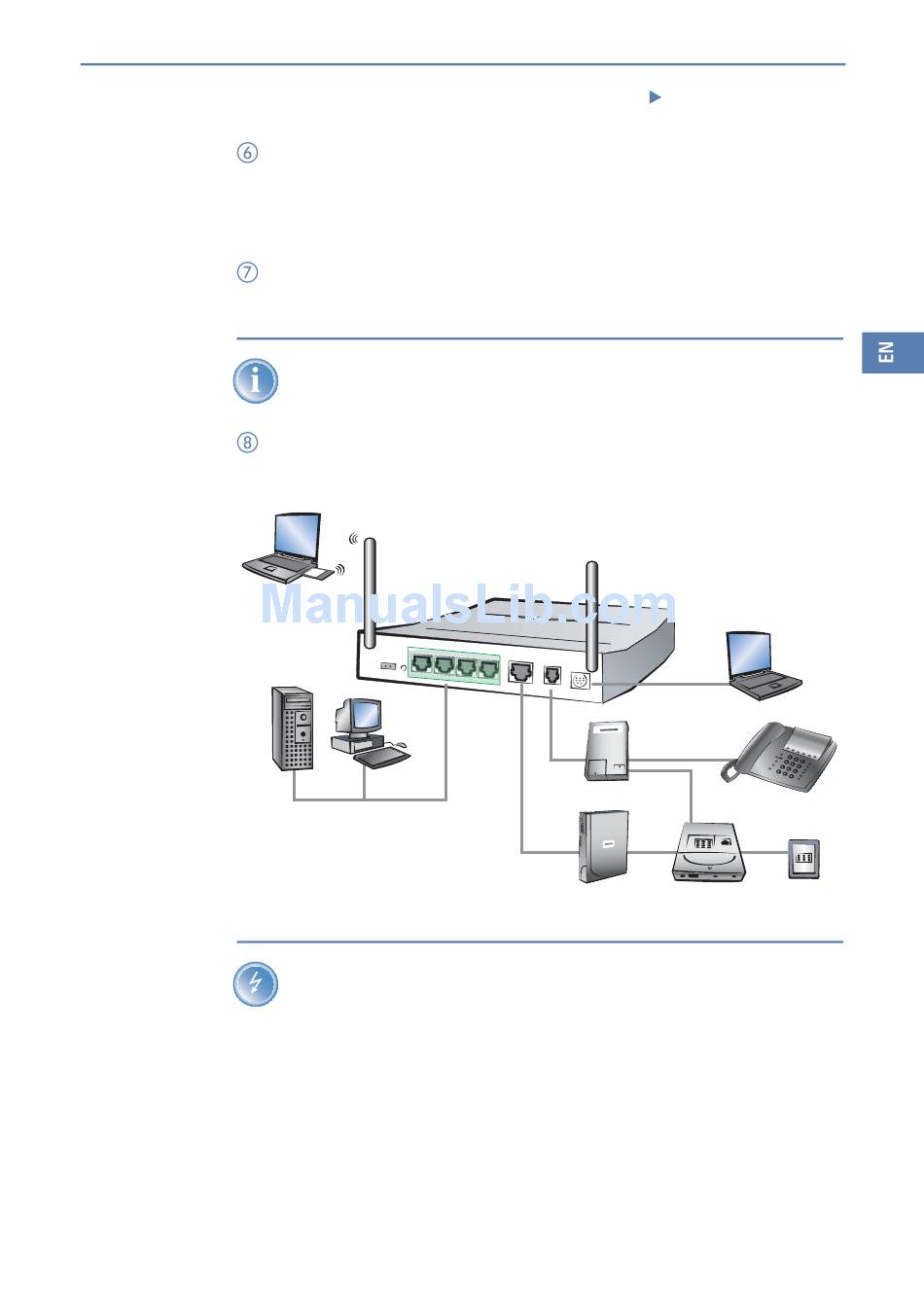

Example configuration for LANCOM 1511 Wireless
DSL or LANCOM 1811 Wireless DSL
ISDN NT
DSL modem
Chapter 2: Installation
²
with a free serial
PC for configuration with
serial interface
Splitter phone line
31
