2.3.2

The back of the unit

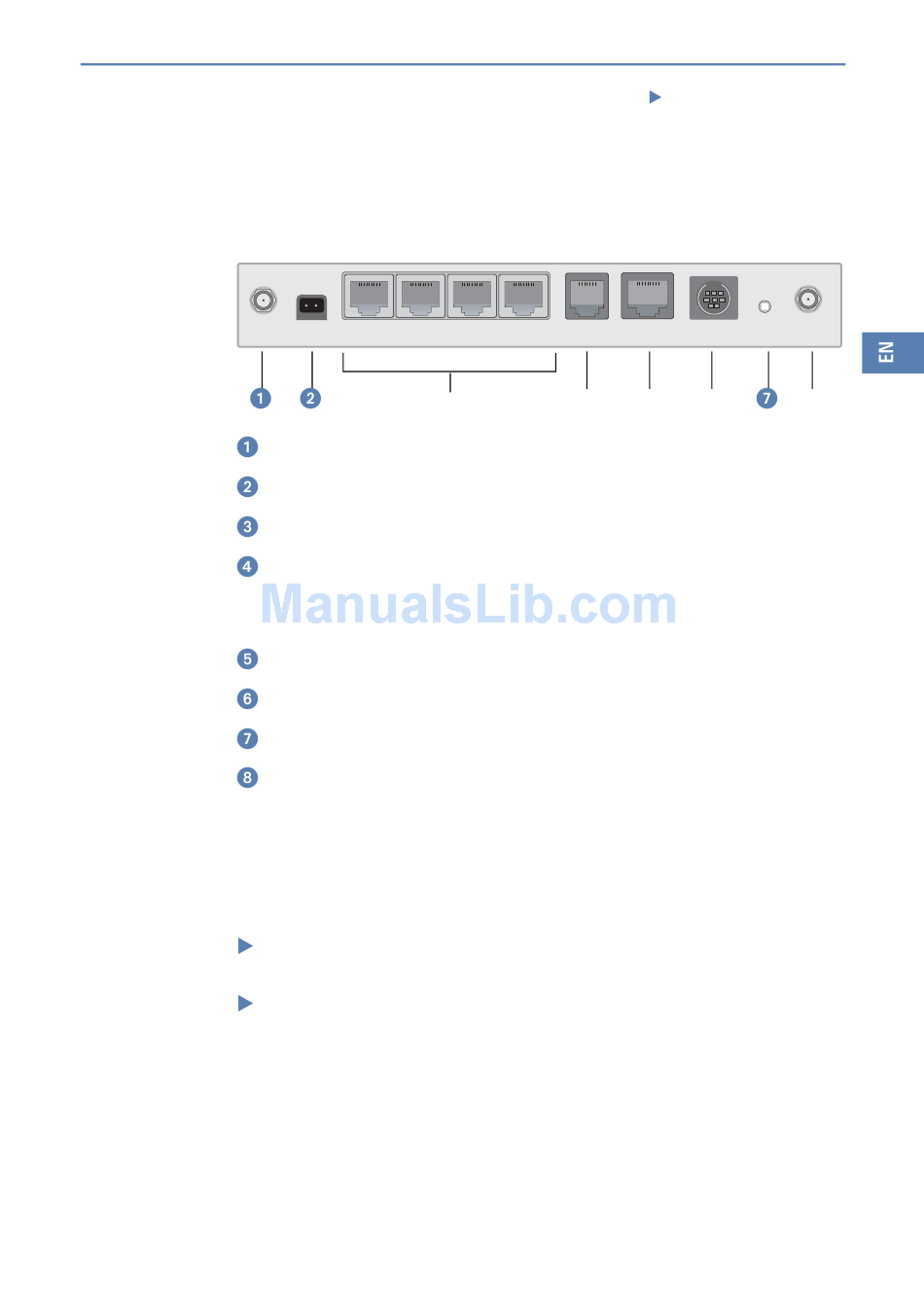

The connections and switches of the router are located on the back panel
(example: LANCOM 1811 Wireless DSL):
Antenna Aux AC12V
Connection for diversity antenna
Connection for the included power adapter
Switch with four 10/100Base-Tx connections
WAN port for LANCOM 1511 Wireless DSL and LANCOM 1811 Wireless
DSL respectively ADSL port for LANCOM 1521 Wireless ADSL and
LANCOM 1821 Wireless ADSL
ISDN/S
0
Serial configuration port
Reset switch
Connector for main antenna (use this connector to connect additional
AirLancer Extender antennas)
The function of the reset button
The reset button has two different functions depending on how long it is
pressed:
Restarting the device (soft reset) – push the button for less than five
seconds. The device will restart.
Resetting the configuration (hard reset) – push the button for more
than five seconds. All the device's LEDs will light up green and stay on. As
soon as the reset switch is released, the device will restart with factory set-
tings.
LANCOM Wireless DSL – LANCOM Wireless ADSL
LAN4 LAN3 LAN2
»
port
Chapter 2: Installation
LAN1 WAN ISDN S
0
10/100Mbit/s
¿ ´
Config(COM) Reset Antenna Main
² º
29
