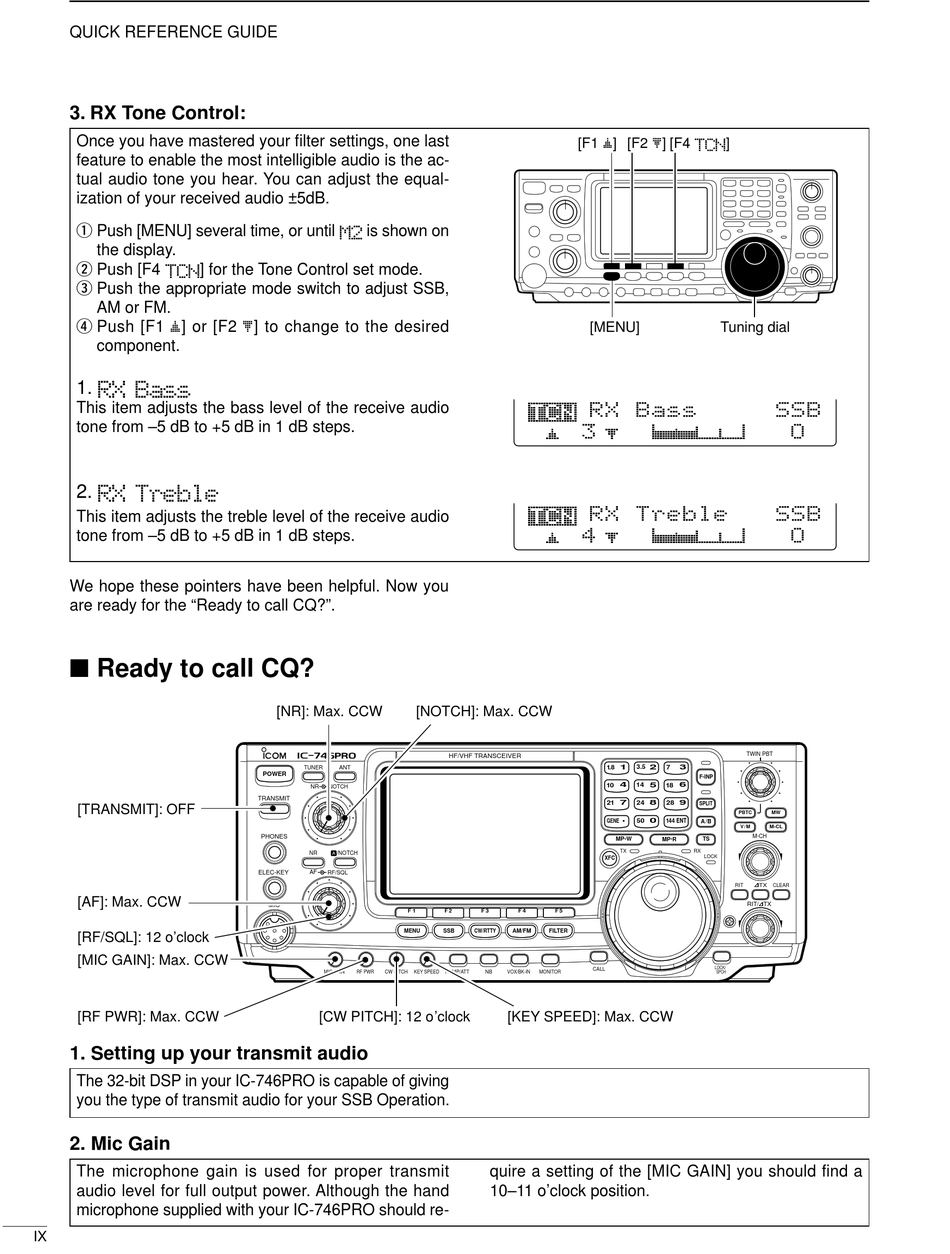

QUICK REFERENCE GUIDE
3. RX Tone Control:
Once you have mastered your filter settings, one last
feature to enable the most intelligible audio is the ac-
tual audio tone you hear. You can adjust the equal-
ization of your received audio ±5dB.
q Push [MENU] several time, or until M2 is shown on
the display.
w Push [F4 TCN] for the Tone Control set mode.
e Push the appropriate mode switch to adjust SSB,
AM or FM.
r Push [F1 ≤] or [F2 ≥] to change to the desired
component.
1. RX Bass
This item adjusts the bass level of the receive audio
tone from –5 dB to +5 dB in 1 dB steps.
2. RX Treble
This item adjusts the treble level of the receive audio
tone from –5 dB to +5 dB in 1 dB steps.
We hope these pointers have been helpful. Now you
are ready for the "Ready to call CQ?".

Ready to call CQ?

[TRANSMIT]: OFF
[AF]: Max. CCW
[RF/SQL]: 12 o'clock
[MIC GAIN]: Max. CCW
[RF PWR]: Max. CCW
1. Setting up your transmit audio
The 32-bit DSP in your IC-746PRO is capable of giving
you the type of transmit audio for your SSB Operation.
2. Mic Gain
The microphone gain is used for proper transmit
audio level for full output power. Although the hand
microphone supplied with your IC-746PRO should re-
IX
[NR]: Max. CCW [NOTCH]: Max. CCW
i746PRO
TUNER ANT
POWER
NR NOTCH
TRANSMIT
PHONES
A
NR /NOTCH
ELEC-KEY
AF RF/SQL
MIC
F 1
MENU
MIC GAIN RF PWR CW PITCH KEY SPEED
[CW PITCH]: 12 o'clock
[F1 ≤]
[MENU]
R X B a s s
3
R X T r e b l e
4
HF/VHF TRANSCEIVER
1
1.8
4
10
21 7
GENE
MP-W
TX
XFC
F 2 F 3 F 4 F 5
SSB CW/RTTY AM/FM FILTER
CALL
P.AMP/ATT NB VOX/BK-IN MONITOR
[KEY SPEED]: Max. CCW
quire a setting of the [MIC GAIN] you should find a
10–11 o'clock position.
[F2 ≥] [F4 TCN]
Tuning dial
S S B
O
S S B
O
TWIN PBT
2 3
3.5 7
F-INP
5 6
14 18
24 8 28 9
SPLIT
PBTC MW
50 0 144 ENT
A /B
V / M M-CL
M-CH
MP-R TS
RX
LOCK
∂TX
RIT CLEAR
RIT/∂TX
LOCK/
SPCH
