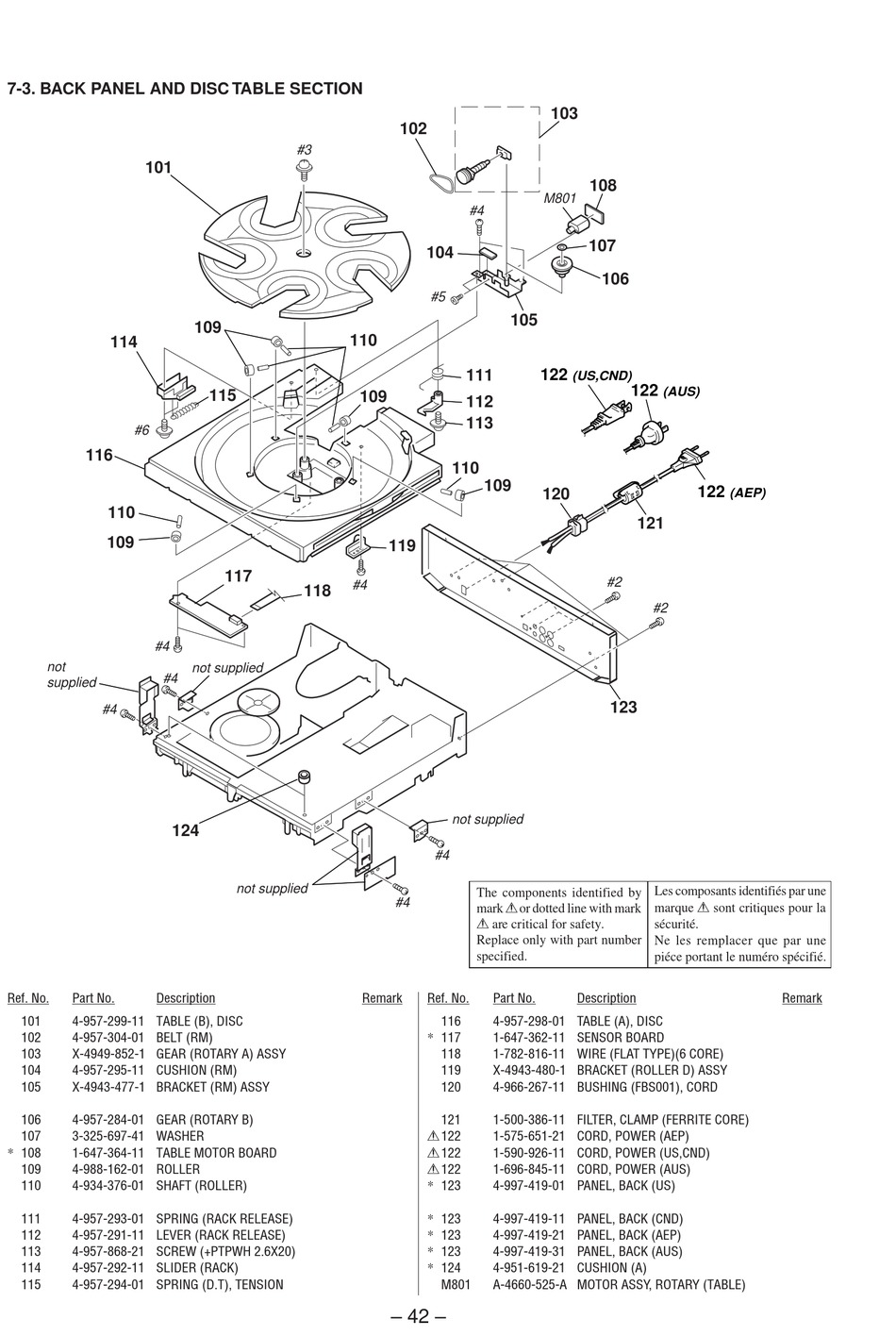

7-3. BACK PANEL AND DISC TABLE SECTION

101
114
#6
116
110
109
#4
not
#4
supplied
#4
124
Ref. No. Part No. Description
101 4-957-299-11 TABLE (B), DISC
102 4-957-304-01 BELT (RM)
103 X-4949-852-1 GEAR (ROTARY A) ASSY
104 4-957-295-11 CUSHION (RM)
105 X-4943-477-1 BRACKET (RM) ASSY
106 4-957-284-01 GEAR (ROTARY B)
107 3-325-697-41 WASHER
* 108 1-647-364-11 TABLE MOTOR BOARD
109 4-988-162-01 ROLLER
110 4-934-376-01 SHAFT (ROLLER)
111 4-957-293-01 SPRING (RACK RELEASE)
112 4-957-291-11 LEVER (RACK RELEASE)
113 4-957-868-21 SCREW (+PTPWH 2.6X20)
114 4-957-292-11 SLIDER (RACK)
115 4-957-294-01 SPRING (D.T), TENSION
#3
109
110
115
109
117
#4
118
not supplied
not supplied
Remark
103
102
M801
#4
104
#5
105
111 122
112
113
110
109
120
119
not supplied
#4
The components identified by
#4
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Ref. No. Part No.
116 4-957-298-01 TABLE (A), DISC
* 117 1-647-362-11 SENSOR BOARD
118 1-782-816-11 WIRE (FLAT TYPE)(6 CORE)
119 X-4943-480-1 BRACKET (ROLLER D) ASSY
120 4-966-267-11 BUSHING (FBS001), CORD
121 1-500-386-11 FILTER, CLAMP (FERRITE CORE)
! 122 1-575-651-21 CORD, POWER (AEP)
! 122 1-590-926-11 CORD, POWER (US,CND)
! 122 1-696-845-11 CORD, POWER (AUS)
* 123 4-997-419-01 PANEL, BACK (US)
* 123 4-997-419-11 PANEL, BACK (CND)
* 123 4-997-419-21 PANEL, BACK (AEP)
* 123 4-997-419-31 PANEL, BACK (AUS)
* 124 4-951-619-21 CUSHION (A)
M801 A-4660-525-A MOTOR ASSY, ROTARY (TABLE)
– 42 –
108
107
106
(US,CND)
122
(AUS)
122
(AEP)
121
#2
#2
123
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
Description Remark
