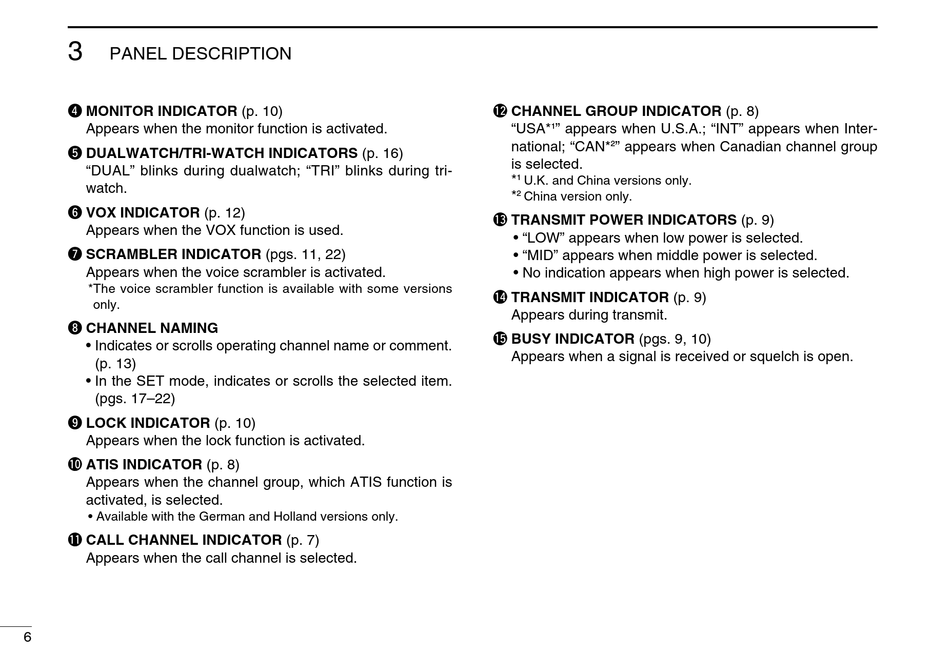

PANEL DESCRIPTION

r MONITOR INDICATOR (p. 10)
Appears when the montor functon s actvated.
t DUALWATCH/TRI-WATCH INDICATORS (p. 16)
"DUAL" blnks durng dualwatch; "TRI" blnks durng tr-
watch.
y VOX INDICATOR (p. 12)
Appears when the VOX functon s used.
u SCRAMBLER INDICATOR (pgs. 11, 22)
Appears when the voce scrambler s actvated.
* The voce scrambler functon s avalable wth some versons
only.
i CHANNEL NAMING
• Indcates or scrolls operatng channel name or comment.
(p. 13)
• In the SET mode, ndcates or scrolls the selected tem.
(pgs. 17–22)
o LOCK INDICATOR (p. 10)
Appears when the lock functon s actvated.
!0 ATIS INDICATOR (p. 8)
Appears when the channel group, whch ATIS functon s
actvated, s selected.
• Avalable wth the German and Holland versons only.
!1 CALL CHANNEL INDICATOR (p. 7)
Appears when the call channel s selected.
6
!2 CHANNEL GROUP INDICATOR (p. 8)
"USA* " appears when U.S.A.; "INT" appears when Inter-
1
natonal; "CAN* " appears when Canadan channel group
2
s selected.
*
1 U.K. and Chna versons only.
*
2 Chna verson only.
!3 TRANSMIT POWER INDICATORS (p. 9)
• "LOW" appears when low power s selected.
• "MID" appears when mddle power s selected.
• No ndcaton appears when hgh power s selected.
!4 TRANSMIT INDICATOR (p. 9)
Appears durng transmt.
!5 BUSY INDICATOR (pgs. 9, 10)
Appears when a sgnal s receved or squelch s open.
