Download this manual See also: Maintenance and Care, Operating Manual

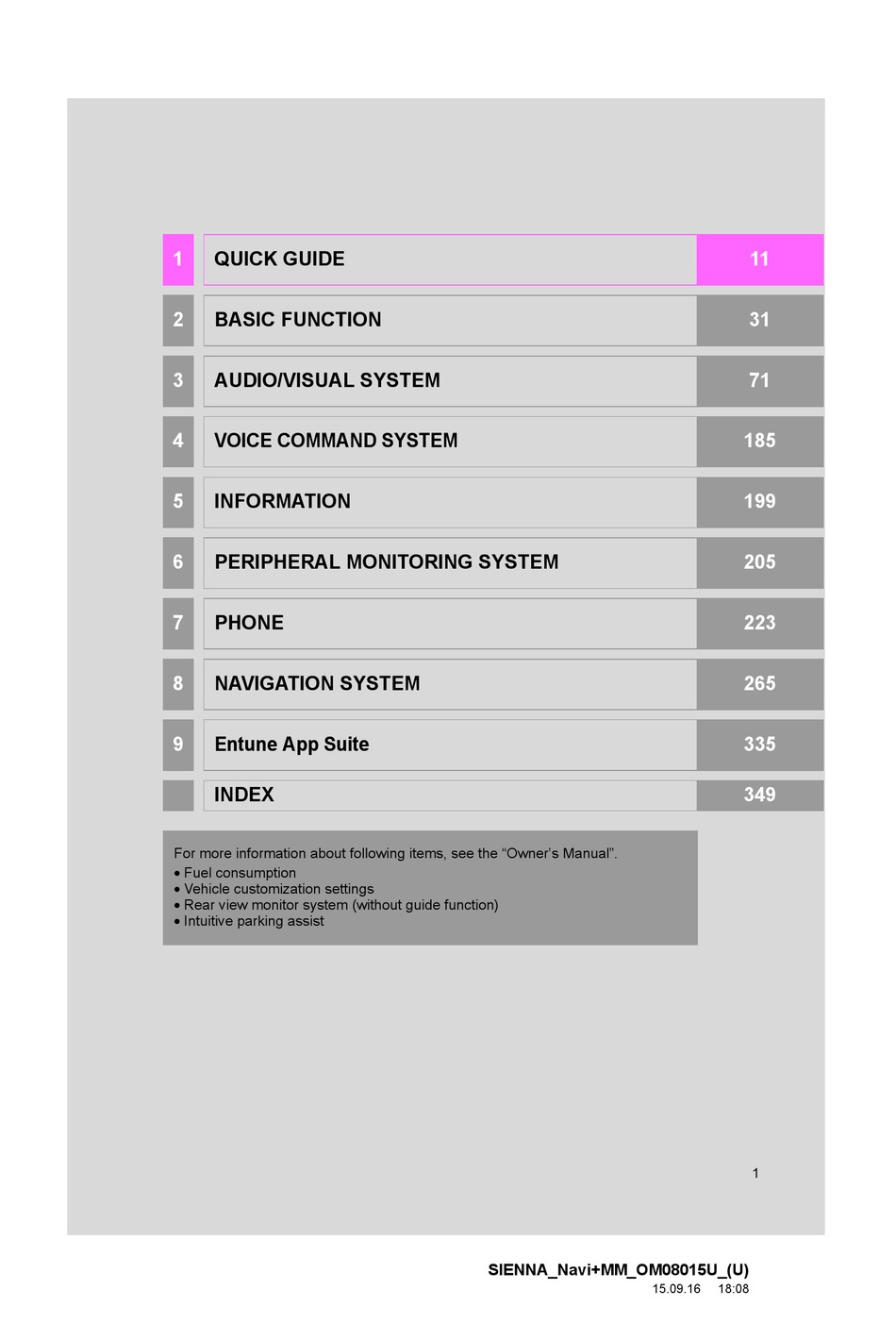

1
QUICK GUIDE
2
BASIC FUNCTION
3
AUDIO/VISUAL SYSTEM
4
VOICE COMMAND SYSTEM
5
INFORMATION
6
PERIPHERAL MONITORING SYSTEM
7
PHONE
8

NAVIGATION SYSTEM

9
Entune App Suite
INDEX
For more information about following items, see the "Owner's Manual".
 Fuel consumption
 Vehicle customization settings
 Rear view monitor system (without guide function)
 Intuitive parking assist
SIENNA_Navi+MM_OM08015U_(U)
15.09.16
11
31
71
185
199
205
223
265
335
349
1
18:08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sienna and is the answer not in the manual?

Questions and answers

Related Manuals for Toyota Sienna

Summary of Contents for Toyota Sienna

  • Page 1: Navigation System

    QUICK GUIDE BASIC FUNCTION AUDIO/VISUAL SYSTEM VOICE COMMAND SYSTEM INFORMATION PERIPHERAL MONITORING SYSTEM PHONE NAVIGATION SYSTEM Entune App Suite INDEX For more information about following items, see the “Owner’s Manual”.  Fuel consumption  Vehicle customization settings  Rear view monitor system (without guide function) ...
  • Page 2 Introduction NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL This manual explains the operation of this system. Please read this manual carefully to ensure proper use. Keep this manual in your vehicle at all times. The screen shots in this document and the actual screens of this system differ depending on whether the functions and/or a contract existed and the map data available at the time of producing this document.
  • Page 3 NAVIGATION SYSTEM (ENTUNE PREMIUM AUDIO) The Navigation System is one of the most technologically advanced vehicle ac- cessories ever developed. The system receives satellite signals from the Global Positioning System (GPS) operated by the U.S. Department of Defense. Using these signals and other vehicle sensors, the system indicates your present po- sition and assists in locating a desired destination.
  • Page 4 IMPORTANT INFORMATION ABOUT THIS MANUAL For safety reasons, this manual indicates items requiring particular attention with the following marks. WARNING ● This is a warning against anything which may cause injury to people if the warning is ignored. You are informed about what you must or must not do in order to reduce the risk of injury to yourself and others.
  • Page 5 HOW TO READ THIS MANUAL Name Description Operational An outline of the operation is explained. Outlines Main Operations The steps of an operation are explained. Related Operations A main operation’s supplementary operations are described. Information Useful information for the user is described. SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...
  • Page 6 SAFETY INSTRUCTION SAFETY INSTRUCTION (ENTUNE AUDIO PLUS) (ENTUNE PREMIUM AUDIO) To use this system in the safest possible To use this system in the safest possible manner, follow all the safety tips shown manner, follow all the safety tips shown below.
  • Page 7 WARNING ● For safety, the driver should not operate the system while he/she is driving. Insuf- ficient attention to the road and traffic may cause an accident. ● While driving, be sure to obey the traffic regulations and maintain awareness of the road conditions.

  • Page 8: Table Of Contents

    TABLE OF CONTENTS QUICK GUIDE BASIC FUNCTION 1. BASIC FUNCTION......12 1. BASIC INFORMATION BEFORE OPERATION........32 OVERVIEW BUTTONS ......12 INITIAL SCREEN ........32 “Apps” SCREEN ........14 CAPACITIVE TOUCH SWITCHES ..34 HOME SCREEN ........16 TOUCH SCREEN GESTURES....35 2.
  • Page 9 AUDIO/VISUAL SYSTEM VOICE COMMAND SYSTEM 1. BASIC OPERATION......74 1. VOICE COMMAND SYSTEM OPERATION........ 186 QUICK REFERENCE ......74 VOICE COMMAND SYSTEM ....186 SOME BASICS........76 CASUAL SPEECH 2. RADIO OPERATION ....... 82 RECOGNIZATION......193 AM/FM RADIO........82 COMMAND LIST ......... 194 XM Satellite Radio .........
  • Page 10 TABLE OF CONTENTS 3. ROUTE GUIDANCE ...... 300 PHONE ROUTE GUIDANCE SCREEN..... 300 TYPICAL VOICE GUIDANCE 1. PHONE OPERATION PROMPTS ......... 305 (HANDS-FREE SYSTEM FOR EDITING ROUTE ......... 306 CELLULAR PHONES) ....224 4. MEMORY POINTS ......311 QUICK REFERENCE ......224 MEMORY POINTS SETTINGS....

  • Page 11: Quick Guide

    QUICK GUIDE BASIC FUNCTION 1. OVERVIEW BUTTONS ....12 2. “Apps” SCREEN ......14 3. HOME SCREEN ......16 STATUS DISPLAY......... 18 QUICK REFERENCE 1. “Setup” SCREEN ......20 NAVIGATION OPERATION 1. REGISTERING HOME ....22 2. REGISTERING PRESET DESTINATIONS ......24 3.

  • Page 12: Basic Function

    1. BASIC FUNCTION 1. OVERVIEW BUTTONS SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...
  • Page 13 1. BASIC FUNCTION Function Page By touching the screen with your finger, you can control the selected 35, 36 functions. Insert a disc into this slot. The CD player turns on immediately. 82, 102, Press to play/pause. 105, 109, 113, 118 82, 93, 102, Press the “...

  • Page 14: Apps" Screen

    1. BASIC FUNCTION 2. “Apps” SCREEN Press the “APPS” button to display the “Apps” screen. Entune Premium Audio Entune Audio Plus SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...
  • Page 15 1. BASIC FUNCTION Function Page Select to display the map screen. Select to display the audio control screen. Select to display the hands-free operation screen. Select to display the “Message Inbox” screen. Select to turn the Driver Easy Speak on/off. Select to reorder the applications.

  • Page 16: Home Screen

    1. BASIC FUNCTION 3. HOME SCREEN Press the “HOME” button to display the home screen. The home screen can display multiple information screens, such as the audio sys- tem screen, driver easy speak screen, hands-free screen, and navigation screen, simultaneously. When hands-free mode is selected, it is possible to make a call on the home screen if the desired phone number is registered to one of the 4 displayed buttons.
  • Page 17 1. BASIC FUNCTION Two-way split screen Function Page Displays the current time  Select the displaying time to set the clock. (P.61)   The clock setting can be also set from the “General Settings” screen. (P.59) ® Displays the condition of the Bluetooth connection Select to display the “Setup”...

  • Page 18: Status Display

    1. BASIC FUNCTION STATUS DISPLAY ® The condition of the Bluetooth connection, as well as the level of reception and the amount of cellular phone battery charge left, are displayed on the status dis- play. Indicators Conditions (Gray) (Blue) No connection Poor Good ®...
  • Page 19 1. BASIC FUNCTION Indicators Conditions Poor Excellent  The level of reception does not always correspond with the level displayed on the cellular phone. The level of reception may not be The level of displayed depending on the phone you have. reception When the cellular phone is out of the service area or in a place inaccessible by radio waves, “No Service”...

  • Page 20: Quick Reference

    2. QUICK REFERENCE 1. “Setup” SCREEN The items shown on the “Setup” screen can be set. Press the “APPS” button, then select “Setup” to display the “Setup” screen. Entune Premium Audio Entune Audio Plus SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...
  • Page 21 2. QUICK REFERENCE Function Page Select to change the selected language, operation sound, automatic screen change settings, etc. Select to customize the home screen. Select to set the voice settings. Select to adjust the contrast and brightness of the screens. ®...

  • Page 22: Navigation Operation

    3. NAVIGATION OPERATION 1. REGISTERING HOME* Press the “APPS” button. Select “Go Home”. Select “Yes”. Select “Navigation”. There are different kinds of meth- ods to search for your home. (P.284) Select “Dest.”. *: Entune Premium Audio only SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...
  • Page 23 3. NAVIGATION OPERATION Select “Enter”. Select “OK”. Registration of home is complete. Registering home in a different way P.312 Editing the name, location, phone num- ber and icon P.312 Setting home as the destination P.287 SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...

  • Page 24: Registering Preset Destinations

    3. NAVIGATION OPERATION 2. REGISTERING PRESET DESTINATIONS* Press the “APPS” button. Select one of the preset destina- tion buttons. Select “Yes”. Select “Navigation”. There are different kinds of meth- ods to search for a destination. (P.284) Select “Dest.”. *: Entune Premium Audio only SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...
  • Page 25 3. NAVIGATION OPERATION Select “Enter”. Select a position for this preset destination. Select “OK”. Registration of preset destinations is complete. Registering preset destinations in a dif- ferent way P.313 Editing the name, location, phone num- ber and icon P.314 Setting preset destinations as the desti- nation P.287 SIENNA_Navi+MM_OM08015U_(U)

  • Page 26: Operation Flow: Guiding The Route

    3. NAVIGATION OPERATION 3. OPERATION FLOW: GUIDING THE ROUTE* Press the “APPS” button. Select “Go”. Select “OK”. Selecting routes other than the one recom- Select “Navigation”. mended. (P.296) Guidance to the destination is displayed on the screen and can be heard via voice guidance.

  • Page 27: Setting Home As The Destination

    3. NAVIGATION OPERATION 4. SETTING HOME AS THE DESTINATION* Press the “APPS” button. Select “OK”. Selecting routes other than the one recom- mended. (P.296) Guidance to the destination is displayed on the screen and can be heard via voice guidance. Select “Navigation”.

  • Page 28: Function Index

    4. FUNCTION INDEX 1. FUNCTION INDEX Map* Displaying maps Page Viewing the map screen Displaying the current position Viewing the current position vicinity map Changing the scale Changing the map orientation Displaying map information Displaying the estimated travel/arrival time to the destination Selecting the map mode Displaying traffic information Searching for destinations...
  • Page 29 4. FUNCTION INDEX Useful functions* Information Page Displaying vehicle maintenance Hands-free system (for cellular phone) Page ® Registering/connecting Bluetooth phone ® Making a call on a Bluetooth phone ® Receiving a call on the Bluetooth phone Voice command system Page Operating the system with your voice Peripheral monitoring system Page...
  • Page 30 SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...

  • Page 31: Basic Function

    BASIC FUNCTION ® BASIC INFORMATION BEFORE Bluetooth SETTINGS OPERATION 1. REGISTERING/CONNECTING ® Bluetooth DEVICE ....44 1. INITIAL SCREEN ......32 ® REGISTERING A Bluetooth PHONE 2. CAPACITIVE TOUCH FOR THE FIRST TIME......44 SWITCHES ........34 ® REGISTERING A Bluetooth AUDIO PLAYER FOR THE FIRST TIME..

  • Page 32: Basic Information Before Operation

    1. BASIC INFORMATION BEFORE OPERATION 1. INITIAL SCREEN When the engine switch is in the “ACC” INFORMATION or “ON” position, the initial screen will Vehicles without a smart key system be displayed and the system will begin Please do not reach your hand to the operating.
  • Page 33 1. BASIC INFORMATION BEFORE OPERATION MAINTENANCE RESTARTING THE SYSTEM INFORMATION* When system response is extremely This system reminds users when to re- slow, the system can be restarted. place certain parts or components and Press and hold the “PWR·VOL” knob shows dealer information (if regis- for 3 seconds or more.

  • Page 34: Capacitive Touch Switches

    1. BASIC INFORMATION BEFORE OPERATION 2. CAPACITIVE TOUCH SWITCHES  If operations are performed quickly, non- The control panel uses capacitive response may occur. touch sensors. INFORMATION ● Please do not reach your hand to the part of button when the system turn on. Because the button may become unre- sponsive for a while.

  • Page 35: Touch Screen Gestures

    1. BASIC INFORMATION BEFORE OPERATION 3. TOUCH SCREEN GESTURES Operations are performed by touching the touch screen directly with your finger. Operation method Outline Main use Touch Changing and selecting various set- Quickly touch and release tings once. Drag* Touch the screen with ...

  • Page 36: Touch Screen Operation

    1. BASIC INFORMATION BEFORE OPERATION 4. TOUCH SCREEN OPERATION This system is operated mainly by the INFORMATION buttons on the screen. (Referred to as ● If the system does not respond to touch- screen buttons in this manual.) ing a screen button, move your finger away from the screen and then touch it again.

  • Page 37: Home Screen Operation

    1. BASIC INFORMATION BEFORE OPERATION 5. HOME SCREEN OPERATION The home screen can display multiple CUSTOMIZING THE HOME information screens, such as the audio SCREEN system screen and hands-free screen, The display items/area on the home simultaneously. screen can be changed. Press the “HOME”...

  • Page 38: Entering Letters And Numbers/List Screen Operation

    1. BASIC INFORMATION BEFORE OPERATION 6. ENTERING LETTERS AND NUMBERS/LIST SCREEN OPERATION  On certain letter entry screens, letters can When searching by an address, name, be entered in upper or lower case. etc., or entering data, letters and num- bers can be entered via the screen.

  • Page 39: List Screen

    1. BASIC INFORMATION BEFORE OPERATION ■ SELECTING ALL ITEMS LIST SCREEN Some lists contain “Select All”. If “Se- The list screen may be displayed after lect All” is selected, it is possible to entering characters. select all items. Select “Select All”. DISPLAYING THE LIST Enter characters and select “OK”.
  • Page 40 1. BASIC INFORMATION BEFORE OPERATION LIST SCREEN OPERATION SORTING When a list is displayed, use the appro- The order of a list displayed on the priate screen button to scroll through screen can be sorted in the order of the list. distance from the current location, date, category, etc.

  • Page 41: Screen Adjustment

    1. BASIC INFORMATION BEFORE OPERATION 7. SCREEN ADJUSTMENT The contrast and brightness of the INFORMATION screen display and the image of the ● When the screen is viewed through camera display can be adjusted. The polarized sunglasses, a rainbow pattern screen can also be changed to either may appear on the screen due to optical day or night mode.
  • Page 42 1. BASIC INFORMATION BEFORE OPERATION ADJUSTING THE CONTRAST/ BRIGHTNESS The contrast and brightness of the screen can be adjusted according to the brightness of your surroundings. Select “General” or “Camera”. Select the desired item. General Camera Screen button Function Select to brighten the “Brightness”...

  • Page 43: System

    1. BASIC INFORMATION BEFORE OPERATION 8. LINKING MULTI-INFORMATION DISPLAY AND NAVIGATION SYSTEM* The following functions of the navigation system are linked with the multi-informa- tion display in the instrument cluster: • Navigation • Audio etc. These functions can be operated using multi-information display control switches on the steering wheel.

  • Page 44: Bluetooth ® Settings

    ® 2. Bluetooth SETTINGS ® 1. REGISTERING/CONNECTING Bluetooth DEVICE ® When this screen is displayed, search REGISTERING A Bluetooth for the device name displayed on this PHONE FOR THE FIRST TIME screen screen your ® Bluetooth device. To use the hands-free system, it is ®...

  • Page 45: Registering A Bluetooth Audio Player For The First Time

    ® 2. Bluetooth SETTINGS ® Check that the screen is displayed Turn the Bluetooth connection setting when registration is complete. of your audio player on.  The system waits for connection requests  This function is not available when the coming from the registered device.

  • Page 46: Profiles

    ® ● If the connected Bluetooth device version is older than recommended or incompatible, ® the Bluetooth device function may not work properly. ® ● Refer to http://www.toyota.com/entune/ to find approved Bluetooth phones for this sys- tem. SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...
  • Page 47 ® 2. Bluetooth SETTINGS ® The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PIONEER CORPORATION and Panasonic Corporation are under license. Other trademarks and trade names are those of their respective owners.

  • Page 48: Certification

    ® 2. Bluetooth SETTINGS Canada (Entune Audio Plus) CERTIFICATION  IC: 775E-K066 U.S.A. (Entune Audio Plus)  This device complies with Industry Canada licence-exempt  FCC ID: AJDK066 standard(s). Operation is subject to the  This device complies with part 15 of the following two conditions: (1) this device FCC Rules.
  • Page 49 ® 2. Bluetooth SETTINGS U.S.A. (Entune Premium Audio) CAUTION:  CAUTION: Radio Frequency Radiation  FCC ID: ACJ932AT1501 Exposure NOTE: This equipment complies with <§15.19(a)(3)> This device complies with radiation exposure limits set forth for an part 15 of the FCC Rules. Operation is uncontrolled environment and meets subject to the following two conditions: (1) RSS-102 of the IC radio frequency (RF)
  • Page 50 ® 2. Bluetooth SETTINGS Canada (Entune Premium Audio) Mexico (Entune Premium Audio) NOTE: La operación de este equipo está sujeta a las siguientes dos condiciones:  This device complies with Industry (1) es posible que este equipo o Canada licence-exempt dispositivo cause interferencia...

  • Page 51: Details

    ® 2. Bluetooth SETTINGS ® 2. SETTING Bluetooth DETAILS Press the “APPS” button. “Bluetooth* Setup” SCREEN Function Page Select “Setup”. ® Registering a Bluetooth device Select “Bluetooth*”. ® Deleting a Bluetooth device Select the desired item to be set. ® Connecting a Bluetooth device ®...

  • Page 52: Registering A Bluetooth Device

    ® 2. Bluetooth SETTINGS ® DISPLAYING THE “Bluetooth* REGISTERING A Bluetooth Setup” SCREEN IN A DEVICE DIFFERENT WAY ® Up to 5 Bluetooth devices can be reg- From phone/message settings screen istered. ® Press the “APPS” button. Bluetooth compatible phones (HFP) and audio players (AVP) can be regis- Select “Setup”.

  • Page 53: Deleting A Bluetooth Device

    ® 2. Bluetooth SETTINGS ® ®  For details about operating the Bluetooth DELETING A Bluetooth device, see the manual that comes with it. DEVICE  To cancel registration, select “Cancel”. Display the “Bluetooth* Setup” screen. ® Register the Bluetooth device using (P.51) ®...

  • Page 54: Connecting A Bluetooth Device

    ® 2. Bluetooth SETTINGS ® When another Bluetooth device is con- ® CONNECTING A Bluetooth nected DEVICE ®  To disconnect the Bluetooth device, select “Yes”. ® Up to 5 Bluetooth devices (Phones Check that a confirmation screen is (HFP) and audio players (AVP)) can be displayed when the connection is com- registered.
  • Page 55 ® 2. Bluetooth SETTINGS ■ ■ ® AUTO CONNECTION MODE RECONNECTING THE Bluetooth PHONE To turn auto connection mode on, set “Bluetooth* Power” to on. (P.57) ® If a Bluetooth phone is disconnected ® Leave the Bluetooth device in a loca- due to poor reception from the tion where the connection can be es- ®...

  • Page 56: Editing The Bluetooth Device Information

    ® 2. Bluetooth SETTINGS ® EDITING THE Bluetooth Information DEVICE INFORMATION ® The name of the Bluetooth device can be changed to a desired name. (P.57) ® The Bluetooth device’s information can be displayed on the screen. The ® Select to set the Bluetooth audio displayed information can be edited.

  • Page 57: System Settings" Screen

    ® 2. Bluetooth SETTINGS CHANGING A DEVICE NAME “System Settings” SCREEN Select “Device Name”. ® The Bluetooth settings can be con- Enter the name and select “OK”. firmed and changed. Display the “Bluetooth* Setup” screen. INFORMATION (P.51) ● Even if the device name is changed, the ®...
  • Page 58 ® 2. Bluetooth SETTINGS CHANGING “Bluetooth* Information Page Power” ® Select to set Bluetooth connection on/off. Select “Bluetooth* Power”. Displayed system name When “Bluetooth* Power” is on: can be changed to a de- Vehicles without a smart key system sired name. ®...

  • Page 59: Other Settings

    3. OTHER SETTINGS 1. GENERAL SETTINGS Settings are available for screen but- GENERAL SETTINGS ton color, operation sounds, etc. SCREEN Press the “APPS” button. Select “Setup”. Select “General”. Select the items to be set. SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...
  • Page 60 Select to delete personal data. (P.65) Select to change the keyboard lay- out. Select to update software versions. For details, contact your Toyota Select to set automatic screen dealer. changes from the audio control screen to the home screen to on/off.
  • Page 61 3. OTHER SETTINGS ■ SETTING THE TIME ZONE CLOCK SETTINGS Select “Time Zone”. Used for changing time zones and the settings of daylight saving time, and Select the desired time zone. the on/off settings of automatic adjust- ment of the clock by GPS can be changed.
  • Page 62 3. OTHER SETTINGS ■ MANUAL CLOCK SETTING CUSTOMIZING THE STARTUP AND SCREEN OFF IMAGES When “Auto Adjust by GPS” is turned off, the clock can be manually An image can be copied from a USB adjusted. memory and used as the startup and screen off images.
  • Page 63 3. OTHER SETTINGS ■ TRANSFERRING IMAGES INFORMATION Open the cover and connect a USB ● When saving the images to a USB, name the folder that the startup image is memory. saved to “StartupImage” and name the folder that the screen off image is saved to “DisplayOffImage”.
  • Page 64 3. OTHER SETTINGS ■ ■ SETTING THE STARTUP IMAGES DELETING TRANSFERRED IMAG- Display the “General Settings” screen. Display the “General Settings” screen. (P.59) (P.59) Select “Customize Startup Image”. Select “Customize Startup Image” or Select the desired image. “Customize Screen Off Image”. Select “Delete All”.
  • Page 65 3. OTHER SETTINGS DELETING PERSONAL DATA NOTICE Display the “General Settings” screen. Vehicles without a smart key system (P.59) ● Entune Premium Audio: Make sure the map microSD card is inserted when Select “Delete Personal Data”. deleting personal data. The personal data cannot be deleted when the map Select “Delete”.

  • Page 66: Voice Settings

    3. OTHER SETTINGS 2. VOICE SETTINGS Voice volume, etc. can be set. VOICE SETTINGS SCREEN Press the “APPS” button. Select “Setup”. Select “Voice”. Select the items to be set. INFORMATION Function ● “Voice Settings” screen can also be dis- Select to adjust the volume of voice played from the voice recognition top guidance.

  • Page 67: Driver Settings

    3. OTHER SETTINGS 3. DRIVER SETTINGS The driver settings feature will allow MANUALLY SELECT LINKED the system to link some preferences SETTINGS (such as audio presets, button colors, ® language, etc.) to a paired Bluetooth Display the “Driver Settings” screen. phone.

  • Page 68: Maintenance

    3. OTHER SETTINGS 4. MAINTENANCE* When this system is turned on, the Function “Maintenance Reminder” screen dis- Select to set the condition of parts or plays when it is time to replace a part components. or certain components. (P.33) Select to add new information items Press the “APPS”...
  • Page 69 3. OTHER SETTINGS MAINTENANCE INFORMATION INFORMATION SETTING ● For scheduled maintenance information, refer to “Scheduled Maintenance Guide” Select the desired part or component or “Owner’s Manual Supplement”. screen button. ● Depending on driving or road conditions, the actual date and distance that main- ...
  • Page 70 3. OTHER SETTINGS ■ EDITING DEALER OR CONTACT Select the items to be edited. NAME Select “Edit” next to “Dealer” or “Contact”. Enter the name and select “OK”. ■ EDITING THE LOCATION Select “Edit” next to “Location”. Function Page Scroll the map to the desired point (P.276) and select “OK”.

  • Page 71: Audio/Visual System

    AUDIO/VISUAL SYSTEM BASIC OPERATION RADIO OPERATION 1. QUICK REFERENCE..... 74 1. AM/FM RADIO....... 82 OVERVIEW..........82 2. SOME BASICS ......76 PRESETTING A STATION ....86 TURNING THE SYSTEM ON AND SELECTING A STATION FROM OFF ............. 77 THE LIST..........86 SELECTING AN AUDIO SOURCE ..
  • Page 72 MEDIA OPERATION SETUP 1. CD..........102 1. AUDIO SETTINGS....... 123 OVERVIEW.......... 102 AUDIO SETTINGS SCREEN ....123 PLAYING AN AUDIO CD..... 104 PLAYING AN MP3/WMA/AAC TIPS FOR OPERATING THE DISC..........104 AUDIO/VISUAL SYSTEM 2. USB MEMORY ......105 1. OPERATING INFORMATION ..125 OVERVIEW..........
  • Page 73 2. PLAYING A Blu-ray Disc™ (BD) 4. PLAYING AN SD CARD ..... 170 AND DVD DISCS ......150 REMOTE CONTROLLER ....170 REMOTE CONTROLLER....150 MAIN MENU ........170 TURNING ON THE BD/DVD PLAYING/PAUSING A SD CARD MODE ..........151 MEDIA ..........171 PLAYING/PAUSING A DISC....

  • Page 74: Basic Operation

    1. BASIC OPERATION 1. QUICK REFERENCE Press the “AUDIO” button to display the audio/visual screen. SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...
  • Page 75 1. BASIC OPERATION Function Page 82, 93, Using the radio Playing an audio CD or MP3/WMA/AAC disc Playing a USB memory Playing an iPod ® Playing a Bluetooth device Using the AUX port Using the steering wheel audio switches Audio system settings Rear seat entertainment system INFORMATION ●...

  • Page 76: Some Basics

    1. BASIC OPERATION 2. SOME BASICS This section describes some of the ba- CAUTION: sic features of the audio/visual system. THIS PRODUCT IS A CLASS 1 LASER Some information may not pertain to PRODUCT. USE OF CONTROLS OR your system. ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE Vehicles without a smart key system...

  • Page 77: Turning The System On And Off

    1. BASIC OPERATION TURNING THE SYSTEM ON SELECTING AN AUDIO AND OFF SOURCE Press the “AUDIO” button. · “PWR VOL” knob: Press to turn the au- dio/visual system on and off. The system Select “Source” on the audio screen turns on in the last mode used. Turn this or press “AUDIO”...

  • Page 78: Disc Slot

    1. BASIC OPERATION REORDERING THE AUDIO DISC SLOT SOURCE INSERTING A DISC Display the “Select Audio Source” screen. (P.77) Insert a disc into the disc slot. Select “Reorder”. Select the desired audio source then  After insertion, the disc is automatically to reorder.

  • Page 79: Usb/Aux Port

    1. BASIC OPERATION USB/AUX PORT SOUND SETTINGS Open the cover and connect a device. AUTOMATIC SOUND LEVELIZER (ASL) The system adjusts to the optimum vol- ume and tone quality according to ve- hicle speed compensate increased vehicle noise. Display the “Audio Settings” screen. (P.123) Type A ...
  • Page 80 1. BASIC OPERATION Select “Sound” on the audio control TONE AND BALANCE screen. TONE: Select the desired screen button. How good an audio program sounds is largely determined by the mix of the treble, mid and bass levels. In fact, dif- ferent kinds of music and vocal pro- grams usually sound better with different mixes of treble, mid and bass.

  • Page 81: Voice Command System

    1. BASIC OPERATION VOICE COMMAND SYSTEM Press this switch to operate the voice command system.  The voice command system and its list commands operated. (P.186) SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...

  • Page 82: Radio Operation

    2. RADIO OPERATION 1. AM/FM RADIO OVERVIEW Select “AM” or “FM” on the “Select Audio Source” screen. (P.77) ■ CONTROL SCREEN Entune Audio Plus Top screen Option screen SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...
  • Page 83 2. RADIO OPERATION Entune Premium Audio Top screen Option screen ■ CONTROL PANEL SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...
  • Page 84 2. RADIO OPERATION Function Select to scroll the page of preset buttons. Select to display the option screen. Select to display the audio source selection screen. Select to display the sound setting screen. Select to display a list of receivable stations/channels. Select to scan for receivable stations/channels.
  • Page 85 2. RADIO OPERATION INFORMATION ● The radio automatically changes to stereo reception when a stereo broadcast is received. ● The radio automatically blends to an HD Radio signal in AM or FM where available. SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...

  • Page 86: Presetting A Station

    2. RADIO OPERATION PRESETTING A STATION SELECTING A STATION FROM THE LIST Radio mode has a mix preset function, which can store up to 36 stations (6 A station list can be displayed. stations per page x 6 pages) from any Select “Station List”.

  • Page 87: Caching A Radio Program

    2. RADIO OPERATION ■ REFRESHING THE STATION LIST CACHING A RADIO PROGRAM* Select “Refresh” on the station list screen and the following screen will be displayed. A radio program can be cached and played back in a time-shifted manner. PLAYING BACK THE CACHE MANUALLY The broadcast cached in the program cache can be played back manually.

  • Page 88: Radio Broadcast Data System

    2. RADIO OPERATION AUTOMATIC PLAYBACK OF RADIO BROADCAST DATA THE CACHE SYSTEM If the radio broadcast is interrupted by This audio system is equipped with Ra- another audio output, such as an dio Broadcast Data Systems (RBDS). incoming phone call, the system will RBDS mode allows text messages to automatically cache the interrupted be received from radio stations that uti-...

  • Page 89: Traffic Announcement (Fm Radio)

    2. RADIO OPERATION SELECTING A DESIRED TRAFFIC ANNOUNCEMENT GENRE (FM RADIO) Select “Station List”. A station that regularly broadcasts traf- fic information is automatically located. FM radio only: Select a desired genre of station and select a desired station. Select “Station List”. ...

  • Page 90: Using Hd Radio™ Technology

    2. RADIO OPERATION AVAILABLE HD Radio ™ USING HD Radio ™ TECHNOLOGY TECHNOLOGY HD Radio ™ Technology is the digital MULTICAST evolution of analog AM/FM radio. Your radio product has a special receiver On the FM radio frequency most digital which allows it to receive digital stations have “multiple”...
  • Page 91 2. RADIO OPERATION PRESERVING A MUSIC INFORMATION INFORMATION ● The tag information can not be pre- served while scanning or caching the Tag information in the music broad- radio station. casting is preserved in the system and ● If tagging the music information fails, transmits to an iPod.

  • Page 92: Troubleshooting Guide

    2. RADIO OPERATION TROUBLESHOOTING GUIDE Experience Cause Action Mismatch of time alignment The radio stations analog a user may hear a short pe- and digital volume is not None, radio broadcast issue. A riod of programming re- properly aligned or the sta- user can contact the radio station.

  • Page 93: Xm Satellite Radio

    2. RADIO OPERATION 2. XM Satellite Radio* OVERVIEW Select “XM” on the “Select Audio Source” screen. (P.77) ■ CONTROL SCREEN ■ CONTROL PANEL *: If equipped SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...
  • Page 94 2. RADIO OPERATION Function Select to scroll the page of preset buttons. Select to display the option screen.  Select to scan for receivable channels.  Select “Additional Information” to display the information. Select to display the audio source selection screen. Select to display the sound setting screen.

  • Page 95: How To Subscribe To An Xm Satellite Radio

    2. RADIO OPERATION HOW TO SUBSCRIBE TO AN NOTICE XM Satellite Radio XM Radio Services  Legal Disclaimers ● and Warnings To listen to a satellite radio broadcast • Fees and Taxes  Subscription fee, in the vehicle, a subscription to the XM taxes, one time activation fee, and Satellite Radio service is necessary.
  • Page 96 2. RADIO OPERATION NOTICE INFORMATION Services  Subscription ● Radio ● It is prohibited to copy, decompile, disas- Instructions semble, reverse engineer, hack, manip- • For XM Services requiring a subscrip- ulate, or otherwise make available any tion (such as XM Radio, and some technology or software incorporated in Infotainment &...

  • Page 97: Displaying The Radio Id

    PRESETTING A CHANNEL SATELLITE TUNER TECHNOLOGY NOTICE Tune in the desired channel. Toyota’s satellite radio tuners are Select “(add new)”. awarded Type Approval Certificates from XM Satellite Radio Inc. as proof of compatibility with the services offered by XM Satellite Radio.

  • Page 98: Selecting A Channel From The List

    2. RADIO OPERATION SELECTING A CHANNEL FROM THE LIST Select “Channel List”. Select the desired program genre. Select the desired channel and select “OK”. SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...

  • Page 99: If The Satellite Radio Tuner Malfunctions

    “Check Antenna” A short circuit occurs in the antenna or the surrounding antenna ca- ble. See a Toyota certified dealer for assistance. You have not subscribed to XM Satellite Radio. The radio is being updated with the latest encryption code. Contact XM Satellite Radio for subscription information.
  • Page 100 2. RADIO OPERATION INFORMATION ● Contact the XM Listener Care Center at 1-866-635-2349 (U.S.A.) or 1-877-438-9677 (Canada). SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...

  • Page 101: Internet Radio

    ● For additional information, refer to phone and the system needs to be set http://www.toyota.com/entune/ or call up. For details: P.341 1-800-331-4331. Select the internet radio application.  The internet radio application screen is displayed.

  • Page 102: Media Operation

    3. MEDIA OPERATION 1. CD OVERVIEW The CD operation screen can be reached by the following methods: Insert a disc. (P.78) Select “CD” on the “Select Audio Source” screen. (P.77) ■ CONTROL SCREEN ■ CONTROL PANEL SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...
  • Page 103 3. MEDIA OPERATION Function  Displays cover art  Select to display a track/file list. Select to display the audio source selection screen. Select to display the sound setting screen. Select to play/pause. Shows progress Select to set repeat playback. Select to set random playback.

  • Page 104: Playing An Audio Cd

    3. MEDIA OPERATION PLAYING AN AUDIO CD PLAYING AN MP3/WMA/AAC DISC REPEATING REPEATING The track currently being listened to can be repeated. The file currently being listened to can be repeated. Select the repeat button to change on/ off. Select the repeat button to change on/ off.

  • Page 105: Usb Memory

    3. MEDIA OPERATION 2. USB MEMORY OVERVIEW The USB memory operation screen can be reached by the following methods: Connect a USB memory. (P.79) Select “USB (DEVICE NAME)” on the “Select Audio Source” screen. (P.77) ■ CONTROL SCREEN ■ CONTROL PANEL SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...
  • Page 106 3. MEDIA OPERATION Function Select to display the audio source selection screen. Select to display the sound setting screen. Select to play/pause. Shows progress Select to set repeat playback. Select to set random playback. Select to display the play mode selection screen. To return to the top screen, select “Now Playing”...
  • Page 107 3. MEDIA OPERATION WARNING ● Do not operate the player’s controls or connect the USB memory while driving. NOTICE ● Do not leave your portable player in the car. In particular, high temperatures inside the vehicle may damage the portable player. ●...

  • Page 108: Playing A Usb Audio

    3. MEDIA OPERATION PLAYING A USB AUDIO REPEATING The file/track currently being listened to can be repeated. Select the repeat button to change on/ off. RANDOM ORDER Files/tracks can be automatically and randomly selected. Select the random button to change on/off.

  • Page 109: Ipod

    3. MEDIA OPERATION 3. iPod OVERVIEW The iPod operation screen can be reached by the following methods: Connect an iPod. (P.79) Select “iPod (DEVICE NAME)” on the “Select Audio Source” screen. (P.77) When the iPod connected to the system includes iPod video, the system can only ...

  • Page 110: Control Panel

    3. MEDIA OPERATION ■ CONTROL PANEL Function Audio  Displays cover art  Select to display a track list. Select to display the audio source selection screen. Select to display the sound setting screen. Select to play/pause. Shows progress Select to set repeat playback. Select to set random playback.
  • Page 111 Files/tracks selected by operating a connected iPod may not be recognized or displayed properly. ® ● If an iPhone is connected via Bluetooth and USB at the same time, system operation may become unstable. For known phone compatibility information, refer to http://www.toyota.com/entune/. SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...

  • Page 112: Ipod Audio

    3. MEDIA OPERATION iPod AUDIO iPod VIDEO To change to iPod video mode, select REPEATING “Browse” on the iPod audio screen, then select the “Videos” tab and se- The track currently being listened to lect the desired video file. can be repeated. The system can only output the iPod Select the repeat button to change on/ video sound.

  • Page 113: Bluetooth ® Audio

    3. MEDIA OPERATION ® 4. Bluetooth AUDIO ® The Bluetooth audio system enables users to enjoy listening to music that is played on a portable player on the vehicle speakers via wireless communication. ® This audio system supports Bluetooth , a wireless data system capable of playing ®...
  • Page 114 3. MEDIA OPERATION ■ CONTROL PANEL Function Select to display the audio source selection screen. ® Displays Bluetooth device condition. Select to display the sound settings screen. Select to play/pause. Shows progress Select to set repeat playback. Select to set random playback. Select to display the track list screen.
  • Page 115 3. MEDIA OPERATION Function  Turn to adjust volume.  Press to turn the audio system on/off.  Press and hold to restart the audio system. WARNING ● ® Do not operate the player’s controls or connect to the Bluetooth audio system while driv- ing.
  • Page 116 3. MEDIA OPERATION INFORMATION ® ● Depending on the Bluetooth device that is connected to the system, the music may start playing when selecting while it is paused. Conversely, the music may pause when selecting while it is playing. ● In the following conditions, the system may not function: ®...

  • Page 117: Connecting A Bluetooth Device

    3. MEDIA OPERATION ® ® CONNECTING A Bluetooth LISTENING TO Bluetooth DEVICE AUDIO ® To use the Bluetooth audio system, it REPEATING ® is necessary to register a Bluetooth The track currently being listened to device with the system. can be repeated. Registering an additional device Select the repeat button to change on/ Select...

  • Page 118: Aux

    3. MEDIA OPERATION 5. AUX OVERVIEW Select “AUX” on the “Select Audio Source” screen. (P.77) ■ CONTROL SCREEN ■ CONTROL PANEL SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...
  • Page 119 3. MEDIA OPERATION Function Select to display the audio source selection screen. Select to display the sound setting screen. Press to turn mute on/off.  Turn to adjust volume.  Press to turn the audio system on/off.  Press and hold to restart the audio system. WARNING ●...

  • Page 120: Audio/Visual Remote Controls

    4. AUDIO/VISUAL REMOTE CONTROLS 1. STEERING SWITCHES Some parts of the audio/visual system can be adjusted using the switches on the steering wheel. Switch Volume control switch “ ” switch “MODE/HOLD” switch Enter switch Back switch *: If equipped “MODE/HOLD” switch Mode Operation Function...
  • Page 121 4. AUDIO/VISUAL REMOTE CONTROLS “ ” switch Mode Operation Function Preset station/channel up/down Press Station/channel list up/down AM/FM Radio Fast preset station/channel up/down Press and hold* Fast station/channel list up/down Preset channel up/down Press Channel list up/down Fast preset channel up/down Press and hold Fast channel list up/down Track/file up/down...
  • Page 122 4. AUDIO/VISUAL REMOTE CONTROLS “ ” switch* Mode Operation Function Press Seek up/down AM/FM Radio Seek up/down continuously while the switch is being Press and hold pressed Press Type seek up/down Press and hold Fast channel up/down Audio CD, MP3/ WMA/AAC disc, Press and hold Fast forward/rewind...

  • Page 123: Setup

    5. SETUP 1. AUDIO SETTINGS Detailed audio settings can be pro- AUDIO SETTINGS SCREEN grammed. Press the “APPS” button. Select “Setup”. Select “Audio”. Select the items to be set. SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...
  • Page 124 5. SETUP SETTING THE NUMBER OF Function Page RADIO PRESETS Select to change the num- ber of preset radio sta- Display the “Audio Settings” screen. tions/channels displayed (P.123) on the screen. Select “Number of Radio Presets”. Select to set cover art set- ...

  • Page 125: Tips For Operating The Audio/Visual System

    6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM 1. OPERATING INFORMATION NOTICE Fading and drifting stations: Generally, the ● To avoid damage to the audio/visual effective range of FM is about 25 miles (40 system: km). Once outside this range, you may no- •...

  • Page 126: Cd Player And Disc

    6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM CD PLAYER AND DISC Fading: AM broadcasts are reflected by  This CD player is intended for use with 4.7 the upper atmosphere — especially at in. (12 cm). discs only. night. These reflected signals can interfere ...
  • Page 127 6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM Special shaped discs NOTICE ● Do not use special shaped, transparent/ translucent, low quality or labeled discs such as those shown in the illustrations. The use of such discs may damage the player, or it may be impossible to eject the disc.

  • Page 128: Ipod

    6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM iPod  “Made for iPod” and “Made for iPhone” mean that an electronic accessory has To clean a disc: Wipe it with a soft, lint- been designed to connect specifically to free cloth that has been dampened with iPod or iPhone respectively, and has been water.

  • Page 129: File Information

    6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM COMPATIBLE MODELS FILE INFORMATION ® ® The following iPod , iPod nano , iPod ■ COMPATIBLE USB DEVICES ® ® ® classic , iPod touch and iPhone devic- es can be used with this system. USB 2.0 HS (480 communication Made for...
  • Page 130 6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM ■ ■ CORRESPONDING SAMPLING CORRESPONDING BIT RATES FREQUENCY File type Bit rate (kbps) File type Frequency (kHz) MP3 files: 32 - 320 MPEG 1 LAYER 3 MP3 files: 32/44.1/48 MPEG 1 LAYER 3 MP3 files: 8 - 160 MPEG 2 LSF LAYER 3...

  • Page 131: Terms

    6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM  This system can play back AAC files encoded by iTunes.  The sound quality of MP3/WMA files gen- 001.mp3 erally improves with higher bit rates. In 002.wma order to achieve a reasonable level of Folder 1 sound quality, discs recorded with a bit 003.mp3...
  • Page 132 6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM ID3 TAG  This is a method of embedding track-  Playlists created using “WINAMP” soft- related information in an MP3 file. This ware have a playlist file extension (.m3u). embedded information can include the track number, track title, the artist’s name, the album title, the music genre, the year of production, comments, cover art and...

  • Page 133: Error Messages

    “iPod authorization unsuc- This indicates that it failed to authorize the iPod. cessful.” Please check your iPod. INFORMATION ● If the malfunction is not rectified: Take your vehicle to your Toyota dealer. SIENNA_Navi+MM_OM08015U_(U) 15.09.04 16:55...

  • Page 134: Rear Seat Entertainment System Operation

    7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION 1. REAR SEAT ENTERTAINMENT SYSTEM FEATURES* The rear seat entertainment system is designed for the rear passengers to enjoy video such as Blu-ray Disc™ (BD) and DVD disc. The video played by the rear seat entertainment system is not displayed on the au- dio system’s screen.
  • Page 135 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION INFORMATION Vehicles without a smart key system • The rear seat entertainment system can be used when the engine switch is in the “ACC” or “ON” position. Vehicles with a smart key system • The rear seat entertainment system can be used when the engine switch is in ACCES- SORY or IGNITION ON mode.

  • Page 136: Display

    7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION CERTIFICATION DISPLAY CAUTION: OPENING THE DISPLAY For vehicles sold in U.S.A. and Canada Press the lock release button to open  Part 15 of the FCC Rules the display. Changes or modifications not expressly approved by the party responsible for compliance could...

  • Page 137: Disc Slot

    7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION DISC SLOT INFORMATION ● The illumination of the screen automati- cally turns off when the display is closed. LOADING A DISC However, the rear seat entertainment system is not turned off. (The sound is Insert the disc into the slot with the la- not turned off.) bel side up.

  • Page 138: Sd Card Slot

    7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION SD CARD SLOT REMOTE CONTROLLER Insert the SD card with the label side The rear seat entertainment system up, positioning the cut off corner to the can be operated with the remote con- right. troller.
  • Page 139 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION USING THE SPLIT SCREEN Function MODE Inputting the selected control icon Press the “SPLIT” button. Turning on the video or HDMI mode  Every time “SPLIT” button is pressed, the screen will be changed following order. Changing the screen type single screen mode ...
  • Page 140 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION SELECTING A CONTROL ICON ADJUSTING THE SCREEN SETTINGS Press the “”, “”, “” or “” button to select the control icon on the screen. You can adjust the color, contrast, tone and brightness of the screen. The screen setting levels can be adjusted for day mode and night mode individu- ally.
  • Page 141 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION BEFORE USING THE REMOTE Function CONTROLLER (FOR NEW Select to turn the screen off. VEHICLE OWNERS) Turning on/off the speaker output Remove the insulating sheet. Turning on/off “Super Resolution”. The “Super Resolution” is function that improve a feeling of resolution in extended displaying while reap- pear sensitiveness of the input...
  • Page 142 • Batteries can be purchased at your Toyota dealer, electric appliance shop, or camera stores. • Replace only with the same or equiva- lent type recommended by a Toyota dealer. • Dispose of used batteries according to local laws. Remove the depleted batteries and in- stall 2 new AA batteries.

  • Page 143: Headphone Jacks

    7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION HEADPHONE JACKS WARNING ● To prevent accidents and electric shock Adjust the volume when you connect • Do not disassemble or modify the the headphones to the jack. Loud remote controller. sounds may have a significant impact ●...

  • Page 144: Operating From The Front Seats

    7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION The rear seat entertainment system OPERATING FROM THE can be operated from this screen. FRONT SEATS The rear seat entertainment system can be operated from the front seats. Press the “AUDIO” button. Function To change the sounds from the speaker when split screen mode is turned on.

  • Page 145: Discs That Can Be Used

    7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION  The following discs cannot be used on this DISCS THAT CAN BE USED system: • SACD • BDXL™ disc Discs with the marks shown below can • BD-RE with the cartridge be used. Playback may not be possible •...

  • Page 146: Sd Card That Can Be Used

    7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION Labeled discs SD CARD THAT CAN BE USED  Memory cards are restricted to the follow- ing conditions based on SD standards. • SD memory card (from 512MB to 2GB) • SDHC memory card (from 4GB to 32GB) •...

  • Page 147: Copyrights And Trademarks

    7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION  Local storage COPYRIGHTS AND • Some BD videos have a feature to mem- TRADEMARKS orize disc information, such as a resume point, in a local storage. The rear seat entertainment system uses an SD card ...
  • Page 148 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION  For DTS patents, see  Cinavia Notice http://patents.dts.com. Manufactured This product uses Cinavia technology to under license from DTS Licensing Limited. limit the use of unauthorized copies of DTS, the Symbol, & DTS and the Symbol some commercially-produced film and vid- together are registered trademarks, and eos and their soundtracks.
  • Page 149 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION  This product incorporates the following [Contact Address] software: Engineering Administration Group (1) the software developed independently Manager by or for Panasonic Corporation, Panasonic Corporation (2) the software owned by third party and 4261 Ikonobe-cho, Tsuzuki-ku, licensed to Panasonic Corporation, Yokohama City 224-8520, Japan (3) the software licensed under the GNU...

  • Page 150: Playing A Blu-Ray Disc™ (Bd) And Dvd Discs

    7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION 2. PLAYING A Blu-ray Disc™ (BD) AND DVD DISCS* This system can play Blu-ray Disc™ REMOTE CONTROLLER (BD) videos with digital sound. In addi- tion to commercial BD and DVD titles, AVCHD, BDAV videos and Video CD can be played on this system, so digital TV recorded by home digital video re- corders and BD/DVD home videos re-...

  • Page 151: Turning On The Bd/Dvd Mode

    7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION OPTION SCREEN Function Fast-forward/rewind Press the “OPTION” button while watching a BD/DVD video, the follow- Displaying the top menu screen ing screen appears. Press the “OPTION” button once TURNING ON THE BD/DVD again or select “Hide Buttons” to turn MODE off the option screen.
  • Page 152 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION DVD video BDAV AVCHD Video CD SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...
  • Page 153 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION Function Function Returning to the previous page Displaying the initial setup screen screen (with the disc menu dis- played) Turning off the option screen Proceeding to the next page screen Displaying the top menu screen (with the disc menu displayed) Displaying the pop-up menu DISPLAYING THE POP-UP...
  • Page 154 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION SEARCHING FOR A TITLE OR CHANGING THE SUBTITLE CHAPTER LANGUAGE BD video, DVD video, AVCHD, BDAV BD video, DVD video, AVCHD Select “Title Search” or “Chapter The subtitle language can be changed Search”. for discs with multiple subtitle languag- Input the title number or chapter num- ber, and select “OK”.
  • Page 155 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION CHANGING THE AUDIO CHANGING THE PLAYBACK LANGUAGE MODE BD video, DVD video, AVCHD, BDAV BDAV The audio language can be changed The playback mode can be changed to for discs with multiple audio languag- program mode or playlist mode.
  • Page 156 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION DISPLAYING THE CHANGING THE SECONDARY SECONDARY VIDEO AUDIO BD video BD video Picture-in-picture is a secondary video The secondary audio that for the sec- that plays embedded in the primary ondary video can be changed. video.
  • Page 157 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION DISPLAYING THE 10 KEY PAD DISPLAYING THE NEXT OR PREVIOUS PAGE BD video Video CD The 10 key pad is used when inputting numbers according to directions of If there is the next or previous page contents.
  • Page 158 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION ■ CHANGING THE INITIAL AUDIO Function LANGUAGE Changing the initial audio language Select “Audio Language”. Changing the initial subtitle lan- Select the desired language. guage Changing the initial language of the disc menu Setting the angle mark Setting the DVD parental lock Goes to next page ...
  • Page 159 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION ■ ■ CHANGING INITIAL LAN- SETTING THE DVD PARENTAL GUAGE OF THE DISC MENU LOCK DVD video Select “Menu Language”. Select the desired language. The level of viewer restrictions can be set. Select “Parental Lock”. Input the 4-digit personal code and then select “OK”.
  • Page 160 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION ■ ■ SETTING PARENTAL SETTING A QUICK PLAYBACK LOCK BD video BD video After inserting a BD disc you can skip The age of viewer restrictions can be over to the first playback point and can set.

  • Page 161: Bd/Dvd Video Discs

    7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION SYMBOLS SHOWN ON BD/DVD BD/DVD VIDEO DISCS VIDEO DISCS BD/DVD VIDEO DISCS Symbol Meaning  Compatible media Indicates PAL/NTSC Media that can be used for playback are format BD-ROMs, BD-Rs, BD-REs, DVD-ROMs, DVD-Rs and DVD-RWs. Indicates the number of ...
  • Page 162 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION  AVCHD BD/DVD VIDEO DISC AVCHD is a new format (standard) for INFORMATION high definition video cameras that can record play high-resolution  Parental controls images. This feature limits what can be viewed in DVDs and SD cards with videos recorded conformity with the level of restrictions of in AVCHD format can playback on this...
  • Page 163 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION AUDIO This player can play Linear PCM, Dolby Digital, DTS and MPEG audio format. Oth- er decoded types cannot be played. SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...
  • Page 164 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION LANGUAGE CODES LIST Code Language Code Language Code Language Code Language 0514 English 0515 Esperanto 1201 Latin 1912 Slovenian 1001 Japanese 0520 Estonian 1214 Lingala 1913 Samoan 0618 French 0521 Basque 1215 Laotian 1914 Shona 0405 German...

  • Page 165: Playing An Audio Cd And Mp3/Wma/Aac Discs

    7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION 3. PLAYING AN AUDIO CD AND MP3/WMA/AAC DISCS* Press the “DISC” button if a disc has Function already been loaded in the disc slot. Selecting a control icon The player will start to play the disc au- tomatically.

  • Page 166: Turning On The Audio Cd And Mp3/Wma/Aac Mode

    7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION TURNING ON THE AUDIO CD REPEAT PLAY AND MP3/WMA/AAC MODE Each time “RPT” is selected, the mode changes as follow: Insert a disc or press the “DISC” but- ton. Audio CD  The player will start to play the disc auto- “RPT”...

  • Page 167: Mp3/Wma/Aac Files

    7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION  WMA file compatibility MP3/WMA/AAC FILES • Compatible standards WMA Ver. 7, 8, 9 (9.1/9.2) • Compatible sampling frequencies MP3 (MPEG Audio LAYER3) is a stan- 8, 11.025, 16, 22.05, 32, 44.1, 48 (kHz) dard audio compression format.
  • Page 168 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION  Compatible disc formats  WMA tags The following disc formats can be used. WMA tags can be added to WMA files, • Disc formats: CD-ROM Mode making it possible to record the track title CD-ROM XA Mode 2 Form 1 and artist name in the same way as with •...
  • Page 169 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION  Playback • To play MP3 files with steady sound quality, we recommend a fixed bit rate of 128 kbps and a sampling frequency of 44.1 kHz. • Playback may not be possible in some instances, depending on the characteris- tics of the disc.

  • Page 170: Playing An Sd Card

    7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION 4. PLAYING AN SD CARD* This system can play music, still pic- Function tures and video that are stored in an Volume up/down SD card. Press the “SD” button if an SD card Play/pause has already been inserted in the SD card slot.

  • Page 171: Playing/Pausing A Sd Card Media

    7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION PLAYING/PAUSING A SD PLAYING MUSIC CARD MEDIA You can play music that are stored in an SD card. Press the button to play/ pause. Select “Music”.  Press and hold the button while pausing, the video is played slowly. SELECTING A CHAPTER/ TRACK/FILE Press the “...

  • Page 172: Playing Still Pictures

    7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION OPTION SCREEN PLAYING STILL PICTURES Press the “OPTION” button while dis- You can display still pictures that are playing a still picture, the following stored in an SD card. screen appears. Press the “OPTION” button once again...
  • Page 173 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION ■ ■ STARTING SLIDESHOW DISPLAYING THE DETAIL INFOR- MATIONS OF THE STILL PICTURE You can display still pictures one by Select “Detail Information”. one at a constant interval. Detail informations of the still picture Select “Slideshow”...

  • Page 174: Playing Avchd Video

    7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION ■ SLIDESHOW SETUP PLAYING AVCHD VIDEO Select “Setup”. You can play AVCHD videos that are slideshow settings stored in an SD card. changed. After settings changed, select “OK”. Select “SD AVCHD”. AVCHD video will start playing. Function Selects slideshow interval time (sec- onds)

  • Page 175: Playing Sd Video/Movie

    7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION OPTION SCREEN PLAYING SD VIDEO/MOVIE Press the “OPTION” button while You can play SD video/movie that are watching a SD video/movie, the follow- stored in an SD card. ing screen appears. Select “SD Video” or “Movie”. Press the “OPTION”...
  • Page 176 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION ■ SEARCHING FOR A TITLE OR Function CHAPTER Turning off the option screen SD video Displaying the detail information Select “Title Search” or “Chapter Search”. Rewind Input the title number or chapter num- ber, and select “OK”. Stop Play/pause Fast-forward...

  • Page 177: Formatting The Sd Card

    7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION ■ CHANGING THE PLAYBACK MODE FORMATTING THE SD CARD SD video Select “Format SD Card”. The playback mode can be changed to Select “Yes” to format the SD card. program mode or playlist mode. Playl- ist mode cannot be selected if a playlist ...

  • Page 178: Sd Card Information

    7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION • H.264/AVC SD CARD INFORMATION Baseline Profile, Main Profile Profile, High Profile ■ COMPATIBLE FILES The following files can be displayed. Video codec H.264/AVC Video  Music file format:MP3/WMA/AAC MPEG-4 AAC-LC Audio codec For details, refer to compatible file format (AAC Low Complexity) for CD/DVD disc (P.167) ...
  • Page 179 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION • WINDOWS MEDIA VIDEO (WMV) • AVI CONTAINER Simple Profile, Main Refer to supported pro- Profile Profile, Advanced Pro- Profile files MPEG-4, file H.264/AVC, WMV Video codec WMV (VC-1) Video: H.264/AVC Video Audio: (WMA Professional MPEG-4 AAC-LC, MP3 Audio codec...
  • Page 180 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION • SD-VIDEO H.264 MOBILE VIDEO PRO- WARNING FILE Profile Baseline Profile ● SD cards • Keep away from children. These are Video codec H.264/AVC Video small and if swallowed by a child they can cause choking. Audio codec MPEG-4 AAC 640 x 480 and 640 x...

  • Page 181: Using The Video Mode

    7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION 5. USING THE VIDEO MODE* The rear seat entertainment system USING THE A/V INPUT PORT plays videos and sound when audio- video equipment is connected to the Open the cover and connect audio-vid- A/V input port. eo equipment to the A/V input port.
  • Page 182 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION INFORMATION ● The volume can be adjusted using the vehicle’s audio controls. All other opera- tions must be made on the audio-video equipment itself. For details about operation of audio- video equipment, refer to the manufac- turer’s instructions.

  • Page 183: Using The Hdmi Mode

    7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION 6. USING THE HDMI MODE* About the HDMI terminal, the interface USING THE HDMI PORT that is connected video and audio to system and audio/video device. You Open the cover and connect audio-vid- can enjoy the high-definition video and eo equipment to the HDMI port.
  • Page 184 7. REAR SEAT ENTERTAINMENT SYSTEM OPERATION COMPATIBLE FORMAT  Compatible video signal 480p, 576p, 720p, 1080i, VGA  Compatible sound signal LPCM 2ch The terms HDMI and HDMI High- Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks HDMI Licensing LLC in the United States and...
  • Page 185 VOICE COMMAND SYSTEM VOICE COMMAND SYSTEM OPERATION 1. VOICE COMMAND SYSTEM ..186 USING THE VOICE COMMAND SYSTEM..........186 VOICE COMMAND SYSTEM OPERATION ........187 2. CASUAL SPEECH RECOGNIZATION..... 193 3. COMMAND LIST ......194 MOBILE ASSISTANT OPERATION 1. MOBILE ASSISTANT....196 SIENNA_Navi+MM_OM08015U_(U) 15.09.04 16:56...

  • Page 186: Voice Command System Operation

    1. VOICE COMMAND SYSTEM OPERATION 1. VOICE COMMAND SYSTEM The voice command system enables MICROPHONE the audio, hands-free systems, etc. to be operated using voice commands. Refer to the command list for samples of voice commands. (P.194) USING THE VOICE COMMAND SYSTEM STEERING SWITCH ...

  • Page 187: Voice Command System Operation

    1. VOICE COMMAND SYSTEM OPERATION VOICE COMMAND SYSTEM INFORMATION OPERATION ● The voice command system can be operated while guidance is being spo- ken, when “Voice Prompt Interrupt” The voice command system is operat- (P.66) is set to on. (It is not necessary ed by selecting a tab corresponding to to wait for the confirmation beep before each function.
  • Page 188 1. VOICE COMMAND SYSTEM OPERATION ■ DISPLAYING THE “Voice Settings”  Selecting “Help” or saying “Help” SCREENS prompts voice guidance to offer exam- ples of commands and operation meth- ods. Say the command displayed on the screen.  Selecting “Voice Settings” can be dis- played “Voice Settings”...
  • Page 189 1. VOICE COMMAND SYSTEM OPERATION VOICE COMMAND EXAMPLE: VOICE COMMAND EXAMPLE: LAUNCH Entune App Suite PERFORMING A DESTINATION APPLICATION* SEARCH BY ADDRESS (ENGLISH ONLY)* Press the talk switch. Press the talk switch. Say “Launch <application name>”. Say “Enter an address”. ...
  • Page 190 1. VOICE COMMAND SYSTEM OPERATION VOICE COMMAND EXAMPLE: INFORMATION SEARCH FOR A SONG ● The voice command recognition is designed to recognize the main body of Press the talk switch. the official street name. For example: if the official street name is Say “Play song <name>”.
  • Page 191 1. VOICE COMMAND SYSTEM OPERATION VOICE COMMAND EXAMPLE: INFORMATION CALL NAME ● In the same manner as it is displayed on the screen, “Call <contacts> <phone Press the talk switch. types>”, after saying “Call a contact” say the name, or the name and type of “Call <contacts>...
  • Page 192 1. VOICE COMMAND SYSTEM OPERATION VOICE COMMAND EXAMPLE:  When the system recognizes multiple phone numbers, a phone number candi- DIAL NUMBER date list will be displayed on the screen. Press the talk switch. Pressing the switch on the steering wheel makes a call to the top entry on Say the phone number.

  • Page 193: Casual Speech Recognization

    1. VOICE COMMAND SYSTEM OPERATION 2. CASUAL SPEECH RECOGNIZATION Due to natural language speech recog- EXPRESSION EXAMPLES FOR nition technology, this system enables EACH FUNCTION recognition of a command when spo- ken naturally. However, the system Command Expression examples cannot recognize every variation of Navigate to my house.

  • Page 194: Command List

    1. VOICE COMMAND SYSTEM OPERATION 3. COMMAND LIST Recognizable voice commands and their actions are shown below.  Frequently used commands are listed in the following tables.  For devices that are not installed in the vehicle, the related commands will not be dis- played in the screen.
  • Page 195 1. VOICE COMMAND SYSTEM OPERATION Phone Command Action Places a call to the phone number of the latest outgoing “Redial” call “Call Back” Places a call to the phone number of latest incoming call “Show Recent Calls” Displays the call history screen “Dial <phone number>”...

  • Page 196: Mobile Assistant Operation

    2. MOBILE ASSISTANT OPERATION 1. MOBILE ASSISTANT • After some phone and music com- The Mobile Assistant feature will mands, the Mobile Assistant feature will ® activate Apple’s Siri Eyes Free mode automatically complete via the steering wheel switches. To requested action.
  • Page 197 2. MOBILE ASSISTANT OPERATION MICROPHONE It is not necessary to speak directly into the microphone when using the Mobile Assistant. (Microphone location: P.186) INFORMATION ● Wait for the listening beeps before using the Mobile Assistant. ● The Mobile Assistant may not recognize commands in the following situations: •...
  • Page 198 2. MOBILE ASSISTANT OPERATION SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...

  • Page 199: Information

    INFORMATION USEFUL INFORMATION 1. RECEIVING WEATHER INFORMATION ......200 DISPLAYING WEATHER INFORMATION ......... 200 2. RECEIVING TRAFFIC MAP INFORMATION ......202 DISPLAYING TRAFFIC MAP INFORMATION ......... 202 3. DATA SERVICES SETTINGS..203 SETTING DOWNLOAD METHODS ..203 4. Driver Easy Speak...... 204 USING Driver Easy Speak ....

  • Page 200: Useful Information

    1. USEFUL INFORMATION 1. RECEIVING WEATHER INFORMATION Check that the “Weather” screen is dis- Entune Audio Plus played. Weather information can be received via the HD Radio broadcast. Entune Premium Audio Weather information can be received via the HD Radio broadcast or by the Entune App Suite application on a ®...
  • Page 201 1. USEFUL INFORMATION DISPLAYING THE WEATHER OF THE CURRENT LOCATION Display “Weather” screen. (P.200) Select “Current Weather”. Select the desired tab to be displayed. INFORMATION ● If weather is set to the home screen, the weather screen of the current location will be displayed.

  • Page 202: Receiving Traffic Map Information

    1. USEFUL INFORMATION 2. RECEIVING TRAFFIC MAP INFORMATION* Check that the “Traffic Map” screen is Traffic map information can be re- ceived via the HD Radio. displayed. DISPLAYING TRAFFIC MAP INFORMATION Press the “APPS” button. Function Current position of your car Traffic information line The line color means the following: Red: Heavy congestion...

  • Page 203: Data Services Settings

    1. USEFUL INFORMATION 3. DATA SERVICES SETTINGS* Select the desired item to be set. SETTING DOWNLOAD METHODS Data service information, which is comprised of traffic information and weather information, can be received via HD Radio broadcast and by the Entune App Suite application on a ®...

  • Page 204: Driver Easy Speak

    1. USEFUL INFORMATION 4. Driver Easy Speak* USING Driver Easy Speak CHANGING Driver Easy Speak SETTINGS Driver Easy Speak will utilize the vehi- cle microphones and speakers to allow Press the “APPS” button. passengers in the rear of the vehicle to Select “Setup”.

  • Page 205: Peripheral Monitoring System

    PERIPHERAL MONITORING SYSTEM REAR VIEW MONITOR SYSTEM (WITH GUIDE FUNCTION) 1. REAR VIEW MONITOR SYSTEM ........206 REAR VIEW MONITOR SYSTEM ..206 DRIVING PRECAUTIONS ....206 SCREEN DISPLAY ......208 USING THE SYSTEM......209 2. ESTIMATED COURSE LINE DISPLAY MODE ....... 211 SCREEN DESCRIPTION ....

  • Page 206: Rear View Monitor System (With Guide Function)

    1. REAR VIEW MONITOR SYSTEM (WITH GUIDE FUNCTION) 1. REAR VIEW MONITOR SYSTEM REAR VIEW MONITOR DRIVING PRECAUTIONS SYSTEM The rear view monitor system is a sup- plemental device intended to assist the The rear view monitor system assists driver when backing up. When backing the driver by displaying an image of the up, be sure to visually check all around view behind the vehicle while backing...
  • Page 207 1. REAR VIEW MONITOR SYSTEM (WITH GUIDE FUNCTION) WARNING ● The instructions given are only guide- lines. When and how much to turn the steering wheel will vary according to traffic conditions, road surface condi- tions, vehicle condition, etc. when park- ing.

  • Page 208: Screen Display

    Display mode switch screen but- Switches the display mode. (P.210) CANCELING TOYOTA REAR VIEW MONITOR SYSTEM The rear view monitor system is canceled when the shift lever is shifted into any position other than the “R” position.

  • Page 209: Using The System

    1. REAR VIEW MONITOR SYSTEM (WITH GUIDE FUNCTION) Parking assist guide line display mode USING THE SYSTEM (P.213) The steering wheel return points (park- Use any of the following modes. ing assist guide lines) are displayed. Distance guide line display mode Estimated course line display mode (P.211) Distance guide lines only are dis-...
  • Page 210 1. REAR VIEW MONITOR SYSTEM (WITH GUIDE FUNCTION) SWITCHING THE DISPLAY SELECTING WIDE OR MODE REGULAR MODE Select the display mode switch screen Regular mode and wide mode are button. switched when the wide/regular mode selection switch is touched. The current mode is indicated by the yellow indicator.

  • Page 211: Estimated Course Line Display Mode

    This line indicates the estimated vehicle center on the Vehicle center guide line ground. WARNING ● If the steering wheel is straight and the vehicle width guide lines and the estimated course lines are not in alignment, have the vehicle inspected by your Toyota dealer. SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...

  • Page 212: Parking

    1. REAR VIEW MONITOR SYSTEM (WITH GUIDE FUNCTION) When the rear position of the vehicle PARKING has entered the parking space, turn the steering wheel so that the vehicle width When parking in a space which is in guide lines are within the left and right the reverse direction to the space de- dividing lines of the parking space.

  • Page 213: Parking Assist Guide Line Display Mode

    1. REAR VIEW MONITOR SYSTEM (WITH GUIDE FUNCTION) 3. PARKING ASSIST GUIDE LINE DISPLAY MODE SCREEN DESCRIPTION Display Function Displays a guide path when the vehicle is being backed straight up. Vehicle width guide line  The displayed width is wider than the actual vehicle width.

  • Page 214: Parking

    1. REAR VIEW MONITOR SYSTEM (WITH GUIDE FUNCTION) Turn the steering wheel all the way to PARKING the right, and back up slowly. When parking in a space which is in Once the vehicle is parallel with the the reverse direction to the space de- parking space, straighten the steering scribed in the procedure below, the wheel and back up slowly until the ve-...

  • Page 215: Rear View Monitor System Precautions

    1. REAR VIEW MONITOR SYSTEM (WITH GUIDE FUNCTION) 4. REAR VIEW MONITOR SYSTEM PRECAUTIONS Wide mode AREA DISPLAYED ON Displayed area SCREEN The rear view monitor system displays an image of the view from the bumper of the rear area of the vehicle. Image is displayed approximately level on screen.

  • Page 216: The Camera

    ● Do not expose the camera to strong impact as this could cause a malfunc- tion. If this happens, have the vehicle inspected by your Toyota dealer as soon as possible. SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...

  • Page 217: Differences Between The Screen And The Actual Road

    1. REAR VIEW MONITOR SYSTEM (WITH GUIDE FUNCTION) WHEN THE GROUND BEHIND DIFFERENCES BETWEEN THE VEHICLE SLOPES UP THE SCREEN AND THE SHARPLY ACTUAL ROAD The distance guide lines will appear to  The distance guide lines and the vehicle be closer to the vehicle than the actual width guide lines may not actually be par- allel with the dividing lines of the parking...

  • Page 218: When Approaching Three-Dimensional Objects

    1. REAR VIEW MONITOR SYSTEM (WITH GUIDE FUNCTION) WHEN THE GROUND BEHIND WHEN ANY PART OF THE THE VEHICLE SLOPES DOWN VEHICLE SAGS SHARPLY When any part of the vehicle sags due The distance guide lines will appear to to the number of passengers or the dis- be further from the vehicle than the ac- tribution of the load, there is a margin tual distance.
  • Page 219 1. REAR VIEW MONITOR SYSTEM (WITH GUIDE FUNCTION) ESTIMATED COURSE LINES DISTANCE GUIDE LINES Visually check the surroundings and Visually check the surroundings and the area behind the vehicle. In the case the area behind the vehicle. On the shown below, the truck appears to be screen, it appears that a truck is park- outside of the estimated course lines ing at point B.

  • Page 220: Things You Should Know

    If you notice any of the following symptoms, refer to the likely cause and the so- lution, and re-check. If the symptom is not resolved by the solution, have the vehicle inspected by your Toyota dealer. Symptom Likely cause Solution ...
  • Page 221 If this does not resolve the The back door is open. displayed symptom, have the vehicle in- spected by your Toyota dealer. “System is initializing.” is  The steering wheel has been displayed moved while the battery was Stop the vehicle, and turn the being reinstalled.
  • Page 222 1. REAR VIEW MONITOR SYSTEM (WITH GUIDE FUNCTION) SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...

  • Page 223: Phone

    PHONE ® 4. RECEIVING ON THE Bluetooth PHONE OPERATION PHONE ........235 (HANDS-FREE SYSTEM INCOMING CALLS ......235 FOR CELLULAR PHONES) ® 5. TALKING ON THE Bluetooth 1. QUICK REFERENCE....224 PHONE ........236 INCOMING CALL WAITING ....238 2. SOME BASICS ......225 REGISTERING/CONNECTING A ®...

  • Page 224: Phone Operation

    1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) 1. QUICK REFERENCE The phone top screen can be used to make a phone call. To display the hands-free operation screen, press the “APPS” button and select “Phone”, the switch on the steering wheel or switch on the instrument panel.

  • Page 225: Some Basics

    1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) 2. SOME BASICS The hands-free system enables calls INFORMATION to be made and received without hav- ● If your cellular phone does not support ing to take your hands off the steering ®...

  • Page 226: Registering/Connectinga Bluetooth ® Phone

    1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) * “ ” switch REGISTERING/CONNECTING ® A Bluetooth PHONE  Press the “ ” or “ ” switch to change item.  Press the “ ” or “ ” switch to change To use the hands-free system for cellu- selected tabs.

  • Page 227: Voice Command System

    1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) VOICE COMMAND SYSTEM INFORMATION ● The other party’s voice will be heard Press this switch to operate the voice from the front speakers. The audio/ visual system will be muted during command system. phone calls or when hands-free voice commands are used.

  • Page 228: About The Contacts In The Contact List

    1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) ABOUT THE CONTACTS IN THE CONTACT LIST  The following data is stored for every reg- istered phone. When another phone is connected, the following registered data cannot be read: • Contact data •...

  • Page 229: Calling On The Bluetooth

    1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) ® 3. CALLING ON THE Bluetooth PHONE ® After a Bluetooth phone has been How to make a call list Page registered, a call can be made using By favorites list the hands-free system. There are sev- By call history eral methods by which a call can be made, as described below.

  • Page 230: By Favorites List

    1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) BY FAVORITES LIST BY CALL HISTORY Calls can be made using registered Up to 30 of the latest call history items contacts which can be selected from a (missed, incoming and outgoing) can contact list.

  • Page 231: By Contacts List

    1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) BY CONTACTS LIST INFORMATION ● When making a call to the same number Calls can be made by using contact continuously, only the most recent call is listed in call history. data which is transferred from a regis- ●...
  • Page 232 1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) ■ FOR PBAP INCOMPATIBLE BUT WHEN THE CONTACT IS ® EMPTY COMPATIBLE Bluetooth PHONES ■ PBAP COMPATIBLE Select the desired item. ® Bluetooth PHONES When “Automatic Transfer” is set to on (P.246) ...

  • Page 233: By Dial Pad

    1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) BY OFF HOOK SWITCH INFORMATION ● Manual transfer operation cannot be Calls can be made using the latest call performed while driving. ● history item. If your cellular phone is neither PBAP nor OPP compatible, the contacts can- not be transferred.
  • Page 234 1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) REGISTERING A NEW CONTACT Select and hold the screen button to add a contact. Select the desired contact. Select the desired number. INFORMATION ● If there is no contact in the contacts list, the contacts cannot be registered at the home screen.

  • Page 235: Receiving On The Bluetooth Phone

    1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) ® 4. RECEIVING ON THE Bluetooth PHONE INCOMING CALLS When a call is received, this screen is displayed with a sound. Select or press the switch on the steering wheel to talk on the phone. To refuse to receive the call: Select or press the switch on the steer-...

  • Page 236: Talking On The Bluetooth

    1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) ® 5. TALKING ON THE Bluetooth PHONE While talking on the phone, this screen INFORMATION is displayed. The operations outlined ● Changing from hands-free call to cellular below can be performed on this phone call is not possible while driving.
  • Page 237 1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) ■ BY SELECTING “Release Tones” TRANSMIT VOLUME SETTING “Release Tones” appear when a con- Select “Transmit Volume”. tinuous tone signal(s) containing a (w) Select the desired level for the transmit is registered in the contact list. volume.

  • Page 238: Incoming Call Waiting

    1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) INCOMING CALL WAITING When a call is interrupted by a third party while talking, this screen is dis- played. Select or press the switch on the steering wheel to start talking with the other party.

  • Page 239: Phone Message Function

    1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) ® 6. Bluetooth PHONE MESSAGE FUNCTION Received messages can be forwarded Select ® from the connected Bluetooth phone,  The phone top screen can be displayed by enabling checking and replying using pressing the switch on the steering the system.

  • Page 240: Receiving A Message

    1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) RECEIVING A MESSAGE INFORMATION ● Depending on the cellular phone used When an e-mail/SMS/MMS is re- for receiving messages, or its registra- tion status with the system, some infor- ceived, the incoming message screen mation may not be displayed.

  • Page 241: Checking Messages

    1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) CHECKING MESSAGES INFORMATION ● Reading a text message is not available Display the message inbox screen. while driving. (P.239) ® ● Depending on the type of Bluetooth phone being connected, it may be Select the desired message from the necessary to perform additional steps on list.

  • Page 242: Replying To A Message (Quick Reply)

    1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) ■ EDITING QUICK REPLY MESSAG- REPLYING TO A MESSAGE (QUICK REPLY) This operation cannot be performed 15 messages have already been while driving. stored. Select “Quick Message”. Display the message inbox screen. (P.239) Select the desired message from the list.

  • Page 243: Calling The Message Sender

    1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES) ■ CALLING FROM A NUMBER WITH- CALLING THE MESSAGE IN A MESSAGE SENDER Calls can be made to a number identi- Calls can be made to an e-mail/SMS/ fied in a message’s text area. MMS message sender’s phone num- This operation cannot be performed ber.

  • Page 244: Setup

    2. SETUP 1. PHONE/MESSAGE SETTINGS Press the “APPS” button. DISPLAYING THE PHONE/ MESSAGE SETTINGS SCREEN IN A DIFFERENT WAY Display phone screen. (P.229) Select “Settings”. Select “Setup”. Select “Phone”. Select the item to be set. PHONE/MESSAGE SETTINGS SCREEN Information Page Registering/connecting phone Sound settings...

  • Page 245: Sound Settings" Screen

    2. SETUP “Sound Settings” SCREEN Function Select to set the desired ringtone. The call and ringtone volume can be adjusted. A ringtone can be selected. Select “-” or “+” to adjust the ring- tone volume. Display the “Phone/Message Settings” Select “-” or “+” to adjust the mes- screen.

  • Page 246: Contact/Call History Settings" Screen

    2. SETUP “Contact/Call History Function Page Settings” SCREEN PBAP compatible ® Bluetooth phones, select to set automatic contact/ The contact can be transferred from a history transfer on/off. ® Bluetooth phone to the system. The  When contact also can be added, edited and phone’s contact data and deleted.
  • Page 247 2. SETUP UPDATE CONTACTS FROM Function Page PHONE Select to delete contacts from the contact list. Operation methods differ between PBAP compatible and PBAP incom- Select to reset all setup  items. ® patible but OPP compatible Bluetooth phones. ® *: For PBAP compatible...
  • Page 248 2. SETUP ■ ■ FOR PBAP INCOMPATIBLE BUT UPDATING THE CONTACTS IN A DIFFERENT WAY (FROM THE “Call ® COMPATIBLE Bluetooth History” SCREEN) PHONES ® This operation cannot be performed PBAP compatible Bluetooth while driving. phones, this function is available when “Automatic Transfer”...
  • Page 249 2. SETUP REGISTERING A NEW EDITING THE CONTACT DATA CONTACT TO THE CONTACT ® LIST PBAP compatible Bluetooth phones, this function is available when New contact data can be registered. “Automatic Transfer” is set to off. (P.246) Up to 4 numbers per person can be registered.
  • Page 250 2. SETUP ■ EDITING THE CONTACT IN A DIF- DELETING THE CONTACT FERENT WAY (FROM THE “Contact DATA Details” SCREEN) ® PBAP compatible Bluetooth Display phone screen. phones, this function is available when (P.229) “Automatic Transfer” is set to off. Select the “Contacts”, “Call History”...
  • Page 251 2. SETUP ■ DELETING THE CONTACT IN A DIF- FAVORITES LIST SETTING FERENT WAY (FROM THE “Contact Details” SCREEN) Up to 15 contacts (maximum of 4 num- bers per contact) can be registered in Display phone screen. the favorites list. (P.229) ■...
  • Page 252 2. SETUP When 15 contacts have already been Registering contacts in the favorites list registered to the favorites list in a different way (from the “Contacts” screen) When 15 contacts have already been Display phone screen. registered to the favorites list, a regis- tered contact needs to be replaced.
  • Page 253 2. SETUP ■ Deleting contacts in the favorites list in a DELETING THE CONTACTS IN THE different way (from the “Contacts” FAVORITES LIST screen) Select “Remove Favorite”. Display phone screen. Select the desired contacts and select (P.229) “Remove”. Select the “Contacts” tab. ...

  • Page 254: Messaging Settings" Screen

    2. SETUP “Messaging Settings” Function SCREEN Select to set adding the vehicle signa- ture to outgoing messages on/off. Display the “Phone/Message Settings” Select to set updating message read screen. (P.244) status on phone on/off. Select “Messaging Settings”. Select to change the incoming SMS/ MMS display.

  • Page 255: Phone Display Settings" Screen

    2. SETUP DISPLAYING THE “Messaging “Phone Display Settings” Settings” SCREEN IN A SCREEN DIFFERENT WAY Display the “Phone/Message Settings” Display phone screen. screen. (P.244) (P.229) Select “Phone Display Settings”. Select Select the desired item to be set. Select “Settings”. Function Select to change the incoming call display.

  • Page 256: What To Do If

      system, check with ® your Toyota dealer or Bluetooth cellular the following website: phone. The hands-free sys- http://www.toyota.com/ ® tem or Bluetooth entune/ vice does not work. ®...
  • Page 257 3. WHAT TO DO IF... When registering/connecting a cellular phone Page Symptom Likely cause Solution Cellular This phone system An incorrect pass- Enter the correct pass- code was entered   code on the cellular cellular phone. phone. Complete the registra- The registration op- tion operation on the eration has not been...
  • Page 258 3. WHAT TO DO IF... Page Symptom Likely cause Solution Cellular This phone system ® Manually connect the Another Bluetooth  cellular phone you wish device is already to use to this system. connected. ® ® Bluetooth function Enable the Bluetooth ...
  • Page 259 3. WHAT TO DO IF... Page Symptom Likely cause Solution Cellular This phone system ® ® Bluetooth function Enable the Bluetooth   is not enabled on function on the cellular the cellular phone. phone. Delete the existing reg- “Unable dial.
  • Page 260   system, check with not be compatible your Toyota dealer or with transferring the following website: phonebook data. http://www.toyota.com/ entune/ Automatic contact Phonebook data can- Set automatic contact transfer function on transferred ...
  • Page 261 3. WHAT TO DO IF... ® When using the Bluetooth message function Page Symptom Likely cause Solution Cellular This phone system Enable message trans- Message transfer is cellular   not enabled on the phone (approve mes- cellular phone. sage transfer on the Messages cannot be phone).
  • Page 262 3. WHAT TO DO IF... In other situations Page Symptom Likely cause Solution Cellular This phone system ® The Bluetooth con- nection status is dis- played at the top of the screen each time the engine switch is in following. Vehicles without a smart key sys- Connection...
  • Page 263 3. WHAT TO DO IF... Page Symptom Likely cause Solution Cellular This phone system The cellular phone Bring cellular   is not close enough phone closer to this to this system. system. Turn the cellular phone off, remove and rein- ...
  • Page 264 3. WHAT TO DO IF... SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...

  • Page 265: Navigation System

    NAVIGATION SYSTEM * BASIC OPERATION 1. QUICK REFERENCE ....268 MAP SCREEN ........268 NAVIGATION OPTIONS SCREEN..270 2. MAP SCREEN OPERATION..271 CURRENT POSITION DISPLAY ..271 MAP SCALE ........272 ORIENTATION OF THE MAP ..... 272 SWITCHING THE MAP MODE.... 273 SCREEN SCROLL OPERATION ..
  • Page 266 DESTINATION SEARCH ROUTE GUIDANCE 1. DESTINATION SEARCH 1. ROUTE GUIDANCE SCREEN ..300 SCREEN ........284 SCREEN FOR ROUTE GUIDANCE ..300 ROUTE OVERVIEW ......301 2. SEARCH OPERATION ....286 DURING FREEWAY DRIVING .... 302 SELECTING SEARCH AREA....287 WHEN APPROACHING SETTING HOME AS INTERSECTION ........
  • Page 267 TIPS FOR THE NAVIGATION MEMORY POINTS SYSTEM 1. MEMORY POINTS SETTINGS ..311 1. GPS (GLOBAL SETTING UP HOME ......312 POSITIONING SYSTEM) ..330 SETTING UP PRESET LIMITATIONS OF THE DESTINATIONS........ 313 NAVIGATION SYSTEM..... 330 SETTING UP ADDRESS BOOK ..315 SETTING UP AREAS TO AVOID..

  • Page 268: Basic Operation

    1. BASIC OPERATION 1. QUICK REFERENCE MAP SCREEN To display this screen, press the “APPS” button, then select “Navigation” on the “Apps” screen. Name Function Page Indicates whether the map orientation is set to 2D North-up, 2D north-up or heading-up. The letter(s) beside this heading-up or 3D symbol indicate the vehicle’s heading direction heading-up sym-...
  • Page 269 1. BASIC OPERATION Name Function Page Shows that traffic information is received. Select to start voice guidance for traffic information. Traffic indicator When traffic information is received via HD Radio broadcast, HD mark is displayed on the right. Scale indicator This figure indicates the map scale.

  • Page 270: Navigation Options Screen

    1. BASIC OPERATION NAVIGATION OPTIONS SCREEN The navigation options allow you to change map configurations, display/hide POI icons, and edit the navigation routes. To display the “Navigation Options” screen, press the “APPS” button, select “Navigation” on the “Apps” screen, and select “Options”...

  • Page 271: Map Screen Operation

    1. BASIC OPERATION 2. MAP SCREEN OPERATION CURRENT POSITION INFORMATION DISPLAY ● While driving, the current position mark is fixed on the screen and the map moves. Press the “APPS” button. ● The current position is automatically set as the vehicle receives signals from the GPS (Global Positioning System).

  • Page 272: Map Scale

    1. BASIC OPERATION MAP SCALE ORIENTATION OF THE MAP The orientation of the map can be Select to change the changed between 2D north-up, 2D scale of the map screen. heading-up and 3D heading-up by se- lecting the orientation symbol dis- played at the top left of the screen.

  • Page 273: Switching The Map Mode

    1. BASIC OPERATION 3D screen SWITCHING THE MAP MODE Select “Options” on the map screen. Select “Map Mode”. Select the desired configuration but- ton. : North-up symbol Regardless of the direction of vehicle trav- el, north is always up. : Heading-up symbol The direction of vehicle travel is always up.
  • Page 274 1. BASIC OPERATION ■ Editing right map MAP ONLY The right side map can be edited. Select any point on the right side map. Select the desired item. ■ DUAL MAP Function Page Select to change the orien- tation of the map. Select to display POI icons.

  • Page 275: Screen Scroll Operation

    1. BASIC OPERATION ■ COMPASS SCREEN SCROLL OPERATION Information about the destination, cur- rent position and a compass is dis- Use the scroll feature to move the de- played on the screen. sired point to the center of the screen for looking at a point on the map that is different from the current position.

  • Page 276: Adjusting Location In Small Increments

    1. BASIC OPERATION  To scroll over the map screen, place the cursor mark in the desired position and then touch and hold the map screen. The map will continue scrolling in that direction until the finger is released. ADJUSTING LOCATION IN SMALL INCREMENTS The cursor location can be adjusted in small increments when “Adjust Loca-...

  • Page 277: Map Screen Information

    1. BASIC OPERATION 3. MAP SCREEN INFORMATION SELECTING THE POI ICONS DISPLAYING MAP INFORMATION Display the “Map Information” screen. (P.277) Information such as POI icons, route trace, speed limit, etc. can be dis- Select “Select POI”. played on the map screen. ...
  • Page 278 1. BASIC OPERATION ■ ■ SELECTING OTHER POI ICONS TO DISPLAYING THE LOCAL POI LIST BE DISPLAYED POIs that are within 20 miles (32 km) of Select “Other POIs”. the current position will be listed from among the selected categories. Select the desired POI categories and select “OK”.

  • Page 279: Displaying Information About The Icon Where The Cursor Is Set

    1. BASIC OPERATION ROUTE TRACE DISPLAYING INFORMATION ABOUT THE ICON WHERE The traveled route can be stored and THE CURSOR IS SET retraced on the map screen. This fea- ture is available when the map scale is When the cursor is placed over an icon 30 miles (50 km) or less.

  • Page 280: Standard Map Icons

    1. BASIC OPERATION Destination information STANDARD MAP ICONS Icon Name Island Park Function Industry Select to register as a memory point. To change the icon, name, etc.: Business facility  P.315 Airport Select to set as a destination. Select to call the registered number. Military Select to delete destination or mem- ory point.

  • Page 281: Traffic Information

    1. BASIC OPERATION 4. TRAFFIC INFORMATION Traffic data can be received via HD or DISPLAYING TRAFFIC Entune App Suite to display traffic in- INFORMATION formation on the map screen. A list of current traffic information can Press the “APPS” button. be displayed along with information on the incident’s distance and position rel- ative to the vehicle.
  • Page 282 1. BASIC OPERATION DISPLAYING PREDICTIVE MY TRAFFIC ROUTES TRAFFIC INFORMATION Traffic information along the saved A map with predictive traffic data can routes can be displayed. To use this be displayed. function, it is necessary to register a route. (P.326) Display “Traffic Information”...

  • Page 283: Displaying Traffic Information On The Map

    1. BASIC OPERATION DISPLAYING TRAFFIC Information/Function INFORMATION ON THE MAP The icons show traffic incident, road repair, traffic obstacles, etc. Select to Select “Options” on the map screen. display traffic information and start voice guidance for the traffic informa- Select “Map Information”. tion.

  • Page 284: Destination Search

    2. DESTINATION SEARCH 1. DESTINATION SEARCH SCREEN The “Destination” screen enables to search for a destination. To display the “Des- tination” screen, press the “APPS” button, and select “Navigation” on the “Apps” screen. Then select “Dest.” on the map screen. Function Page Select to search for a destination by address.
  • Page 285 2. DESTINATION SEARCH Function Page Select to search for a destination by coordinates. Select to set a destination as home. Select to set a destination from preset destinations. Select to delete set destinations. SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...

  • Page 286: Search Operation

    2. DESTINATION SEARCH 2. SEARCH OPERATION Press the “APPS” button. Select “Go” when the confirm destina- tion screen is displayed. Function Select “Navigation”. Select to adjust the position in small- Select “Dest.”. er increments. (P.276) Search for a destination. Select to register as a memory point. Select to call the registered number.

  • Page 287: Selecting Search Area

    2. DESTINATION SEARCH SELECTING SEARCH AREA SETTING HOME AS DESTINATION The selected state (province) can be changed to set a destination from a To use this function, it is necessary to different state (province) by using register a home address. (P.312) “Address”, “Point of Interest”...

  • Page 288: Searching By Address

    2. DESTINATION SEARCH Enter a house number and select SEARCHING BY ADDRESS “OK”.  If the same address exists, the address There are 2 methods to search for a list screen will be displayed. Select the destination by address. desired address. Display “Destination”...

  • Page 289: Searching By Point Of Interest

    2. DESTINATION SEARCH SEARCHING BY NAME SEARCHING BY POINT OF INTEREST Select “Name”. There are 3 methods to search for a Enter a POI name and select “OK”. destination by Points of Interest. Select the desired POI. Display “Destination” screen. (P.286) Select “Point of Interest”.
  • Page 290 2. DESTINATION SEARCH ■ SELECTING A CITY TO SEARCH SEARCHING BY CATEGORY Select “City”. Select “Category”. Enter a city name and select “OK”. Select the desired search point. “Any City”: Select to cancel the city set- ting. Select the desired city name. Select the desired POI.
  • Page 291 2. DESTINATION SEARCH “List All Categories”: Select to display all SEARCHING BY PHONE POI categories. NUMBER “Favorite POI Categories”: Select to use the 6 POIs that have been previously set. Select “Phone #”. (P.321) Enter a phone number and select Select the desired POI.

  • Page 292: Searching From Previous Destinations

    2. DESTINATION SEARCH SEARCHING FROM SEARCHING BY ADDRESS PREVIOUS DESTINATIONS BOOK Display “Destination” screen. To use this function, it is necessary to (P.286) register address book entry. (P.315) Select “Previous Destinations”. Display “Destination” screen. Select the desired destination. (P.286) Select “Address Book”. Select the desired address book entry.

  • Page 293: Searching By Emergency

    2. DESTINATION SEARCH SEARCHING BY SEARCHING BY EMERGENCY INTERSECTION AND FREEWAY Display “Destination” screen. (P.286) There are 2 methods to search for a destination by Intersection & Freeway. Select “Emergency”. Display “Destination” screen. Select the desired emergency catego- (P.286) Select “Intersection & Freeway”. Select the desired method.
  • Page 294 2. DESTINATION SEARCH SEARCHING BY SEARCHING BY FREEWAY INTERSECTION ENTRANCE/EXIT Select “Intersection”. Select “Freeway Entrance / Exit”. Enter the name of the first intersecting Enter a freeway name and select street which is located near the desti- “OK”. nation and select “OK”. Select the desired freeway.

  • Page 295: Searching By Map

    2. DESTINATION SEARCH SEARCHING BY MAP SEARCHING BY COORDINATES By selecting “Map” the last displayed location is displayed again on the map Display “Destination” screen. screen. You can search for a destina- (P.286) tion from this map. Select “Coordinates”. Display “Destination”...

  • Page 296: Starting Route Guidance

    2. DESTINATION SEARCH 3. STARTING ROUTE GUIDANCE When the destination is set, the entire WARNING route map from the current position to the destination is displayed. ● Be sure to obey traffic regulations and keep road conditions in mind while driv- ing.
  • Page 297 2. DESTINATION SEARCH ■ DISPLAYING 3 ROUTES INFORMA- 3 ROUTES SELECTION TION Select “3 Routes”. Select “Info”. Select the desired route. Check that the “3 Route Information” screen is displayed. Function Information Select to display the quickest route. Time necessary for the entire trip Select to display the route that is the shortest distance to the set destina- Distance of the entire trip...
  • Page 298 2. DESTINATION SEARCH DISPLAYING TURN LIST INFORMATION ● However, not all road names on the A list of turn information from the cur- route may appear on the list. If a road rent position to the destination can be changes its name without requiring a displayed.

  • Page 299: Pausing Guidance

    2. DESTINATION SEARCH PAUSING GUIDANCE Function Page Select to add destinations. Select “Options” on the map screen. Select to delete destina- Select “Pause Guidance”. tions. Select to reorder destina- RESUMING GUIDANCE tions. Select “Resume Guidance”. Select to set route prefer- ences.

  • Page 300: Route Guidance

    3. ROUTE GUIDANCE 1. ROUTE GUIDANCE SCREEN During the route guidance, various CHANGING ROUTE types of guidance screens can be dis- INFORMATION BAR played depending on conditions. When the vehicle is on the guidance route, the route information bar dis- SCREEN FOR ROUTE plays the current street name or the GUIDANCE...

  • Page 301: Route Overview

    3. ROUTE GUIDANCE ROUTE OVERVIEW INFORMATION ● When the vehicle is on the guidance The entire route from the current posi- route, the distance measured along the route is displayed. Travel time and tion to the destination can be displayed arrival time are calculated based on the during the route guidance.

  • Page 302: During Freeway Driving

    3. ROUTE GUIDANCE WHEN APPROACHING DURING FREEWAY DRIVING FREEWAY EXIT OR JUNCTION During freeway driving, the freeway When the vehicle approaches an exit exit information screen will be dis- or junction, the freeway guidance played. screen will be displayed. No./ Information/Function Information/Function Icon...

  • Page 303: When Approaching Intersection

    3. ROUTE GUIDANCE TOLLGATE GUIDANCE WHEN APPROACHING INTERSECTION When the vehicle approaches a toll- gate, the tollgate view will be dis- When the vehicle approaches an inter- played. section, the intersection guidance screen will be displayed. Information/Function Distance from the current position to Information/Function the tollgate Next street name...

  • Page 304: Turn List Screen

    3. ROUTE GUIDANCE TURN LIST SCREEN TURN-BY-TURN ARROW SCREEN Select “Turn List” on the “Map Mode” screen. (P.273) On this screen, information about the next turn on the guidance route can be Check that the turn list screen is dis- displayed.

  • Page 305: Typical Voice Guidance Prompts

    3. ROUTE GUIDANCE 2. TYPICAL VOICE GUIDANCE PROMPTS As the vehicle approaches an intersec- tion, or point, where maneuvering the vehicle is necessary, the system’s voice guidance will provide various messages. WARNING ● Be sure to obey the traffic regulations and keep the road condition in mind especially when you are driving on IPD roads.

  • Page 306: Editing Route

    3. ROUTE GUIDANCE 3. EDITING ROUTE Press the “APPS” button. Select the item to be set. Function Page Select “Navigation”. Select to add destinations. Select “Options”. Select to delete destina- tions. Select “Edit Route”. Select to reorder destina- tions. Select to set route prefer- ences.

  • Page 307: Adding Destinations

    3. ROUTE GUIDANCE ADDING DESTINATIONS REORDERING DESTINATIONS Display the “Edit Route” screen. (P.306) When more than 1 destination has been set, the arrival order of the desti- Select “Add”. nations can be changed. Search for an additional destination in Display the “Edit Route” screen. the same way as a destination search.

  • Page 308: Setting Route Preferences

    3. ROUTE GUIDANCE SETTING ROUTE SELECTING ROUTE TYPE PREFERENCES Display the “Edit Route” screen. (P.306) The conditions to determine the route can be selected from various choices Select “Route Type”. such as freeways, toll roads, ferries, Select the desired route type. etc.

  • Page 309: Detour Setting

    3. ROUTE GUIDANCE Select the desired detour distance. DETOUR SETTING During the route guidance, the route can be changed to detour around a section of the route where a delay is caused by road repairs, an accident, etc. Display the “Edit Route” screen. (P.306) Function Select “Detour”.
  • Page 310 3. ROUTE GUIDANCE INFORMATION ● This picture shows an example of how the system would guide around a delay caused by a traffic jam. This position indicates the location of a traffic jam caused by road repairs, an accident, etc. This route indicates the detour sug- gested by the system.

  • Page 311: Memory Points

    4. MEMORY POINTS 1. MEMORY POINTS SETTINGS Select the desired item to be set. Home, preset destinations, address book entries, areas to avoid can be set as memory points. The registered points can be used as the destinations. (P.284) Registered areas to avoid, will be avoided when the system searches for a route.

  • Page 312: Memory Points

    4. MEMORY POINTS EDITING HOME SETTING UP HOME Select “Edit”. If home has been registered, that infor- mation can be recalled by selecting Select the desired item to be edited. “Go Home” on the “Destination” screen. (P.287) Display “Navigation Settings” screen.

  • Page 313: Setting Up Preset Destinations

    4. MEMORY POINTS REGISTERING PRESET SETTING UP PRESET DESTINATIONS DESTINATIONS Select “Set”. If a preset destination has been regis- tered, that information can be recalled Select the desired item to search for by using preset destinations on the the location. (P.284) “Destination”...
  • Page 314 4. MEMORY POINTS EDITING PRESET DELETING PRESET DESTINATIONS DESTINATIONS Select “Edit”. Select “Delete”. Select the desired preset destination. Select the preset destination to be de- leted and select “Delete”. Select the item to be edited. Select “Yes” when the confirmation Function Page screen appears.

  • Page 315: Setting Up Address Book

    4. MEMORY POINTS REGISTERING ADDRESS SETTING UP ADDRESS BOOK ENTRIES BOOK Select “New”. Points on the map can be registered. Select the desired item to search for Display “Navigation Settings” the location. (P.284) screen. (P.311) Select “OK” when the editing address Select “Address Book”.
  • Page 316 4. MEMORY POINTS When the “With Sound” tab is selected Function Page A sound for some address book entries Select to edit the address can be set. When the vehicle ap- book entry name. proaches the location of the address Select to set display of the book entry, the selected sound will be ...

  • Page 317: Setting Up Areas To Avoid

    4. MEMORY POINTS ■ CHANGING THE NAME SETTING UP AREAS TO AVOID Select “Edit” next to “Name”. Enter a name and select “OK”. Areas to be avoided because of traffic jams, construction work or other rea- ■ CHANGING THE LOCATION sons can be registered as “Areas to Select “Edit”...
  • Page 318 4. MEMORY POINTS REGISTERING AREAS TO EDITING AREAS TO AVOID AVOID The name, location and/or area size of Select “New”. a registered area can be edited. Select the desired item to search for Select “Edit”. the location. (P.284) Select the area and select “OK”. Select either Select the item to be edited.

  • Page 319: Deleting Previous Destinations

    4. MEMORY POINTS ■ CHANGING THE NAME DELETING AREAS TO AVOID Select “Edit” next to “Name”. Select “Delete”. Enter a name and select “OK”. Select the area to be deleted and se- lect “Delete”. ■ CHANGING THE LOCATION Select “Yes” when the confirmation Select “Edit”...

  • Page 320: Setup

    5. SETUP 1. DETAILED NAVIGATION SETTINGS Settings are available for pop-up infor- SCREENS FOR NAVIGATION mation, favorite POI categories, low SETTINGS fuel warning, etc. Press the “APPS” button. Select “Setup”. Select “Navigation”. Select “Detailed Navi. Settings”. Select the items to be set. Select “OK”.
  • Page 321 5. SETUP FAVORITE POI CATEGORIES Function Page (SELECT POI ICONS) Select to set the voice guid-  ance for the next street Up to 6 POI icons, which are used for name on/off. selecting POIs on the map screen, can Select to set IPD road guid- be selected as favorites.
  • Page 322 5. SETUP Select “Position / Direction”. CURRENT POSITION/TIRE CHANGE CALIBRATION Scroll the map to the desired point (P.276) and select “OK”. The current position mark can be ad- justed manually. Miscalculation of the Select an arrow to adjust the direction distance caused by tire replacement of the current position mark and select can also be adjusted.
  • Page 323 5. SETUP Select “Enter ” to set as a destina- LOW FUEL WARNING POP-UP tion. When the fuel level is low, a warning message will pop up on the screen. Display the “Detailed Navi. Settings” screen. (P.320) Select “Low Fuel Warning Pop-up”. ■...

  • Page 324: Traffic Settings

    5. SETUP 2. TRAFFIC SETTINGS Traffic information such as traffic con- Function gestion or traffic incident warnings can Select to set specific routes (such as be made available. frequently used routes) on which you wish to receive traffic informa- Press the “APPS” button. tion.

  • Page 325: Auto Avoid Traffic

    5. SETUP ■ CHANGING THE ROUTE MANUAL- AUTO AVOID TRAFFIC Display the “Traffic Settings” screen. When the navigation system calcu- (P.324) lates a new route, the following screen will be displayed. Select “Avoid Traffic”. Select the desired item. Select the desired item. Function Function Select to...

  • Page 326: My Traffic Routes

    5. SETUP REGISTERING PERSONAL MY TRAFFIC ROUTES ROUTES Specific routes (such as frequently Select “New”. used routes) on which you wish to re- ceive traffic information can be regis- Select “Edit” next to “Name”. tered as “My Traffic Routes”. A route is set by defining a start point and end point, and can be adjusted by setting up to 2 preferred roads.
  • Page 327 5. SETUP EDITING PERSONAL ROUTES Function Page Select to edit the name of Select “Edit”. the personal route. Select the desired traffic route. Select to edit start location. Select to edit end location. Select to see and modify the entire route. Select “OK”.
  • Page 328 5. SETUP ■ ADDING PREFERRED ROADS SETTING PREFERRED ROADS Select “Add”. “My Traffic Routes” can be adjusted by  If two preferred roads are already set, setting up to 2 preferred roads. select “Yes” and delete a preferred road before add a new one. Select “Set Preferred Roads”.
  • Page 329 5. SETUP ■ ■ MODIFYING PREFERRED ROADS DELETING PREFERRED ROADS Select “Modify”. Select “Delete”. Select the preferred road to be modi- Select the preferred road to be deleted fied if 2 preferred roads have been set. if 2 preferred roads have been set. “Delete All”: Select to delete all preferred Scroll the map to the desired point and roads on the list.

  • Page 330: Tips For The Navigation System

    6. TIPS FOR THE NAVIGATION SYSTEM 1. GPS (GLOBAL POSITIONING SYSTEM) When the vehicle is receiving signals from LIMITATIONS OF THE satellites, the “GPS” mark appears at the NAVIGATION SYSTEM top left of the screen. The GPS signal may be physically ob- This navigation system calculates the structed, leading to inaccurate vehicle po- current position using satellite signals,...
  • Page 331 6. TIPS FOR THE NAVIGATION SYSTEM  Accurate current position may not be  Inappropriate route guidance may occur in shown in the following cases: the following cases: • When driving on a small angled Y- • When turning at an intersection off the shaped road.
  • Page 332 6. TIPS FOR THE NAVIGATION SYSTEM INFORMATION ● This navigation system uses tire turning data and is designed to work with fac- tory-specified tires for the vehicle. Installing tires that are larger or smaller than the originally equipped diameter may cause inaccurate display of the cur- rent position.

  • Page 333: Map Database Version And Covered Area

    Select to display map coverage ar- eas. Select to display legal information. Select “Navigation”. INFORMATION Select “Options”. ● Map data updates are available for a Select “Map Data”. fee. Contact your Toyota dealer for fur- ther information. SIENNA_Navi+MM_OM08015U_(U) 15.09.16 18:08...

  • Page 334: About The Map Data

    6. TIPS FOR THE NAVIGATION SYSTEM ABOUT THE MAP DATA NOTICE ● Failure to follow the precautions below Map data for the navigation system is may result in damage to the SD cards or contained in a SD card that is inserted the SD card slot.

  • Page 335: Entune App Suite

    Entune App Suite * Entune App Suite OVERVIEW 1. Entune App Suite SERVICE ..336 BEFORE USING THE FUNCTION ..338 PREPARATION BEFORE USING Entune App Suite ......339 Entune App Suite OPERATION 1. Entune App Suite ....... 341 USING Entune App Suite..... 341 LINKING Entune App Suite AND NAVIGATION FUNCTION....

  • Page 336: Entune App Suite Overview

    1. Entune App Suite OVERVIEW 1. Entune App Suite SERVICE* Entune App Suite is a service that enables downloadable applications to be dis- played on and operated from the screen. Before Entune App Suite can be used, a few actions need to be performed first. (P.339) *: Entune App Suite is available in the contiguous United States, D.C.
  • Page 337 Entune App Suite vider servers are displayed on the screen. The system is equipped with an application player to run applications. *: For known compatible phones, refer to http://www.toyota.com/entune/. INFORMATION ● The actual service availability is dependent on the network condition.

  • Page 338: Before Using The Function

     Services requiring a separate contract can • Downloaded application content also be used.* *: For details, refer to INFORMATION http://www.toyota.com/entune/ or call 1-800-331-4331. ● Once initialized, data will be erased from the system. Pay close attention when initializing the data.

  • Page 339: Preparation Before Using Entune App Suite

    1. Entune App Suite OVERVIEW USER REGISTRATION PREPARATION BEFORE USING Entune App Suite Perform user registration at http://www.toyota.com/entune/. SETUP REQUIRED TO USE Entune App Suite Perform the following actions. User registration Download the Entune App Suite application to your cellular phone.
  • Page 340 ● Entune App Suite operational proce- dures can also be confirmed by visiting http://www.toyota.com/entune/. ● In order to use applications, it is neces- sary to run the Entune App Suite appli- cation on your cellular phone.

  • Page 341: Entune App Suite Operation

    Suite can be used, a few actions need to be performed first. (P.339) For details about the function and ser- Function Page vice of each application, refer to http://www.toyota.com/entune/. Select to activate an appli-  cation. Press the “APPS” button. Select to update the appli- cation.

  • Page 342: Entune App Suite Operation

    2. Entune App Suite OPERATION Check that downloading is completed. UPDATING an application When Entune App Suite is activated, an application may need to be updat- ed. By updating, an application can be kept to the latest version. When updat- ing the application, it is necessary to download the updated data and install Function...
  • Page 343 2. Entune App Suite OPERATION ■ INSTALLING THE UPDATED DATA REORDERING THE APPLICATIONS After the downloading is complete, “Update” will be changed to “Install”. Order of the applications can be changed. Select “Install”. Display the “Apps” screen. (P.341) Select “Continue”. Select “Reorder”.
  • Page 344 “The Phone is not connected. The cellular phone cannot be www.toyota.com/entune/ For more information, please connected. confirm if the phone is com- visit toyota.com.” patible or not. Refer http:// “To use the services, an ac- www.toyota.com/entune/ tive application needs to be...

  • Page 345: Linking Entune App Suite And Navigation Function

    Entune App tination. Suite. For details about the function and service of each application, refer Display the “Web Search” screen. to http://www.toyota.com/entune/. (P.345) Press the “APPS” button. Select the desired application button to search. Enter a search term, and select “GO”.

  • Page 346: Entune App Suite Keyword Operation

    For details about the function and service of each appli- Display the “Web Search” screen. cation, refer to (P.345) http://www.toyota.com/entune/. Select the desired application button to search.  The keyboard layout can be changed. (P.59) Enter a search term, and select “GO”.
  • Page 347 2. Entune App Suite OPERATION Enter a search term, and then select ENTERING A KEYWORD USING “OK”. THE VOICE RECOGNITION FUNCTION Display the “Apps” screen. (P.341) Select the desired application button. Entering characters will be reflected on the character input space. ...

  • Page 348: Setup

    3. SETUP 1. Entune App Suite SETTINGS The phone data plan pop-up can be set after an App Suite application is in- stalled. Press the “APPS” button. Select “Setup”. Select “Entune”. Select the items to be set. Function Select to set the pop up reminder for cellular phone data usage.
