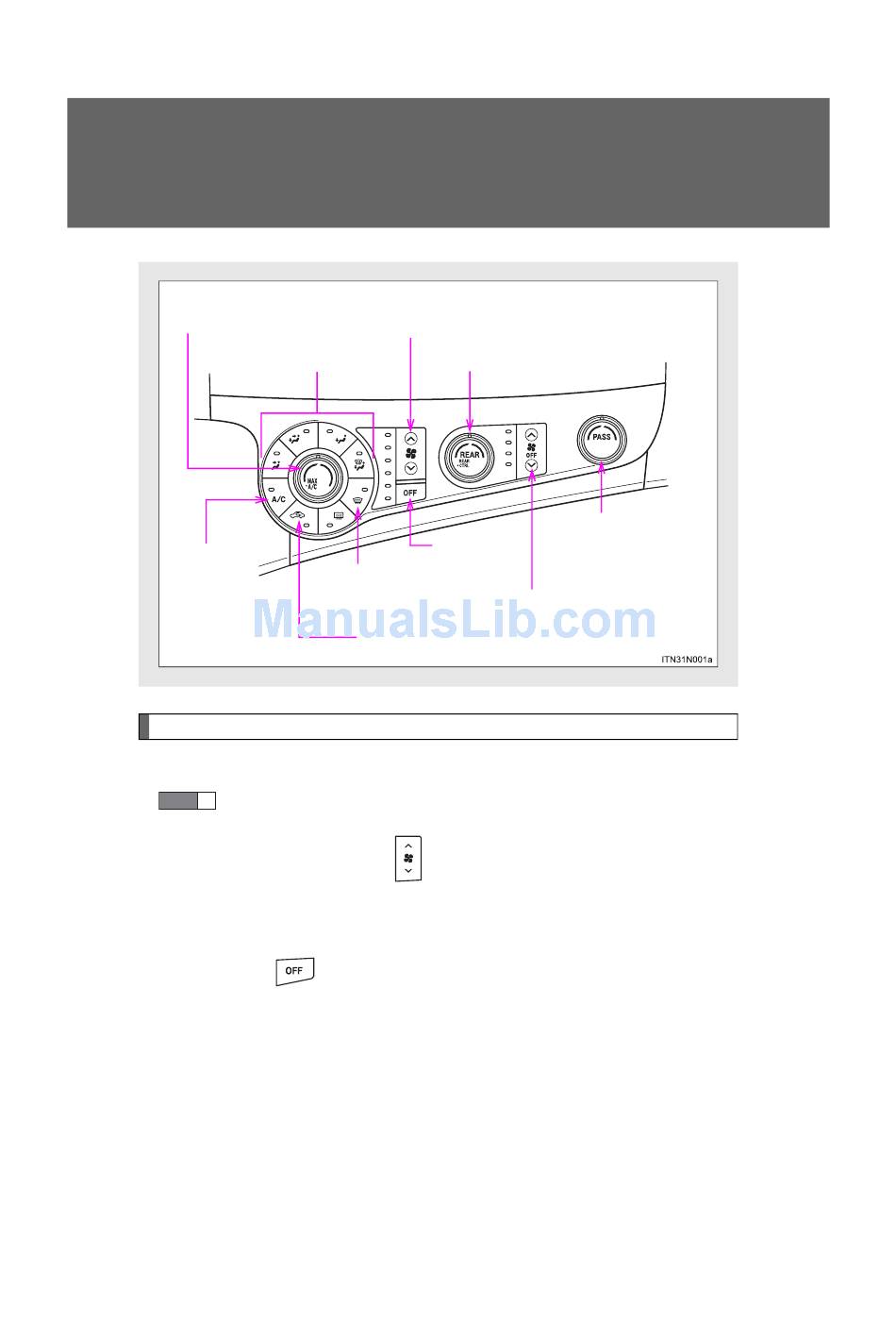

3-1. Using the air conditioning system and defogger
Front manual air conditioning system
Driver's side temperature
control dial
Air outlet selector
buttons
Front air
conditioning
on/off switch
Adjusting the settings
■
Basic setting
STEP
1
To turn on the air conditioning system and adjust the fan
speed, press "∧" on
decrease the fan speed.
The fan speed is shown on the control panel. (6 levels)
Press
394
SIENNA_OM_OM45472U_(U)
Front fan speed
Rear temperature control dial
Off
Windshield defogger
Rear fan speed
Outside air or recirculated air mode
to increase the fan speed and "∨" to
to turn the fan off.
∗
Passenger's side
temperature control dial
∗
: If equipped
