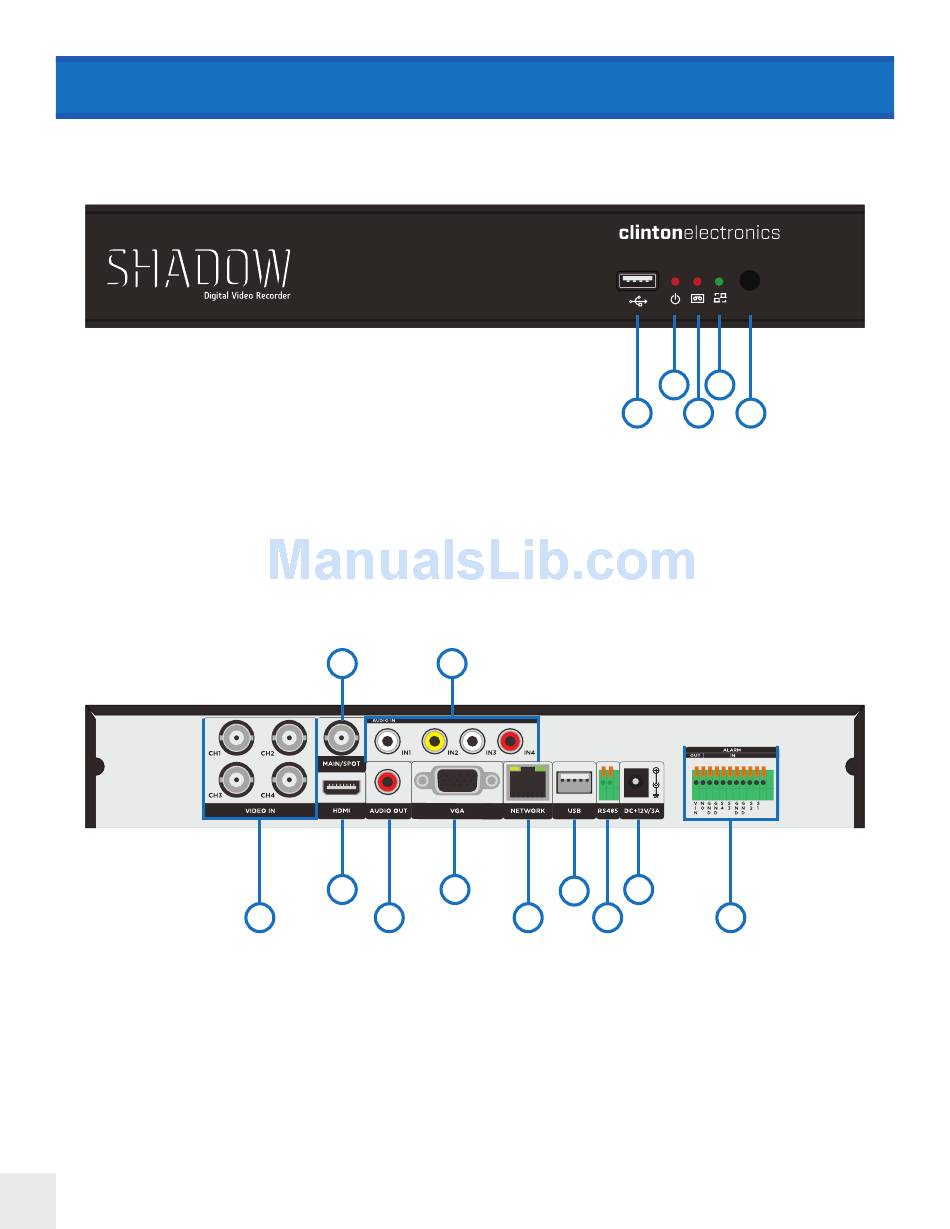

HARDWARE OVERVIEW > Shadow Series 4-Ch
FRONT
1. USB Port - for Firmware Update and/or Video Backup
2.
Power Indicator LED
3. Recording Indicator LED
4. Network Indicator LED
5. IR Sensor for Remote
BACK
1. BNC Camera Inputs
2. BNC Video Output - MAIN or SPOT
*MAIN or SPOT configured in DVR Settings
3. HDMI Video Output - MAIN
4. VGA Video Output - MAIN
5.
RCA Audio Inputs
6. RCA Audio Output
4
2
3
1 6
5
4
8
7 9
7. RJ45 Network Connection
8. USB Port - Mouse
9. RS485
10. DC12V Power Input
11.
Alarm Inputs/Outputs
Late 2015 960H Version
2 4
1 3 5
10
11
