Pro Series - Clinton Electronics Shadow Pro User Manual

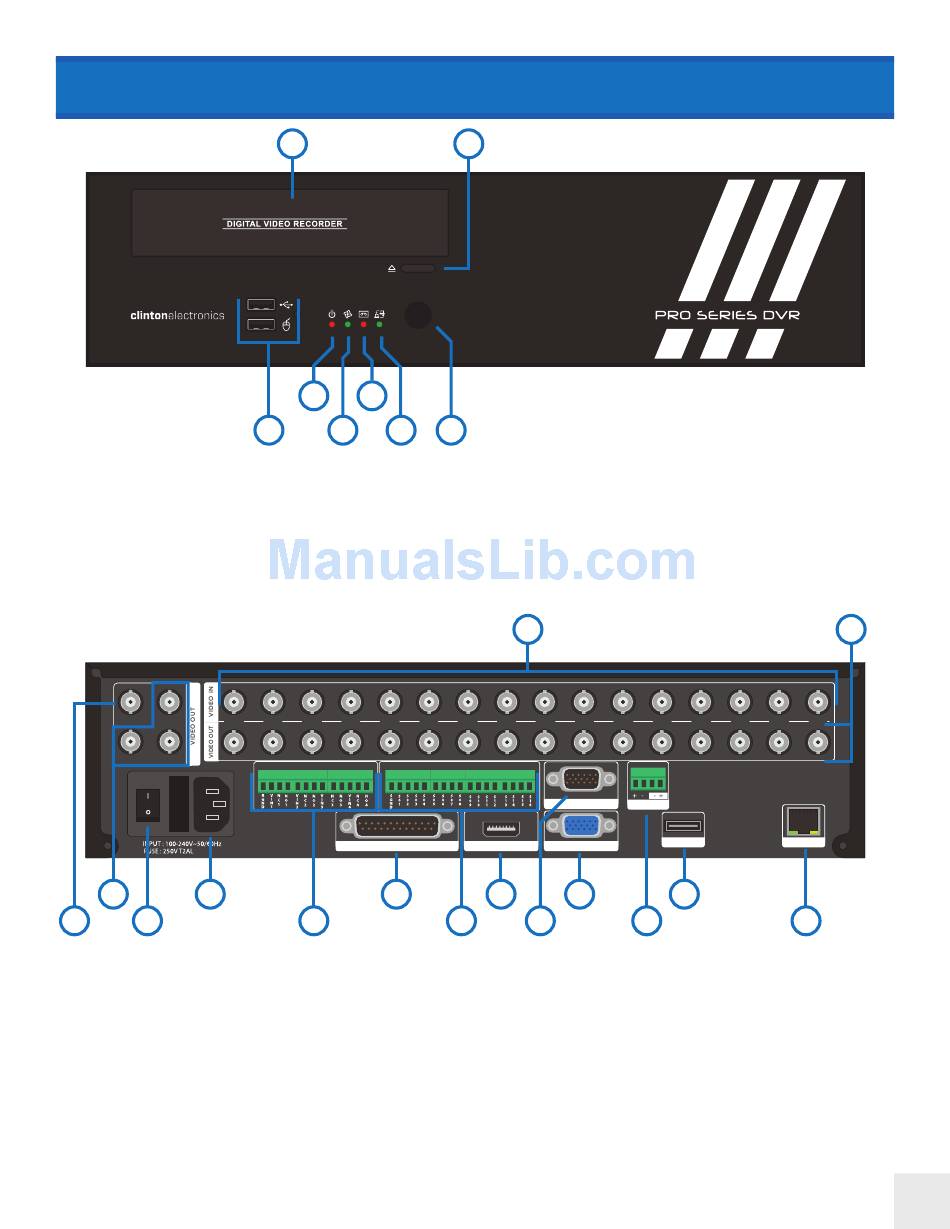

HARDWARE OVERVIEW > Pro Series
FRONT
1.
USB Ports:
Top - for Firmware Update and/or Video Backup
Bottom - for Mouse
2. Power Indicator LED
3. Internal Fan Indicator LED
4.
Recording Indicator LED
BACK (16-Ch Shown)
MAIN SPOT1 CH1
SPOT2 SPOT3
4 6
3 5
1. BNC Camera Inputs
2. BNC Camera Loop-Out/Outputs
3. BNC Video Out - MAIN
4. BNC Video Out - SPOTS
5.
Power ON/OFF Switch
6. Power Input
7. Alarm Output
8. Audio Input (uses RCA to Multi-Pin Plug Adapter)
7
2 4
1 3 5
CH2 CH3 CH4 CH5 CH6
ALARM OUT ALARM IN
AUDIO
8
7
8
6
5.
Network Indicator LED
6. IR Sensor for Remote
7. CD-R/DVD-R Disc Drive
8. Disc Drive Eject Button
1
CH7 CH8 CH9 CH10 CH11
RS232
HDMI VGA
10 12
9 11
9. Alarm Input
10. HDMI Video Out - MAIN
11. RS232 Connection
12. VGA Video Out - MAIN
13.
RS485 Connection
14. eSATA Port
15. RJ45 Network Connection
D1 - 3 Spot Monitor Version
CH12 CH13 CH14 CH15 CH16
RS485
eSATA II WAN
14
13 15
2
9
