6. POWER ON DEVICE
Attach the main power cord to the PVM. Turn the CE-RP5 power switch to
the ON position. The Record, and Power lights on the front of the CE-RP5 will
illuminate.
8. VIEW MENU AND FILES
User Manual
6 LED-
5 LED+
4 GND
3 MOTION OUT
2 GND
REC
1 ALARM IN

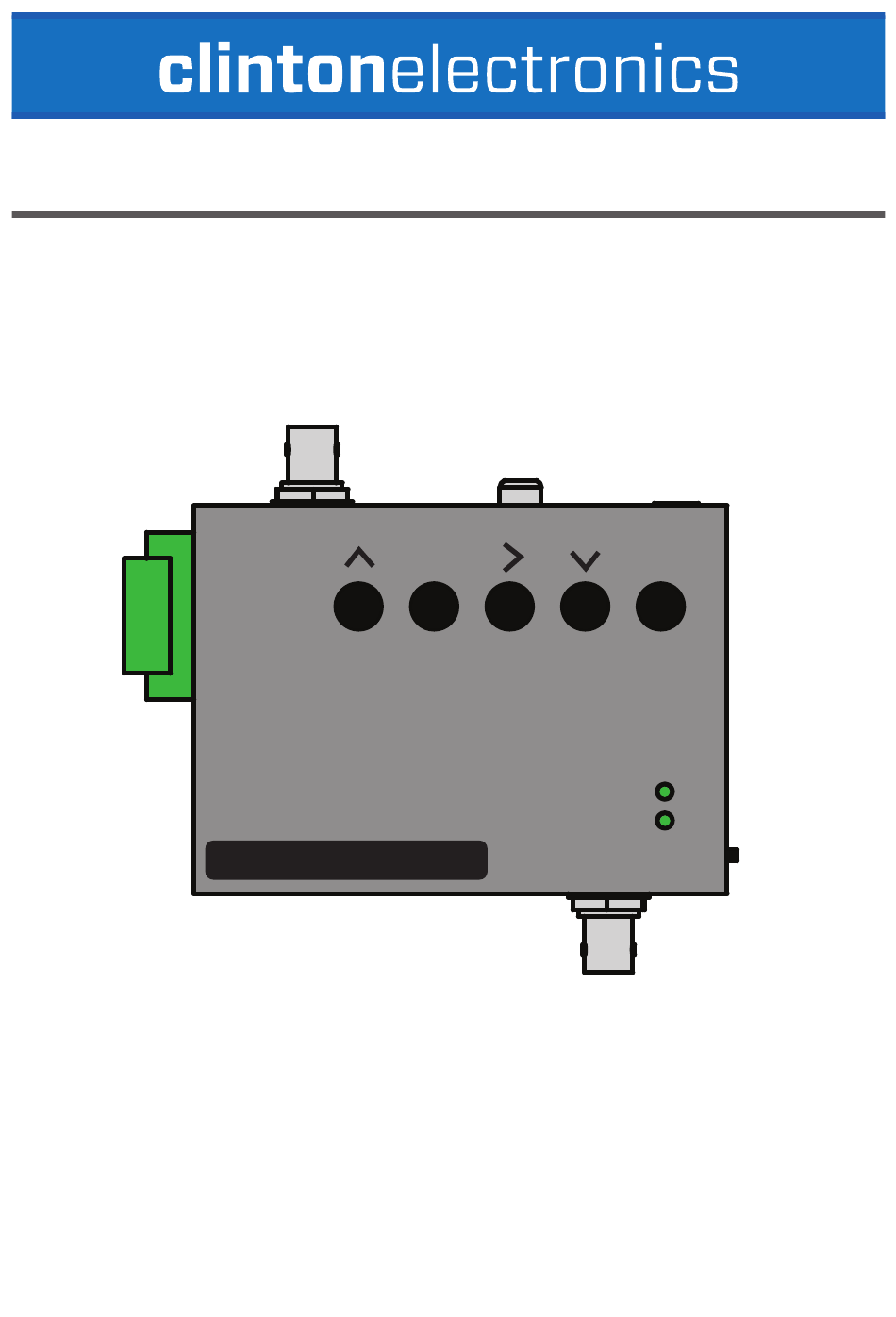

H.264 FULL HD-SDI RECORDER
Clinton reserves the right, without notification, to make changes in product design & specification.
CE-RP5
EXIT
with converter
PLAY MENU/ENTER
REC
PWR
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Clinton Electronics CE-RP5
Summary of Contents for Clinton Electronics CE-RP5
- Page 1 6. POWER ON DEVICE Attach the main power cord to the PVM. Turn the CE-RP5 power switch to r PC. the ON position. The Record, and Power lights on the front of the CE-RP5 will illuminate. CE-RP5 User Manual 6 LED-...
-
Page 2: Device Overview
Attach the main power cord to the PVM. Turn the CE-RP5 power switch to wing on your PC. the ON position. The Record, and Power lights on the front of the CE-RP5 will illuminate. corruption. Device Overview 6 LED- 5 LED+... -
Page 3: Remote Control
4. Record- Press to start manual recording 5. Exit- Press to stop manual recording, or to exit a current menu selection 6. OSD ON/ OFF- Press to hide or show the menu information (date, time, resolution, etc.) Clinton Electronics | CE-RP5 User Manual... -
Page 4: Basic Setup
4. POWER ON DEVICE 2. Plug outlet from DC12 Volt Power Supply into wall outlet/power source. Turn the CE-RP5 power switch to the ON position. The Record, and Power the slot on the side of the CE-RP5. SD-Card 3. Connect HD-SDI from camera to HD-SDI Input. -
Page 5: Insert Sd Card
5. Insert SD-Card with contacts facing down, as shown below. Turn the CE-RP5 power switch to the ON position. Th Insert the included SD-Card into the slot on the side of the CE-RP5. SD-Card Turn the CE-RP5 power switch to the ON position. The Record, and Power 6. -
Page 6: Live View
To confirm or make a selection, press the MENU/ENTER button • Press the LEFT or RIGHT buttons to change the value • Press the EXIT button to go back to the previous menu screen and to exit the OSD Menu. Clinton Electronics | CE-RP5 User Manual... -
Page 7: Playback View
- Pause Recorded Video Quality - Fast Forward / Rewind - Basic Quality - Slow Playback - Normal Quality - High Quality Playback Speed Timestamp / Watermark Record Mode Alarm input Motion Calendar Manual Pre-Record Clinton Electronics | CE-RP5 User Manual... - Page 8 The last file on the SD Card may be corrupted due to pulling it from the unit. This 3MB file will not affect the desired recording as it is only the last few seconds before the SD Card was pulled. AVI video files are not viewable on Apple/MAC computers. Clinton Electronics | CE-RP5 User Manual...
-
Page 9: Set Date/Time
• MD Energy: Displays current recognized motion. Motion is displayed as RED blocks. • MD Threshold: Press Left or Right on the remote control to adjust the sensitivity of motion detection. The lower the value, the more motion will be detected. Clinton Electronics | CE-RP5 User Manual... - Page 10 Navigate between the hours using the UP or DOWN button on the remote. Press the LEFT or RIGHT button to change the recording type; Alarm, Motion, Continuous (Calendar), All Modes, or No modes. Recording Modes ALARM MOTION CONTINUOUS - CALENDAR NONE Clinton Electronics | CE-RP5 User Manual...
-
Page 11: Continue Record
• LOOP: Oldest files will be overwritten when the card is full. • STOP: When the card is full, recording will stop. Format: Formats the SD Card to FAT32. All information saved on the SD Card will be deleted! Clinton Electronics | CE-RP5 User Manual... -
Page 12: System Status
LANGUAGE : ENGLISH TV OUTPUT : 1080I60 PASSWORD : 0 0 0 0 ALARM INPUT : N.C. FACTORY DEFAULT Reset all DVR settings to factory default. Date & time information will not be reset. Clinton Electronics | CE-RP5 User Manual... - Page 13 Monday~Friday 8am~5pm (Central Standard Time) www.clintonelectronics.com Actual product may vary slightly from the images shown in this manual. Clinton reserves the right, without notification, to make changes in product design & specification. ver: 06.06.18 Clinton Electronics | CE-RP5 User Manual...
