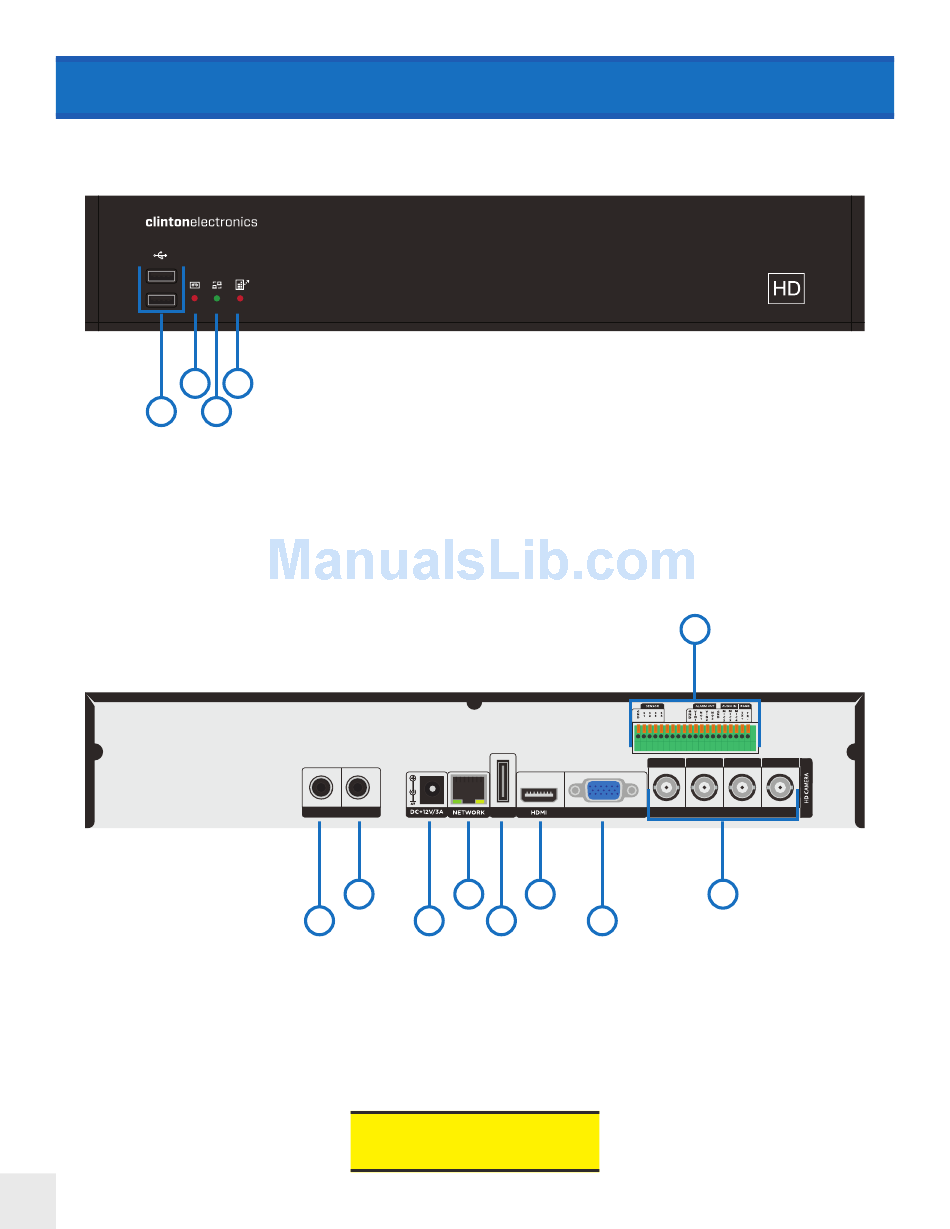

HARDWARE OVERVIEW > HD Series 4-Ch
FRONT
2
1
1. USB Ports:
Top - for Firmware Update and/or Video Backup
Bottom - for Mouse
2.
Recording Indicator LED
3.
Network Indicator LED
4. IR Sensor for Remote
BACK
1. RCA Audio Input
2. RCA Audio Output
3. DC12V Power Input
4. RJ45 Network Connection
5.
eSATA Port
10
4
3
MIC1 SPK.
2
1
For use with HD-SDI cameras only.
Standard/Analog cameras will not
eSATA
4 6
3 5
6. HDMI Video Out - MAIN
7. VGA Video Out - MAIN
8. BNC Camera Inputs (HD-SDI)
9. Sensor / Alarm / Audio / RS485 Connections
function with this DVR.
