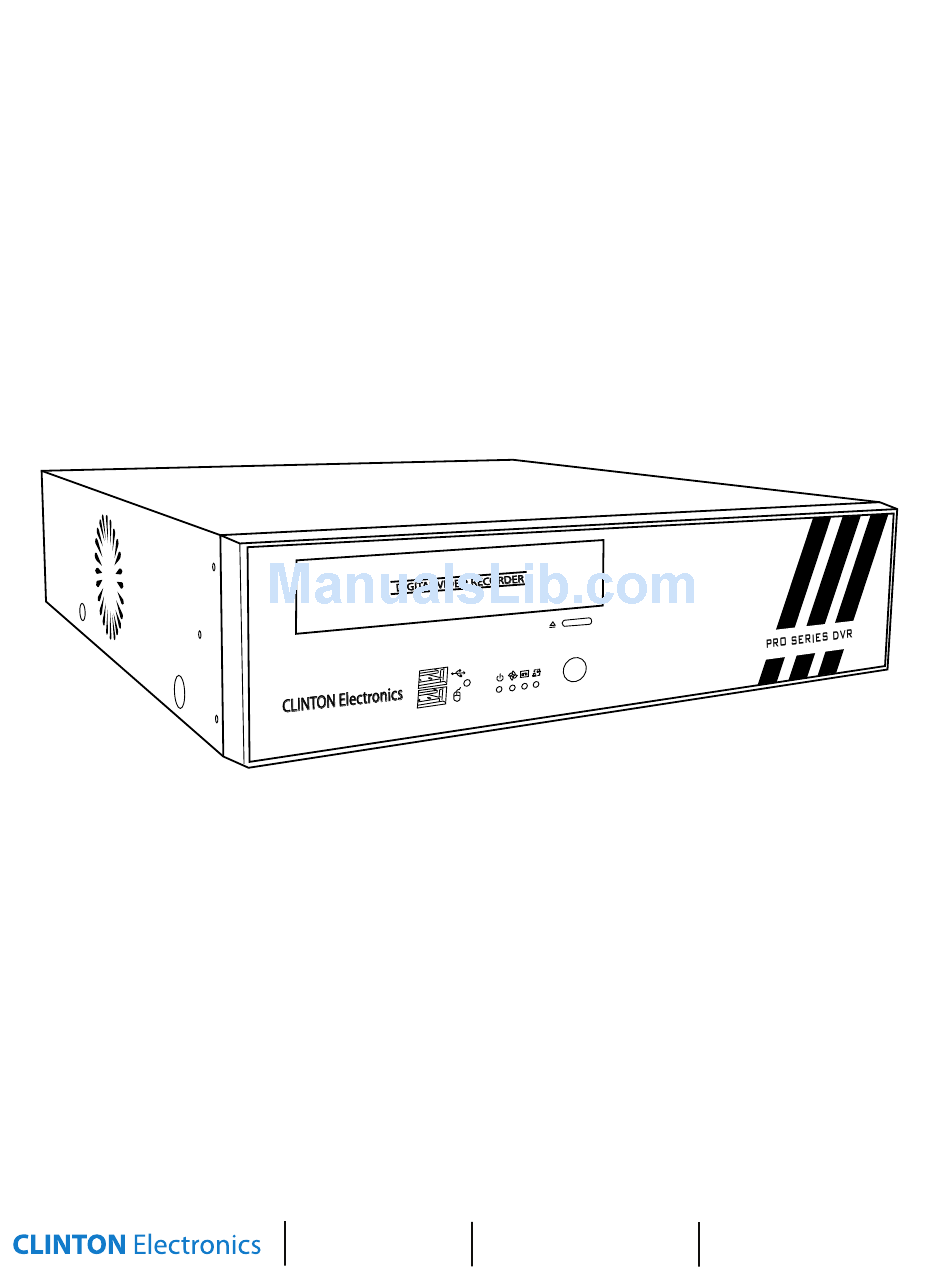

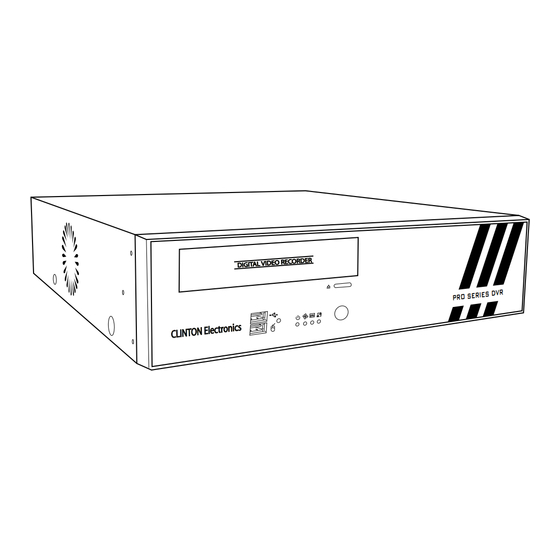

Page 1: Digital Video Recorder
Digital Video Recorder PRO SERIES Quick Guide CLINTON Electronics 1.800.447.3306 Sales 6701 Clinton Road 1.800.549.6393 Support www.clintonelectronics.com Loves Park, IL 61111 1.800.633.8712 Fax... -
Page 2: Table Of Contents
TABLE OF CONTENTS Menus & Login Selection Devices (Remote Control, Mouse) Menu Icon Description User Login Setup Menu General Setup Date & Time Motion Recording Resolution Recording Setup Ethernet/Networking Setup Search Menu Calendar Search Backup Menu Backup... -
Page 3: Menus & Login
MENUS & LOGIN Remote Control / Mouse: You can either use the supplied remote control or the two-button mouse with scroll wheel to access and navigate OSD menus and controls. Use the supplied mouse for proper functionality. Some selections use the left mouse button to increase, and the right mouse button to decrease. Top Menu In live screen, move the mouse cursor over the top portion of the screen, or press the ▲... -
Page 4: General Setup
SETUP General Setup / General / Date & Time: In this category you can configure the General, Alarm, Disk, Monitor, Account, Configuration, and Shutdown settings. Areas are non- editable if NTP syncing is ON. Date / Time: • Date Format: Select the date format from the following: (YY/MM/DD) (MM/DD/YY) (DD/MM/YY) •... -
Page 5: Motion
SETUP Motion Setup / Motion / Input: In this category you can configure the Motion, Alarm-In, Video Loss, System and Display settings. Top-Level Menu Motion: Input • Active: Select ON to activate the motion area. • Level: Select the motion sensitivity level from low (1) to high (5). •... - Page 6 SETUP Motion Setup / Motion / Action: Top-Level Menu Motion: Action • Record: Select ON to activate the motion area. You can enable a DVR channel to record when motion is sensed by a another camera. Example: Camera channels 1 and 2 will record when cameras 2-16 sense motion. The default setting is to only record the channel in which motion has occurred.
-
Page 7: Recording Resolution
SETUP Schedule Setup / Resolution / Resolution: In this category you can configure the Resolution, Schedule, Record, Event, Audio, and Manual settings. Schedule: Resolution Factory settings will record continuously at High resolution (704x240) at 10 FPS. • Resolution: Select the recording resolution for each channel. STD(CIF) = 352x240 HIGH (Half D1) = 704x240 HIGHEST (D1) = 704x480... - Page 8 SETUP Record Setup / Record / Day, Night, Weekend: In this category you can configure the Resolution, Record, Audio, Manual, and Filter settings. Record Recording Quality levels will affect the compression level. (Lower quality will result in less Hard Drive space consumed.) •...
- Page 9 SETUP Ethernet Setup / Network / Ethernet: In this category you can configure the Serial, DDNS, and E-mail settings. Ethernet: • Dynamic IP: Turn this setting ON to have the DVR automatically place your network settings into the ✔ corresponding fields. Click the save icon to apply the settings.
- Page 10 SETUP Ethernet Setup / Network / Client: Default TCP settings Client: • Client Access: Select a range of IP address for your client to be able to access, or select “ALL” to enable searching of all IP addresses. • Begin Address / End Address: Enter the desired beginning and ending address for client access when range is selected above.
-
Page 11: Calendar Search
SEARCH Calendar: Within the search function you can search through recorded content by various methods. For best results use calendar search function. • Calendar: Narrow your search by selecting date and time. 1. Select a highlighted calendar day. 2. Select the hour you wish to begin viewing footage. 3. -
Page 12: Backup
BACKUP Backup: In this category you can back-up recorded footage to an external device. Backup: • Target: Select the backup destination device. (USB / DVD) • From: Select the start date and time. • To: Select the end date and time. •... - Page 13 CLINTON Electronics 1.800.447.3306 Sales 6701 Clinton Road 1.800.549.6393 Support www.clintonelectronics.com Loves Park, IL 61111 1.800.633.8712 Fax v.01.04.12...
