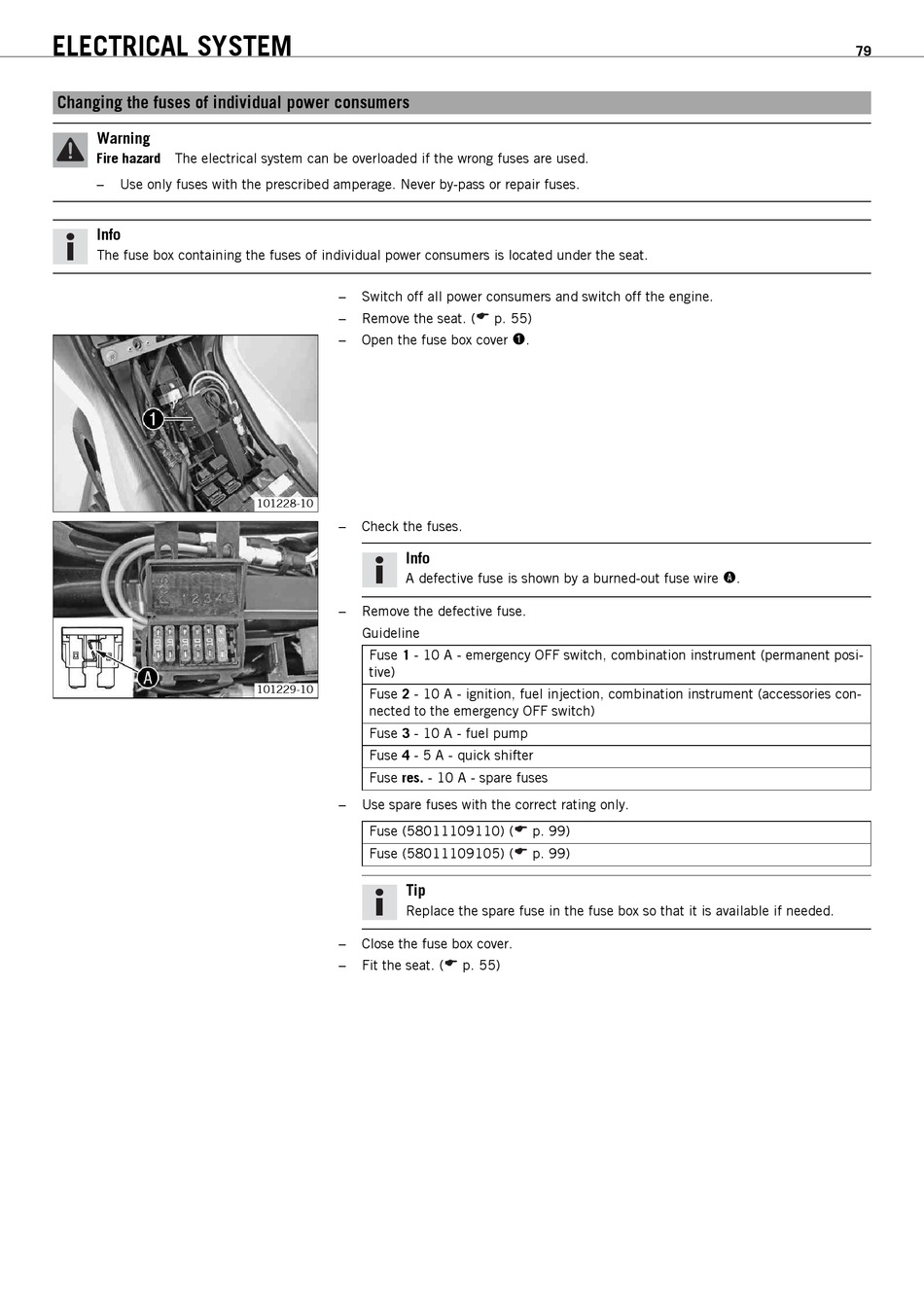

ELECTRICAL SYSTEM

Changing the fuses of individual power consumers

13.5
Warning
Fire hazard The electrical system can be overloaded if the wrong fuses are used.
–
Use only fuses with the prescribed amperage. Never by-pass or repair fuses.
Info
The fuse box containing the fuses of individual power consumers is located under the seat.
–
Switch off all power consumers and switch off the engine.
–
Remove the seat. (
–
Open the fuse box cover
101228-10
–
Check the fuses.
Info
A defective fuse is shown by a burned-out fuse wire
–
Remove the defective fuse.
Guideline
Fuse 1 - 10 A - emergency OFF switch, combination instrument (permanent posi-
tive)
101229-10
Fuse 2 - 10 A - ignition, fuel injection, combination instrument (accessories con-
nected to the emergency OFF switch)
Fuse 3 - 10 A - fuel pump
Fuse 4 - 5 A - quick shifter
Fuse res. - 10 A - spare fuses
–
Use spare fuses with the correct rating only.
Fuse (58011109110) (
Fuse (58011109105) (
Tip
Replace the spare fuse in the fuse box so that it is available if needed.
–
Close the fuse box cover.
–
Fit the seat. (
p. 55)
.

p. 99)
p. 99)
p. 55)
79
.

