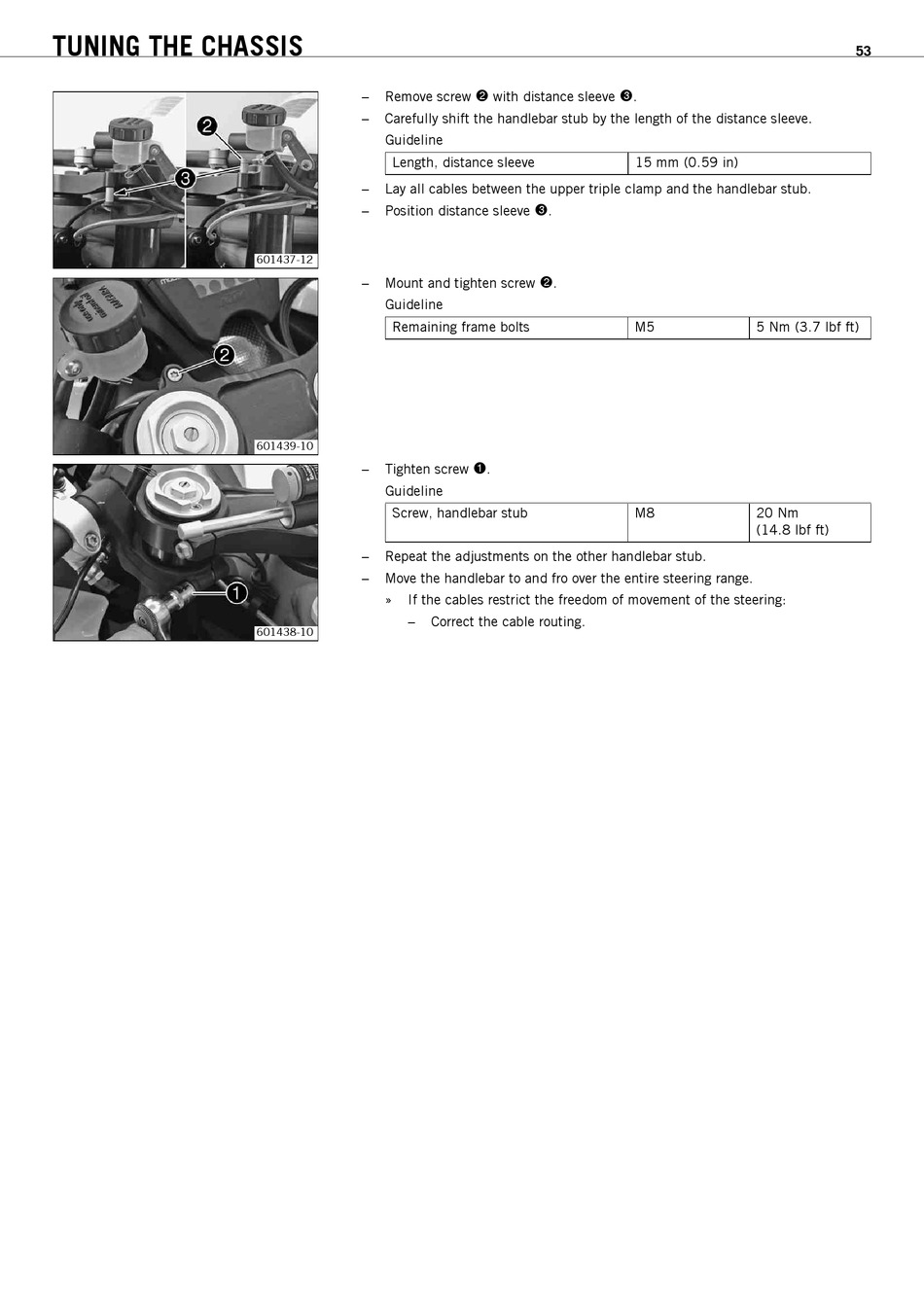

TUNING THE CHASSIS
–
Remove screw
–
Carefully shift the handlebar stub by the length of the distance sleeve.
Guideline
Length, distance sleeve
–
Lay all cables between the upper triple clamp and the handlebar stub.
–
Position distance sleeve
601437-12
–
Mount and tighten screw
Guideline
Remaining frame bolts
601439-10
–
Tighten screw
Guideline
Screw, handlebar stub
–
Repeat the adjustments on the other handlebar stub.
–
Move the handlebar to and fro over the entire steering range.
» If the cables restrict the freedom of movement of the steering:
–
601438-10
with distance sleeve

.

.

.

Correct the cable routing.
.

15 mm (0.59 in)
M5 5 Nm (3.7 lbf ft)
M8 20 Nm
(14.8 lbf ft)
53
