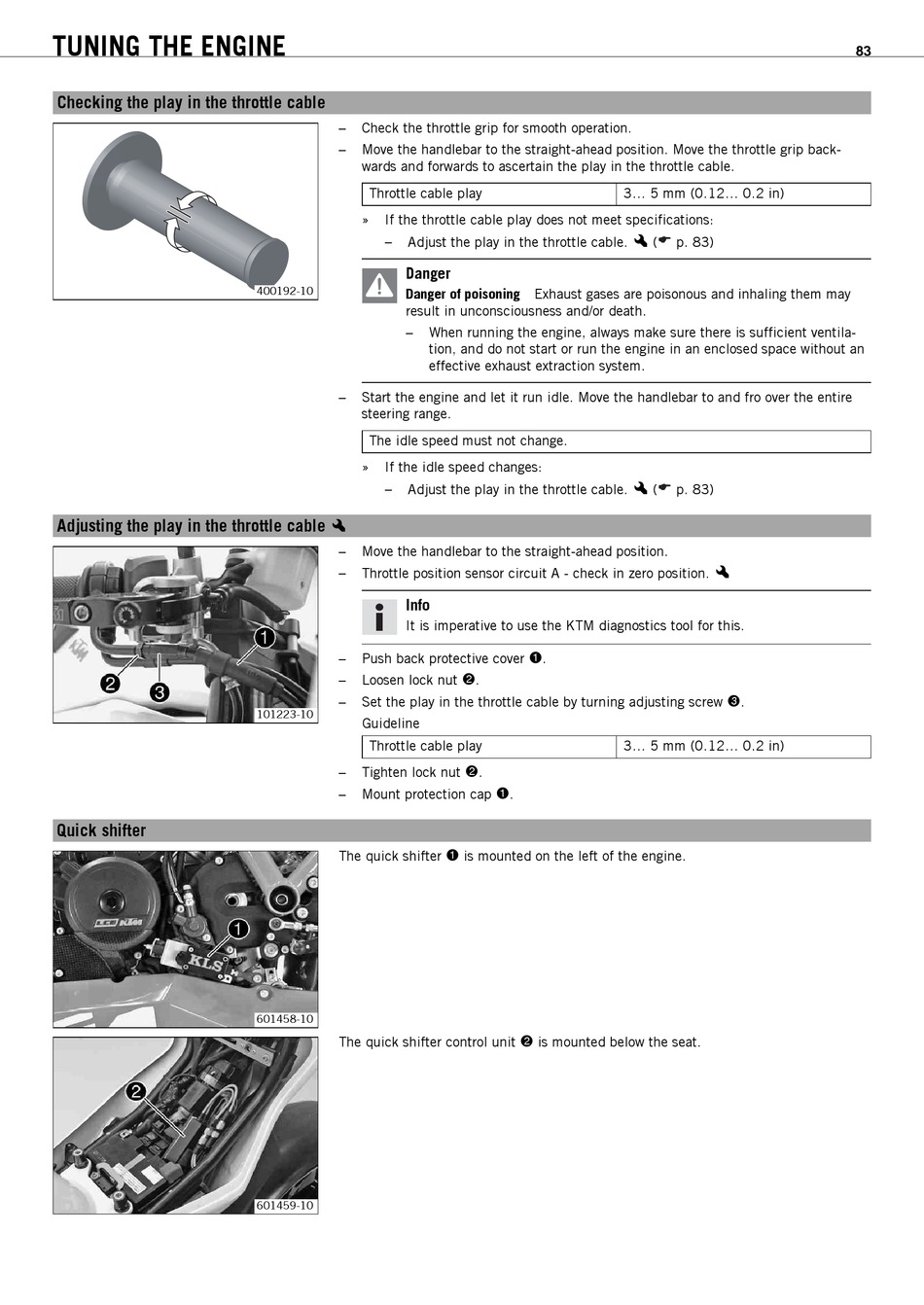

TUNING THE ENGINE

Checking the play in the throttle cable

15.1

Adjusting the play in the throttle cable

15.2

Quick shifter

15.3
–
Check the throttle grip for smooth operation.
–
Move the handlebar to the straight-ahead position. Move the throttle grip back-
wards and forwards to ascertain the play in the throttle cable.
Throttle cable play
» If the throttle cable play does not meet specifications:
–
Adjust the play in the throttle cable.
Danger
400192-10
Danger of poisoning Exhaust gases are poisonous and inhaling them may
result in unconsciousness and/or death.
–
When running the engine, always make sure there is sufficient ventila-
tion, and do not start or run the engine in an enclosed space without an
effective exhaust extraction system.
–
Start the engine and let it run idle. Move the handlebar to and fro over the entire
steering range.
The idle speed must not change.
» If the idle speed changes:
–
Adjust the play in the throttle cable.
x
–
Move the handlebar to the straight-ahead position.
–
Throttle position sensor circuit A - check in zero position.
Info
It is imperative to use the KTM diagnostics tool for this.
–
Push back protective cover
–
Loosen lock nut
–
Set the play in the throttle cable by turning adjusting screw
101223-10
Guideline
Throttle cable play
–
Tighten lock nut
–
Mount protection cap
The quick shifter
601458-10
The quick shifter control unit
601459-10
.

.

.

.

is mounted on the left of the engine.

is mounted below the seat.

3... 5 mm (0.12... 0.2 in)
( p. 83)
x
( p. 83)
x
x
.

3... 5 mm (0.12... 0.2 in)
83
