10 TUNING THE CHASSIS
10.18

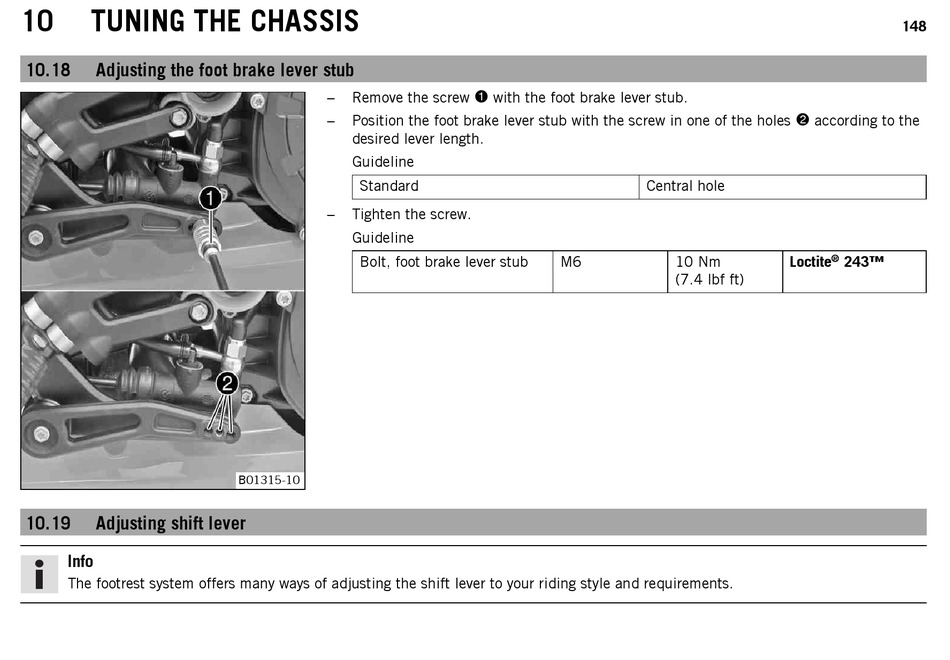

Adjusting the foot brake lever stub

10.19

Adjusting shift lever

Info
The footrest system offers many ways of adjusting the shift lever to your riding style and requirements.
–
Remove the screw
–
Position the foot brake lever stub with the screw in one of the holes
desired lever length.
Guideline
Standard
–
Tighten the screw.
Guideline
Bolt, foot brake lever stub
B01315-10
with the foot brake lever stub.
1
Central hole
M6
according to the
2
Loctite ® 243™
10 Nm
(7.4 lbf ft)
