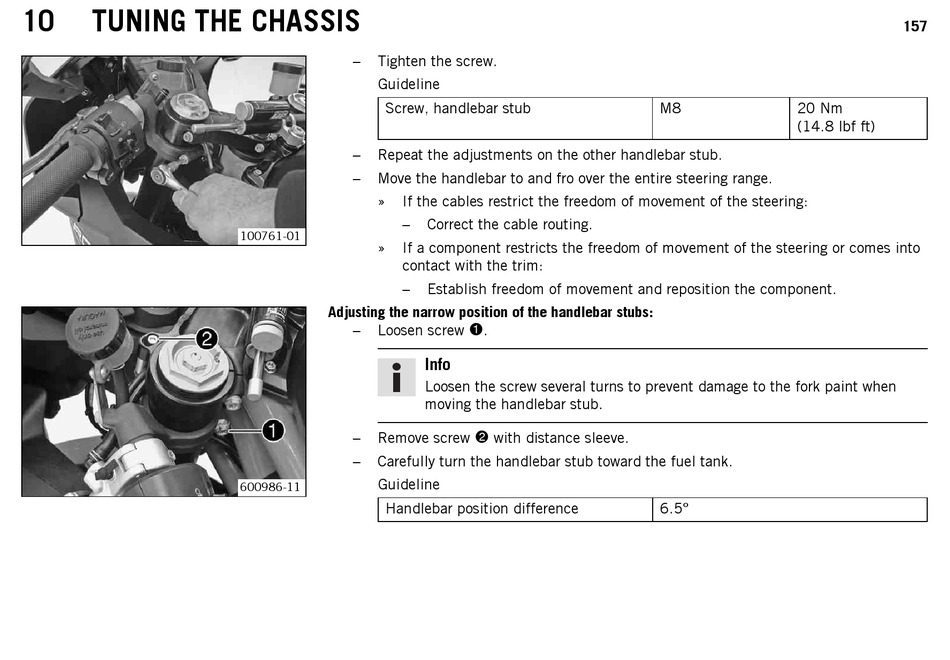

KTM 1190 RC8 R Owner's Manual page 159

10 TUNING THE CHASSIS
–
Tighten the screw.
Guideline
Screw, handlebar stub
–
Repeat the adjustments on the other handlebar stub.
–
Move the handlebar to and fro over the entire steering range.
» If the cables restrict the freedom of movement of the steering:
–
100761-01
» If a component restricts the freedom of movement of the steering or comes into
contact with the trim:
–
Adjusting the narrow position of the handlebar stubs:
–
Loosen screw
–
Remove screw
–
Carefully turn the handlebar stub toward the fuel tank.
Guideline
600986-11
Handlebar position difference
Correct the cable routing.
Establish freedom of movement and reposition the component.
.
1
Info
Loosen the screw several turns to prevent damage to the fork paint when
moving the handlebar stub.
with distance sleeve.
2
M8 20 Nm
(14.8 lbf ft)
6.5°
157
