KTM 1190 RC8 R Owner's Manual page 164

10 TUNING THE CHASSIS

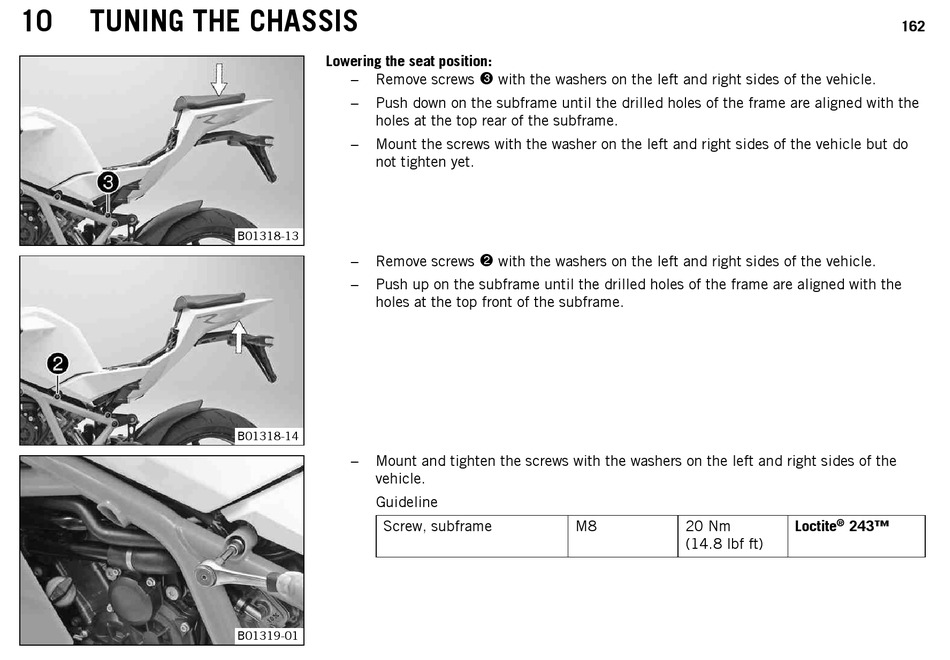

Lowering the seat position:
–
Remove screws
–
Push down on the subframe until the drilled holes of the frame are aligned with the
holes at the top rear of the subframe.
–
Mount the screws with the washer on the left and right sides of the vehicle but do
not tighten yet.
B01318-13
–
Remove screws
–
Push up on the subframe until the drilled holes of the frame are aligned with the
holes at the top front of the subframe.
B01318-14
–
Mount and tighten the screws with the washers on the left and right sides of the
vehicle.
Guideline
Screw, subframe
B01319-01
with the washers on the left and right sides of the vehicle.
3
with the washers on the left and right sides of the vehicle.
2
M8
Loctite ® 243™
20 Nm
(14.8 lbf ft)
162
