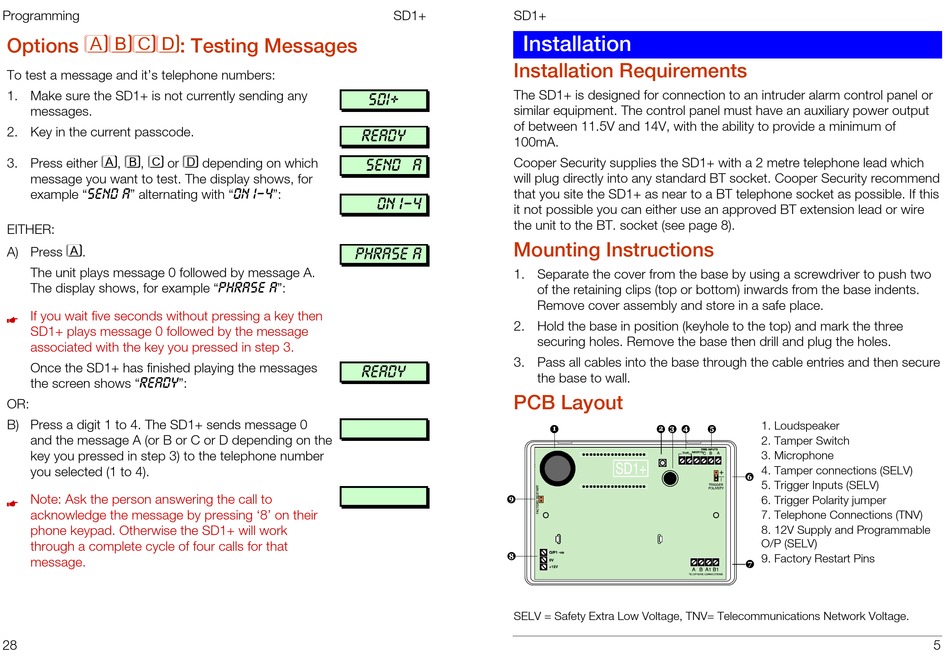

Options ABCD: Testing Messages
To test a message and it's telephone numbers:
1. Make sure the SD1+ is not currently sending any
messages.
2. Key in the current passcode.
3. Press either A, B, C or D depending on which
message you want to test. The display shows, for
example "SEND A" alternating with "ON 1-4":
EITHER:
A) Press A.
The unit plays message 0 followed by message A.
The display shows, for example "PHRASE A":
Z If you wait five seconds without pressing a key then
SD1+ plays message 0 followed by the message
associated with the key you pressed in step 3.
Once the SD1+ has finished playing the messages
the screen shows "READY":
OR:
B) Press a digit 1 to 4. The SD1+ sends message 0
and the message A (or B or C or D depending on the
key you pressed in step 3) to the telephone number
you selected (1 to 4).
Z Note: Ask the person answering the call to
acknowledge the message by pressing '8' on their
phone keypad. Otherwise the SD1+ will work
through a complete cycle of four calls for that
message.
28
SD1+ SD1+

Installation

Installation Requirements

The SD1+ is designed for connection to an intruder alarm control panel or
SD1+
similar equipment. The control panel must have an auxiliary power output
of between 11.5V and 14V, with the ability to provide a minimum of
READY
100mA.
SENDa A
Cooper Security supplies the SD1+ with a 2 metre telephone lead which
will plug directly into any standard BT socket. Cooper Security recommend
that you site the SD1+ as near to a BT telephone socket as possible. If this
ON 1-4
it not possible you can either use an approved BT extension lead or wire
the unit to the BT. socket (see page 8).

Mounting Instructions

PHRASE A
1. Separate the cover from the base by using a screwdriver to push two
2. Hold the base in position (keyhole to the top) and mark the three
3. Pass all cables into the base through the cable entries and then secure
READY

PCB Layout

SELV = Safety Extra Low Voltage, TNV= Telecommunications Network Voltage.
of the retaining clips (top or bottom) inwards from the base indents.
Remove cover assembly and store in a safe place.
securing holes. Remove the base then drill and plug the holes.
the base to wall.
1. Loudspeaker
2. Tamper Switch
3. Microphone
4. Tamper connections (SELV)
5. Trigger Inputs (SELV)
6. Trigger Polarity jumper
7. Telephone Connections (TNV)
8. 12V Supply and Programmable
O/P (SELV)
9. Factory Restart Pins
