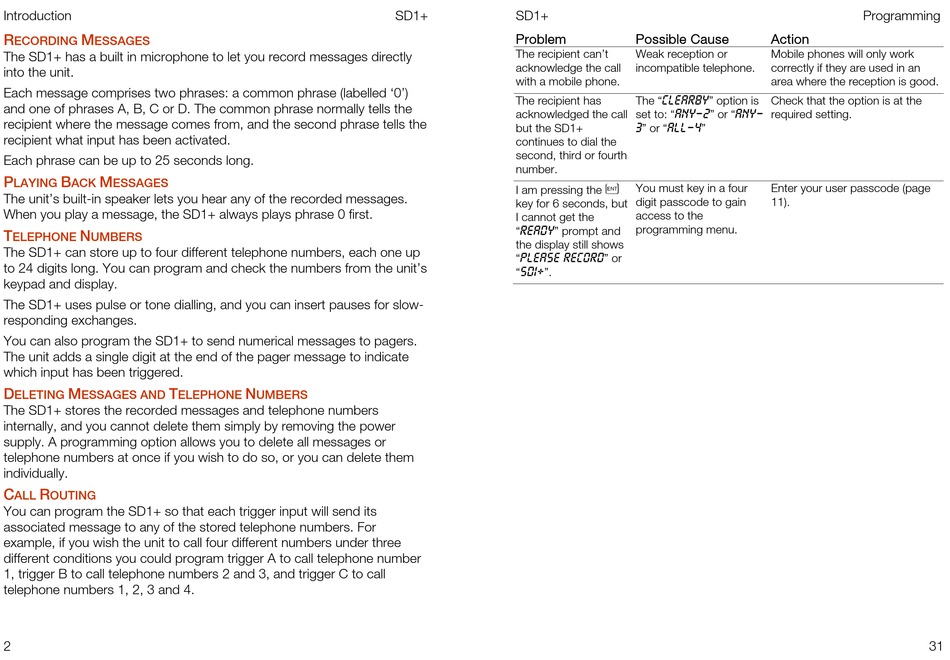

Menvier Security SD1+ Installation And Programming Manual page 4

Introduction
R M
ECORDING ESSAGES
The SD1+ has a built in microphone to let you record messages directly
into the unit.
Each message comprises two phrases: a common phrase (labelled '0')
and one of phrases A, B, C or D. The common phrase normally tells the
recipient where the message comes from, and the second phrase tells the
recipient what input has been activated.
Each phrase can be up to 25 seconds long.
P B M
LAYING ACK ESSAGES
The unit's built-in speaker lets you hear any of the recorded messages.
When you play a message, the SD1+ always plays phrase 0 first.
T N
ELEPHONE UMBERS
The SD1+ can store up to four different telephone numbers, each one up
to 24 digits long. You can program and check the numbers from the unit's
keypad and display.
The SD1+ uses pulse or tone dialling, and you can insert pauses for slow-
responding exchanges.
You can also program the SD1+ to send numerical messages to pagers.
The unit adds a single digit at the end of the pager message to indicate
which input has been triggered.
D M T
ELETING ESSAGES AND ELEPHONE
The SD1+ stores the recorded messages and telephone numbers
internally, and you cannot delete them simply by removing the power
supply. A programming option allows you to delete all messages or
telephone numbers at once if you wish to do so, or you can delete them
individually.
C R
ALL OUTING
You can program the SD1+ so that each trigger input will send its
associated message to any of the stored telephone numbers. For
example, if you wish the unit to call four different numbers under three
different conditions you could program trigger A to call telephone number
1, trigger B to call telephone numbers 2 and 3, and trigger C to call
telephone numbers 1, 2, 3 and 4.
2
SD1+
N
UMBERS
SD1+
Problem Possible Cause
The recipient can't Weak reception or
acknowledge the call incompatible telephone.
with a mobile phone.
The recipient has The "CLEARBY" option is
acknowledged the call set to: "ANY-2" or "ANY-
3" or "ALL-4"
but the SD1+
continues to dial the
second, third or fourth
number.
I am pressing the [
You must key in a four
digit passcode to gain
key for 6 seconds, but
access to the
I cannot get the
programming menu.
"READY" prompt and
the display still shows
"PLEASE RECORD" or
"SD1+".
Programming
Action
Mobile phones will only work
correctly if they are used in an
area where the reception is good.
Check that the option is at the
required setting.
Enter your user passcode (page
11).
31
