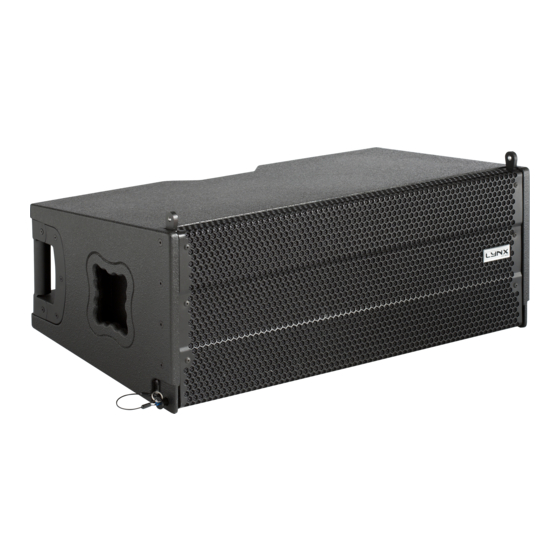

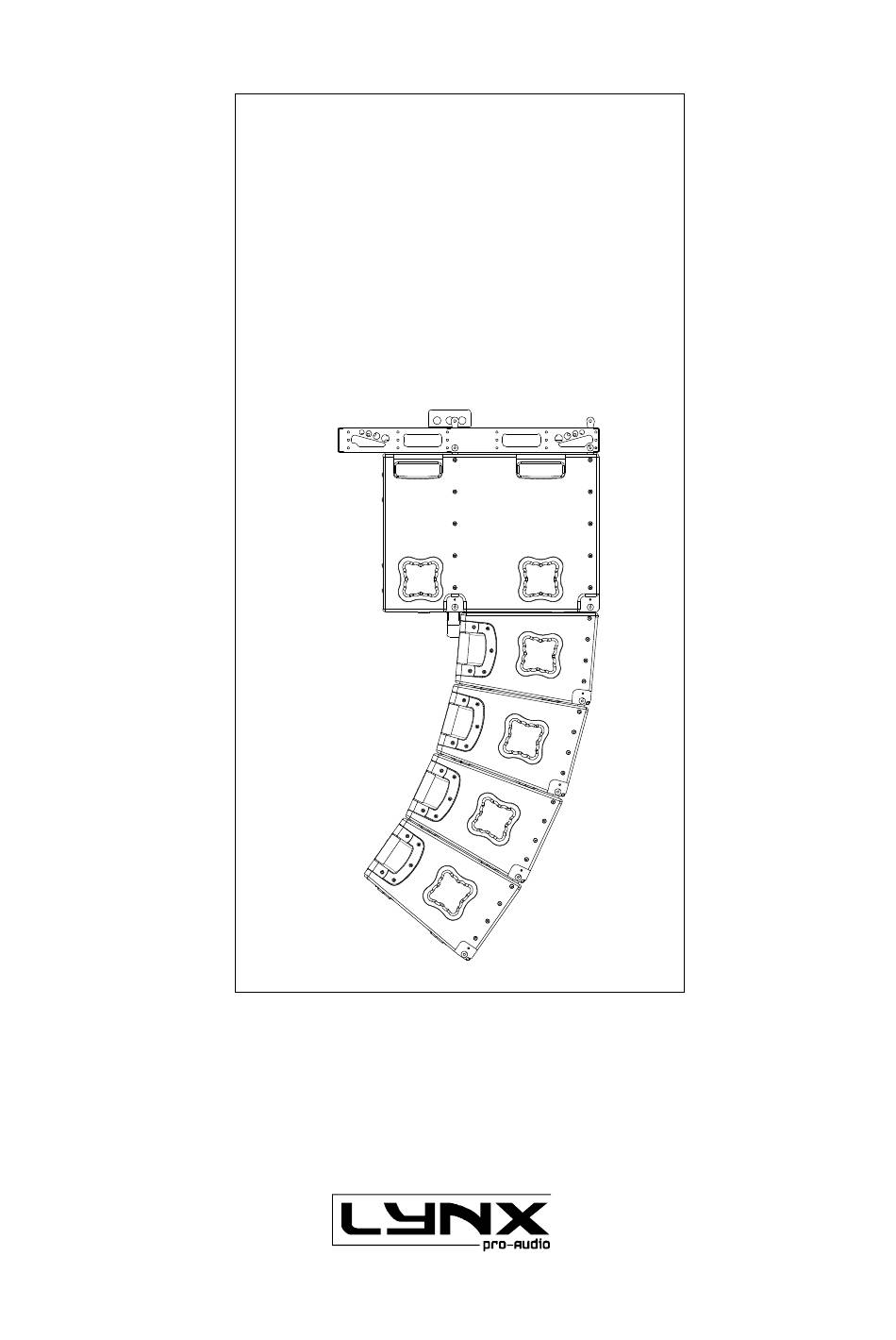

- Page 1 GXR-LA10A USER MANUAL GXR-D15A GXR-D18A V.18.06 Lynx Pro Audio S.L. Valencia, Spain - www.lynxproaudio.com - info@lynxproaudio.com...
- Page 2 LYNX Pro Audio S.L. Calle uno - Pol. Ind. Picassent E-46220 Picassent (Valencia) CE CERTIFICACTION, EUROPEAN PRODUCT This user guide is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited. Copyright 2017. All rights reserved.
-
Page 3: Table Of Contents
SELECT INPUT: DIGITAL OR ANALOGUE SELECT AND RUN PRESET - ONLINE CONTROL SYSTEM - HARDWARE AND ACCESSORIES - APPLICATION EXAMPLES - HOW TO USE OF THE FLYING FRAME - CERTIFICATIONS AND GUARANTEE LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... -
Page 4: Safety Precautions
When fl ying this system please observe the technical and “Rainbow” software data carefully. Never exceed the maximum safe working loads or ignore the instructions included within this manual. Use Only fl ying accessories provided by Lynx Pro Audio S.L. Rigging must be always carried out by professionals. -
Page 5: System Overview
LF Amplifi er 1 x 800 W Dimensions (H x W x D) 298 x 790 x 436 mm HF Amplifi er 1 x 600 W Weight 31 Kg (68 lbs) LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... -
Page 6: Gxr-D15A
18mm Premium birch plywood power supply & PFC Dimensions (H x W x D) 505 x 790 x 690 mm LF Amplifi er 2 x 1200 W Weight 63 Kg (139 lbs) LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... -
Page 7: Gxr-D18A
18mm Premium birch plywood power supply & PFC Dimensions (H x W x D) 605 x 1100 x 750 mm LF Amplifi er 2 x 1200 W Weight 92 Kg (202 lbs) LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... -
Page 8: Back Panel
GXR BACK PANEL This is the back pannel of the GXR-LA10A tops, icluding the connectors and digital control display. USB connection LCD display & digital control Main input Signal Main Signal * Ethernet Output Link Input OPTIONAL Both cabinets GXR-D15A and GXR-D18A have the same rear pannel, including the connectors and digital control display. -
Page 9: Connectors And Connections
. XLR SOCKET CONNECTORS XLR AEREAL CONNECTORS INPUTS 1.- EARTH 2.- LIVE (+) 3.- LIVE (-) OUTPUTS 1.- EARTH 2.- LIVE (+) 3.- LIVE (-) LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... - Page 10 FLOWN CONNECTION EXAMPLE (mono channel) Four tops GXR-LA10A + two subs GXR-D15A Link AC main input Link Link Link AC main input Signal input LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
- Page 11 STACKED CONNECTION EXAMPLE (mono channel) Three tops GXR-LA10A + one sub GXR-D-15A Link Link AC main input AC main input Signal input STACKED LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
-
Page 12: Connection Examples
CONNECTION EXAMPLE (mono channel) Four tops GXR-LA10A + two subs GXR-D18A Link Link Link AC main input Signal input Signal input Link Link AC main input LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... -
Page 13: Fir Filters
FIR FILTERS Finite Impulse Response (FIR) fi lters are used in the signal processing of the GXR-LA10A cabinet. FIR is a type of digital fi lter with linear phase characteristics. This frees system designers from the constraints of phase anomalies associated with analogue fi... -
Page 14: Select Input: Digital Or Analogue
OK (3) until the progress bar fi nishes (Fig 3). The display will indicate “Loading DSP” (Fig 4) Fig 2 Fig 3 Fig 4 Note: In case of a power cut, the DSP will save its last confi guration when restarted. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... -
Page 15: Online Control System
ONLINE CONTROL SYSTEM Who is it for? Users of Self powered DSP incorporated Lynx Pro Audio Cabinets where the user has requested the cabinets be supplied with the Ethernet Module kit. What is it for? Obtain detailed information of cabinet behaviour and monitor the cabinet/s in real time. You can change the preset, gain, mute, polarity and phase. -
Page 16: Hardware And Accessories
Ball pin with thread for FD-1GXRD18ANL GXR-LA10A and Rain cover for the GXR-D15A cabinets back panel of the GXR cabinets SV-GXRLA10A FC-GXRLA10A Flying frame designed for Flight case rigging the GXR cabinets LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... -
Page 17: Application Examples
FOR A MULTITUDE OF APPLICATIONS LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... - Page 18 FOR A MULTITUDE OF APPLICATIONS LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
-
Page 19: How To Use Of The Flying Frame
All the cabinets are hung from this fl ying frame, one beneath the other correspondingly. Diff erent accessory pieces are available to fi t all your needs. EXTERNAL UPPER PIECE BALL-PINS FLYING FRAME TO FIT BALL-PINS TO FIT TO FIT LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com... - Page 20 Fix the shackles to the elevation system (e.g motors, lifts) and elevate enough so as to fi x the SV-GXR on to the fi rst cabinet (GXR-LA10A or sub GXR-D15A) so that the link of support fi t in to position in the upper lateral fi xing points of the cabinet.
- Page 21 When using the fl ying frame with the GXR-LA10A enclosures they are supported via 2 fi xing points incorporated in each side of the cabinet. And other 2 fi xing points at the special support piece provided. All the fi xations are made by a special steel pin, designed for maximum security.
- Page 22 All the fi xations are made by a special steel pin, designed for maximum security. BALL-PIN TO FIT TO FIT TO FIT BALL-PIN TO FIT BALL-PINS BALL-PIN Note: Ensure all pins on all cabinets are inserted correctly and fully in their corresponding holes. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
- Page 23 When fl ying the GXR-LA10A in combination with the subs GXR-D15A you must use the GXR connection piece as indicated below. BALL-PIN GXR-D15A BALL-PIN Connection Piece GXR-LA10A ANGULATION The support of the cabinets to the fl ying system and between them is carried out with special 6mm steel pins. To extract or fi...
- Page 24 If the system is installed outdoors check that the support structure will be stable against the wind strength and secure it with a cable to avoid pendular movement. Do not stand underneath the system. LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com...
- Page 25 A very practical transport dolly is available for touring applications. This dolly transport up to 4 top enclosures including the fl ying frame. And a nylon protection cover is also available for this pack. LYNX Pro Audio S.L. - Valencia, Spain -...
-
Page 26: Certifications And Guarantee
Calle 1 - Pol. Ind. Picassent 46220 Picassent (Valencia) SPAIN - EU Tel.: (+34) 961 10 96 01 www.lynxproaudio.com Lynx Pro Audio S.L. declares that GXR series are in conformity with the following EC directives: Low Voltage Directive 2006/95/EC Electromagnetic Compatibility EMC 2004/108/EC... - Page 27 Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L.
